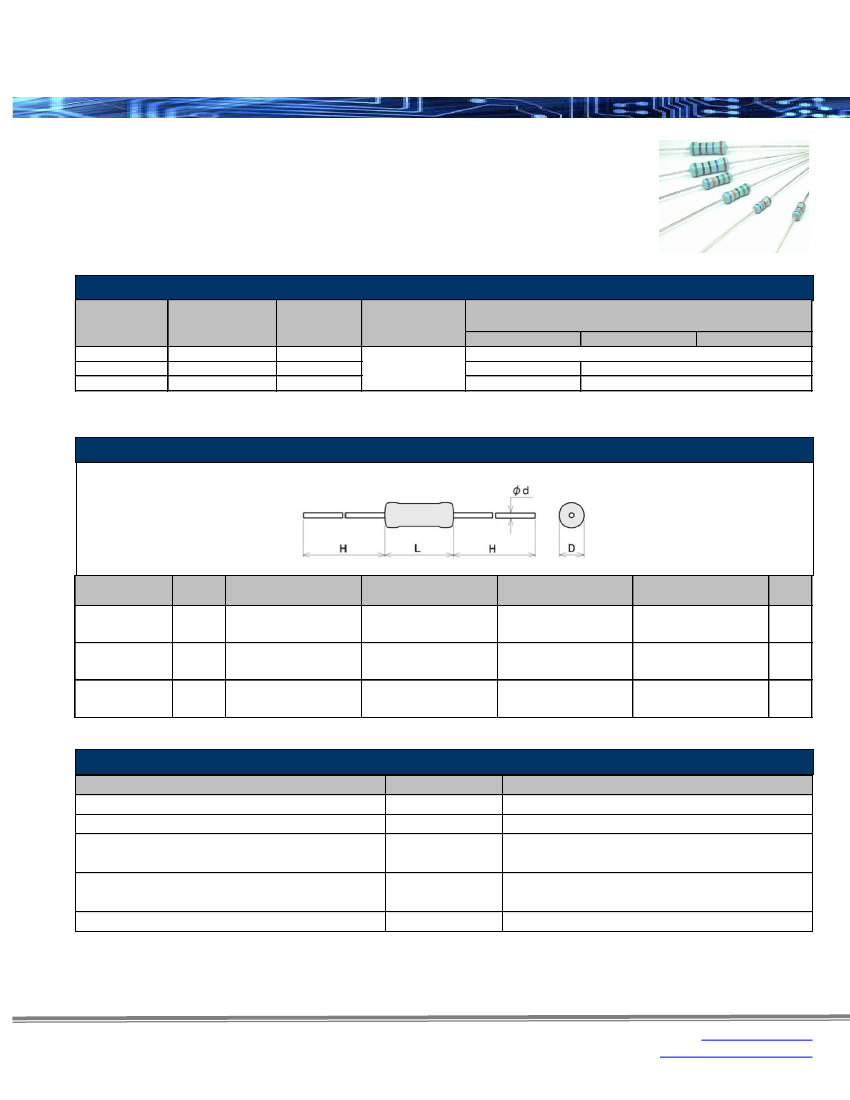

HVA Series
High Voltage Axial Leaded Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Features:
•
•
•
•
•
High resistance for high voltage circuits
High voltage handling in small package size
More economical than comparable high voltage resistors
VCR less than 20 ppm/V
RoHS compliant
Electrical Specifications
Maximum
Resistance
Ohmic Range (Ω) and Tolerance
Type/Code
Working
Temperature
Voltage
1%
Coefficient
5%
HVA05
0.5W
3500V
1M - 500M
±200 ppm/ºC
HVA08
0.8W
7000V
1M - 500M
1M - 1G
HVA12
1.2W
8000V
1M - 500M
1M - 1G
Rated voltage = √Power Rating x Nominal Resistance or Maximum Working voltage, whichever is lower.
Power Rating
(Watts)
10%
Mechanical Specifications
Type/Code
HVA05
HVA08
HVA12
Weight
(mg)
210
330
570
L
Body Length
0.236 ± 0.008
6.00 ± 0.20
0.335 ± 0.039
8.50 ± 1.00
0.433 ± 0.039
11.00 ± 1.00
D
Body Diameter
0.098 ± 0.020
2.50 ± 0.50
0.118 ± 0.020
3.00 ± 0.50
0.157 ± 0.020
4.00 ± 0.50
d
Lead Diameter
0.022 ± 0.002
0.55 ± 0.05
0.022 ± 0.002
0.55 ± 0.05
0.022 ± 0.002
0.55 ± 0.05
H
Lead Length (bulk)
1.102 ± 0.118
28.00 ± 3.00
1.102 ± 0.118
28.00 ± 3.00
1.102 ± 0.118
28.00 ± 3.00
Unit
inches
mm
inches
mm
inches
mm
Performance Characteristics
Test
Temperature Coefficient of Resistance (ppm/ºC)
Rapid Change of Temperature
Damp Heat (steady state)
Endurance (at 70°C)
Resistance to Soldering Heat
Reference standards: JIS-C5201-1, IEC60115-1
Operating Temperature Range: -25ºC to +125ºC
Test Specification
±200 ppm/ºC
±1%
±5%
±5%
±1%
Test Condition and Method
25°C ~ 125°C
-25°C (30 minutes)/+125°C (30 minutes) - 5 cycles
40 ± 2°C 93 ± 3% R.H. 0.1 x Rated Voltage
90 minutes ON, 30 minutes OFF - 1000 hours
Room temperature. Rated Voltage
90 minutes ON, 30 minutes OFF - 1000 hours
260 ± 5°C, 10 ± 1 second
Rev Date: 11/27/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
HVA Series
High Voltage Axial Leaded Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

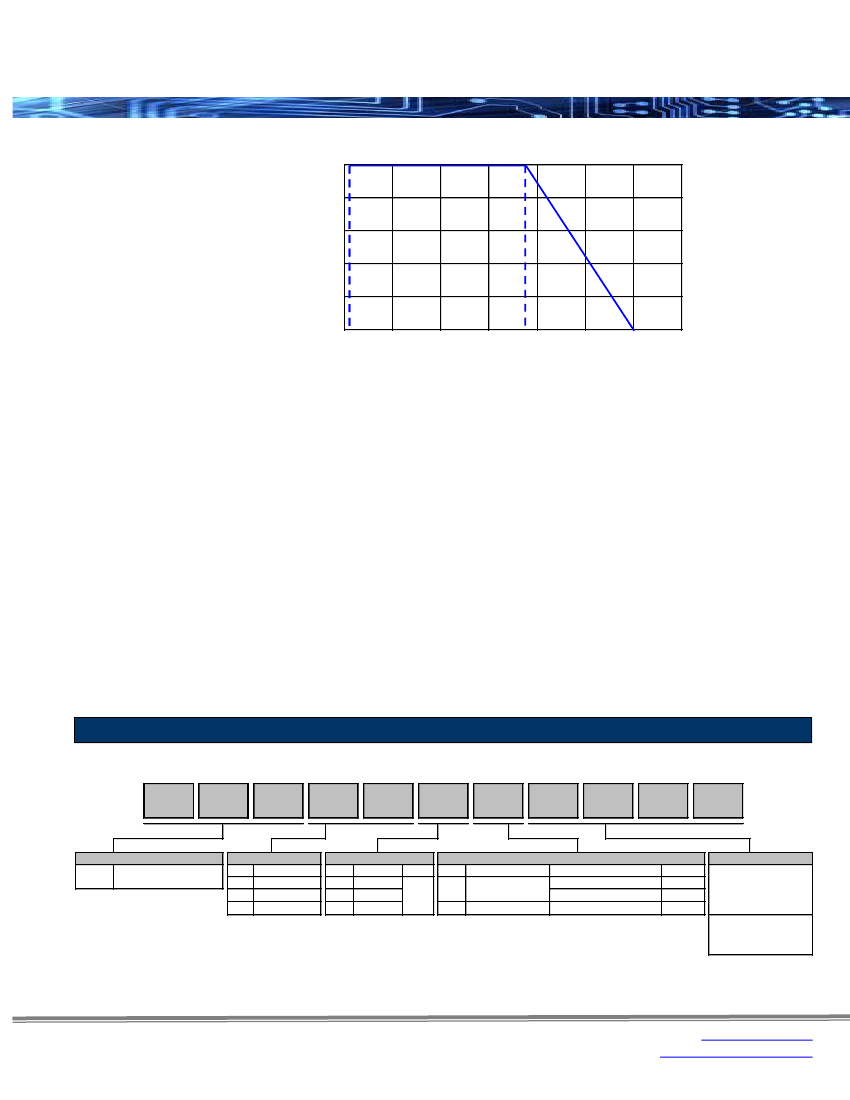

Power Derating Curve:
100
-55ºC
70ºC
Percent Rated Power (%)
80
60
40
20
0
-25
0
25
50
75
100
125
150
Ambient Temperature (ºC)
“Conflict Metals” Commitment
We at Stackpole Electronics, Inc. are joined with our industry in opposing the use of metals mined in the “conflict region” of the
eastern Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals used in the
electronics industry is very complex, we work closely with our own suppliers to verify to the extent possible that the materials and
products we supply do not contain metals sourced from this conflict region. As such, we are in compliance with the requirements of
Dodd-Frank Act regarding Conflict Minerals.
Compliance to “REACH”
We certify that all passive components supplied by Stackpole Electronics, Inc. are SVHC (Substances of Very High Concern) free
and compliant with the requirements of EU Directive 1907/2006/EC, “The Registration, Evaluation, Authorization and Restriction of
Chemicals”, otherwise referred to as REACH. Contact us for complete list of REACH Substance Candidate List.
Environmental Policy
It is the policy of Stackpole Electronics, Inc. (SEI) to protect the environment in all localities in which we operate. We continually
strive to improve our effect on the environment. We observe all applicable laws and regulations regarding the protection of our
environment and all requests related to the environment to which we have agreed. We are committed to the prevention of all forms
of pollution.
How to Order
1
2
3
4
5
6
7
8
9
10
11
H
V
A
0
5
F
B
1
M
0
0
HVA
Product Series
High voltage Axial
Leaded Resistor
Power Rating
Size Power Rating
05
0.5W
08
0.8W
12
1.2W
Code
F
J
K
Tolerance
Tol
Value
1%
5%
E24
10%
Packaging
Code
A
B
Description
Ammo
Bulk
Size
05, 08
12
all sizes
Quantity
2,000
1,000
1,000
Resistance Value
Four characters with
the multiplier used as
the decimal holder.
1 Mohm = 1M00
50 Mohm = 50M0
1 Gohm = 1G00
Rev Date: 11/27/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
