ERA-S27J681V: DescriptionRES TEMP SENS 680 OHM 5% 1/10W; CategoryPassive components; File Size110KB，5 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ERA-S27J681V Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ERA-S27J681V	-	-	View	Buy Now

ERA-S27J681V Overview

RES TEMP SENS 680 OHM 5% 1/10W

ERA-S27J681V Parametric

Parameter Name	Attribute value
type	Temperature sensitive
application	temperature correction circuit
component	metal film
resistance	680 Ohms
Tolerance	±5%
Power (W)	0.1W，1/10W
Temperature Coefficient	2700ppm/°C
Operating temperature	-40°C ~ 125°C
Installation type	surface mount

Preview

Download Datasheet

View All

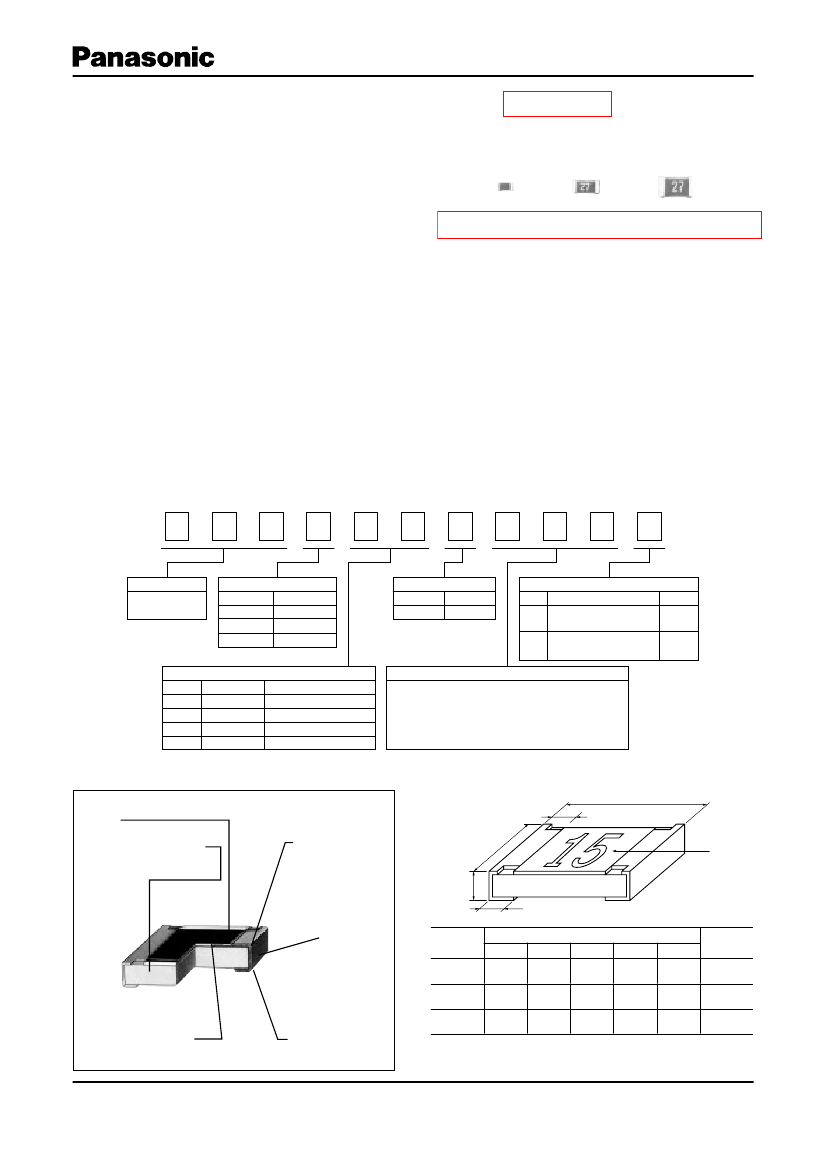

Metal Film Thermosensitive Chip Resistors

0402, 0603, 0805

Type:

Discontinued

ERAW, V, S

・Planed final production: March.2018

●

Suitable for temperature correction circuits

–6

●

Temperature coefﬁcient value 1500 to 3900 10 /°C

●

High performance

Quick response to temperature change

●

Linearity

Excellent linear resistance value change in wide temperature range (–40 °C to +125 °C)

●

High reliability, High density placing

●

Small size and lightweight for PWB size reduction and lightweight products

●

Suitable for both reﬂow and ﬂow soldering

●

Reference Standards

IEC 60115-8, JIS C 5201-8, EIAJ RC-2145

●

RoHS compliant

■

Features

■

Explanation of Part Numbers

Product Code

Metal Film

Chip Resistors

Size, Power Rating

Type: inches Power Rating

W : 0402

0.031 W

V : 0603

0.063 W

S : 0805

0.1 W

Resistance Tolerance

Code

Tol.

Packaging Methods

Packaging

Type

Code

Punched Carrier Taping

ERAW

2 mm pitch, 10,000 pcs.

Punched Carrier Taping ERAV

4 mm pitch, 5,000 pcs. ERAS

Temperature Coefficient of Resistance

Code

Type

( 10

–6

/°C)

ERAV, ERAS

1500

ERAW, ERAV, ERAS

2700

ERAW, ERAV, ERAS

3300

ERAV, ERAS

3900

Resistance Value

The first two digits are significant figures of

resistance and the third one denotes number of

zeros following. Decimal point is expressed by “R ”.

(ex.) 103 : 10 k

6R8 : 6.8

■

Construction

Protective coating

Electrode (Inner)

■

Dimensions in mm (not to scale)

Alumina substrate

(1)

Electrode

(Between)

Type

(inches)

ERAW

(0402)

ERAV

(0603)

Thermosensitive

element

ERAS

(0805)

Electrode (Outer)

Dimensions (mm)

1.00

1.60

2.00

±0.07

0.50

0.80

1.25

±0.05

0.15

±0.10

0.25

0.30

0.40

±0.07

0.35

0.45

0.50

±0.05

Mass (Weight)

[g/1000 pcs.]

0.6

±0.20

0.30

0.40

±0.20

±0.10

±0.20

±0.10

±0.25

±0.10

1) Marking Temperture Coefﬁcient value :

–6

2 signiﬁcant ﬁgure 100 10 /°C

ERAW type is no marking.

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

00 Oct. 2010

Metal Film Thermosensitive Chip Resistors

■

Recommended Soldering Conditions

Recommendations and precautions are described below.

●

Recommended soldering conditions for reﬂow

· Reﬂow soldering shall be performed a maximum of

two times.

· Please contact us for additional information when

used in conditions other than those speciﬁed.

· Please measure the temperature of the terminals

and study every kind of solder and printed circuit

board for solderability before actual use.

Peak

Temperature

Preheating

Heating

For soldering (Example : Sn/Pb)

Preheating

Main heating

Peak

Temperature

140 °C to 160 °C

Above 200 °C

235 ± 5 °C

Time

60 s to 120 s

30 s to 40 s

max. 10 s

For lead-free soldering (Example : Sn/Ag/Cu)

Temperature

Time

Preheating

150 °C to 180 °C

60 s to 120 s

Main heating

Above 230 °C

30 s to 40 s

Peak

max. 260 °C

max. 10 s

Time

●

Recommended soldering conditions for ﬂow

For soldering

Temperature

Time

140 °C to 180 °C

60 s to 120 s

245 ± 5 °C

20 s to 30 s

For lead-free soldering

Temperature

Time

150 °C to 180 °C

60 s to 120 s

max. 260 °C

max. 10 s

Preheating

Soldering

Safety Precautions

The following are precautions for individual products. Please also refer to the precautions common to Fixed Resistors

shown on page ER2 of this catalog.

1. Keep the rated power and ambient temperature within the speciﬁed derating curve.

* When positioning and mounting Metal Film Thermosensitive Chip Resistors (hereafter called the resistors), make

allowance for the effect of heat generated through close contact between the resistors and neighboring components

and for the temperature rise of adjacent heat-generating components.

2. If a transient load (heavy load in a short time) like a pulse is expected to be applied, check and evaluate the operations

of the resistors when installed in your products before use.

When applying pulses to the resistors, keep the pulse peak within the rated voltage.

3. Do not use halogen-based or other high-activity ﬂux. Otherwise, the residue may impair the resistors' performance

and/or reliability.

4. When soldering with a soldering iron, never touch the resistors' bodies with the tip of the soldering iron. When using a

soldering iron with a high temperature tip, ﬁnish soldering as quickly as possible (within three seconds at 350 °C max.).

5. As the amount of applied solder becomes larger, the mechanical stress applied to the resistors increases, causing

problems such as cracks and faulty characteristics. Avoid applying an excessive amount of solder.

6. When the resistors' protective coatings are chipped, ﬂawed, or removed, the characteristics of the resistors may be

impaired. Take special care not to apply mechanical shock during automatic mounting or cause damage during

handling of the boards with the resistors mounted.

7. Do not apply shock to the resistors or pinch them with a hard tool (e.g. pliers and tweezers). Otherwise, the resistors'

protective coatings and bodies may be chipped, affecting their performance.

8. Avoid excessive bending of printed circuit boards in order to protect the resistors from abnormal stress.

9. Do not immerse the resistors in solvent for a long time. Before using solvent, carefully check the effects of immersion.

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

00 Sep. 2010

Safety Precautions (Common precautions for Fixed Resistors)

• When using our products, no matter what sort of equipment they might be used for, be sure to make a written

agreement on the speciﬁcations with us in advance. The design and speciﬁcations in this catalog are subject

to change without prior notice.

• Do not use the products beyond the speciﬁcations described in this catalog.

• This catalog explains the quality and performance of the products as individual components. Before use, check

and evaluate their operations when installed in your products.

• Install the following systems for a failsafe design to ensure safety if these products are to be used in equipment

where a defect in these products may cause the loss of human life or other signiﬁcant damage, such as damage to

vehicles (automobile, train, vessel), traffic lights, medical equipment, aerospace equipment, electric heating

appliances, combustion/gas equipment, rotating equipment, and disaster/crime prevention equipment.

Systems equipped with a protection circuit and a protection device

Systems equipped with a redundant circuit or other system to prevent an unsafe status in the event of a single fault

(1) Precautions for use

• These products are designed and manufactured for general and standard use in general electronic equipment

(e.g. AV equipment, home electric appliances, ofﬁce equipment, information and communication equipment)

• These products are not intended for use in the following special conditions. Before using the products,

carefully check the effects on their quality and performance, and determine whether or not they can be used.

1. In liquid, such as water, oil, chemicals, or organic solvent

2. In direct sunlight, outdoors, or in dust

3. In salty air or air with a high concentration of corrosive gas, such as Cl

, H

S, NH

, SO

, or NO

4. Electric Static Discharge (ESD) Environment

These components are sensitive to static electricity and can be damaged under static shock (ESD).

Please take measures to avoid any of these environments.

Smaller components are more sensitive to ESD environment.

5. Electromagnetic Environment

Avoid any environment where strong electromagnetic waves exist.

6. In an environment where these products cause dew condensation

7. Sealing or coating of these products or a printed circuit board on which these products are mounted, with

resin or other materials

• These products generate Joule heat when energized. Carefully position these products so that their heat will

not affect the other components.

• Carefully position these products so that their temperatures will not exceed the category temperature range due

to the effects of neighboring heat-generating components. Do not mount or place heat-generating components

or inﬂammables, such as vinyl-coated wires, near these products.

• Note that non-cleaning solder, halogen-based highly active flux, or water-soluble flux may deteriorate the

performance or reliability of the products.

• Carefully select a ﬂux cleaning agent for use after soldering. An unsuitable agent may deteriorate the performance

or reliability. In particular, when using water or a water-soluble cleaning agent, be careful not to leave water

residues. Otherwise, the insulation performance may be deteriorated.

(2) Precautions for storage

The performance of these products, including the solderability, is guaranteed for a year from the date of arrival

at your company, provided that they remain packed as they were when delivered and stored at a temperature

of 5 °C to 35 °C and a relative humidity of 45 % to 85 %.

Even within the above guarantee periods, do not store these products in the following conditions. Otherwise,

their electrical performance and/or solderability may be deteriorated, and the packaging materials (e.g. taping

materials) may be deformed or deteriorated, resulting in mounting failures.

1. In salty air or in air with a high concentration of corrosive gas, such as Cl

, H

S, NH

, SO

, or NO

2. In direct sunlight

Package markings include the product number, quantity, and country of origin.

In principle, the country of origin should be indicated in English.

01 Aug. 2012

–2–
