1241.6962.1120065 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 1241.6962.1120065

1241.6962.1120065: DescriptionPushbutton Switch, DPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size867KB，18 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

1241.6962.1120065 Overview

Pushbutton Switch, DPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT

1241.6962.1120065 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
body height	37.1 mm
Body length or diameter	34 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	125 V
Electrical life	200000 Cycle(s)
Manufacturer's serial number	1241
Installation features	PANEL MOUNT-THREADED
Maximum operating force	5 N
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
method of packing	BOX
seal	IP40
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

SCHURTER GmbH

D – 79346 Endingen

www.schurter.com

Product manual

Vandal-proof MSM DP switch

CONTENTS

CONTENTS ............................................................................................................................. 1

PRODUCT DESCRIPTION ............................................................................................... 3

TECHNICAL DATA AND DIMENSIONAL DRAWINGS ................................................... 3

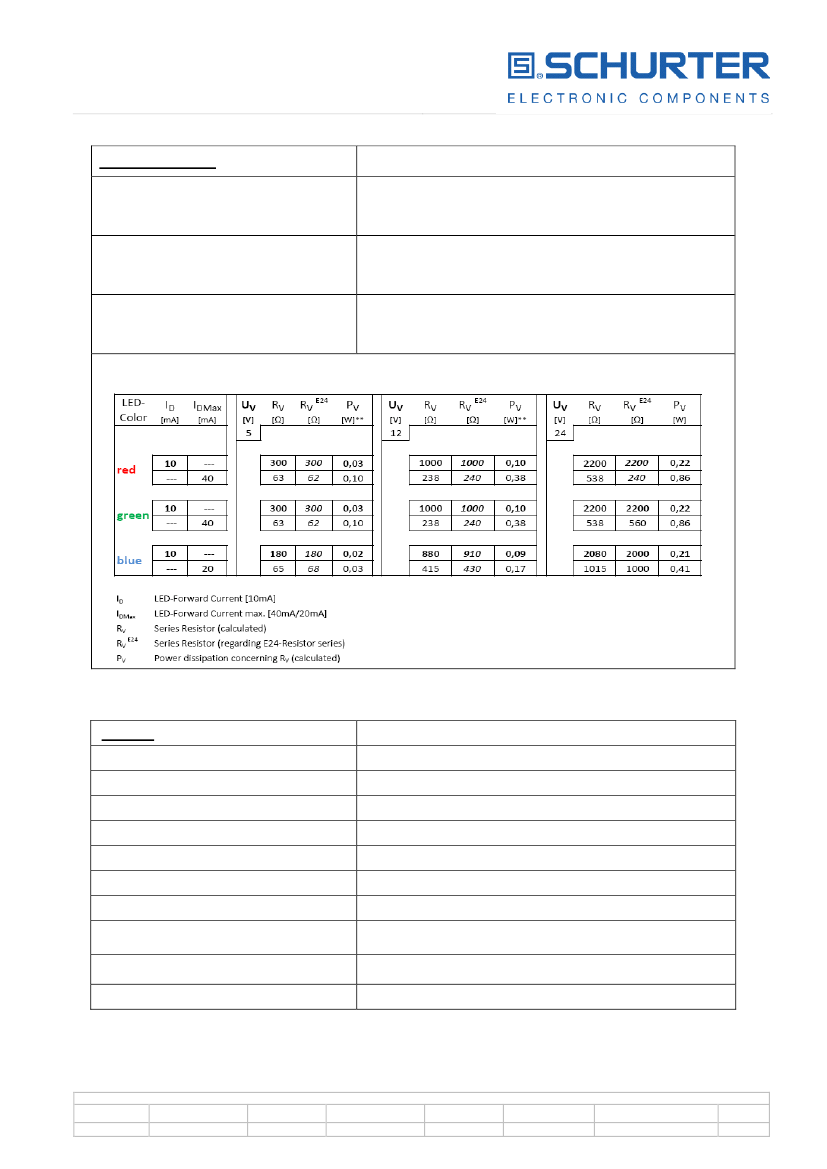

2.1 Technical Data

......................................................................................................................3

2.2 Component dimensions

.......................................................................................................6

2.2.1 Component dimensions MSM 19 DP

................................................................................................ 6

2.2.2 Component dimensions MSM 22 DP

................................................................................................ 7

2.2.3 Component dimensions MSM 30 DP

................................................................................................ 8

2.3 Actuator Tolerance Range

..................................................................................................9

2.4 Hole dimensions

..................................................................................................................10

2.5 Starting Torque

....................................................................................................................11

2.6 Switching Symbols

..............................................................................................................11

2.7 Accessories

..........................................................................................................................11

ORDER NUMBERS ........................................................................................................ 12

3.1 Order numbers MSM with micro switches of protection class IP40

(double-pole)

.......................................................................................................................12

3.2 Lettering

................................................................................................................................13

ASSEMBLY .................................................................................................................... 15

4.1 Installation

............................................................................................................................15

PACKAGING .................................................................................................................. 16

Changes that contribute to technical improvement are subject to alternations

Seite

1 of 18

Erstelldatum:

07.03.2008

Ersteller:

Schillak

Änderungsdatum: Geändert von:

07.12.2010

Schillak

Änderungs-Nr.

10321

Datenblatt Nr.

Index

105.9534

Print date: 10/12/2010 14:41:00

1241.6962.1120065 Related Products

	1241.6962.1120065	1241.6932.1120065	1241.6922.1120065	1241.6962.1120066	1241.6932.1120066	1241.6922.1120066
Description	Pushbutton Switch, DPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT	Pushbutton Switch, DPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT	Pushbutton Switch, DPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT	Pushbutton Switch, DPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT	Pushbutton Switch, DPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT	Pushbutton Switch, DPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compli	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body height	37.1 mm	39.15 mm	37.4 mm	37.1 mm	39.15 mm	37.4 mm
Body length or diameter	34 mm	25 mm	22 mm	34 mm	25 mm	22 mm
Contact (AC) maximum rated R load	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A	5 A	5 A
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V	125 V
Electrical life	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)
Manufacturer's serial number	1241	1241	1241	1241	1241	1241
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating force	5 N	5 N	5 N	5 N	5 N	5 N
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
method of packing	BOX	BOX	BOX	BOX	BOX	BOX
seal	IP40	IP40	IP40	IP40	IP40	IP40
surface mount	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Termination type	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
Base Number Matches	1	1	1	1	1	1
