SI52111-B4-GT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> SI52111-B4-GT

SI52111-B4-GT: DescriptionIC CLOCK GENERATOR PCIE 8TSSOP; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，20 Pages; ManufacturerSilicon Laboratories Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

SI52111-B4-GT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SI52111-B4-GT	-	-	View	Buy Now

SI52111-B4-GT Overview

IC CLOCK GENERATOR PCIE 8TSSOP

SI52111-B4-GT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Silicon Laboratories Inc
package instruction	TSSOP,
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-30 code	R-PDSO-G8
length	4.4 mm
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	100 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Master clock/crystal nominal frequency	25 MHz
Maximum seat height	1.2 mm
Maximum supply voltage	3.46 V
Minimum supply voltage	3.13 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC

Preview

Download Datasheet

View All

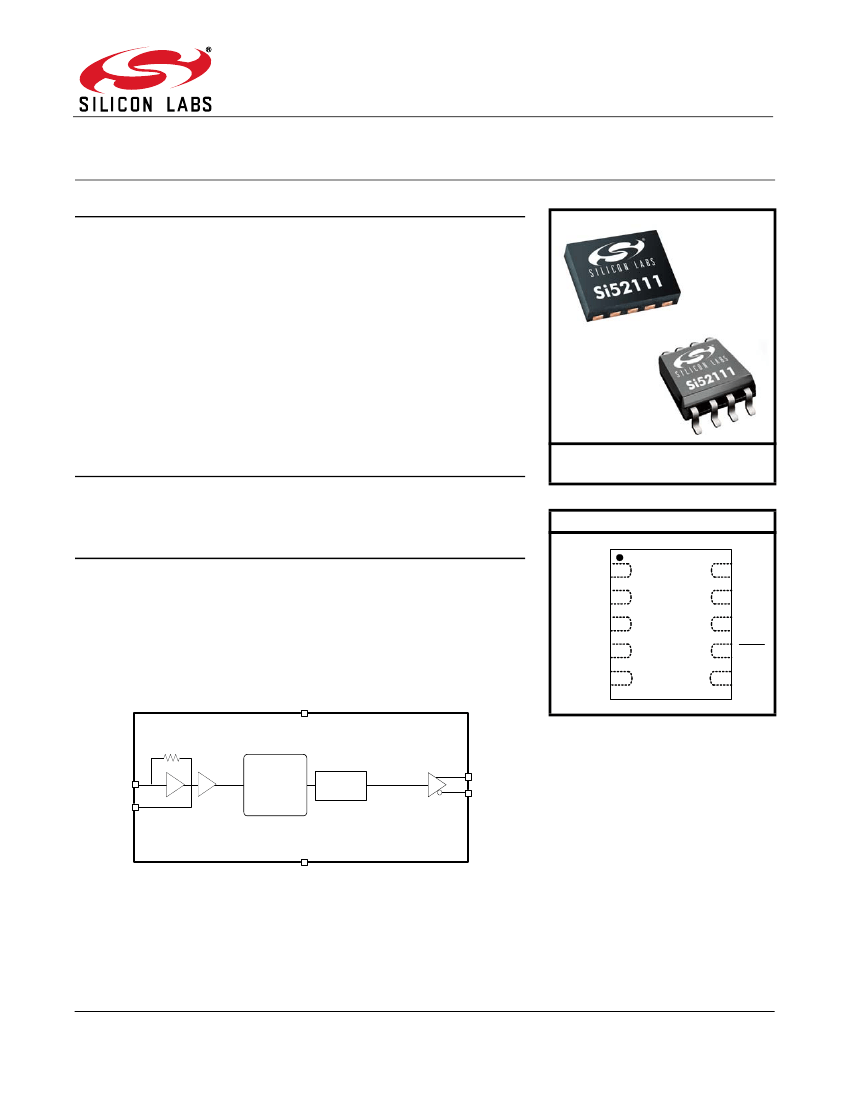

S i5 2111- B3/ B 4

PCI-E

XPRESS

2 S

INGLE

UTPUT

LOCK

ENERATOR

Features



PCI-Express Gen 1 and Gen 2



compliant

Low power HCSL differential



output buffer



Supports Serial-ATA (SATA) at

100 MHz



No termination resistors required

25 MHz Crystal Input or Clock



input

Triangular spread spectrum



profile for maximum EMI

reduction (Si52111-B4)

Extended Temperature:

–40 to 85 °C

3.3 V Power supply

Small package 10-pin TDFN

(3x3 mm)

Si52111-B3 does not support

spread spectrum outputs

Si52111-B4 supports 0.5% down

spread outputs

For PCIe Gen 3 applications, see

Si52111-B5/B6

Ordering Information:

See page 13

Applications

Network Attached Storage



Multi-function Printer



Wireless Access Point



Routers



Pin Assignments

Description

Si52111-B3/B4 is a high-performance, PCIe clock generator that can

source one PCIe clock output from a 25 MHz crystal or clock input. The

clock output is compliant to PCIe Gen 1 and Gen 2 specifications. The

ultra-small footprint (3x3 mm) and industry leading low power

consumption make Si52111-B3/B4 the ideal clock solution for consumer

and embedded applications.

VDD

XOUT

XIN/CLKIN

VSS

VDD

DIFF1

Patents pending

XIN/CLKIN

XOUT

PLL

Divider

DIFF1

VSS

Rev 1.1 7/14

Si52111-B3/B4

SI52111-B4-GT Related Products

	SI52111-B4-GT	Si52111-B3-GM2R	Si52111-B4-GTR	Si52111-B3-GTR	Si52111-B4-GM2R	Si52111-B3-GT	Si52111-B4-GM2
Description	IC CLOCK GENERATOR PCIE 8TSSOP	clock generators & support products tiny clock pcie 1 output pci express	clock generators & support products tiny clock pcie 1 output pci express	clock generators & support products tiny clock pcie 1 output pci express	clock generators & support products tiny clock pcie 1 output pci express	clock generators & support products tiny clock pcie 1 output pci express	clock generators & support products tiny clock pcie-1-OP pci xpress gen2 gen
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Silicon Laboratories Inc	Silicon Laboratories Inc	Silicon Laboratories Inc	Silicon Laboratories Inc	Silicon Laboratories Inc	Silicon Laboratories Inc	Silicon Laboratories Inc
package instruction	TSSOP,	HVSON,	TSSOP,	TSSOP,	HVSON,	TSSOP,	HVSON,
Reach Compliance Code	compliant	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-PDSO-G8	S-PDSO-N10	R-PDSO-G8	R-PDSO-G8	S-PDSO-N10	R-PDSO-G8	S-PDSO-N10
length	4.4 mm	3 mm	4.4 mm	4.4 mm	3 mm	4.4 mm	3 mm
Number of terminals	8	10	8	8	10	8	10
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output clock frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	HVSON	TSSOP	TSSOP	HVSON	TSSOP	HVSON
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Master clock/crystal nominal frequency	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz
Maximum seat height	1.2 mm	0.8 mm	1.2 mm	1.2 mm	0.8 mm	1.2 mm	0.8 mm
Maximum supply voltage	3.46 V	3.46 V	3.46 V	3.46 V	3.46 V	3.46 V	3.46 V
Minimum supply voltage	3.13 V	3.13 V	3.13 V	3.13 V	3.13 V	3.13 V	3.13 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	NO LEAD	GULL WING	GULL WING	NO LEAD	GULL WING	NO LEAD
Terminal pitch	0.65 mm	0.5 mm	0.65 mm	0.65 mm	0.5 mm	0.65 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC
