PVC6A101A01B00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> PVC6A101A01B00

PVC6A101A01B00: DescriptionTRIMMER 100 OHM 0.5W PC PIN TOP; CategoryPassive components; File Size327KB，16 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

PVC6A101A01B00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PVC6A101A01B00	-	-	View	Buy Now

PVC6A101A01B00 Overview

TRIMMER 100 OHM 0.5W PC PIN TOP

PVC6A101A01B00 Parametric

Parameter Name	Attribute value
resistance	100 Ohms
Power (W)	0.5W，1/2W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of turns	1
Adjustment type	top adjustment
Resistive materials	ceramics
Installation type	Through hole
Terminal type	PC pin
size/dimensions	Square - 0.272" x 0.272" surface x 0.205" high (6.90mm x 6.90mm x 5.20mm)

Preview

Download Datasheet

View All

Please read rating and

!CAUTION

(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

!Note

•Please read rating and

!CAUTION

(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.

This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for

R50E13.pdf 04.6.11

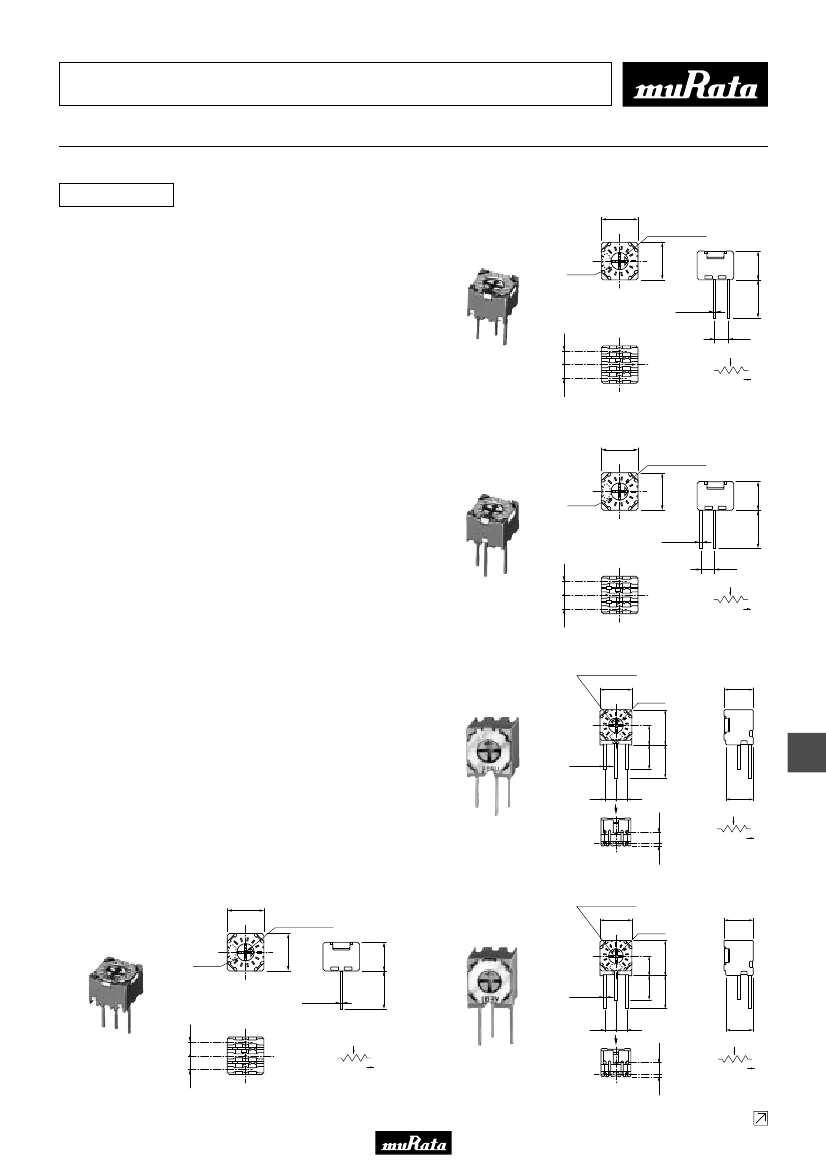

Trimmer Potentiometers

Lead Sealed Type Single-turn PVC6/PV32/PV34 Series

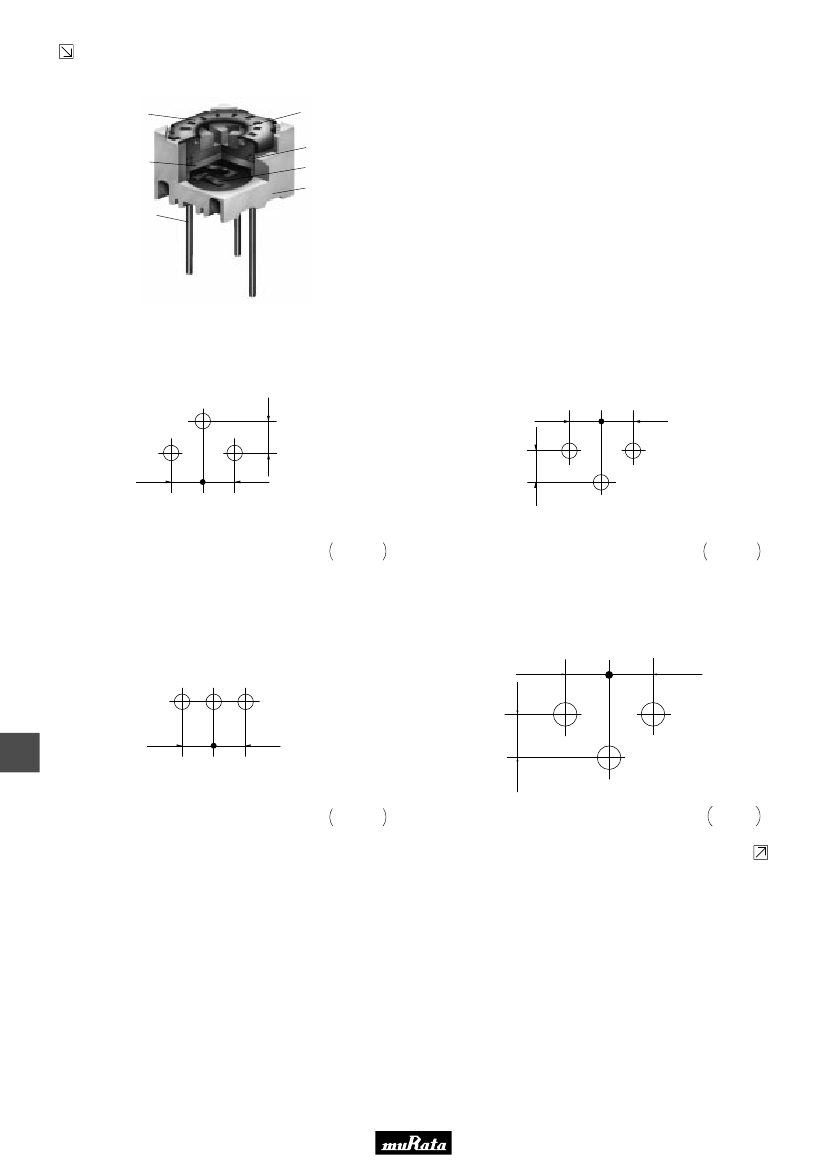

PVC6 Series

6.9

Features

1. Enlarged and colored rotor provides superior

adjustability.

2. Cone-shaped rotor improves driver insertion during

automatic adjustment.

3. Available for "Zero" plus adjustment tool (taper

head) use

4. Easy to see 11-scales adjustment positions.

5. Sealed construction protects the interior from dust

and liquid, which achieves stable performance.

6. Available for ultrasonic cleaning after soldering

7. During cutting process by the inserter machine, the

round shaped lead wire prevents clinch problems

and realizes longer life of cutter than flat shaped

lead wire.

8. Flammability: UL94V-0

9. To be complied with RoHS directive by new Cd free

cermet resistive material. Pb free terminals with

Sn plating.

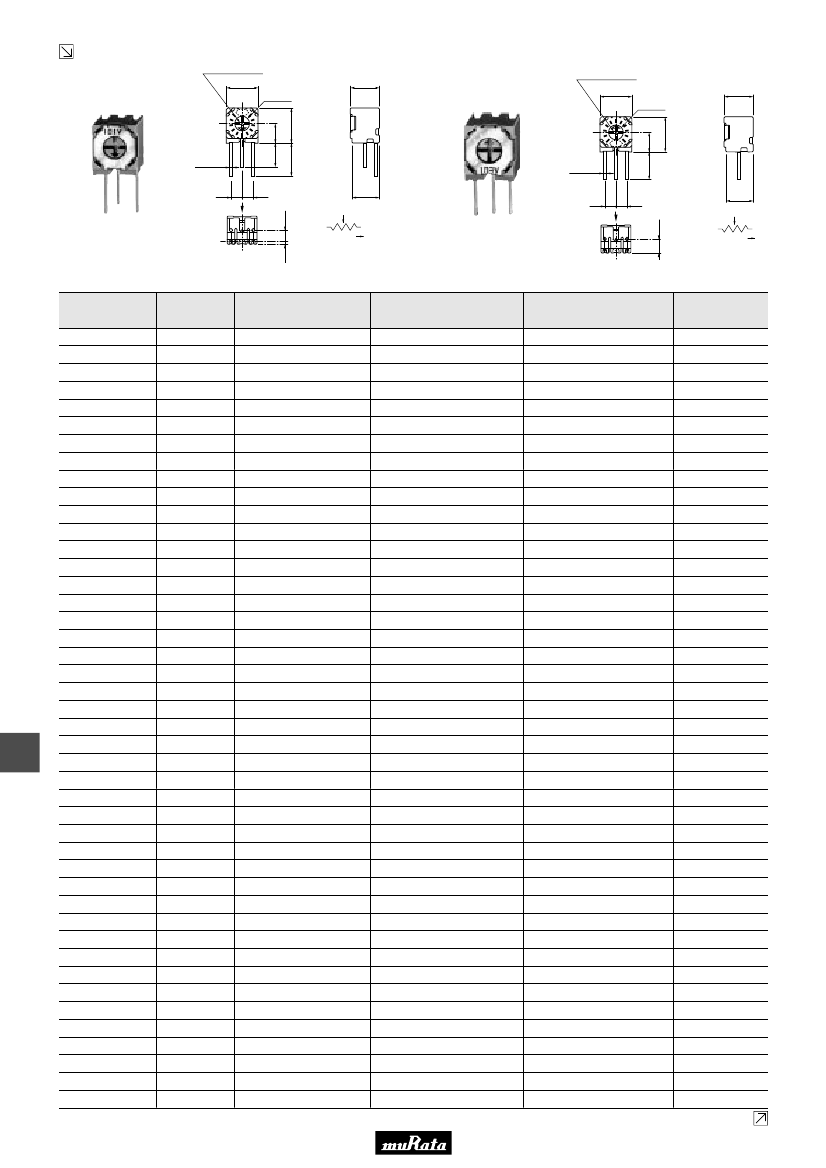

3.2 Dia.

0.55W×3.2L×1.3D

6.9

3-0.5 Dia.

2.5

PVC6A

2.5

CLOCKWISE

(

Tolerancein

±0.3

)

6.9

0.55W×3.2L×1.3D

6.9

3.2 Dia.

3-0.5 Dia.

Applications

1. DY

3. Power supply

5. CATV

7. Printers

9. Sensors

2. CRT display

4. Professional cameras

6. FAX

8. OA Equipment

PVC6D

2.5

CLOCKWISE

(

Tolerancein

±0.3

)

0.55W×3.2L×1.3D

6.9

3.2 Dia.

6.5

4.6

8.0

7.0

5.2

7.0

5.2

2-5.5

3-0.5 Dia.

#1 #2 #3

2.5

7.5

6.0

CLOCKWISE

PVC6E

0.75

2.5

(

Tolerancein

±0.3

)

6.9

0.55W×3.2L×1.3D

6.9

3.2 Dia.

6.9

6.5

5.2

5.5

2.5

4.6

3-0.5 Dia.

#1 #2 #3

2.5

3.2 Dia.

3-0.5 Dia.

2.5

2-7.5

7.0

8.0

6.0

CLOCKWISE

0.75

PVC6M

2.5

CLOCKWISE

PVC6H

(

Tolerancein

±0.3

)

(

Tolerance in

±0.3

)

Continued on the following page.
