ES1B/1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> ES1B/1

ES1B/1: DescriptionDIODE GEN PURP 100V 1A DO214AC; Categorysemiconductor Discrete semiconductor; File Size82KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

ES1B/1 Overview

DIODE GEN PURP 100V 1A DO214AC

ES1B/1 Parametric

Parameter Name	Attribute value
Diode type	standard
Voltage - DC Reverse (Vr) (Maximum)	100V
Current - average rectification (Io)	1A
Voltage at different If - Forward (Vf	920mV @ 1A
speed	Fast recovery = < 500 ns, > 200mA (Io)
Reverse recovery time (trr)	25ns
Current at different Vr - Reverse leakage current	5µA @ 100V
Capacitance at different Vr, F	10pF @ 4V，1MHz
Installation type	surface mount
Package/casing	DO-214AC，SMA
Supplier device packaging	DO-214AC（SMA）
Operating Temperature - Junction	-55°C ~ 150°C

Preview

Download Datasheet

View All

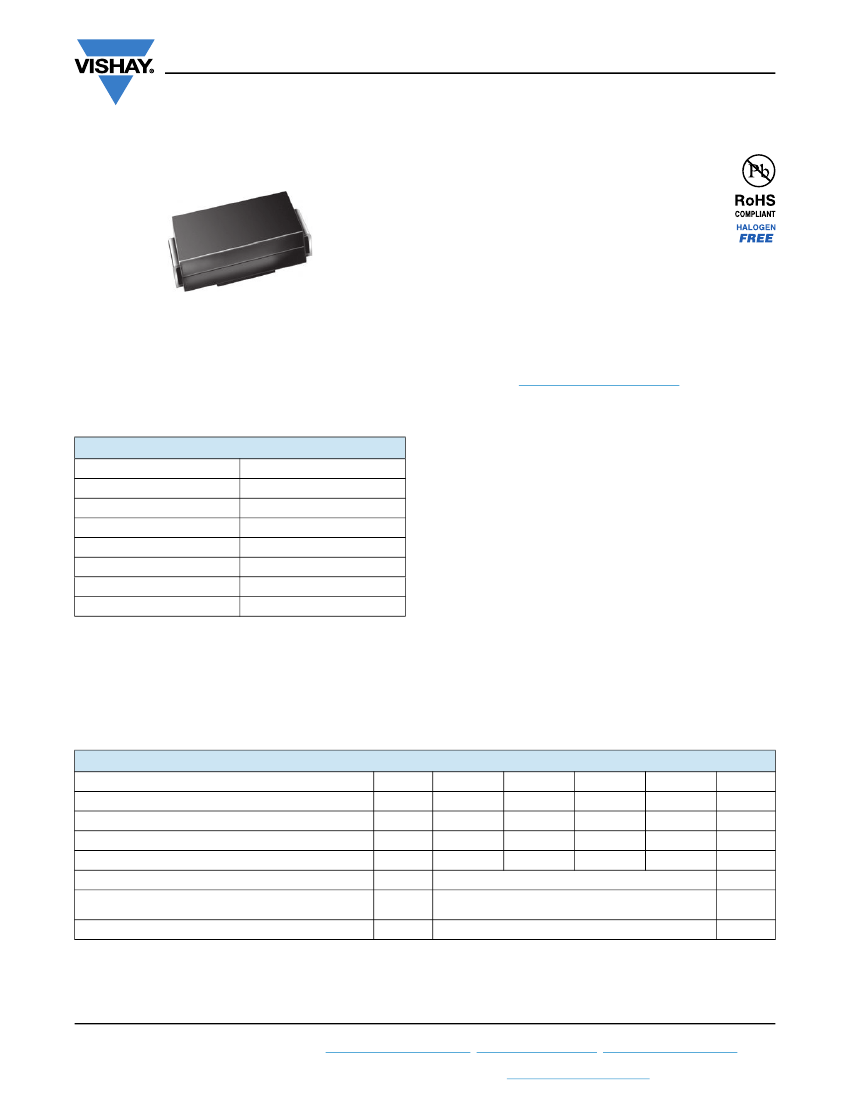

ES1A, ES1B, ES1C, ES1D

www.vishay.com

Vishay General Semiconductor

Surface Mount Ultrafast Plastic Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Glass passivated pellet chip junction

• Ultrafast recovery times for high efficiency

Available

• Low forward voltage, low power losses

• High forward surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

• AEC-Q101 qualified available

- Automotive ordering code: P/NHE3 or P/NHM3

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

SMA

(DO-214AC)

TYPICAL APPLICATIONS

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

at I

max.

Package

Diode variations

1.0 A

50 V, 100 V, 150 V, 200 V

30 A

15 ns

0.92 V

150 °C

SMA (DO-214AC)

Single

For use in high frequency rectification and freewheeling

application in switching mode converters and inverters for

consumer, computer, automotive and telecommunication.

MECHANICAL DATA

Case:

SMA (DO-214AC)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/N-M3 - halogen-free, RoHS-compliant, commercial

grade

Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified

Base P/NHM3_X - halogen-free, RoHS-compliant, and

AEC-Q101 qualified

(“_X” denotes revision code e.g. A, B, .....)

Terminals:

matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3, M3, HE3, and HM3 suffix meets JESD 201 class 2

whisker test

Polarity:

color band denotes cathode end

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current (fig. 1)

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Operating junction and storage temperature range

RRM

RMS

F(AV)

FSM

, T

STG

SYMBOL

ES1A

ES1B

100

1.0

-55 to +150

ES1C

150

105

150

ES1D

200

140

200

°C

UNIT

Revision: 21-Jul-17

Document Number: 88586

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000

ES1B/1 Related Products

	ES1B/1	ES1D/1	ES1D-M3/5AT
Description	DIODE GEN PURP 100V 1A DO214AC	DIODE GEN PURP 200V 1A DO214AC	DIODE GEN PURP 200V 1A DO214AC
Diode type	standard	standard	RECTIFIER DIODE
Voltage - DC Reverse (Vr) (Maximum)	100V	200V	-
Current - average rectification (Io)	1A	1A	-
Voltage at different If - Forward (Vf	920mV @ 1A	920mV @ 1A	-
speed	Fast recovery = < 500 ns, > 200mA (Io)	Fast recovery = < 500 ns, > 200mA (Io)	-
Reverse recovery time (trr)	25ns	25ns	-
Current at different Vr - Reverse leakage current	5µA @ 100V	5µA @ 200V	-
Capacitance at different Vr, F	10pF @ 4V，1MHz	10pF @ 4V，1MHz	-
Installation type	surface mount	surface mount	-
Package/casing	DO-214AC，SMA	DO-214AC，SMA	-
Supplier device packaging	DO-214AC（SMA）	DO-214AC（SMA）	-
Operating Temperature - Junction	-55°C ~ 150°C	-55°C ~ 150°C	-
