CM5740Z241B-00 datasheet, PDF - EEWORLD Datasheet

CM5740Z241B-00: DescriptionCMC 20A 4LN 100 OHM TH; Categorysemiconductor Analog mixed-signal IC; File Size125KB，3 Pages; ManufacturerLaird Technologies

Download Datasheet Parametric View All

CM5740Z241B-00 Overview

CMC 20A 4LN 100 OHM TH

Parameter Name	Attribute value
filter type	power supply, signal line
Number of lines	4
Impedance at different frequencies	100 Ohms @ 100MHz
Rated current (maximum)	20A
DC Resistance (DCR) (Max)	1.3 milliohms
Rated voltage - DC	-
Rated voltage - AC	-
Operating temperature	-55°C ~ 125°C
grade	-
Approval	-
characteristic	-
Installation type	Through hole
size/dimensions	0.570" long x 0.395" wide (14.48mm x 10.03mm)
Height (maximum value)	0.367"（9.32mm）
Package/casing	Vertical, 8 PC pins

Part Curves

Page 1 of 3

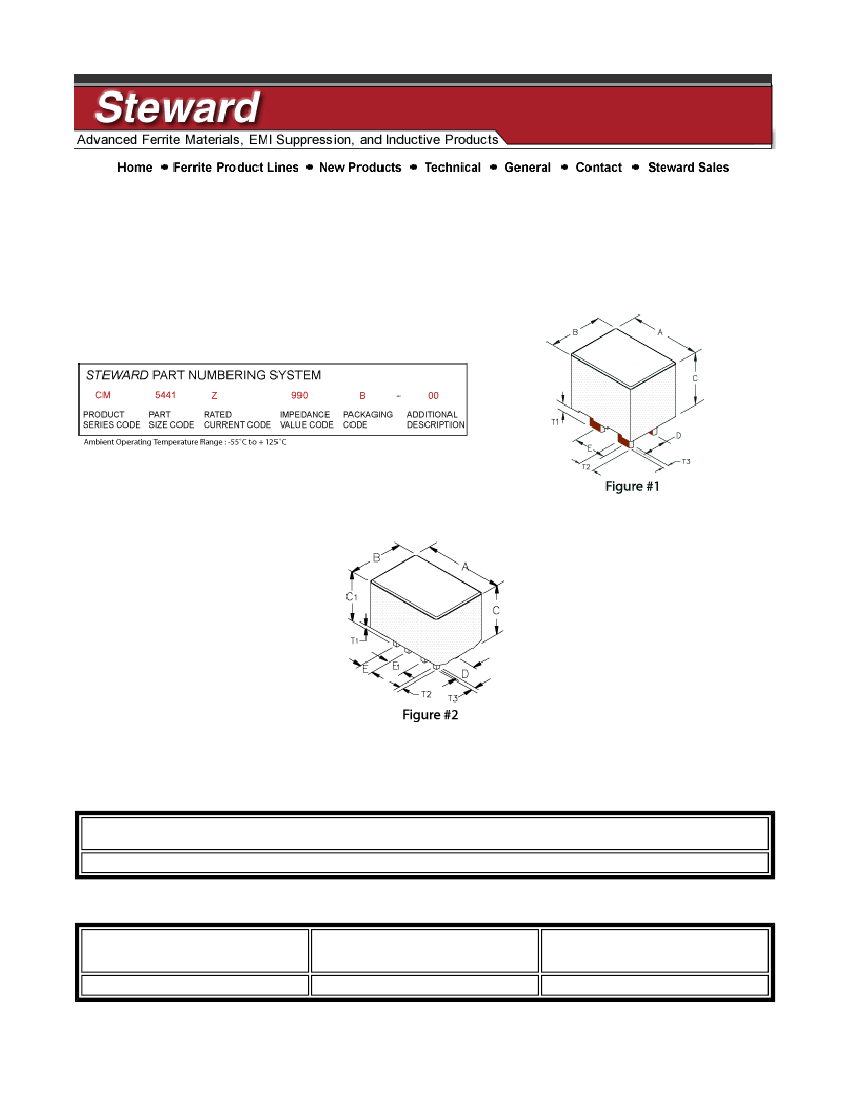

CM5740Z241B-00

Drawing Figure #

Figure

Number

2

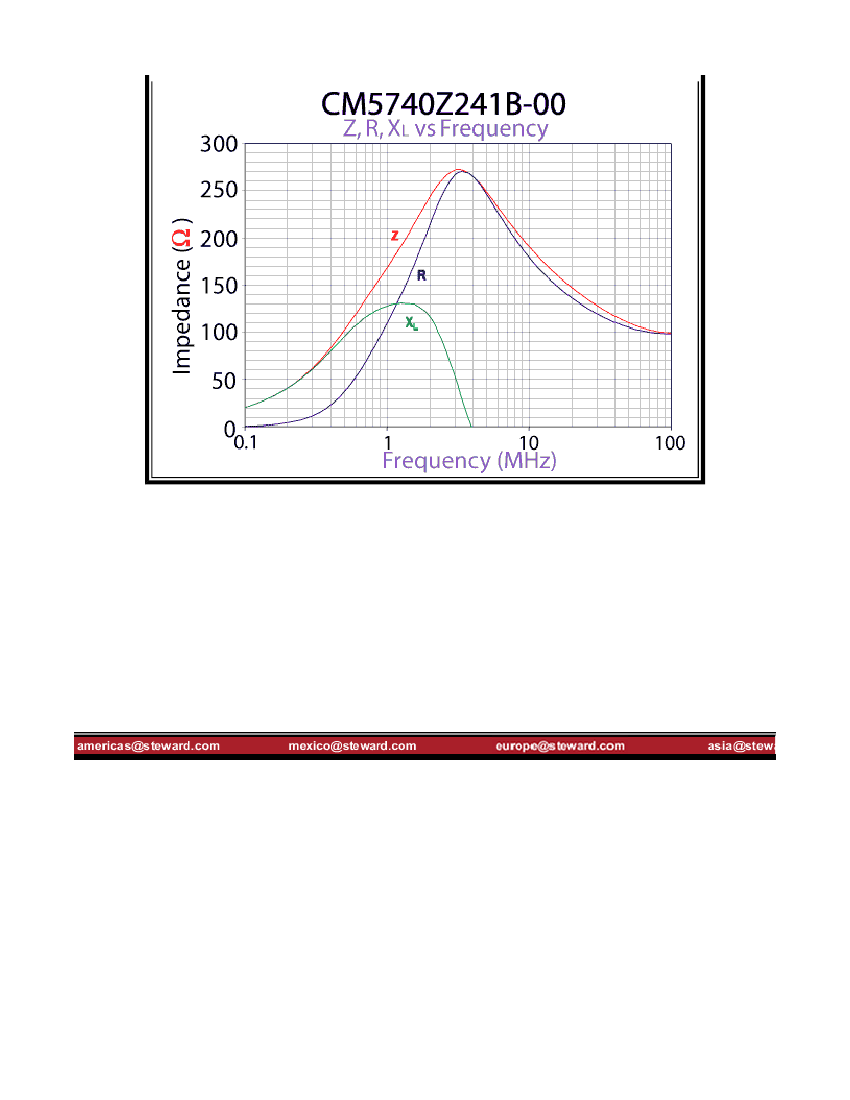

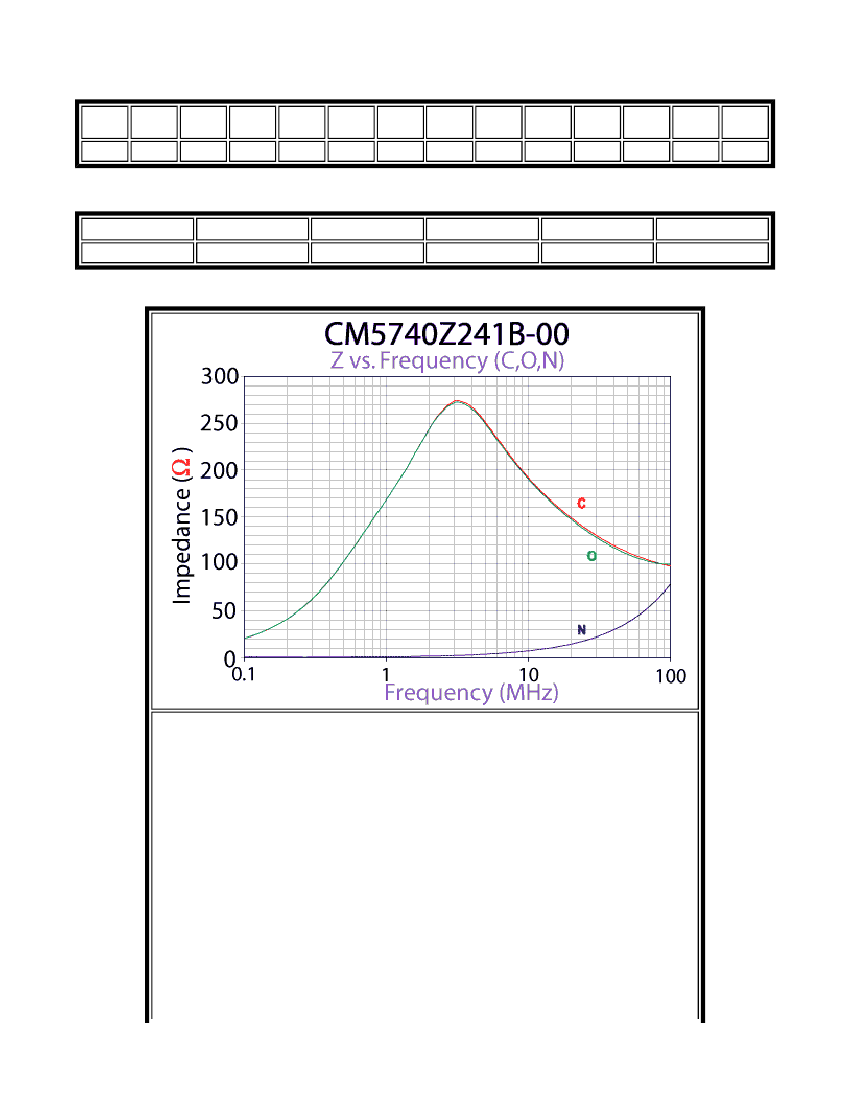

Electrical Characteristics

DCR

Max

0.0013

Rated

Current

mA

20000

Z@

4 MHz

240

http://www.steward.com/web_part_no.asp?line=EMC / EMI Board Level and Cable Core ... 2/11/2004
