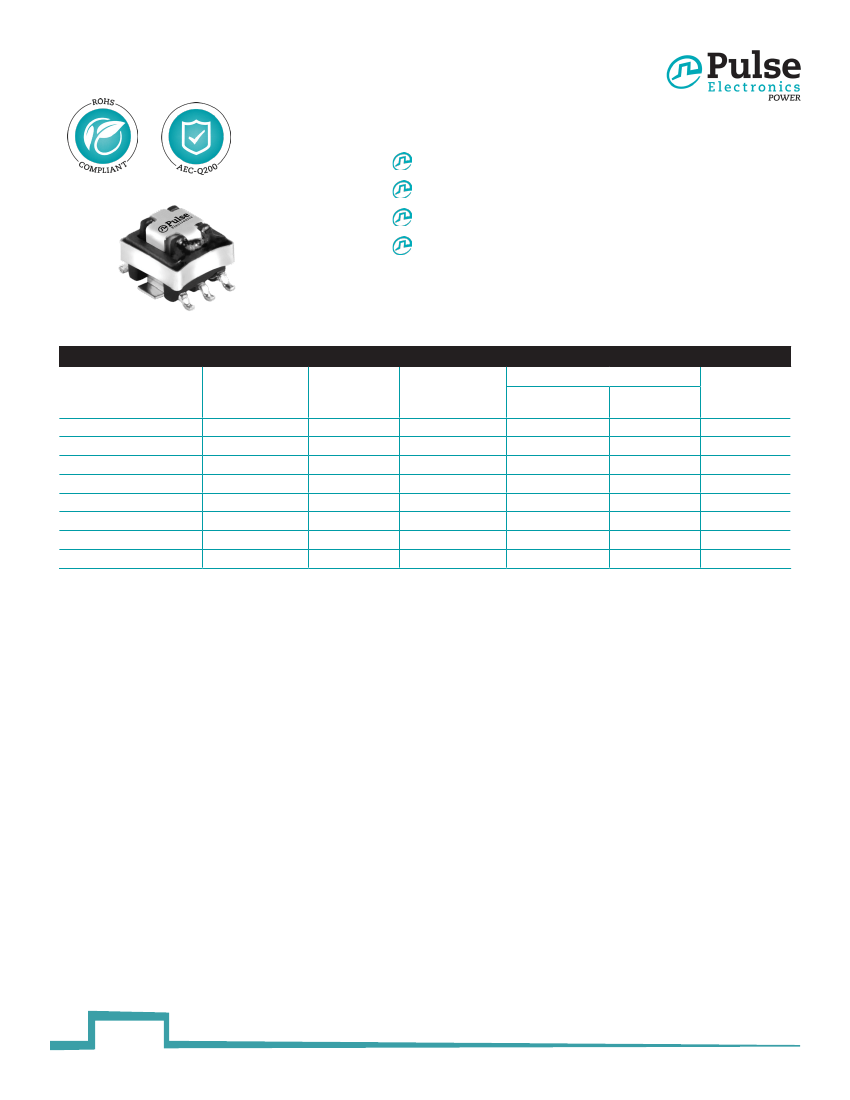

SMT Current Sense Transformer
PA1005QNL Series
Height:
5.5mm Max
Footprint:
8.4mm x 7.2mm Max
Current Rating:
up to 20A
Frequency Range:
20kHz to 1MHz
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C
Part
5,6
Number
PA1005.020QNL
PA1005.030QNL
PA1005.040QNL
PA1005.050QNL
PA1005.060QNL
PA1005.070QNL
PA1005.100QNL
PA1005.125QNL
Turns
Ratio
1:20
1:30
1:40
1:50
1:60
1:70
1:100
1:125
Current
2
Rating
(A)
20
20
20
20
20
20
20
20
Secondary
Inductance
(mH MIN)
0.08
0.18
0.32
0.50
0.72
0.98
2.00
3.00
DCR (mΩ Max)
Primary
(8-7)
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.75
Secondary
(1-3)
550
870
1140
1500
2250
4750
5500
6500
Hipot
(V
RMS
)
900
900
900
900
900
900
900
900
NOTES:
1.
2.
3.
4.
The temperature of component (ambient temperature plus temper-ature rise) must be within the
specified operating temperature range.
The maximum current rating is based upon temperature rise of the component and represents the
DC current which will cause a typical temperature rise of 40°C with no airflow.
To calculate value of terminating resistor (Rt) use the following formula:
Rt (W) = V
ref
* N / (Ipeak_primary)
The peak flux density of the device must remain below 2000 Gauss. To calculate the peak flux den-
sity for uni-polar current use following formula:
5.
6.
Bpk = 37.59 * V
ref
* (Duty_Cycle_Max) * 10
5
/ (N * Freq_kHz)
* for bi-polar current applications divide Bpk (as calculated above) by 2.
Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e.
PA1005.020QNL becomes PA1005.020QNLT). Pulse complies to industry standard tape and reel
specification EIA481.
The “NL” suffix indicates an RoHS-compliant part number.
1
power.pulseelectronics.com
P790.E (02/18)
http://www.power.pulseelectronics.com/contact
SMT Current Sense Transformer
PA1005QNL Series

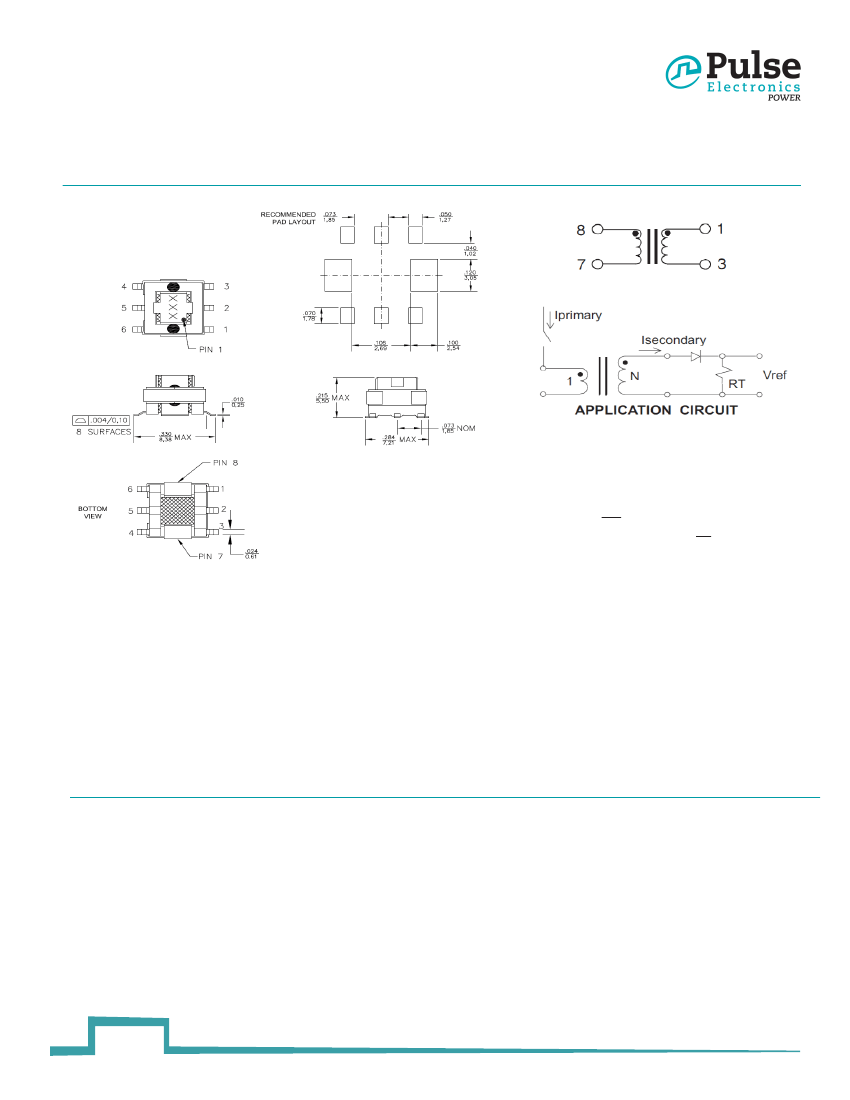

Mechanical
Schematic
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.34 grams
Tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120/tray
Tape & Reel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 900/reel
Coplanarity. . . . . . . . . . . . . . . . . . . . . . . . . . . 0.004 inches
Dimensions: Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
For More Information
Pulse Worldwide
Headquarters
15255 Innovation Drive Ste 100
San Diego, CA 92128
U.S.A.
Pulse Europe
Pulse Electronics GmbH
Am Rottland 12
58540 Meinerzhagen
Germany
Pulse China Headquarters
Pulse Electronics (ShenZhen) CO., LTD
D708, Shenzhen Academy of
Aerospace Technology,
The 10th Keji South Road,
Nanshan District, Shenzhen, P.R.
China 518057
Tel: 86 755 33966678
Fax: 86 755 33966700
Pulse North China
Room 2704/2705
Super Ocean Finance Ctr.
2067 Yan An Road West
Shanghai 200336
China
Tel: 86 21 62787060
Fax: 86 2162786973
Pulse South Asia
3 Fraser Street
0428 DUO Tower
Singapore 189352
Pulse North Asia
1F, No.111
Xiyuan Road
Zhongli District
Taoyuan City 32057
Taiwan (R.O.C)
Tel: 886 3 4356768
Fax: 886 3 4356820
Tel: 858 674 8100
Fax: 858 674 8262
Tel: 49 2354 777 100
Fax: 49 2354 777 168
Tel: 65 6287 8998
Fax: 65 6280 0080
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may
be trademarks or registered trademarks of their respective owners. © Copyright, 2018. Pulse Electronics, Inc. All rights reserved.
2
power.pulseelectronics.com
P790.E (02/18)
http://www.power.pulseelectronics.com/contact
