PRT-08670

Description
JUMPER WIRE - JST BLACK RED
CategoryWire/cable
File Size116KB,3 Pages
ManufacturerSparkFun Electronics
Download Datasheet Parametric View All

PRT-08670 Online Shopping

Suppliers Part Number Price MOQ In stock
PRT-08670 - - View Buy Now

PRT-08670 Overview

JUMPER WIRE - JST BLACK RED

PRT-08670 Parametric

Parameter NameAttribute value
Connector typejack to cable
Number of pins2
Number of rows1
Pitch - Connector0.079"(2.00mm)
Spacing - Cable-
length0.427'(130.00mm,5.12")
characteristic-
colorBlack, red, twisted pair (round)
shieldNo shielding
use-
Cable terminationcrimp
Contact plating-
Contact plating thickness-
PH
CONNECTOR
2
3
4
5
6
Emboss Tape

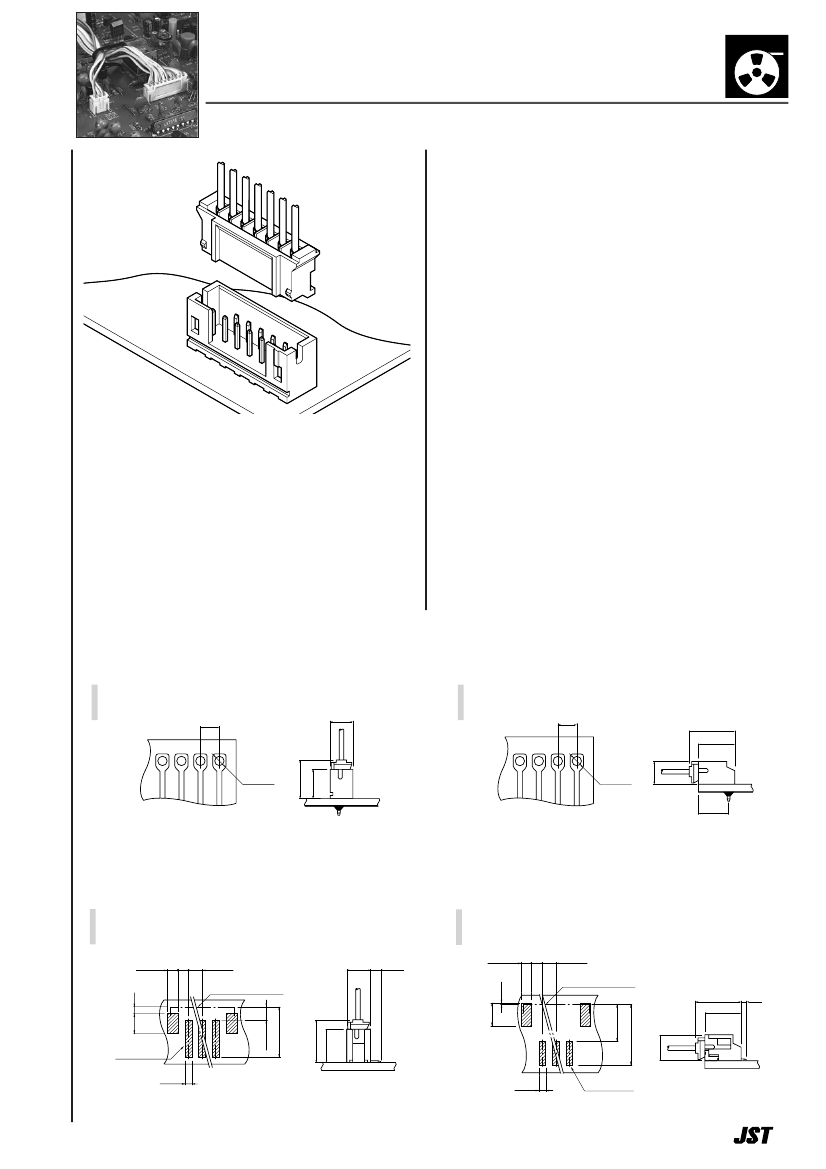

2.0mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 2A AC, DC (AWG #24)
• Voltage rating: 100V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10m
max.
After environmental testing/ 20m
max.
• Insulation resistance: 1,000M
min.
• Withstanding voltage: 800V AC/ minute
• Applicable wire: AWG #32 to #24
• Applicable PC board thickness: 0.8 to 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
This is a thin, low-profile 2.0mm pitch
connector 8.0mm in height after mounting
and 4.5mm in width. It is designed to meet
the demand for high-density connection of
internal wires to printed circuit boards. It is
compact, highly reliable and low in cost.
• Reliable contact
• Fully shrouded header
• Printed circuit board retention mechanism
• Surface mount model (SMT)
Standards ––––––––––––––––––––––
1
Certified LR20812
2
R75087
0
Recognized E60389
Through-hole type (viewed from soldering side)
Top entry type
2
±0.05
4.5
Side entry type
2
±0.05
9.6
7.6
6
φ0.7
 0
8
+0.1
φ0.7
 0
+0.1
4.8
6.25
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should
be larger. The dimensions above should serve as a guideline. Contact JST for details.
SMT type (viewed from component side)
SM4 type
Top entry type
1.6
±0.1
1.6
±0.1
2
±0.05
End face of wafer
on the mating side
5
(2)
SM4 type
Side entry type
1.5
±0.1
1.6
±0.1
2
±0.05
0.2
End face of wafer
on the mating side
9.6
7.6
1
1
±0.1
7.5
min
5.5
max
±0.1
3.4
2
max
8.6
6.6
9
min
3
Circuit No.1
1
min
1
min
Circuit No.1
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
5.5
