1-531842-3: DescriptionCONNECTOR, 140 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size136KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-531842-3 Overview

CONNECTOR, 140 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

1-531842-3 Parametric

Parameter Name	Attribute value
Objectid	2094080297
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	140

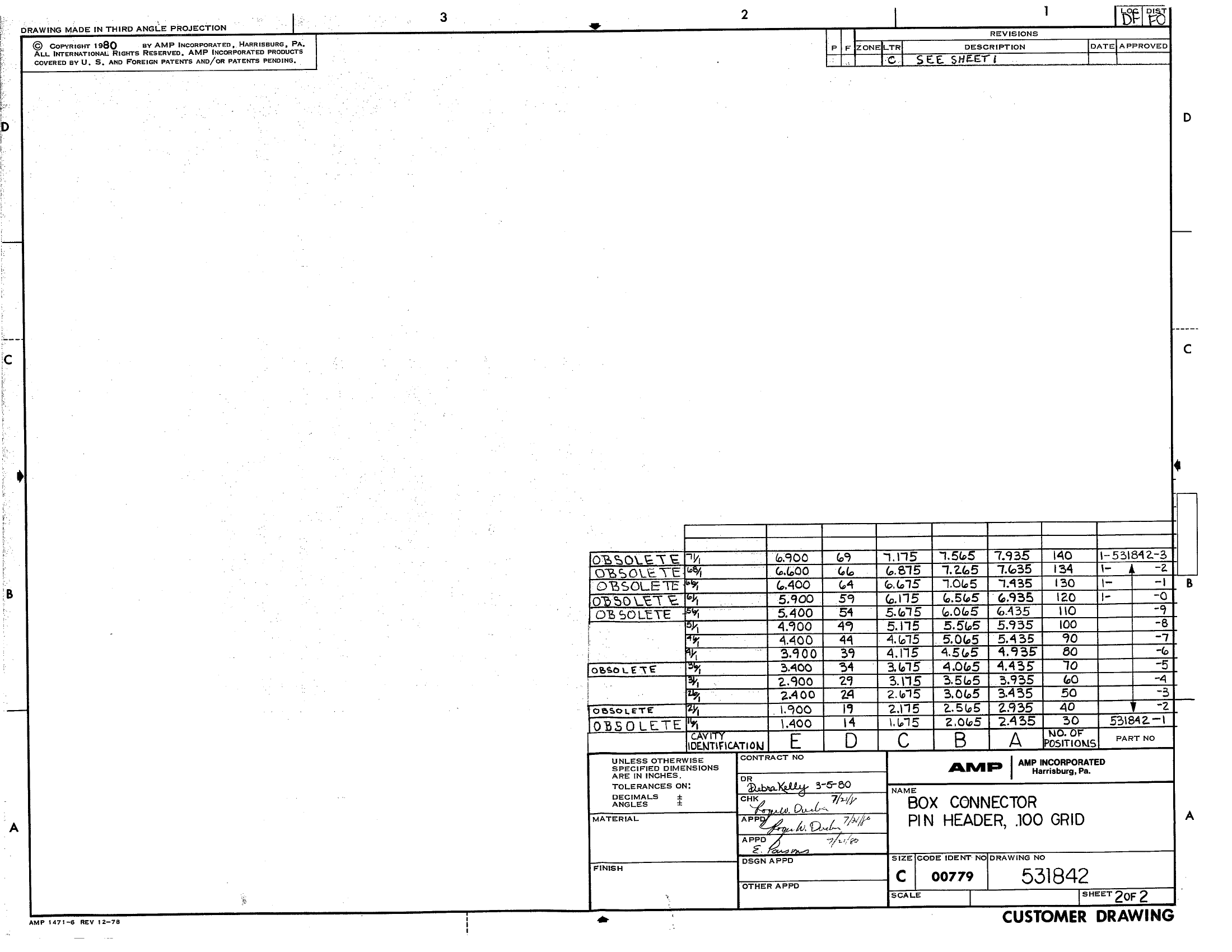

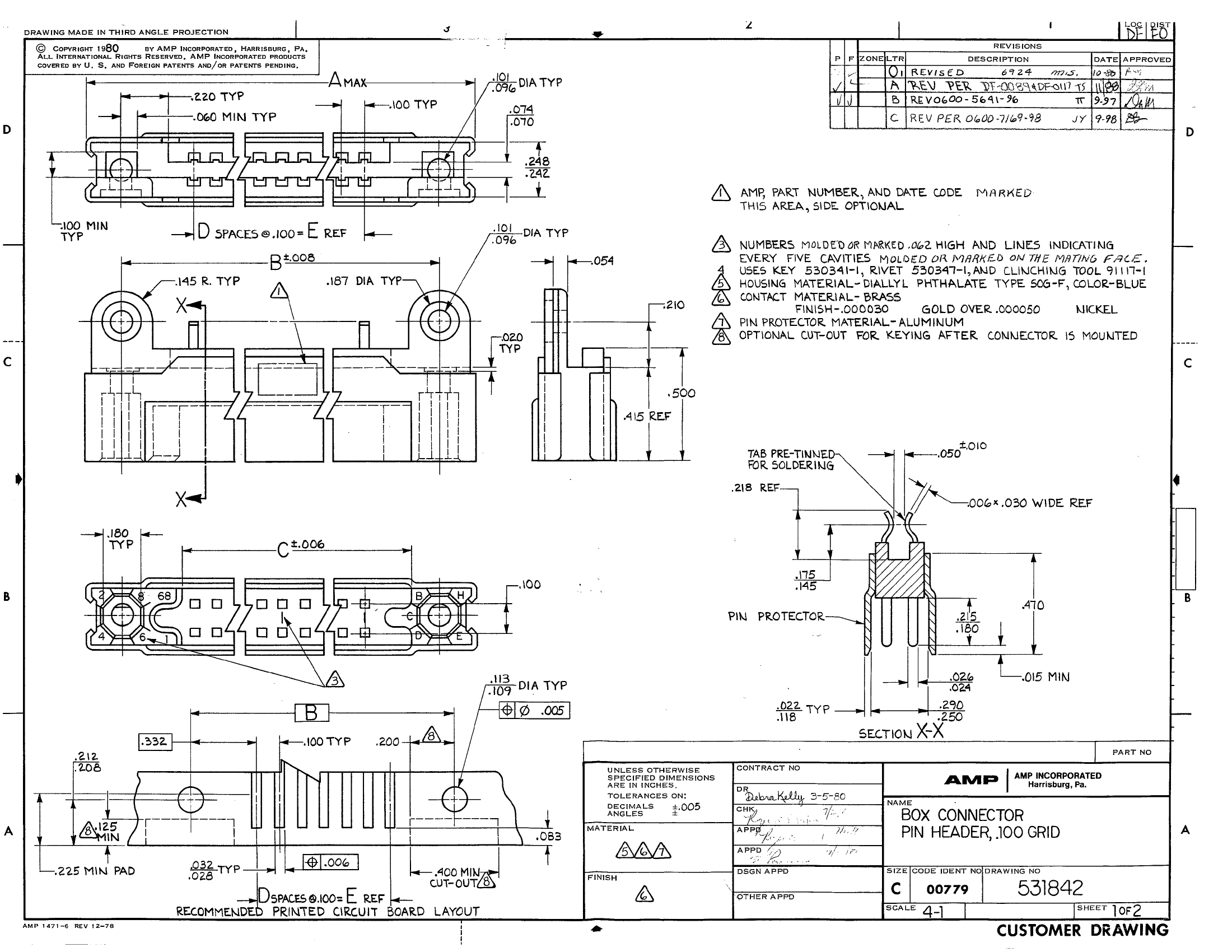

Preview

Download Datasheet

View All

1-531842-3 Related Products

	1-531842-3	1-531842-0	1-531842-1	1-531842-2	531842-8	531842-1	531842-2	531842-5	531842-9
Description	CONNECTOR, 140 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 120 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	130 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 134 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	BOX PIN HDR ASSY 100 PS 100 CL	30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	70 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 110 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Objectid	2094080297	2094080294	2094080295	2094080296	1430670013	2094081438	1417702523	1417702575	2094081439
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	unknown	unknown	unknown	unknown
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	STANDARD: MIL-C-55302, STRADDLE MOUNT	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	YES	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SURFACE MOUNT	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	140	120	130	134	100	30	40	70	110
