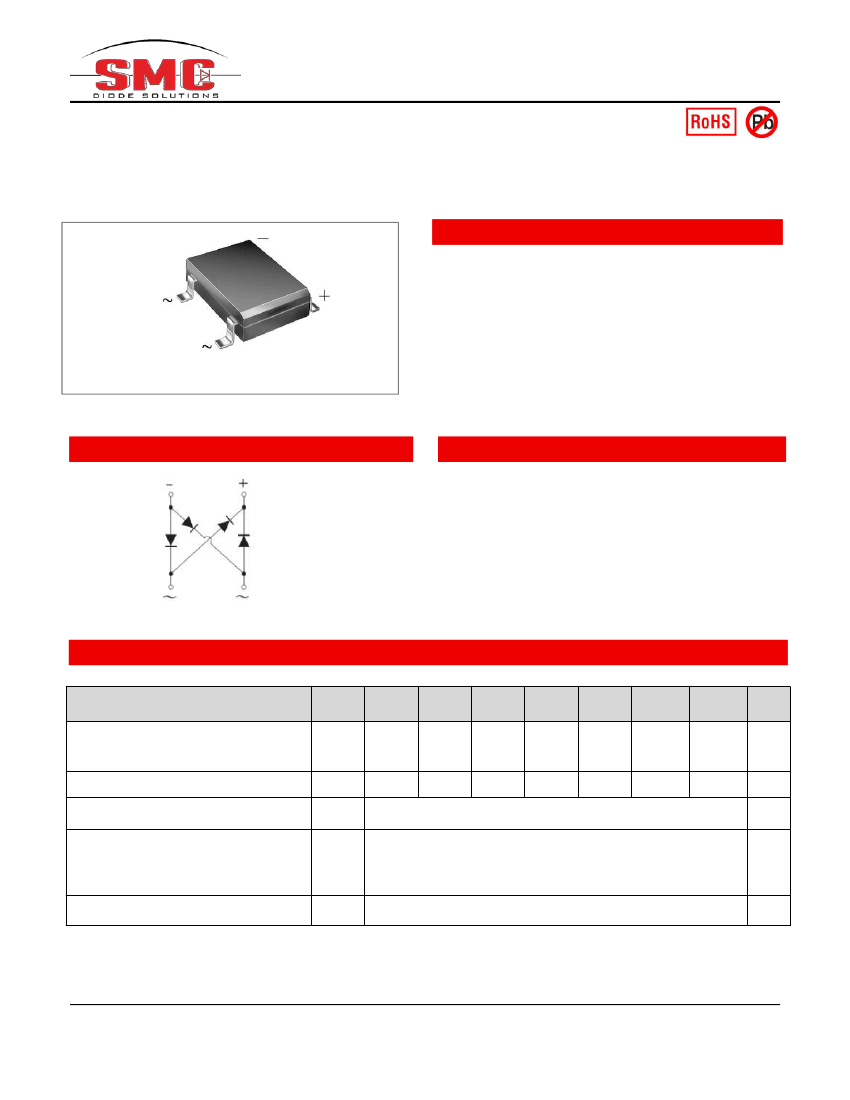

DB151S THRU DB157S
Technical Data
Data Sheet N1476, Rev. C
GLASS PASSIVATED SILICON BRIDGE RECTIFIERS
Features
Glass passivated die construction
Low forward voltage drop
High current capability
High surge current capability
Designed for surface mount application
Plastic material-UL flammability 94V-0
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
DB151S THRU DB157S
SINGLE-PHASE
DB-S
Circuit Diagram
Mechanical Data
Case: DB-S, molded plastic
Terminals: plated leads solderable per MIL-STD-202,
Method 208
Polarity: as marked on case
Mounting position: Any
Lead Free: For RoHS / Lead Free Version,
Maximum Ratings
@T
A
=25°C unless otherwise specified
Single Phase half wave 60Hz, resistive or inductive load. For capacitive load current derate by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Output Current
(Note 1)
@ T
C
=100°C
Non-Repetitive Peak Forward Surge
Current 8.3ms Single half sine-wave
superimposed on rated load (JEDEC
Method)
I
2
t Rating for Fusing (t < 8.3ms)
Symbol
V
RRM
V
RWM
V
R
V
RMS
I
F(AV)
DB
151S
50
35
DB
152S
100
70
DB
153S
200
140
DB
154S
400
280
1.5
DB
155S
600
420
DB
156S
800
560
DB
157S
1000
700
Units
V
V
A
I
FSM
55
A
I
2
t
12.6
A
2
s
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
DB151S THRU DB157S
Technical Data
Data Sheet N1476, Rev. C
Electrical Characteristics
@T
A
=25°C unless otherwise specified
Characteristic
Maximum Forward Voltage Drop
*
per Bridge Element @I
F
=1.5A, T
J
=25°C
Peak Reverse Current
*
@T
A
= 25°C
At Rated DC Blocking Voltage
*
@T
A
= 125°C
Typical Junction Capacitance (Note 2)
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
F
I
R
C
J
DB
151S
DB
152S
DB
153S
DB
154S
1.0
5
200
25
DB
155S
DB
156S
DB
157S
Units
V
μA
pF
Thermal-Mechanical Specifications
@T
A
=25°C unless otherwise specified
Characteristic
Typical Thermal Resistance Junction to
Ambient
Typical Thermal Resistance Junction to Lead
Symbol
R
θJA
R
θJL
DB
151S
DB
152S
DB
153S
DB
154S
40
15
-55 to + 150
DB
155S
DB
156S
DB
157S
Units
°C/W
°C/W
°C
Operating Junction and Storage Temperature
T
J ,
T
STG
Range
Note: 1. Mounted on glass epoxy PC board with 1.3mm
2
solder pad.
2. Measured at 1.0 MHZ and applied reverse voltage of 4.0 VDC

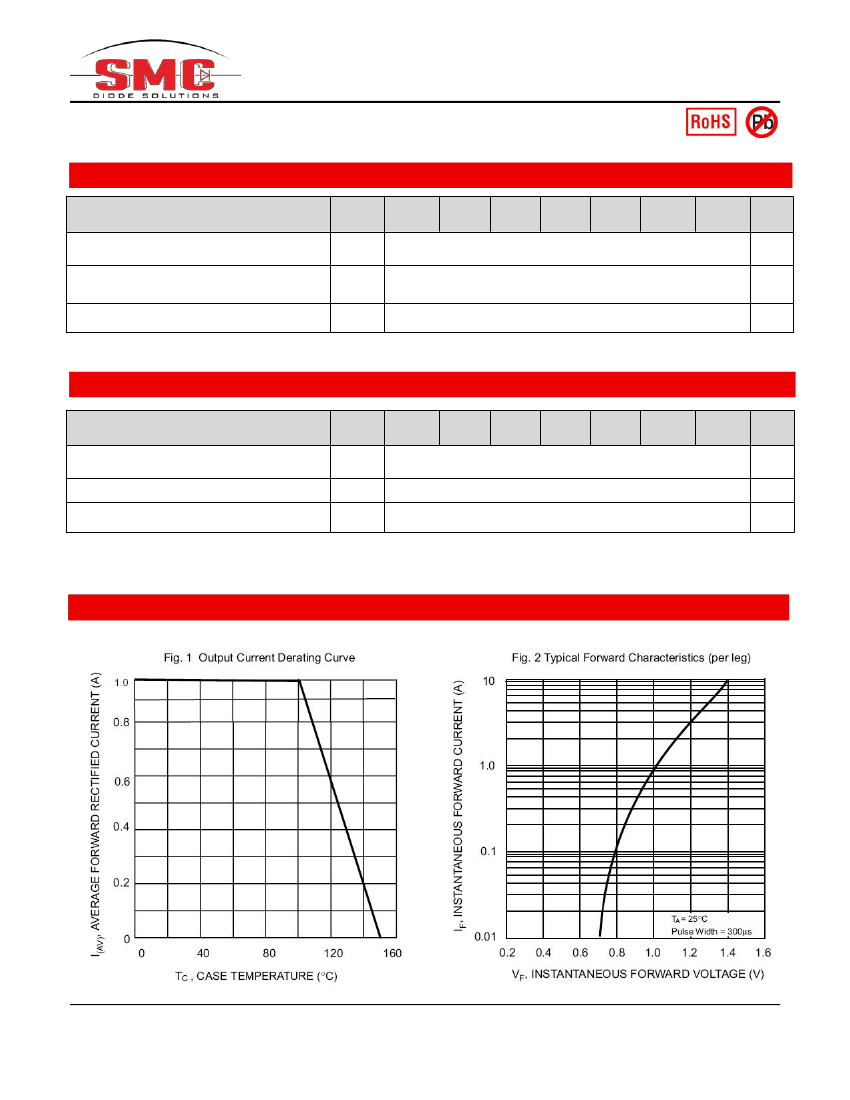

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
DB151S THRU DB157S
Technical Data
Data Sheet N1476, Rev. C

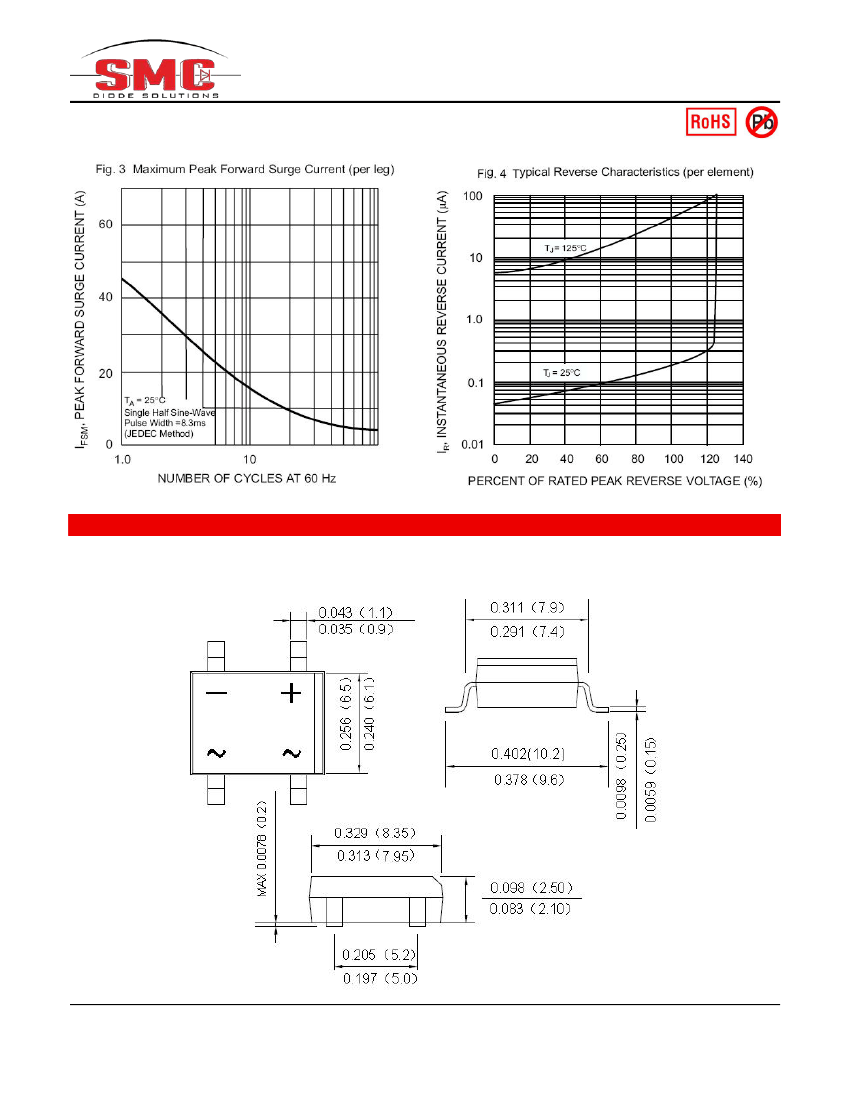

Mechanical Dimensions DB-S(Inches/Millimeters)
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
DB151S THRU DB157S
Technical Data
Data Sheet N1476, Rev. C

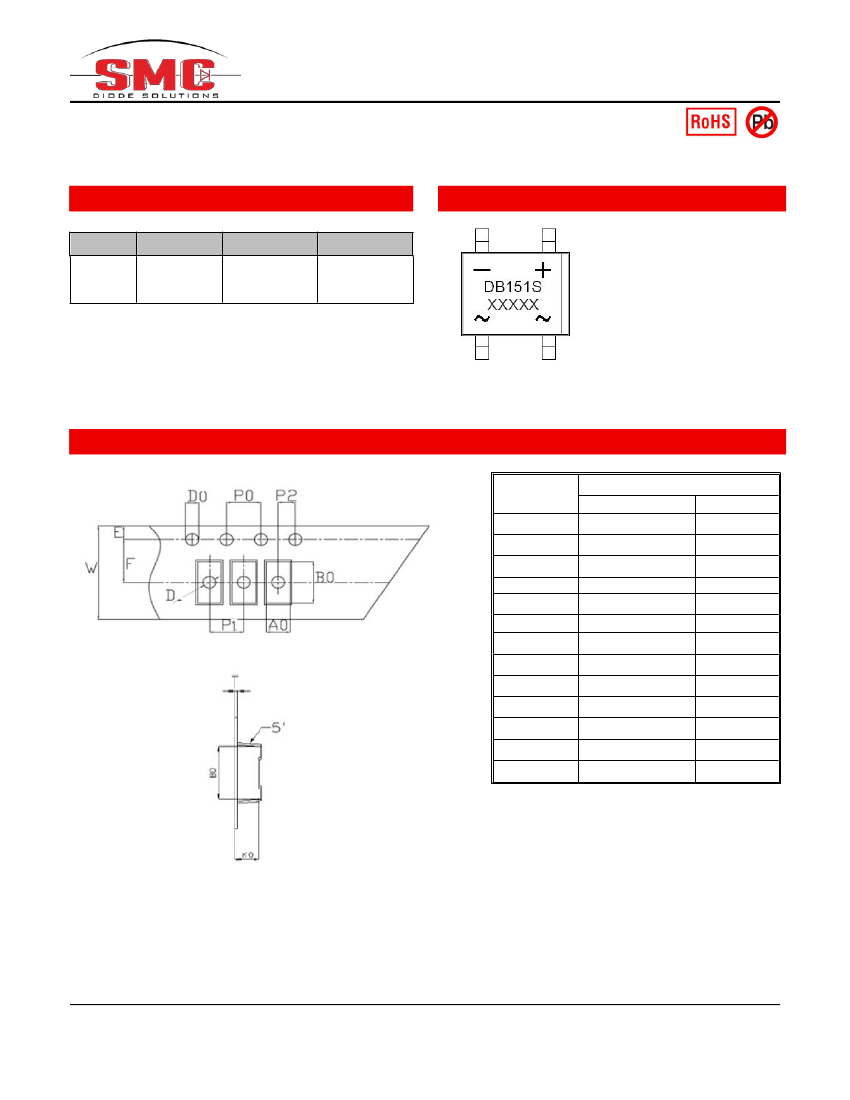

Ordering Information
Device
DB151S
THRU
DB157S
Marking Diagram
Plating
Pure Sn
Package
DB-S
(Pb-Free)
Shipping
1500pcs / reel
Where XXXXX is YYWWL
DB151S
YY
WW
L
= Type Number
= Year
= Week
= Lot Number
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
