1-84108-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-84108-3

1-84108-3: Description50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size130KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-84108-3 Overview

50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT

1-84108-3 Parametric

Parameter Name	Attribute value
Objectid	2094080334
Reach Compliance Code	unknown
Other features	AMPMODU
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	84108
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0

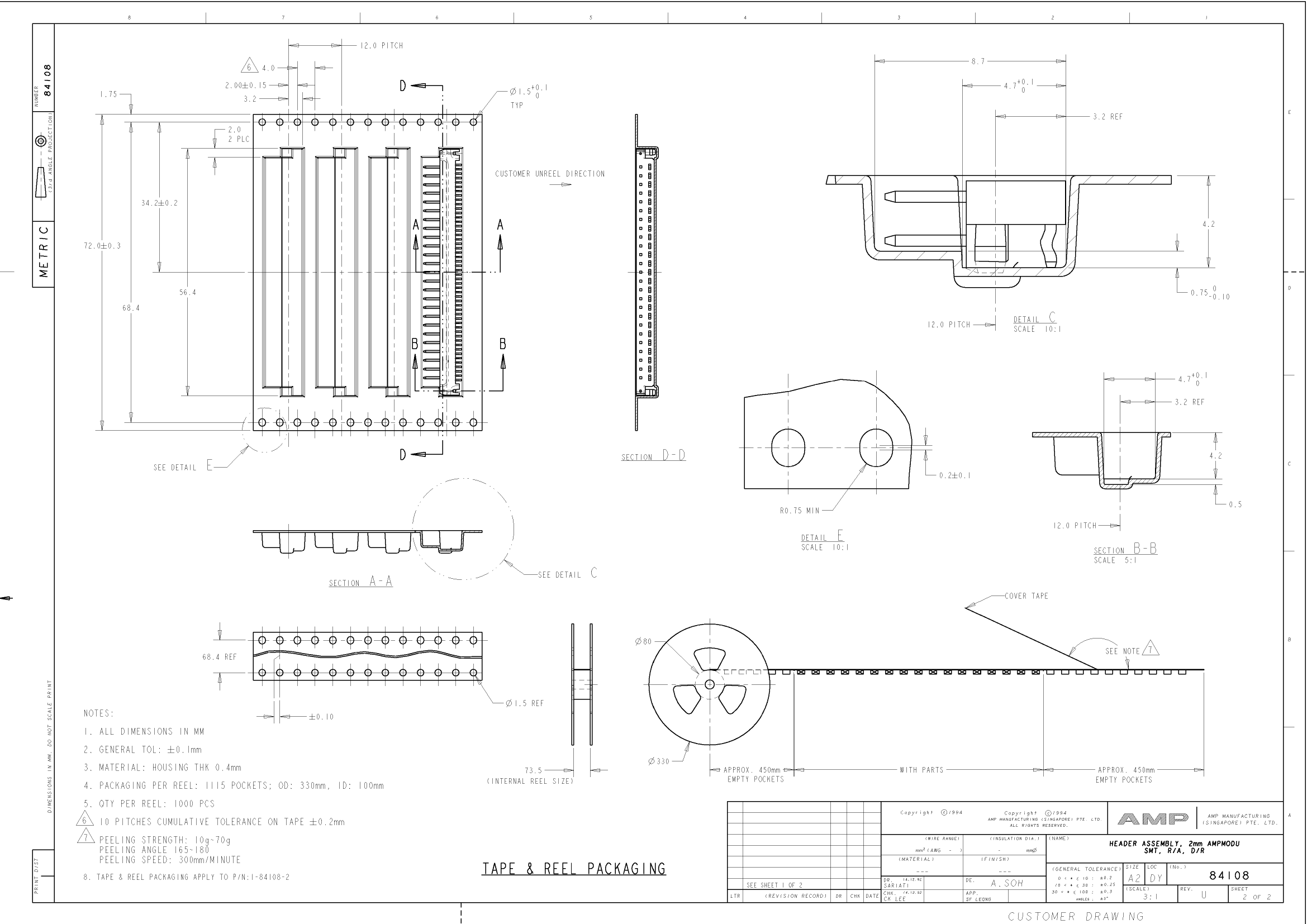

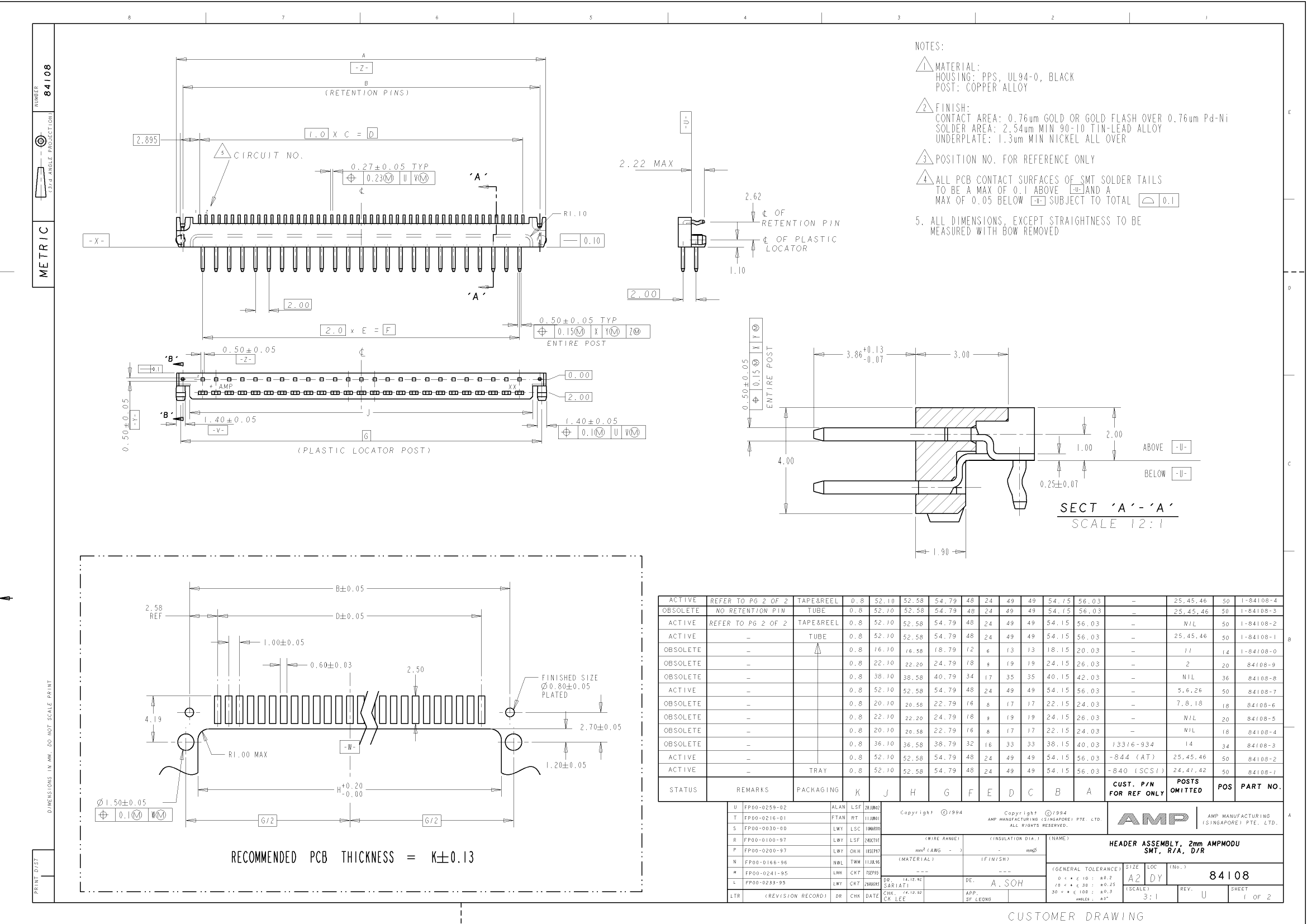

Preview

Download Datasheet

View All

1-84108-3 Related Products

	1-84108-3	1-84108-0	84108-3	84108-9	MFS1/4CLT52A1961F	MFS1/4CLU1962F	84108-4	84108-6	84108-5
Description	50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT	CONNECTOR, 14 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT	34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT	CONNECTOR, 20 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT	Fixed Resistor, Metal Film, 0.25W, 1960ohm, 250V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Metal Film, 0.25W, 19600ohm, 250V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED	18 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT	HEADER CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,PIN,0.08 PITCH,BLACK	20 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT
Objectid	2094080334	1503197020	1503197515	1503197533	1619305291	1619306558	1503197518	1503197524	1503197521
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	compliant	unknown	unknown	unknown
Other features	AMPMODU	AMPMODU	AMPMODU	AMPMODU	-	-	AMPMODU	AMPMODU	AMPMODU
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	-	-	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	-	-	NO	NO	NO
Filter function	NO	NO	NO	NO	-	-	NO	NO	NO
IEC compliance	NO	NO	NO	NO	-	-	NO	NO	NO
MIL compliance	NO	NO	NO	NO	-	-	NO	NO	NO
Manufacturer's serial number	84108	-	84108	84108	MF	MF	-	84108	-
Mixed contacts	NO	NO	NO	NO	-	-	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	-	-	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	-	-	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	-	-	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	50	14	34	20	-	-	18	18	20
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	-	-	94V-0	94V-0	94V-0
Is it lead-free?	-	-	Contains lead	-	Contains lead	Contains lead	Contains lead	-	Contains lead
