RTAP3ES12M25NP: DescriptionSWITCH ROTARY 12POS 20MA 25V; Categoryaccessories; File Size644KB，5 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

RTAP3ES12M25NP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RTAP3ES12M25NP	-	-	View	Buy Now

RTAP3ES12M25NP Overview

SWITCH ROTARY 12POS 20MA 25V

RTAP3ES12M25NP Parametric

Parameter Name	Attribute value
Number of pins	12
Index stop	Fixed
Number of layers	1
Number of poles per layer	-
circuit per layer	Two's complement BCD
Contact time	Not short circuit (BBM)
Rated current	20mA（AC/DC）
Rated voltage - AC	25V
Rated voltage - DC	25V
Actuator type	Round (diameter 6mm), slotted type
Actuator length	25.00mm
Projection angle	30°
Contact material	brass
Contact plating	gold
Installation type	Panel mount, through hole
Terminal type	PC pin
characteristic	-
Depth behind panel	12.60mm
Panel opening size	Round - 10.20mm diameter
force	5.099gfm

Preview

Download Datasheet

View All

RTA Series

1–4 Poles Coded Rotary Switches

Features/Benefits

•

PCB or hand soldering versions

•

Bushing mounting

•

Multiple poles

•

Decimal and hexadecimal codes

•

Screwdriver slot or extended actuator

•

RoHS Compliant

Electrical Data

SWITCHING MODE:

MAX. SWITCHING POWER

MAX. SWITCHING CURRENT:

MAX. CARRYING CURRENT:

NOMINAL VOLTAGE AT 50 Hz

CONTACT RESISTANCE:

DIELECTRIC STRENGTH AT 50 Hz

BETWEEN CONTACTS AND

GROUND TERMINALS:

INSULATION RESISTANCE BETWEEN

CONTACTS OR CONTACTS

AND FRAME (500 V =):

NO. OF OPERATIONS:

BOUNCE:

Silver

BBM

5 VA

150 mA

60 V

< 150 mΩ

Gold

BBM

0.5 VA

20 mA

25 V

< 150 mΩ

Typical Applications

•

Appliances

•

Electronic alarm systems

•

Medical

•

Building automation

•

HVAC air conditioning

Mechanical Data

MAX. NO. OF BANKS: 1.

OPERATING TORQUE: 5 Ncm±20%.

END STOP TORQUE: 50 Ncm. minimum

STOP: With/without or adjustable

MOUNTING: By fixed index 9.5 mm (0.374) of center, for

bushing mount only

500 V r

Materials

BUSHING/HOUSING: PETP Thermoplastic

STATIONARY CONTACTS & TERMINALS: Nickel Plated Brass

with additional plating of Gold or Silver.

ROTOR: Gold or Silver plated Brass or PCB.

CODING PLATE: PA thermoplastic

ACTUATOR: Polysulfon thermoplastic

HARDWARE: Stop pin: Aluminum. Ball & Spring: Stainless steel.

Washer: PA. Nut: Brass.

10,000

< 5 ms

10,000

< 5 ms

Environmental Data

OPERATING TEMPERATURE: –20ºC to + 70ºC

STORAGE TEMPERATURE:

–40ºC to + 85ºC

–20ºC to + 70ºC

–40ºC to + 85ºC

Rotary

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages K-9 thru K-12. For additional options not shown in catalog, consult Customer Service Center.

Designation

RTA

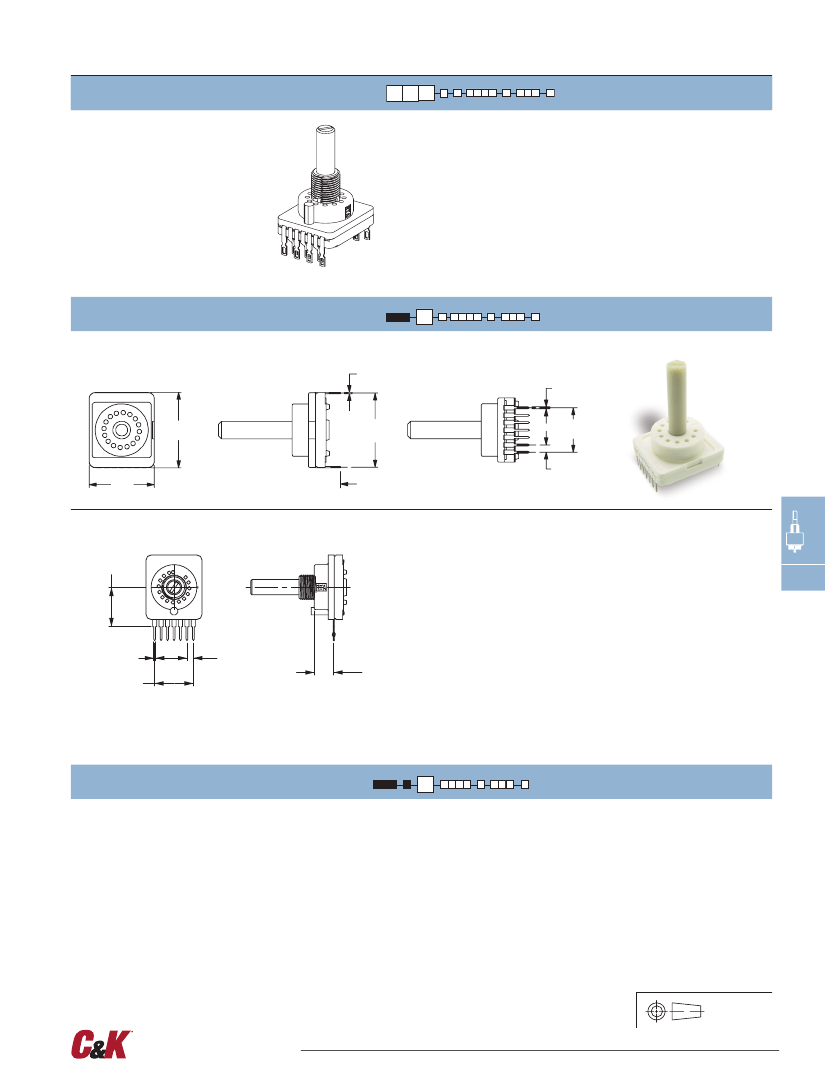

Termination

With PC Thru-hole

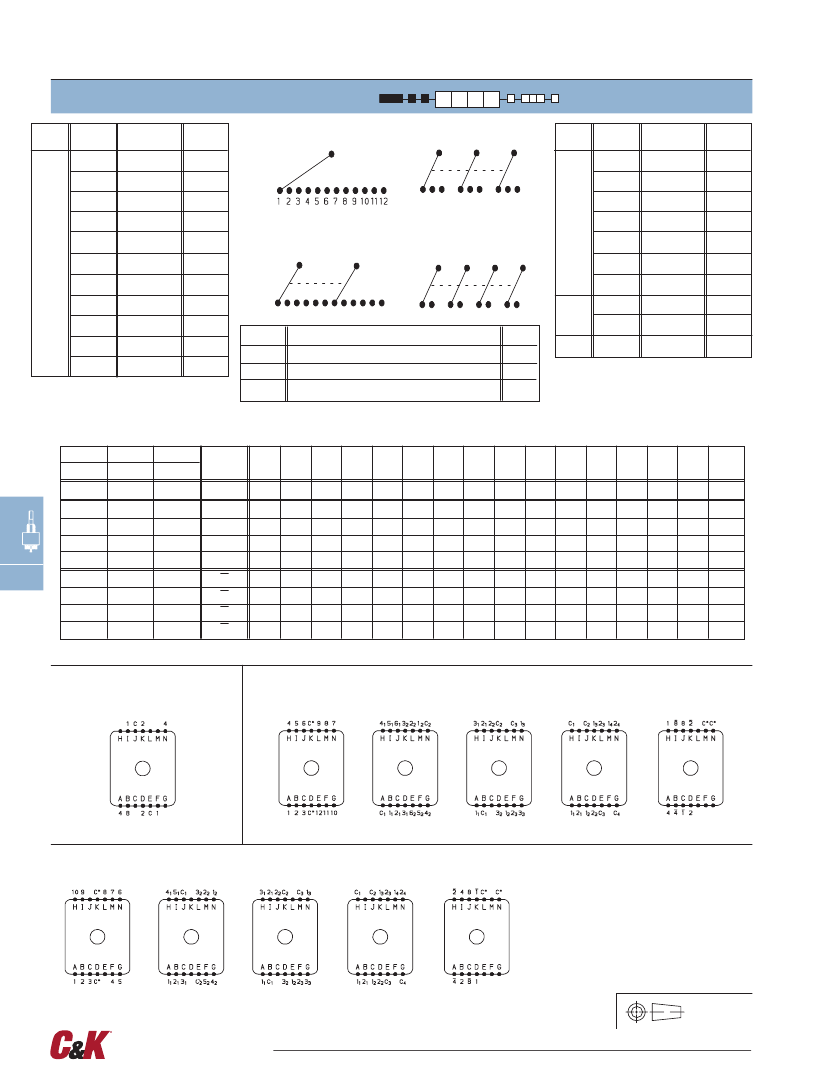

Switch Function

Horizontal with

1W12

SP, 30° Index, 12 pos. no stop

PC Thru-hole

1W10

SP, 36° Index, 10 pos. no stop

1S02

SP, 30° /36° Index, 2 pos.

1S03

SP, 30° /36° Index, 3 pos.

1S04

SP, 30° /36° Index, 4 pos.

1S05

SP, 30° /36° Index, 5 pos.

1S06

SP, 30° /36° Index, 6 pos.

1S07

SP, 30° /36° Index, 7 pos.

1S08

SP, 30° /36° Index, 8 pos.

1S09

SP, 30° /36° Index, 9 pos.

1S10

SP, 30° /36° Index, 10 pos.

1S11

SP, 30° Index, 11 pos.

1S12

SP, 30° Index, 12 pos.

2S02

DP, 30° /36° Index, 2 pos.

2S03

DP, 30° /36° Index, 3 pos.

2S04

DP, 30° /36° Index, 4 pos.

2S05

DP, 30° /36° Index, 5 pos.

2S06

DP, 30° Index, 6 pos.

3S02

3P, 30° /36° Index, 2 pos.

Indexing

22.5 index (coded only)

30° index (12 positions max.)

36° index (10 positions max.)

3S03

4S02

EW10

3P, 30° /36° Index, 3 pos.

4P, 30° /36° Index, 2 pos.

Direct + complement, 36º

Index, no stop

EW12

Direct + complement, 30º

Index, no stop

ES——

Direct + complement, 30º/36º

Index, with stop

(specify stop position)

Contact Material

Silver plated, matte-tin terminal

Gold plated, matte-tin terminal

Actuator (max.)

25N

.984 (25,0) with screwdriver slot

50N

1.97 (50,0) with screwdriver slot

FLS

Flush shaft with screwdriver slot

and position indicator

25F

.984 (25,0) Shaft with flat

06F

.236 (6,0) Shaft with flat

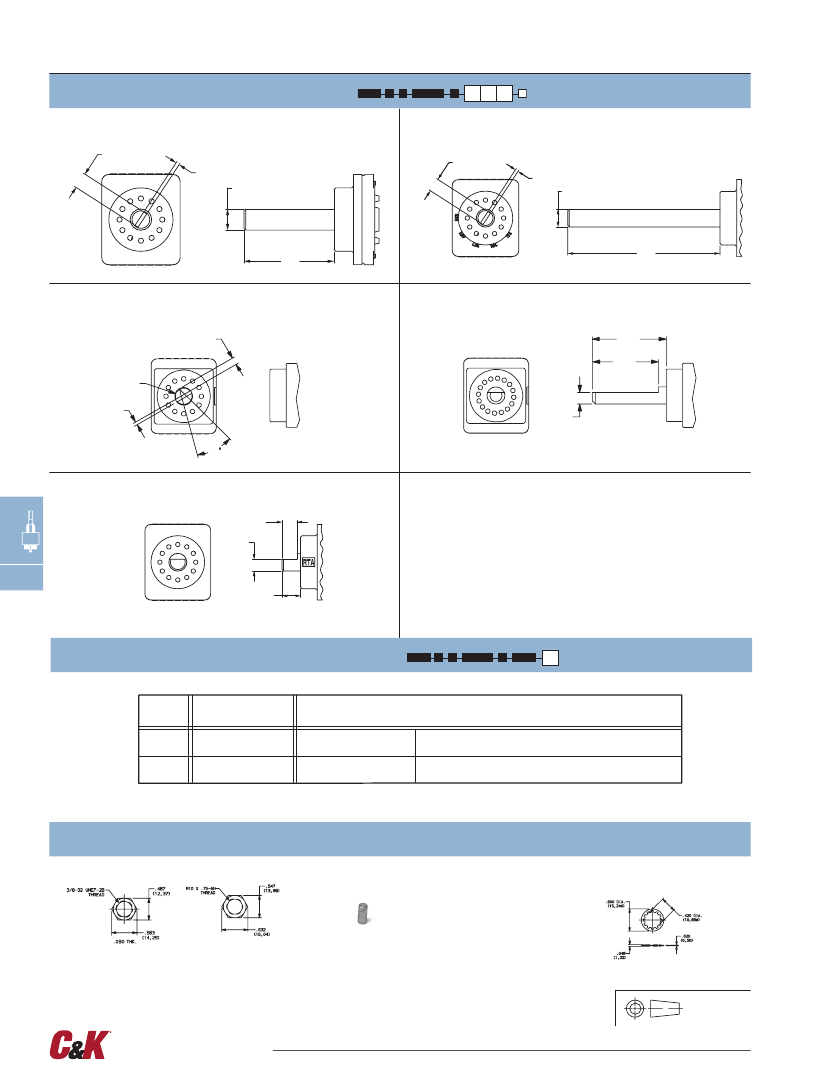

Mounting Style

Without bushing

3/8-32 Threaded Bushing

M10x.75 Metric Threaded Bushing

3/8-32 Threaded Bushing

with Offset Bracket

M10x.75 Metric Threaded

Bushing with Offset Bracket

3/8-32 Threaded Bushing

with Straight Bracket

M10x.75 Metric Threaded

Bushing with Straight Bracket

16 aug 18

K–8

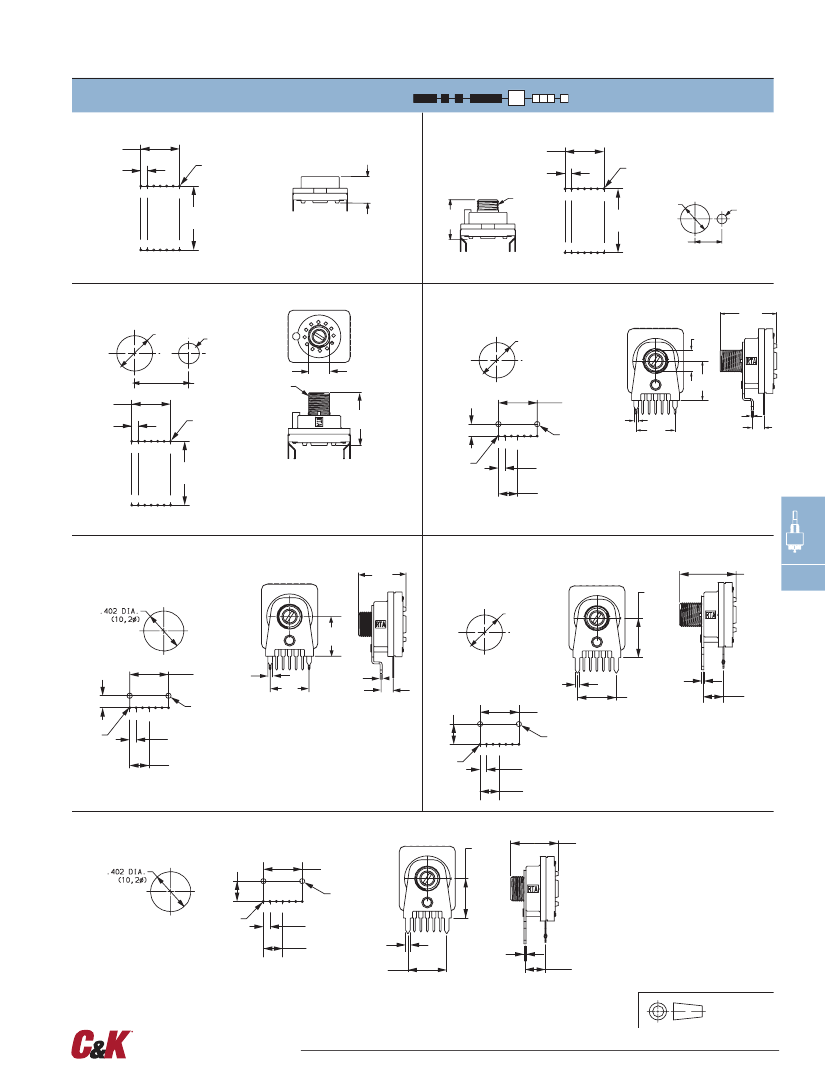

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

www.ckswitches.com
