PC724V0NSZX Series
PC724V0NSZX
Series
DIP 6 pin Large Input Current
Photocoupler
■
Description
PC724V0NSZX Series
contains an IRED optically
coupled to a phototransistor.
It is packaged in a 6 pin DIP, available in SMT gullw-
ing lead-form option.
Input-output isolation voltage(rms) is 5.0kV.
CTR is 20% to 80% at input current of 100mA.
■
Agency approvals/Compliance
1. Recognized by UL1577, file No. E64380 (as model
No.
PC724V)
2. Package resin : UL flammability grade (94V-0)
■
Applications
1. Programmable controllers
2. Facsimiles
3. Telephones
■
Features
1. 6 pin DIP package
2. Double transfer mold package (Ideal for Flow Solder-
ing)
3. Large input current type (I
F
: MAX. 150mA)
4. High isolation voltage between input and output
(V
iso(rms)
: 5.0kV)
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A04202EN
Date Mar. 26. 2004
© SHARP Corporation
PC724V0NSZX Series
■
Internal Connection Diagram
1
1
2
3
6
5
4
2
3
4
5
6
Anode
Cathode
NC
Emitter
Collector
NC
■

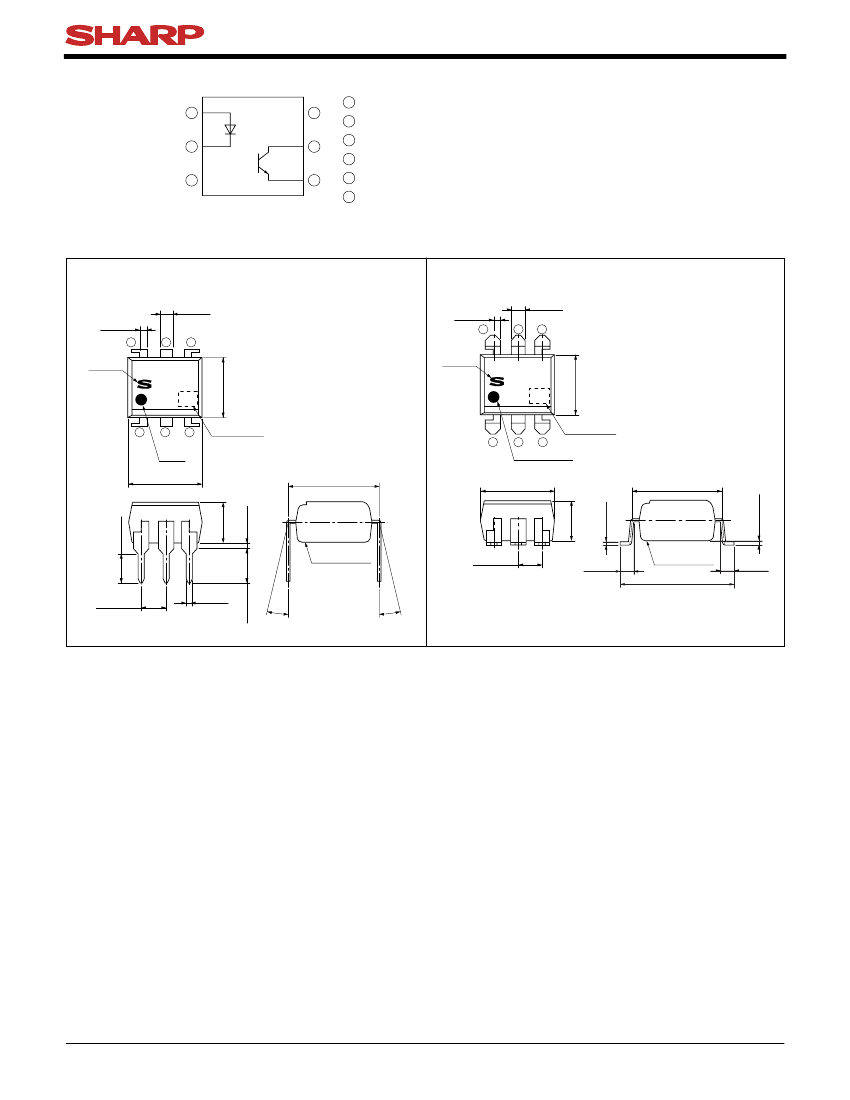

Outline Dimensions
1. Through-Hole [ex.
PC724V0NSZX]
1.2
±0.3
0.6
±0.2
SHARP
mark
"S"
6
5
4
(Unit : mm)
2. SMT Gullwing Lead-Form [ex.
PC724V0NIPX]
0.6
±0.2
6
5
1.2
±0.3
4
SHARP
mark
"S"
6.5
±0.5
1
2
3
Date code
1
2
3
Anode
mark
7.12
±0.5
Anode mark
7.62
±0.3
0.5
TYP.
3.5
±0.5
7.12
±0.5
6.5
±0.5
Date code
PC724V
PC724V
7.62
±0.3
0.26
±0.1
3.5
±0.5
0.35
±0.25
Epoxy resin
10.0
+0
−0.5
1.0
+0.4
−0
Sheet No.: D2-A04202EN
2.9
±0.5
Epoxy resin
0.5
±0.1
3.25
±0.5
2.54
±0.25
1.0
+0.4
−0
2.54
±0.25
θ
θ
: 0 to 13˚
θ
Product mass : approx. 0.36g
2
PC724V0NSZX Series
■
Absolute Maximum Ratings
Parameter
Symbol
Forward current
I
F
*1
Peak forward current
I
FM
Reverse voltage
V
R
Power dissipation
P
Collector-emitter voltage V
CEO
Emitter-collector voltage V
ECO
I
C
Collector current
Collector power dissipation
P
C
P
tot
Total power dissipation
T
opr
Operating temperature
T
stg
Storage temperature
*2
Isolation voltage
V
iso (rms)
*3
Soldering temperature
T
sol
(T
a
=25˚C)
Rating
Unit
150
mA
1
A
6
V
230
mW
35
V
6
V
80
mA
160
mW
320
mW
−25
to
+100
˚C
−55
to
+125
˚C
5
kV
260
˚C
*1 Pulse width≤100µs, Duty ratio : 0.001
*2 40 to 60%RH, AC for 1minute, f=60Hz
*3 For 10s
■
Electro-optical Characteristics
Parameter
Symbol
Forward voltage
V
F
Peak forward voltage
V
FM
Reverse current
I
R
Terminal capacitance
C
t
I
CEO
Collector dark current
Collector-emitter breakdown voltage BV
CEO
Emitter-collector breakdown voltage BV
ECO
Current transfer ratio
I
C
Collector-emitter saturation voltage V
CE (sat)
Isolation resistance
R
ISO
C
f
Floating capacitance
f
C
Cut-off frequency
Rise time
t
r
Response time
Fall time
t
f
Conditions
I
F
=100mA
I
FM
=0.5A
V
R
=4V
V=0, f=1kHz
V
CE
=20V,
I
F
=0
I
C
=0.1mA,
I
F
=0
I
E
=10µA,
I
F
=0
I
F
=100mA,
V
CE
=2V
I
F
=100mA,
I
C
=1mA
DC500V, 40 to 60%RH
V=0, f=1MHz
V
CE
=5V,
I
C
=2mA,
R
L
=100Ω
−3dB
Output
Input
Input
Output
Transfer
charac-
teristics
V
CE
=5V,
I
C
=2mA,
R
L
=100Ω
MIN.
−
−
−
−
−
35
6
20
−
5×10
10
−
−
−
−
TYP.
1.4
−
−
30
−
−
−
−
0.1
1×10
11
0.6
100
4
3
MAX.
1.7
3.0
10
250
100
−
−
80
0.2
−
1.0
−
18
18
(T
a
=25˚C)
Unit
V
V
µA
pF
nA
V
V
mA
V
Ω
pF
kHz
µs
µs
Sheet No.: D2-A04202EN
4
