D O C - 0 3 5 0 - 0 1 0
R E V
C
DEMO9S12XDT512
DEVELOPMENT BOARD FOR FREESCALE MC9S12XDT512
Axiom Manufacturing
•
2813 Industrial Lane
•
Garland, TX 75041
Email:
Sales@axman.com
Web:
http://www.axman.com
D E M O 9 S 1 2 X D T 5 1 2
M A Y
9 ,
2 0 0 5
CONTENTS
CAUTIONARY NOTES ..............................................................................................................4
TERMINOLOGY.........................................................................................................................4
FEATURES ................................................................................................................................5
REFERENCES ...........................................................................................................................6
GETTING STARTED..................................................................................................................6
OPERATING MODES ................................................................................................................6
RUN MODE ........................................................................................................................... 7
DEBUG MODE ...................................................................................................................... 7
SOFTWARE DEVELOPMENT...................................................................................................8
MEMORY MAP ..........................................................................................................................8
DEVELOPMENT SUPPORT ......................................................................................................9
INTEGRATED BDM .............................................................................................................. 9
BDM_PORT HEADER........................................................................................................... 9
POWER ....................................................................................................................................10
POWER SELECT ................................................................................................................ 10
PWR_SEL ........................................................................................................................10
VX_EN..............................................................................................................................11
RESET SWITCH ......................................................................................................................11
LOW VOLTAGE RESET ..........................................................................................................11
TIMING .....................................................................................................................................12
COMMUNICATIONS ................................................................................................................12
RS-232 ................................................................................................................................ 12
COM CONNECTOR .........................................................................................................13
LIN COMMUNICATIONS..................................................................................................... 13
LIN_EN.............................................................................................................................13
CAN COMMUNICATIONS................................................................................................... 14
MODE.......................................................................................................................................14
VRH/VRL..................................................................................................................................15
USER I/O..................................................................................................................................15
SWITCHES ......................................................................................................................15
LED’S ...............................................................................................................................15
POT ..................................................................................................................................16
LIGHT SENSOR...............................................................................................................16
USER SIGNALS .................................................................................................................. 16
USER ENABLE ................................................................................................................... 16
MCU I/O PORT.........................................................................................................................17
APPENDIX A............................................................................................................................19
2
D E M O 9 S 1 2 X D T 5 1 2
M A Y
9 ,
2 0 0 5
TOP SILKSCREEN ............................................................................................................. 19
APPENDIX B............................................................................................................................20
BILL OF MATERIAL ............................................................................................................ 20
TABLE OF FIGURES
Figure 1: USB_SPEED Option Header ..................................................................................................................... 9
Figure 2: BDM_PORT ............................................................................................................................................. 10
Figure 3: PWR_SEL Option Header........................................................................................................................ 10
Figure 4. VX_EN Option Header ............................................................................................................................ 11
Figure 5. CLK_SEL Option Header ........................................................................................................................ 12
Figure 6: COM Connector ....................................................................................................................................... 13
Figure 7: LIN Connector .......................................................................................................................................... 13
Figure 8. LIN_EN Option Header ........................................................................................................................... 14
Figure 9. CAN_PORT Connector ........................................................................................................................... 14
Figure 10. MODE Option Header ........................................................................................................................... 14
Figure 11: MCU I/O PORT – J1............................................................................................................................... 17
Figure 12. MCU I/O PORT – J2.............................................................................................................................. 18
TABLE OF TABLES
Table 1: Run Mode Setup.......................................................................................................................................... 7
Table 2: BDM Mode Setup ........................................................................................................................................ 8
Table 3: Memory Map................................................................................................................................................ 8
Table 4: COM Connections ..................................................................................................................................... 13
Table 5: ATD Reference Voltage............................................................................................................................. 15
Table 6: User I/O ..................................................................................................................................................... 16
Table 7: USER Option Header ................................................................................................................................ 17
Revision History
Date
March 24, 2005
March 31, 2005
May 9, 2005
Rev
A
B
C
Comments
Initial Release
Added corrections noted in “Out-of-Box” review. Removed reference
to serial cable, Demo program and Troubleshooting section.
Removed Motorola reference in document
3
D E M O 9 S 1 2 X D T 5 1 2
M A Y
9 ,
2 0 0 5
CAUTIONARY NOTES
1) Electrostatic Discharge (ESD) prevention measures should be used when handling this
product. ESD damage is not a warranty repair item.
2) Axiom Manufacturing does not assume any liability arising out of the application or use of
any product or circuit described herein; neither does it convey any license under patent
rights or the rights of others.
3) EMC Information on the DEMO9S12XDT512 board:
a) This product as shipped from the factory with associated power supplies and cables, has
been verified to meet with requirements of CE and the FCC as a CLASS A product.
b) This product is designed and intended for use as a development platform for hardware or
software in an educational or professional laboratory.
c) In a domestic environment, this product may cause radio interference in which case the
user may be required to take adequate prevention measures.
d) Attaching additional wiring to this product or modifying the products operation from the
factory default as shipped may effect its performance and cause interference with nearby
electronic equipment. If such interference is detected, suitable mitigating measures should
be taken.
TERMINOLOGY
This development module utilizes option select jumpers to configure default board operation.
Terminology for application of the option jumpers is as follows:
Jumper – a plastic shunt that connects 2 terminals electrically
Jumper on, in, or installed - jumper is installed such that 2 pins are connected together
Jumper off, out, or idle - jumper is installed on 1 pin only. It is recommended that jump-
ers be idled by installing on 1 pin so they will not be lost.
4
D E M O 9 S 1 2 X D T 5 1 2
M A Y
9 ,
2 0 0 5
FEATURES

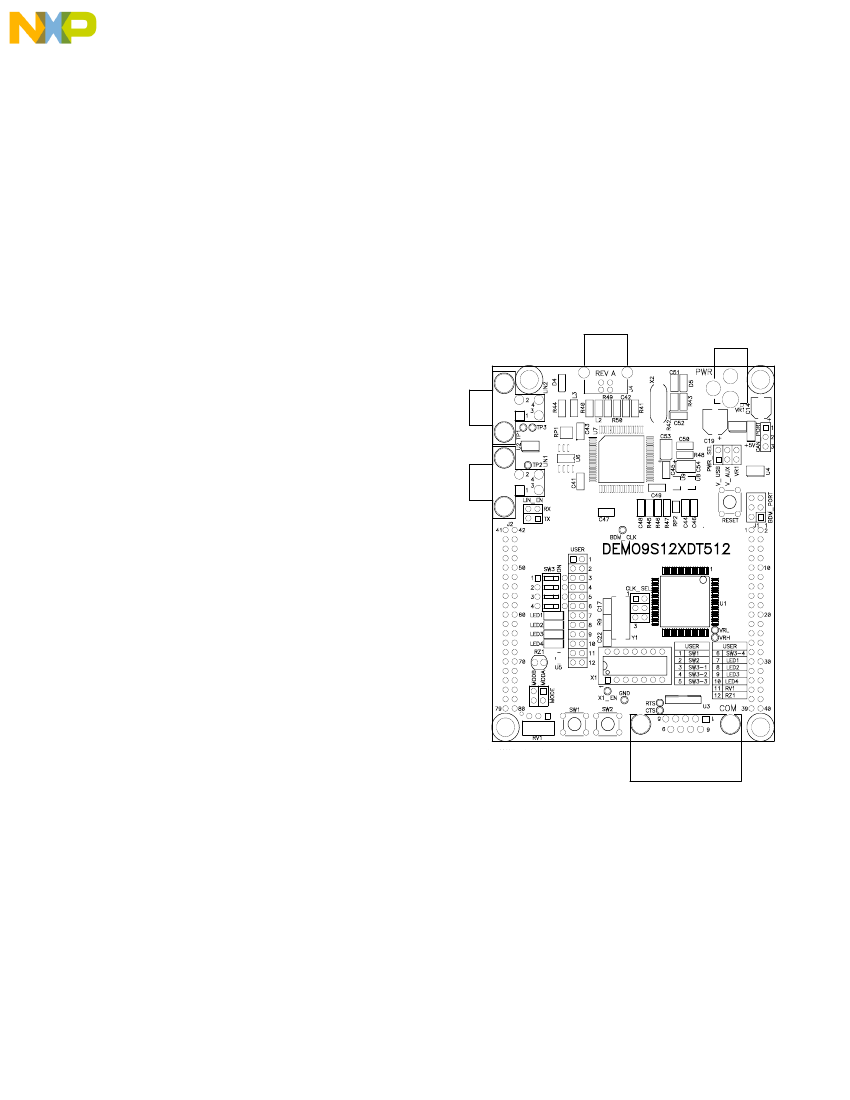

The DEMO9S12XDT512 is an evaluation or demonstration board for the Freescale
MC9S12XDT512 MCU. Development of applications is quick and easy with the integrated
USB-Multilink BDM, sample software tools, and examples. A standard BDM debug port is also
provided, but not populated, to allow use of an external BDM pod. Two 40-pin connectors al-
low the demonstration board to be connected to an expanded evaluation environment or to
external test equipment.
♦
Features:
MC9S12XDT512 MCU, 80 LQFP
♦
X-GATE Co-Processor
♦
512 KB Flash EEPROM
♦
4KB EEPROM
♦
32 KB SRAM
♦
59 GPIO lines
♦
Enhanced Capture Timer/PWM
♦
SCI and SPI Communications Ports
♦
Key Wake-up Port
♦
Single Wire BDM Interface
♦
CAN 2.0 A/B Module
♦
Analog to Digital Converter
♦
80 MHz Bus Operation using internal PLL
Integrated USB-Multilink BDM for DEBUG access
Optional power from USB bus through USB-Multilink BDM
Optional on-board, regulated +5V power supply for stand-
alone operation
Optional power through MCU I/O connector
Power Input Selection
♦
USB Connector
♦
2.0mm barrel connector
♦
MCU I/O Connector
On-Chip Voltage Regulator with low-voltage detect (LVD)
and low-voltage interrupt (LVI)
4 MHz crystal oscillator in low-power Pierce configuration
default
Optional full-power Pierce configuration (requires installation
R9)
Socket for optional full- or half-can clock oscillator
RS-232 serial port w/ DB9 connector
8-Ch, 10-bit, ATD with external trigger capability
16-Ch, 10-bit, ATD with external trigger capability
Enhanced Capture Timer with IC, OC, PWM and Pulse Accumulate capabilities
User Components Provided
♦
4 Position DIP Switch
♦
3 Push Button Switches: 2 User, RESET
♦
7 LED Indicators: 4 User, 2 USB, +5V
Jumpers
♦
Enable/Disable User functions
♦
PWR_SEL
♦
VX_EN
♦
LIN_EN
5
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
of
♦
