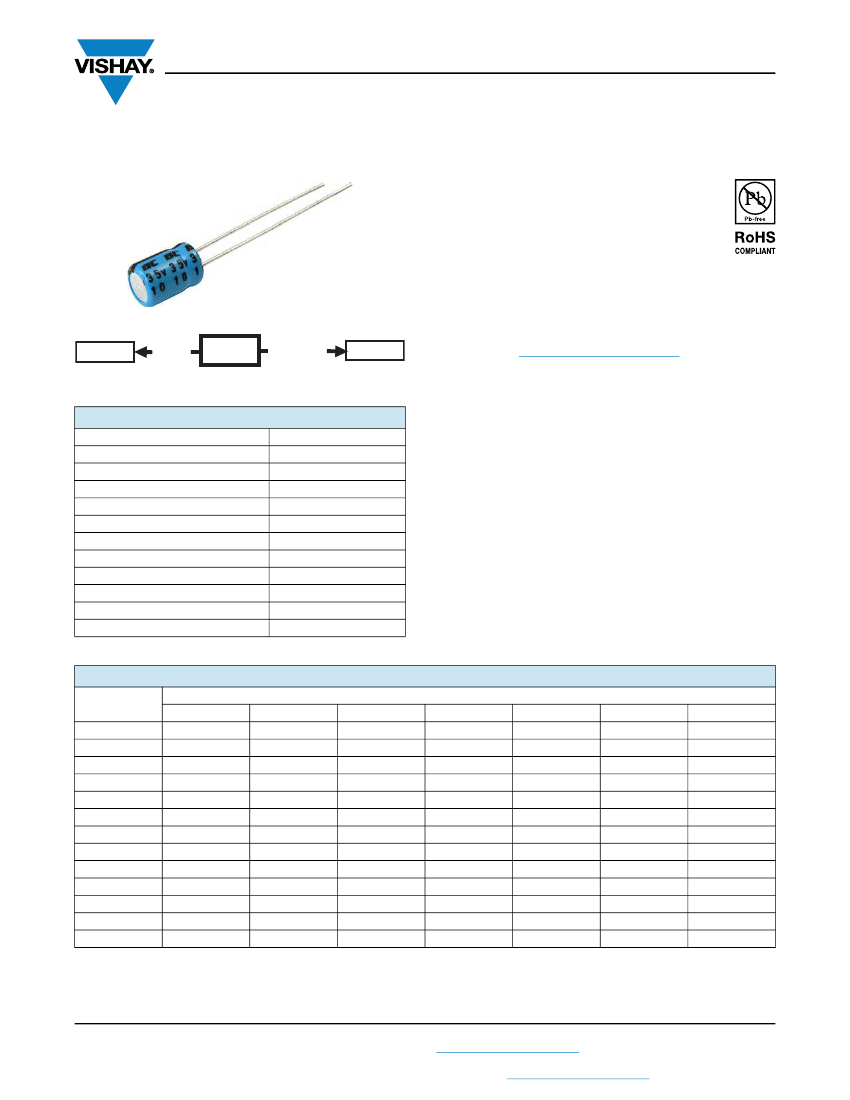

• Radial leads, cylindrical aluminum case, insulated with
a blue sleeve
• Charge and discharge proof
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
038 RSU
higher
CV-values
Fig.0
Component outlines.
097 RLP 7
7 mm
lower height
5 mm
134 RLP 5
Fig. 1
APPLICATIONS
•
•
•
•
General purpose; industrial, automotive and audio-video
Low surface demand on printed-circuit board
Coupling, decoupling, smoothing, filtering and timing
Portable and mobile equipment (small size, low mass),
low profile equipment
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes (Ø D x L in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage, U
R
Category temperature range
Endurance test at 85 °C
Useful life at 85 °C
Useful life at 40 °C, 1.4 x I
R
applied
Shelf life at 0 V, 85 °C
Based on sectional specification
Climatic category IEC 60068
VALUE
4 x 7 to 6.3 x 7
0.1 μF to 220 μF
± 20 %
6.3 V to 63 V
-40 °C to +85 °C
1000 h
1500 h
40 000 h
500 h
IEC 60384-4 / EN 130300
40 / 085 / 56
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Rated voltage (in V)
• Negative terminal identification
• Code indicating factory of origin
• Name of manufacturer
• Date code, in accordance with IEC 60062
• Series number (097)
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
0.10
0.22
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
U
R
(V)
6.3
-
-
-
-
-
-
-
-
4x7
-
5x7
-
6.3 x 7
10
-
-
-
-
-
-
-
-
-
5x7
-
6.3 x 7
-
16
-
-
-
-
-
-
-
4x7
5x7
-
6.3 x 7
6.3 x 7
-
25
-
-
-
-
-
-
-
-
-
6.3 x 7
6.3 x 7
-
-
35
-
-
-
-
-
-
4x7
5x7
6.3 x 7
6.3 x 7
-
-
-
50
-
-
-
-
-
4x7
5x7
6.3 x 7
6.3 x 7
-
-
-
-
63
4x7
4x7
4x7
4x7
4x7
5x7
6.3 x 7
6.3 x 7
-
-
-
-
-
Revision: 14-Feb-17
Document Number: 28308
1
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
097 RLP 7
www.vishay.com

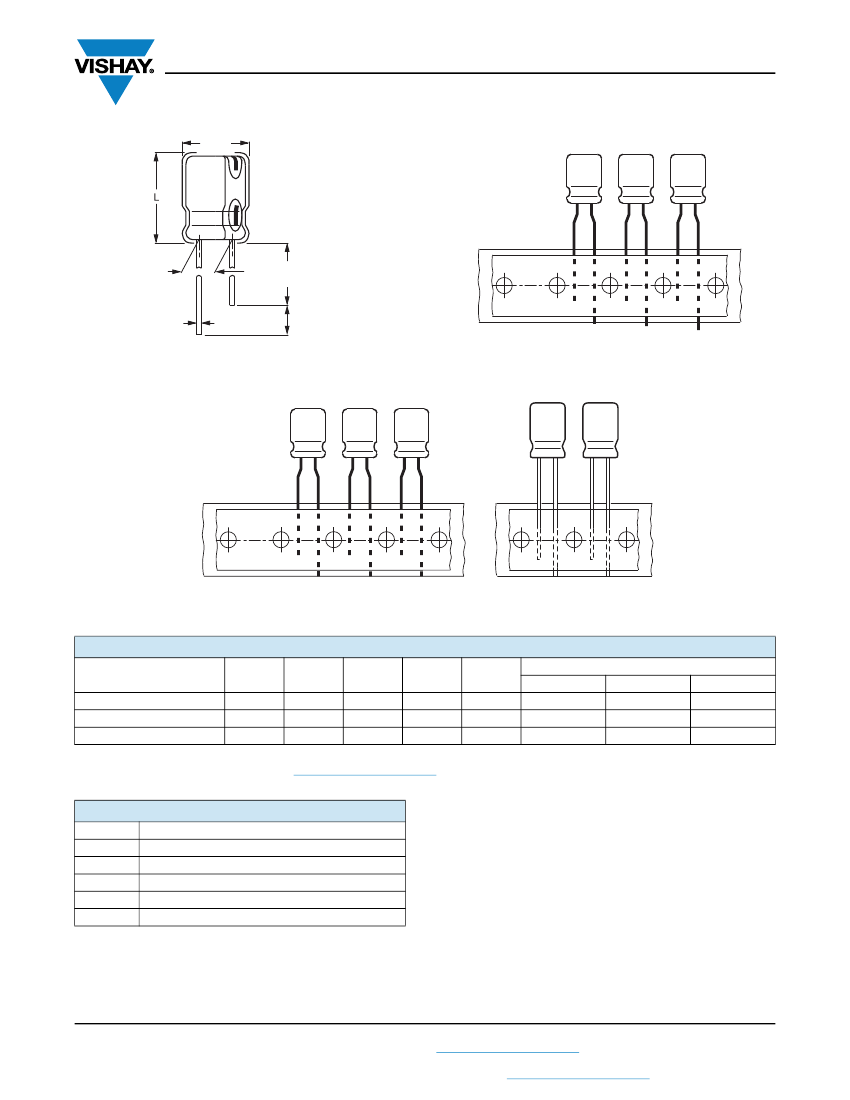

DIMENSIONS
in millimeters
AND AVAILABLE FORMS
ØD
Vishay BCcomponents
+
-
F
± 0.5
15
min.
Ød
5
min.
Fig. 2 -
Form CA:
Long leads
Fig. 3 -
Form TFA:
Taped in box (ammopack),
formed leads, pitch F = 5 mm
Fig. 4 -
Form TNA:
Taped in box (ammopack), pitch F = 2.5 mm
Table 1
DIMENSIONS
in millimeters
AND PACKAGING QUANTITIES
NOMINAL CASE SIZE
ØDxL
4x7
5x7
6.3 x 7
CASE
CODE
71
72
73
Ød
0.45
0.45
0.45
Ø D
max.
4.5
5.5
6.8
L
max.
8
8
8
F
1.5 ± 0.5
2.0 ± 0.5
2.5 ± 0.5
PACKAGING QUANTITIES
FORM CA
2000
1000
1000
FORM TFA
2000
2000
2000
FORM TNA
2000
2000
2000
Note
• For detailed tape dimensions please see
www.vishay.com/doc?28360
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L2
tan
Z
DESCRIPTION
Rated capacitance at 120 Hz, tolerance ± 20 %
Rated RMS ripple current at 120 Hz, 85 °C
Max. leakage current after 2 min at U
R
Max. dissipation factor at 120 Hz
Max. impedance at 100 kHz
ORDERING EXAMPLE
Electrolytic capacitor 097 series
100 μF / 16 V; ± 20 %
Nominal case size: Ø 6.3 mm x 7 mm; form TFA
Ordering code: MAL209735101E6
Former 12NC: 2222 097 35101
Note
• Unless otherwise specified, all electrical values in Table 2 apply
at T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %.
Revision: 14-Feb-17
Document Number: 28308
2
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
097 RLP 7
www.vishay.com
Table 2
Vishay BCcomponents
ELECTRICAL DATA AND ORDERING INFORMATION
ORDERING CODE MAL2097.......
U
R
(V)
C
R
120 Hz
(μF)
22
47
220
33
100
10
22
47
100
33
47
4.7
10
22
33
3.3
4.7
10
22
0.10
0.22
0.47
1.0
2.2
3.3
4.7
10
NOMINAL
CASE SIZE
ØDxL
(mm)
4x7
5x7
6.3 x 7
5x7
6.3 x 7
4x7
5x7
6.3 x 7
6.3 x 7
6.3 x 7
6.3 x 7
4x7
5x7
6.3 x 7
6.3 x 7
4x7
5x7
6.3 x 7
6.3 x 7
4x7
4x7
4x7
4x7
4x7
5x7
6.3 x 7
6.3 x 7
I
R
120 Hz
85 °C
(mA)
31
47
90
43
80
25
39
59
90
53
65
20
30
47
60
18
23
34
53
1.3
2.9
7.9
11
17
21
26
40
I
L2
2 min
(μA)
3
3
14
4
10
3
4
8
16
9
12
3
4
8
12
3
3
5
11
3
3
3
3
3
3
3
7
tan
120 Hz
Z
100 kHz
()
8.4
4.6
1.8
3.7
2.2
10.0
5.0
3.5
2.5
2.6
1.9
10.0
5.6
3.0
2.6
14.0
10.0
5.5
2.9
170.0
110.0
66.0
36.0
19.0
14.0
10.0
5.5
BULK
LONG LEADS
FORM
CA
53229E6
53479E6
53221E6
54339E6
54101E6
55109E6
55229E6
55479E6
55101E6
56339E6
56479E6
50478E6
50109E6
50229E6
50339E6
51338E6
51478E6
51109E6
51229E6
58107E6
58227E6
58477E6
58108E6
58228E6
58338E6
58478E6
58109E6
F
(mm)
1.5
2.0
2.5
2.0
2.5
1.5
2.0
2.5
2.5
2.5
2.5
1.5
2.0
2.5
2.5
1.5
2.0
2.5
2.5
1.5
1.5
1.5
1.5
1.5
2.0
2.5
2.5
FORM
TFA
33229E6
33479E6
33221E6
34339E6
34101E6
35109E6
35229E6
35479E6
35101E6
36339E6
36479E6
30478E6
30109E6
30229E6
30339E6
31338E6
31478E6
31109E6
31229E6
38107E6
38227E6
38477E6
38108E6
38228E6
38338E6
38478E6
38109E6
TAPED AMMOPACK
F
(mm)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
FORM
TNA
73229E6
73479E6
73221E6
74339E6
74101E6
75109E6
75229E6
75479E6
75101E6
76339E6
76479E6
70478E6
70109E6
70229E6
70339E6
71338E6
71478E6
71109E6
71229E6
78107E6
78227E6
78477E6
78108E6
78228E6
78338E6
78478E6
78109E6
F
(mm)
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
6.3
10
16
25
35
50
63
0.24
0.24
0.24
0.20
0.20
0.16
0.16
0.16
0.16
0.14
0.14
0.12
0.12
0.12
0.12
0.10
0.10
0.10
0.10
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
Resistance
Equivalent series resistance (ESR)
Calculated from tan
max.
and C
R
(see Table 2)
ESR = tan
/2 f
C
R
After 2 min at U
R
I
L2
0.01 C
R
x U
R
or 3 μA (whichever is greater)
U
s
1.15 x U
R
U
rev
1 V
CONDITIONS
VALUE

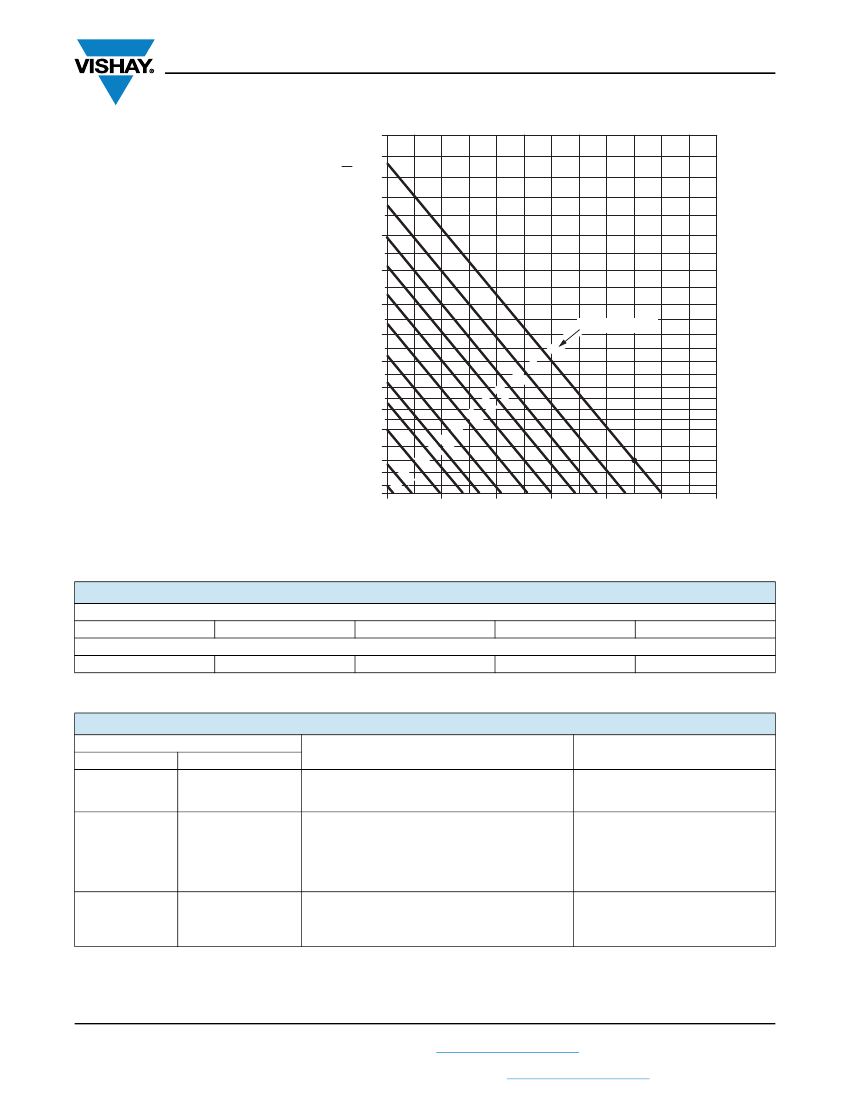

RIPPLE CURRENT AND USEFUL LIFE
Table 3
ENDURANCE TEST DURATION AND USEFUL LIFE
ENDURANCE AT 85 °C (h)
1000
Note
• Multiplier of useful life code: CCC205
Revision: 14-Feb-17
Document Number: 28308
3
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
USEFUL LIFE AT 85 °C (h)
1500
097 RLP 7
www.vishay.com
Vishay BCcomponents
3.3
I
A
I
R
3.2
3.1
3.0
CCC205
2.8
2.6
2.4
2.2
0
1.
Lifetime multiplier
2.0
1.8
0
4.
0
3.
5
1.
0
2.
1.6
1.4
1.2
1.0
0.8
0.5
0.0
20
30
50
10
15
6
.0
(1)
I
A
= Actual ripple current at 120 Hz
I
R
= Rated ripple current at 120 Hz, 85 °C
(1)
40
Useful life at 85 °C and I
R
applied: 1500 h
Fig. 5 - Multiplier of useful life as a function of ambient temperature and ripple current load
70
50
60
70
80
90
T
amb
(°C)
100
Table 4
MULTIPLIER OF RIPPLE CURRENT (I
R
) AS A FUNCTION OF FREQUENCY
FREQUENCY (Hz)
50
0.60
120
1.00
400
I
R
MULTIPLIER
1.20
1.30
1.40
800
2000
Table 5
TEST PROCEDURES AND REQUIREMENTS
TEST
NAME OF TEST
Endurance
REFERENCE
IEC 60384-4 /
EN 130 300,
subclause 4.13
PROCEDURE
(quick reference)
T
amb
= 85 °C, U
R
applied;
1000 h
REQUIREMENTS
C/C:
± 20 %
tan
2 x spec. limit
I
L2
spec. limit
C/C:
± 50 %
tan
3 x spec. limit
Z
3 x spec. limit
I
L2
spec. limit
no short or open circuit
total failure percentage:
3
%
C/C,
tan
,
Z:
For requirements see
“Endurance test” above
I
L2
spec. limit
Useful life
CECC 30301,
subclause 1.8.1
T
amb
= 85 °C, U
R
and I
R
applied;
1500 h
Shelf life
(storage at high
temperature)
IEC 60384-4 /
EN 130300,
subclause 4.17
T
amb
= 85 °C; no voltage applied;
500 h
After test: U
R
to be applied for 30 min,
24 h to 48 h before measurement
Statements about product lifetime are based on calculations and internal testing. They should only be interpreted as estimations. Also due to external factors, the
lifetime in the field application may deviate from the calculated lifetime. In general, nothing stated herein shall be construed as a guarantee of durability.
Revision: 14-Feb-17
Document Number: 28308
4
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Motorcycle tail flash gravel light circuit When the night running light is turned on, 12V power supply is connected to this circuit. The potentials of the main points in the circuit are set as follows...
1. Modify the registry. Through the tool, you can see that I have successfully modified the value of \ControlPanel\BackLight\Brightness. Then HANDLE hBL=CreateEvent(NULL,FALSE,FALSE,L"BackLightChangeE...
[size=4] Dedication is everywhere, the circuit diagram of the nail art of a female electronic engineer. Do you have similar dedicated electronic engineers around you? :lol Please post a photo in the t...
A small magnet is placed on the end face of the motor shaft, close to the edge. When the motor starts, the Hall sensor outputs a signal. This signal is used to control the start and stop of the subseq...
I use MSP430 to send data to PC, and I can receive the data using the serial port assistant, but I can't display the data using VC++. The following is the control receiving code (the control can commu...
I am now training driver chips during the summer vacation. I try not to look at other people's manuals. Is it interesting? It takes a long time. I don't know if it is a waste of time. I don't know how...
Remote keyless entry (RKE) systems have become popular with users, with more than 80% of new cars in North America and more than 70% in Europe equipped with RKE systems. In addition to the obvious ...[Details]
Images in science fiction movies often break through the limits of reality, such as in the movie "Minority Report." Tom Cruise uses a multi-touch screen to browse information. Capacitive sensing te...[Details]
With the rapid development of urban economy, elevators are increasingly used as a vertical transportation tool. However, elevator fault detection and maintenance, especially the role of elevator remot...[Details]
Editor's note: In order to help technicians or engineers who have knowledge of PIC microcontroller assembly language quickly master the method of using C language to program PIC microcontrollers, t...[Details]
Xiaomi, a well-known Internet phone in mainland China, won a million-unit order contract from China Unicom on November 20 last year, which made Xiaomi famous in mainland China. In April this year...[Details]
LED is the abbreviation of light emitting diode, which is an electric light source made of semiconductor technology. The core part of LED is a chip composed of P-type semiconductor and N-type semi...[Details]
Smart lighting control systems provide high controllability for various buildings and further enhance the level of green energy. They are the core products of energy conservation and digital techn...[Details]
With the continuous consumption of earth's energy and the scarcity of resources, the harm of greenhouse effect to human beings, and the serious pollution of the atmosphere to the earth, the intern...[Details]
The traditional display screen using 51 single-chip microcomputer to control LED dot matrix has relatively simple functions. If it is to achieve diversified functions, it often takes a lot of time ...[Details]
The concept of state machine
State machine is an important concept in software programming. More important than this concept is its flexible application. In a clear and efficient program, ther...[Details]
FPGAs are used in 81% of electronic systems, including many commercial and defense products, and most FPGAs use BGA packaging. The BGA packaging is characterized by small solder balls and small sol...[Details]
It is well known to automotive suppliers that automakers are demanding more from their supply base. For connector suppliers, this means stricter requirements for product performance, stability and ...[Details]
The era of mobile access to the Internet has arrived, and it will rapidly change the business and infrastructure needs of mobile operators under a whole new trend of requirements. We need 4G LTE to...[Details]
Only a small number of LED manufacturers can produce high-quality LEDs. For applications that are only used for simple indication, low-quality LEDs are sufficient. However, high-quality LEDs must...[Details]
1. Introduction
With the increasing popularity of fully automatic washing machines, consumers have higher and higher requirements for their environmenta...[Details]
DIY/Open Source Hardware
京公网安备 11010802033920号
EEWORLD
