StaticGuard Automotive Series
Multilayer Varistors for Automotive Applications
GENERAL DESCRIPTION
The StaticGuard Automotive Series are low capacitance versions
of the TransGuard and are designed for general ESD protection
of CMOS, Bi-Polar, and SiGe based systems. The low
capacitance makes these products suitable for use in
automotive CAN and LIN bus communication lines as well as
other high speed data transmission applications requiring low
capacitance protection.
GENERAL
CHARACTERISTICS
• Operating Temperature:
-55ºC to 125ºC
• Working Voltage: ≤ 18Vdc
• Case Size: 0402, 0603, 0805
FEATURES
• AEC Q200 Qualified
• ISO 7637 Pulse 1-3 capability
• Meet 27.5Vdc Jump Start
requirements
• Multi-strike capability
• Sub 1nS response to ESD strike
APPLICATIONS
• CAN BUS
• LIN BUS
• CMOS
• Module interfaces
• Switches
• Sensors
• Camera modules
• Datalines
• Capacitance sensitive applications
and more
HOW TO ORDER
VC
Varistor
Chip
AS
Series
AS = Automotive
06
Case
Size
04 = 0402
06 = 0603
08 = 0805
LC
Low Cap
Design
18
Working
Voltage
18 = 18.0VDC
X
Energy
Rating
A = 0.10 Joules
V = 0.02 Joules
X = 0.05 Joules
500
Clamping
Voltage
150 = 18V
200 = 22V
300 = 32V
400 = 42V
500 = 50V
R
Packaging
(PCS/REEL)
D = 1,000
R = 4,000
T = 10,000
W = 0402
10000
P
Termination
P = Ni/Sn
ELECTRIAL CHARACTERISTICS
AVX PN
VCAS04LC18V500
VCAS06LC18X500
VCAS08LC18A500
V
W
(DC)
V
W
(AC)
V
B
V
C
I
VC
I
L
V
W
(DC)
≤18.0
≤18.0
≤18.0
V
W
(AC)
≤14.0
≤14.0
≤14.0
V
B
25-40
25-40
25-40
E
T
I
P
Cap
V
Jump
P
DISS
V
C
50
50
50
I
VC
1
1
1
I
L
10
10
10
E
T
0.02
0.05
0.1
I
P
15
30
30
Cap
40
50
80
Freq
M
M
M
V
JUMP
27.5
27.5
27.5
P
DISS
0.0004
0.001
0.002
Size
0402
0603
0805
DC Working Voltage [V]
AC Working Voltage [V]
Typical Breakdown Votage [V @ 1mA
DC
, 25°C]
Clamping Voltage [V @ I
IVC
]
Test Current for V
C
[A, 8x20μs]
Maximum leakage current at the working
voltage, 25°C [μA]
Transient Energy Rating [J, 10x1000μS]
Peak Current Rating [A, 8x20μS]
Typical capacitance [pF] @ frequency specified
and 0.5V
RMS
, 25°C, M = 1MHz, K = 1kHz
Jump Start [V, 5 min]
Power Dissipation [W]
080916
27
StaticGuard Automotive Series
Multilayer Varistors for Automotive Applications

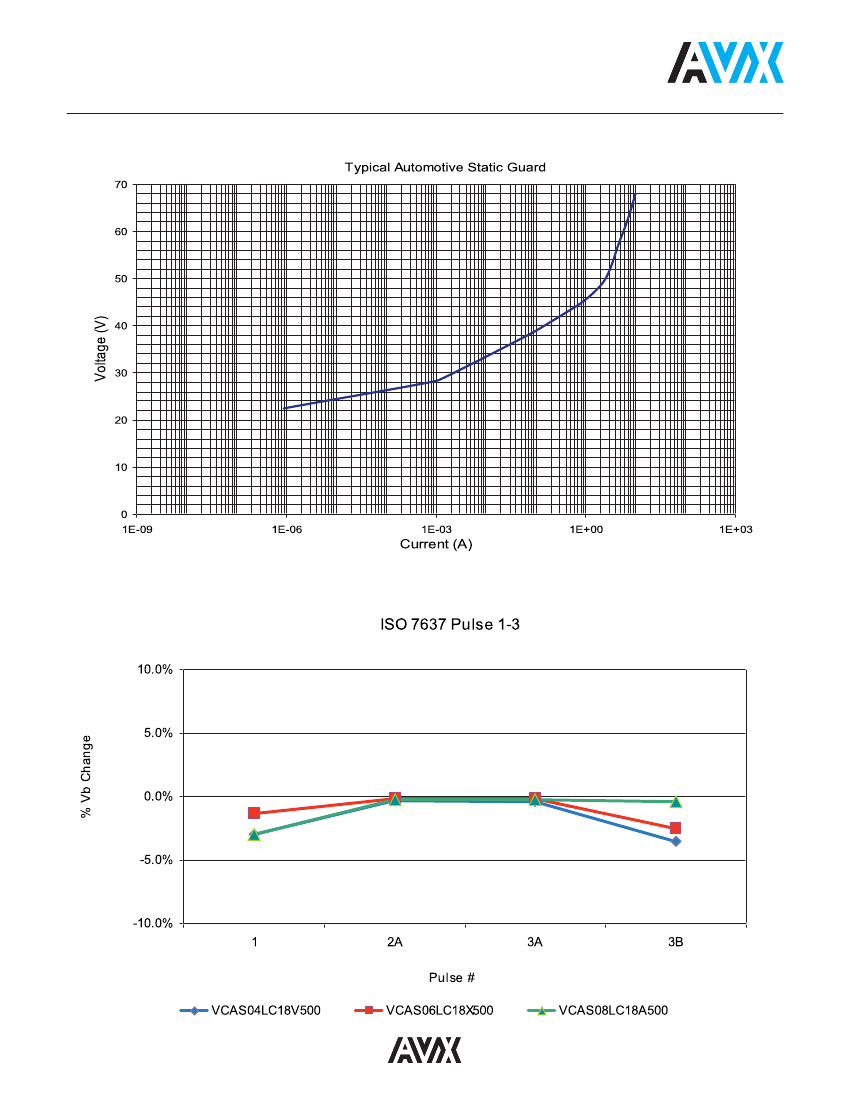

VOLTAGE/CURRENT CHARACTERISTICS

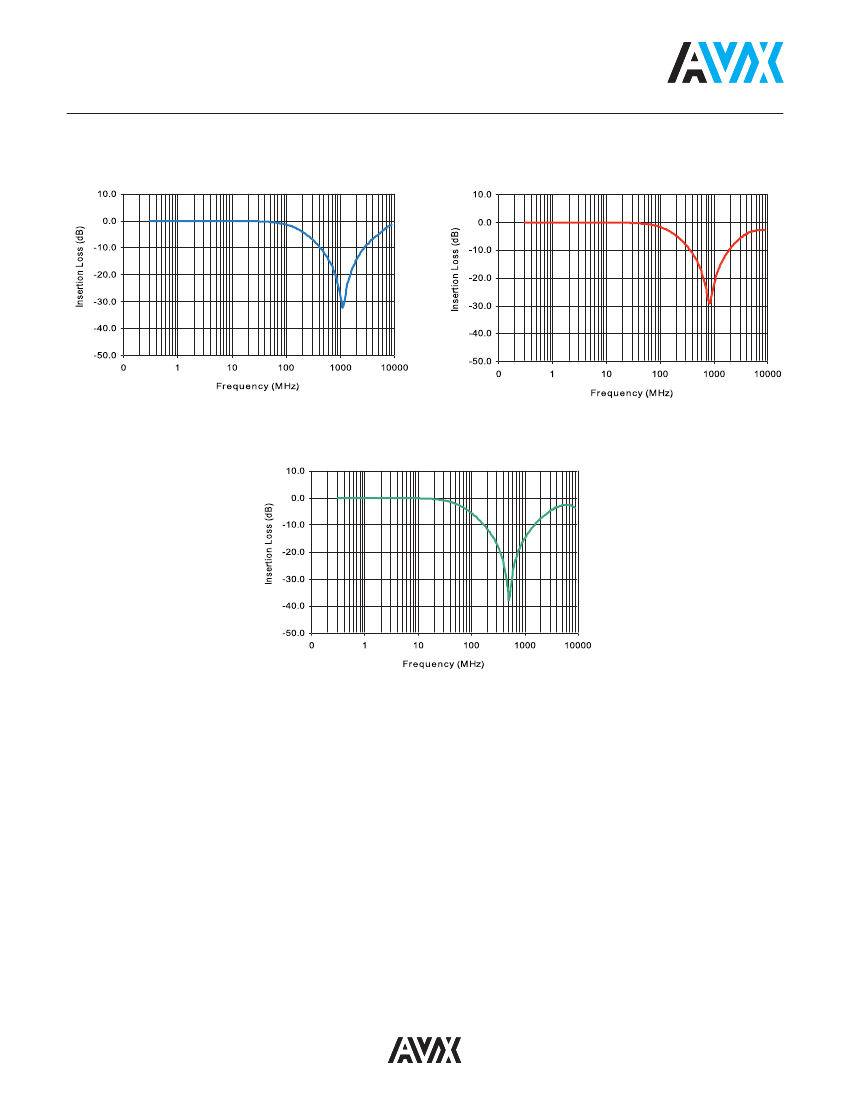

ELECTRICAL TRANSIENT CONDUCTION
28
080916
