NVMFS5C468NLAFT1G

Description
MOSFET N-CH 40V 13A 37A 5DFN
CategoryDiscrete semiconductor    The transistor
File Size81KB,6 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

NVMFS5C468NLAFT1G Online Shopping

Suppliers Part Number Price MOQ In stock
NVMFS5C468NLAFT1G - - View Buy Now

NVMFS5C468NLAFT1G Overview

MOSFET N-CH 40V 13A 37A 5DFN

NVMFS5C468NLAFT1G Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
MakerON Semiconductor
package instructionSMALL OUTLINE, R-PDSO-F5
Manufacturer packaging code488AA
Reach Compliance Codenot_compliant
Factory Lead Time5 weeks
Avalanche Energy Efficiency Rating (Eas)95 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage40 V
Maximum drain current (Abs) (ID)37 A
Maximum drain current (ID)37 A
Maximum drain-source on-resistance0.0176 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)11 pF
JESD-30 codeR-PDSO-F5
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals5
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)28 W
Maximum pulsed drain current (IDM)190 A
GuidelineAEC-Q101
surface mountYES
Terminal surfaceTin (Sn)
Terminal formFLAT
Terminal locationDUAL
Transistor component materialsSILICON

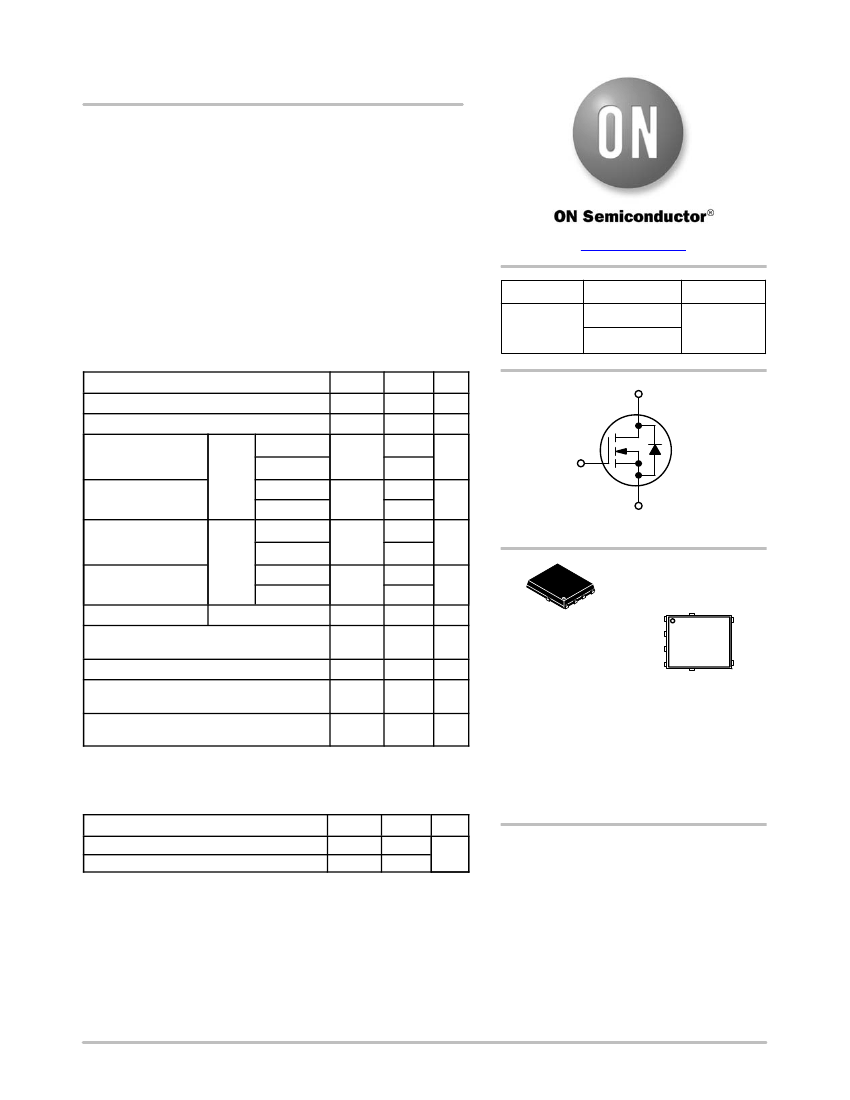

NVMFS5C468NL
Power MOSFET
40 V, 10.3 mW, 37 A, Single N−Channel
Features
Small Footprint (5x6 mm) for Compact Design
Low R
DS(on)
to Minimize Conduction Losses
Low Q
G
and Capacitance to Minimize Driver Losses
NVMFS5C468NLWF − Wettable Flank Option for Enhanced Optical
Inspection
AEC−Q101 Qualified and PPAP Capable
These Devices are Pb−Free and are RoHS Compliant
MAXIMUM RATINGS
(T
J
= 25°C unless otherwise noted)
Parameter
Drain−to−Source Voltage
Gate−to−Source Voltage
Continuous Drain
Current R
qJC
(Notes 1, 3)
Power Dissipation
R
qJC
(Note 1)
Continuous Drain
Current R
qJA
(Notes 1, 2, 3)
Power Dissipation
R
qJA
(Notes 1 & 2)
Pulsed Drain Current
T
C
= 25°C
Steady
State
T
C
= 100°C
T
C
= 25°C
T
C
= 100°C
T
A
= 25°C
Steady
State
T
A
= 100°C
T
A
= 25°C
T
A
= 100°C
T
A
= 25°C, t
p
= 10
ms
I
DM
T
J
, T
stg
I
S
E
AS
T
L
P
D
I
D
P
D
Symbol
V
DSS
V
GS
I
D
Value
40
±20
37
26
28
14
13
9.2
3.5
1.7
190
−55 to
+ 175
31
95
260
A
°C
A
mJ
°C
W
A
W
Unit
V
V
A
www.onsemi.com
V
(BR)DSS
40 V
R
DS(ON)
MAX
10.3 mW @ 10 V
I
D
MAX
37 A
17.6 mW @ 4.5 V
D (5,6)
G (4)
S (1,2,3)
N−CHANNEL MOSFET
MARKING
DIAGRAM
D
1
Operating Junction and Storage Temperature
Source Current (Body Diode)
Single Pulse Drain−to−Source Avalanche
Energy (I
L(pk)
= 2 A)
Lead Temperature for Soldering Purposes
(1/8″ from case for 10 s)
DFN5
(SO−8FL)
CASE 488AA
STYLE 1
S
S
S
G
D
XXXXXX
AYWZZ
D
D
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
THERMAL RESISTANCE MAXIMUM RATINGS
Parameter
Junction−to−Case − Steady State
Junction−to−Ambient − Steady State (Note 2)
Symbol
R
qJC
R
qJA
Value
5.3
43
Unit
°C/W
XXXXXX = 5C468L
XXXXXX =
(NVMFS5C468NL) or
XXXXXX =
468LWF
XXXXXX =
(NVMFS5C468NLWF)
A
= Assembly Location
Y
= Year
W
= Work Week
ZZ
= Lot Traceability
ORDERING INFORMATION
See detailed ordering, marking and shipping information in the
package dimensions section on page 5 of this data sheet.
1. The entire application environment impacts the thermal resistance values shown,
they are not constants and are only valid for the particular conditions noted.
2. Surface−mounted on FR4 board using a 650 mm
2
, 2 oz. Cu pad.
3. Maximum current for pulses as long as 1 second is higher but is dependent
on pulse duration and duty cycle.
©
Semiconductor Components Industries, LLC, 2016
1
August, 2017 − Rev. 4
Publication Order Number:
NVMFS5C468NL/D

NVMFS5C468NLAFT1G Related Products

NVMFS5C468NLAFT1G NVMFS5C468NL NVMFS5C468NLT1G NVMFS5C468NLT3G NVMFS5C468NLWFT1G NVMFS5C468NLWFT3G NVMFS5C468NLAFT3G NVMFS5C468NLWFAFT3G NVMFS5C468NLWFAFT1G
Description MOSFET N-CH 40V 13A 37A 5DFN Single N−Channel Power MOSFET Single N−Channel Power MOSFET Single N−Channel Power MOSFET Single N−Channel Power MOSFET Single N−Channel Power MOSFET MOSFET N-CH 40V 37A SO8FL MOSFET N-CH 40V 37A SO8FL MOSFET N-CH 40V DFN5 WETTABLE
Brand Name ON Semiconductor - ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor - - ON Semiconductor
Is it lead-free? Lead free - Lead free Lead free Lead free Lead free - - Lead free
Maker ON Semiconductor - ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor - - ON Semiconductor
package instruction SMALL OUTLINE, R-PDSO-F5 - SMALL OUTLINE, R-PDSO-F5 SMALL OUTLINE, R-PDSO-F5 SMALL OUTLINE, R-PDSO-F5 SMALL OUTLINE, R-PDSO-F5 - - SMALL OUTLINE, R-PDSO-F5
Manufacturer packaging code 488AA - 488AA 488AA 488AA 488AA - - 488AA
Reach Compliance Code not_compliant - not_compliant not_compliant not_compliant not_compliant - - not_compliant
Factory Lead Time 5 weeks - 29 weeks 29 weeks 29 weeks 29 weeks - - 6 weeks
Avalanche Energy Efficiency Rating (Eas) 95 mJ - 95 mJ 95 mJ 95 mJ 95 mJ - - 95 mJ
Shell connection DRAIN - DRAIN DRAIN DRAIN DRAIN - - DRAIN
Configuration SINGLE WITH BUILT-IN DIODE - SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE - - SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage 40 V - 40 V 40 V 40 V 40 V - - 40 V
Maximum drain current (Abs) (ID) 37 A - 37 A 37 A 37 A 37 A - - 37 A
Maximum drain current (ID) 37 A - 37 A 37 A 37 A 37 A - - 37 A
Maximum drain-source on-resistance 0.0176 Ω - 0.0176 Ω 0.0176 Ω 0.0176 Ω 0.0176 Ω - - 0.0176 Ω
FET technology METAL-OXIDE SEMICONDUCTOR - METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR - - METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss) 11 pF - 11 pF 11 pF 11 pF 11 pF - - 11 pF
JESD-30 code R-PDSO-F5 - R-PDSO-F5 R-PDSO-F5 R-PDSO-F5 R-PDSO-F5 - - R-PDSO-F5
JESD-609 code e3 - e3 e3 e3 e3 - - e3
Humidity sensitivity level 1 - 1 1 1 1 - - 1
Number of components 1 - 1 1 1 1 - - 1
Number of terminals 5 - 5 5 5 5 - - 5
Operating mode ENHANCEMENT MODE - ENHANCEMENT MODE ENHANCEMENT MODE ENHANCEMENT MODE ENHANCEMENT MODE - - ENHANCEMENT MODE
Maximum operating temperature 175 °C - 175 °C 175 °C 175 °C 175 °C - - 175 °C
Minimum operating temperature -55 °C - -55 °C -55 °C -55 °C -55 °C - - -55 °C
Package body material PLASTIC/EPOXY - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY - - PLASTIC/EPOXY
Package shape RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR - - RECTANGULAR
Package form SMALL OUTLINE - SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE - - SMALL OUTLINE
Polarity/channel type N-CHANNEL - N-CHANNEL N-CHANNEL N-CHANNEL N-CHANNEL - - N-CHANNEL
Maximum power dissipation(Abs) 28 W - 28 W 28 W 28 W 28 W - - 28 W
Maximum pulsed drain current (IDM) 190 A - 190 A 190 A 190 A 190 A - - 190 A
Guideline AEC-Q101 - AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101 - - AEC-Q101
surface mount YES - YES YES YES YES - - YES
Terminal surface Tin (Sn) - Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) - - Tin (Sn)
Terminal form FLAT - FLAT FLAT FLAT FLAT - - FLAT
Terminal location DUAL - DUAL DUAL DUAL DUAL - - DUAL
Transistor component materials SILICON - SILICON SILICON SILICON SILICON - - SILICON
