8 Series Pushbutton Switches
■Features
1. Contacts
Silver or gold-plated contacts.
■
SpeciÄcations
Rating
Max. rating 6A 125VAC/3A 250VAC/4A 30VDC
（1A
2∼4VDC）
（500VDC）
40,000 operations
25,000 operations
1,500VAC 1 minute
Alternate type
−30℃∼＋85℃
−40℃∼＋85℃
Initial contact resistance 10m
Ωmax.
Initial dielectric strength
Initial insulation resistance 1,000MΩ min.
Electrical life
Operating
temperature range
Storage
temperature range
2. Epoxy resin case
UL94V-0 self-extinguishing epoxy.
3. Actuator style
Over 30 actuator variations.
4. Insulation between terminal and ground:
4 mm minimum.
5. Prevention of flux entry
The epoxy resin seal on bottom of the switch helps prevent
the entry of solder and Åux.
（Excluding
8R
&
8W）
Momentary type
（Excluding
8R
&
8W.
SpeciÄcations on 8R and 8W series are
speciÄed separately on P
.271 and P
.273.）
6. Insulation barrier:
Insulation barrier design between poles helps prevent
short-circuiting between poles ensuring high reliability.
7. For UL-recognized and CSA-approved products,
please refer to P.280.
■
Terminal Styles
Solder
（Style
1）
：
Straight
（Style
2）
：
8 Series Pushbutton Switches Selection Table
Part No.
Name
Actuator shape
Number of poles Switching function
Terminal style
Page
8N
Standard Pushbutton
1.2.3.4
ON − ON
ON −（ON）
265
S/D P/C
Solder Straight
8P
Splash Proof Pushbutton
1.2.3.4
ON − ON
ON −（ON）
267
S/D P/C
Solder Straight
8Y
Mustang Pushbutton
1.2.3.4
ON − ON
ON −（ON）
S/D
Solder
269
8R-N
Soft Touch Pushbutton
1.2
ON − ON
ON −（ON）
271
S/D P/C
Solder Straight
8W-N
Snap-in Pushbutton
1.2
ON −（ON）
S/D P/C
Solder Straight
273
■Part
Numbering
8
N
1
01
1
Switching function
Series code
Actuator shape
B
−
Z
（※1）
Contact plating and material
Number of poles
Terminal style
Code
Actuator
Fig.
Number of poles
1
2
3
4
Fig.
Switching function
ON
ON
−
ON
Fig.
Terminal style
Code
None
Contact material
Plating
Ag
Ni+Au
Ni+Au
N
P
Y
R
W
Standard
Splash proof
Mustang
Soft Touch
Snap-in
1
2
3
4
01
02
1
2
Solder
PC/Straight
Bs+Ag or Cu+Ag
Bs or Cu
Bs+Ag or Cu+Ag
Brass
Copper
Silver
Nickel
Gold
− （ON）
B
C
※1
Note
：Some
combinations may not be available. Please check the "Table
of Part Numbers"
for each series.
（ON）
：Momentary.
8N
Standard Pushbutton Switches
RoHS Compliant
■Features
The
8N
standard pushbutton switch is the basic type of 8
Series. Momentary and alternate functions are available.
Color button
is available in 8mm, 10mm and 15mm
diameter and in eight colors.
■Table
of Part Numbers
No. of ploe
Terminal style
Switching function
1 pole
ON
−
ON
8N1011−Z
★
8N1011C−Z
8N1021−Z
▲
8N1021C−Z
★
8N1012−Z
☆
8N1022−Z
2 poles
☆
8N2011−Z
▲
8N2011C−Z
8N2021−Z
★
8N2021C−Z
★
8N2012−Z
☆
8N2022−Z
3 poles
★
8N3011−Z
−
★
8N3021−Z
−
−
−
4 poles
▲
8N4011−Z
−
★
8N4021−Z
−
−
−
Solder Lug
ON
− （ON）
Straight PC
ON
−
ON
ON
− （ON）

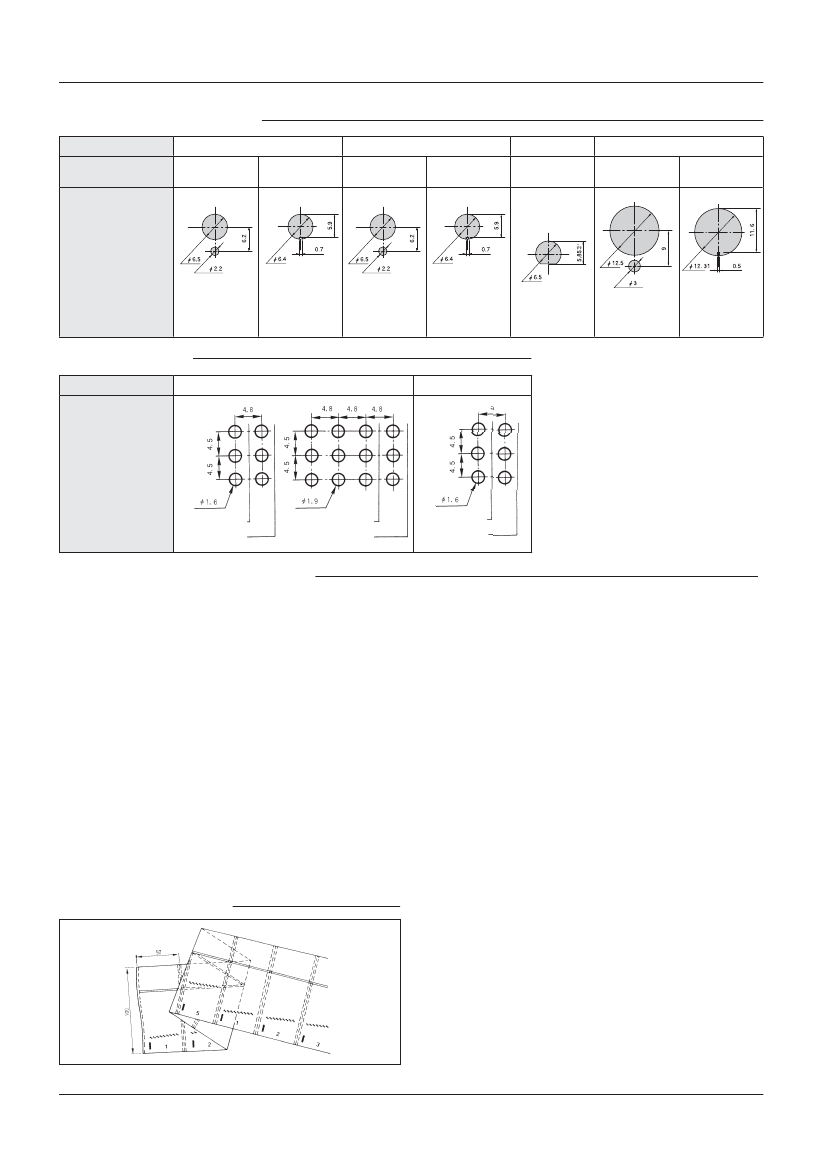

■PC
Hole Layouts
Page 275.
■
Color Button Mounting
Snap in the color button
on to the actuator.
■Standard
Accessories
《Supplied
with switch》
Hex Nut
140008010241
Lockwasher
140008030051
Locking Ring
140008020062

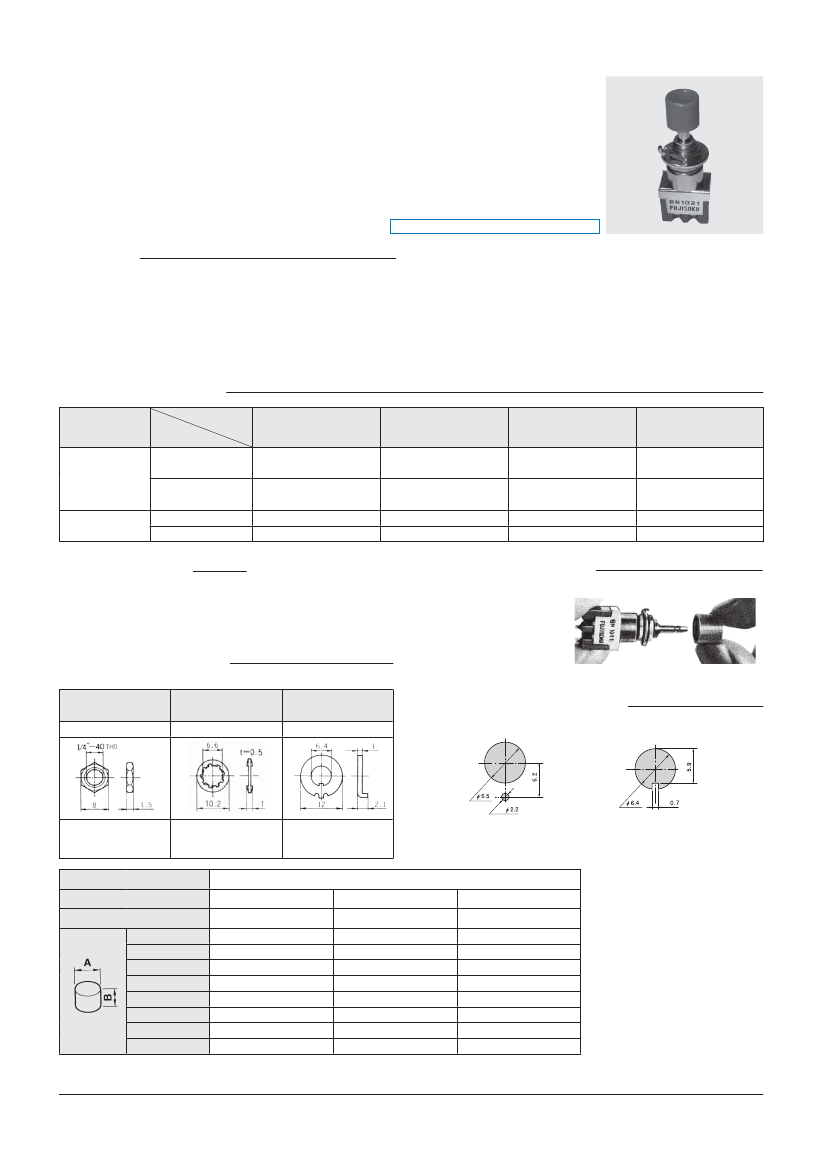

■Panel
Cut-Out Dimensions
t＝1.5mmMAX.
t＝2.5mmMAX.
Nickel plated
Part name
Dimension
A
Dimension
B
White
Red
Black
Gray
Green
Blue
Orange
Yellow
Zinc plated
Zinc plated
Color Button
φ8
7.5
φ10
8
With
Locking Ring
Without
Locking Ring
φ15
10
(Material : PA
)
140000481420
140000481421
140000481422
140000481423
140000481424
140000481425
140000481426
140000481427
☆：Semi-standard
products.
140000480082
140000480083
140000480081
140000480084
140000480085
140000480086
140000480087
140000480371
▲
：
Inquiry products.
140000480088
140000480089
140000480090
140000480091
140000480092
140000480093
140000480094
140000480372
（ON）
：Momentary.
★：Made
to order products.
●Hex
Nut
(2 pcs),
Lockwasher
(1 pc), and
Locking Ring
(1 pc) are supplied with the switch.
A Color Button
is also supplied with the switch. Please specify the
part number from the above table when ordering.

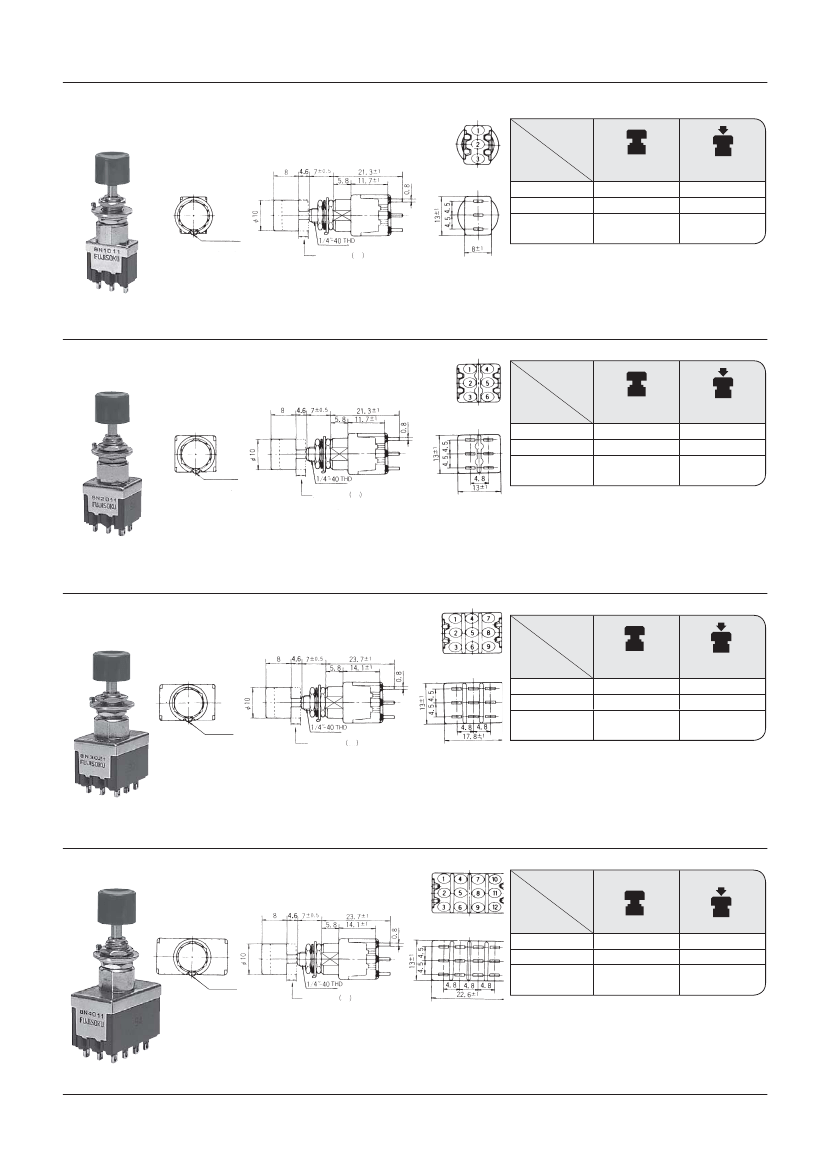

8N
SPDT
Switching
function
Part No.
※
8N101■−Z
8N102■−Z
Key Way
ON
ON
2−3
ON
（ON）
2−1
Connecting terminals
Stroke
3.8
■：Please
refer to "Table of Part Numbers" on P
.265 for a list
of full part numbers.
Terminal numbers are not shown on the switch.
DPDT
Switching
function
Part No.
※
8N201■−Z
8N202■−Z
Key Way
Connecting terminals
Stroke
3.8
ON
ON
2−3
5−6
ON
（ON）
2−1
5−4
■：Please
refer to "Table of Part Numbers" on P
.265 for a list
of full part numbers.
Terminal numbers are not shown on the switch.
3PDT
Switching
function
Part No.
※
8N301■−Z
8N302■−Z
Key Way
Connecting terminals
Stroke
3.8
ON
ON
2−3 5−6
8−9
ON
（ON）
2−1 5−4
8−7
■：Please
refer to "Table of Part Numbers" on P
.265 for a list
of full part numbers.
Terminal numbers are not shown on the switch.
4PDT
Switching
function
Part No.
※
8N401■−Z
8N402■−Z
Key Way
Connecting terminals
Stroke
3.8
ON
ON
2−3 5−6
8−9 11−12
ON
（ON）
2−1 5−4
8−7 11−10
■：Please
refer to "Table of Part Numbers" on P
.265 for a list
of full part numbers.
Terminal numbers are not shown on the switch.
（ON）
：Momentary.
Eight Switch
■Panel
Cut-Out Dimensions
Series
Panel thickness
8N
1.5 mm Max.
2.5 mm Max.
2 mm Max.
8R
3 mm Max.
8P
4.5 mm Max.
5 mm Max.
8Y
6 mm Max.
Dimensions
With
Locking Ring
Without
Locking Ring
With
Locking Ring
Without
Locking Ring
With
Locking Ring
Without
Locking Ring
■PC
Hole Layouts
Series
8N・8P
8R・8W
Dimensions
1 pole
2 poles
3 poles
4 poles
1 pole
2 poles
■Precautions （8N
8P 8R 8W 8Y）
・ ・ ・ ・
1. Soldering SpeciÄcations
⑴Manual
soldering
Device
：
Solder iron
①420℃
Max. 3 sec. Max.
⑵Auto
soldering
②275℃ ±10℃
5 sec. Max.
The above-stated soldering conditions shall apply only
to switches with straight terminals. Auto soldering is
not possible with right-angle terminals. Switches with
right-angle terminals should be soldered manually
according to the conditions specified in (1) above.
⑶When
putting the switches through an aging process
after they were soldered onto the printing board or after
installed into a complete end product, be sure to remove
the buttons ofthe switches.,
2. Mounting
●
Do not bend the terminals before mounting the
switch on the PC board.
●
After mounting the switch, do not place the device
in such a way that the device weight will be applied
on to the actuator of the switch.
●
For switches with straight terminals, solder the
switch on the PC board after fixing the switch on
the panel with a nut.
3. Flux Cleaning
⑴Solvent
: Fluorine or Alcohol type.
⑵
8A/B/C/D/E/F/J/S
series are not washable. To wash the
PC board, clean the soldering surface of the PC board
with a brush so that the switch is not exposed to the
cleaning solution.
■Packaging
SpeciÄcation
Perforated Plastic Bag
25 pcs/pack
