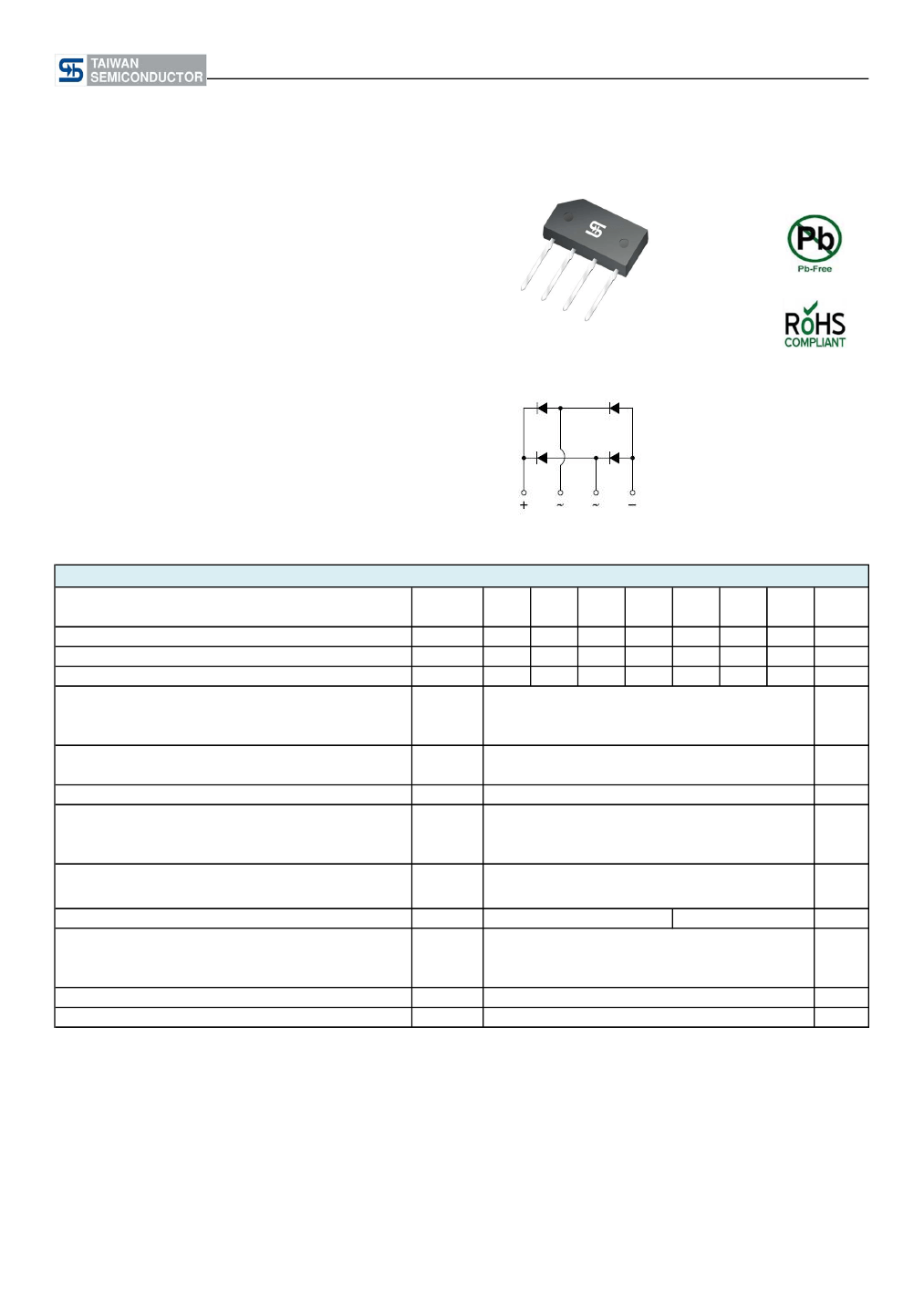

GBL005 - GBL10
Taiwan Semiconductor
CREAT BY ART
4A, 50V - 1000V Glass Passivated Single Phase Bridge Rectifiers
FEATURES
- Glass passivated junction
- Ideal for printed circuit board
- High case dielectric strength
- Typical IR less than 0.1μA
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
+
~
~ –
GBL
MECHANICAL DATA
Case:
GBL
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Weight:
2 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
@T
C
=50°C
@T
A
=40°C
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Rating for fusing (t<8.3ms)
Maximum instantaneous forward voltage (Note 1)
@2A
@4A
Maximum reverse current @ rated V
R
Typical junction capabitance
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
GBL
005
50
35
50
GBL
01
100
70
100
GBL
02
200
140
200
GBL
04
400
280
400
4
3
150
93
1.0
1.1
5
500
95
8
13
32
- 55 to +150
- 55 to +150
40
GBL
06
600
420
600
GBL
08
800
560
800
GBL
10
1000
700
1000
Unit
V
V
V
A
I
FSM
I
2
t
V
F
A
A
2
s
V
I
R
C
J
R
θJC
R
θJL
R
θJA
T
J
T
STG
μA
pF
°C/W
°C
°C
Document Number: DS_D1408053
Version: J15
GBL005 - GBL10
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
GBLxx
(Note 1)
H
PACKING
CODE
C2
X0
D2
G
PACKING CODE
SUFFIX
(*)
PACKAGE
GBL
GBL
GBL
PACKING
25 / Tube
25 / Tube / Forming
25 / Tube
Note 1: "xx" defines voltage from 50V (GBL005) to 1000V (GBL10)
*: Optional available
EXAMPLE
PREFERRED P/N
GBL10HC2G
PART NO.
GBL10
PART NO.
SUFFIX
H
PACKING CODE
C2
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

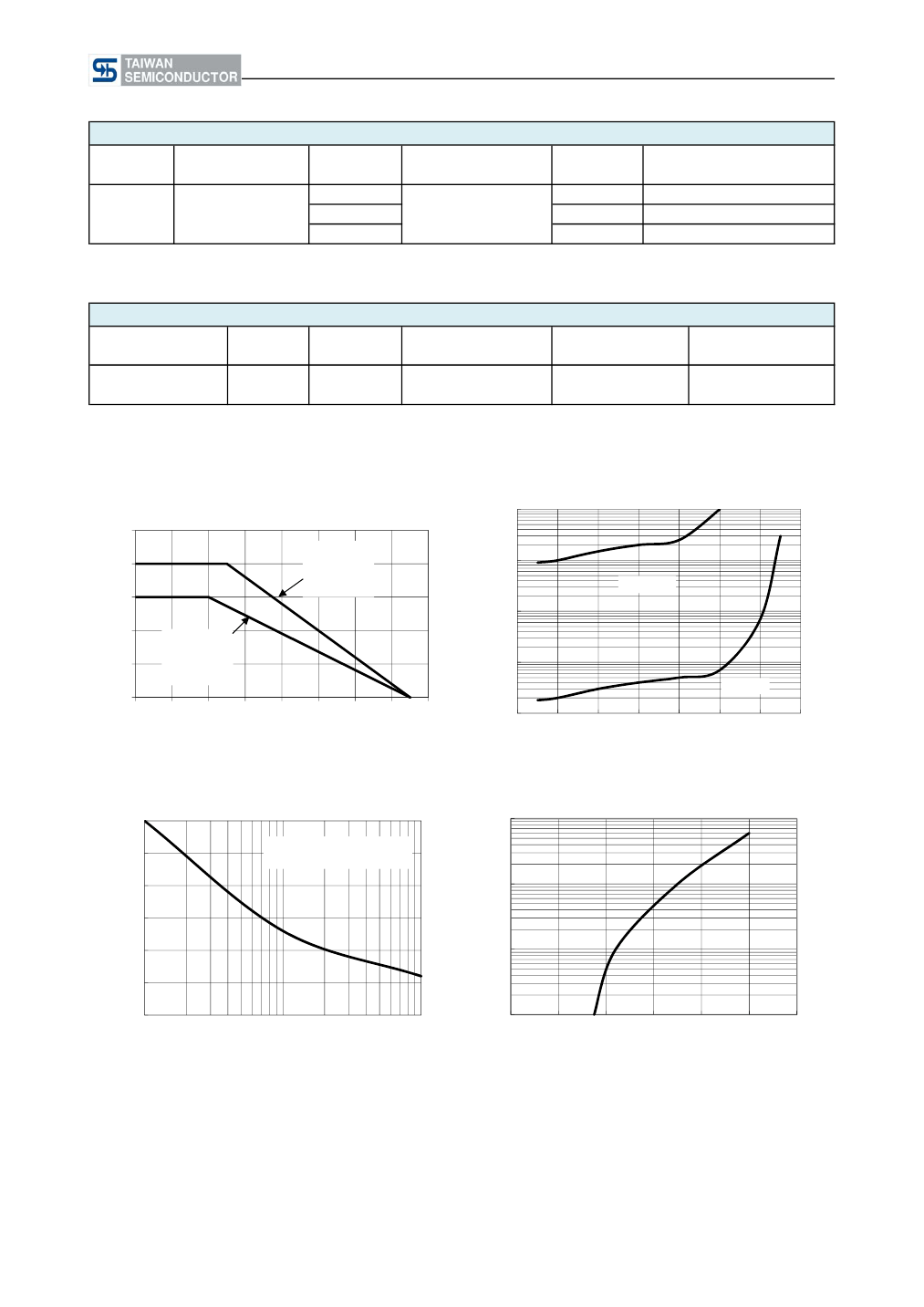

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
FIG.1 FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT (A)
5
4
3
2
1
0
0
20
40
60
80
100
120
140
160
AMBIENT TEMPERATURE (
o
C)
Heat-sink
Mounting
2"x3"x0.25"
Al-Plate
100
INSTANTANEOUS REVERSE CURRENT
(μA)
10
T
J
=125
o
C
1
P.C.B.
Mounting
0.5"x0.5"
copper pads
0.1
T
J
=25
o
C
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
PEAK FORWARD SURGE CURRENT (A)
150
125
100
75
50
25
0
1
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS FORWARD CURRENT
(A)
8.3ms Single Half Sine Wave
10
1
0.1
0.4
0.6
0.8
1
1.2
FORWARD VOLTAGE (V)
1.4
1.6
10
NUMBER OF CYCLES AT 60 Hz
100
Document Number: DS_D1408053
Version: J15
GBL005 - GBL10
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
1000
f=1.0MHz
Vslg=50mVp-p
JUNCTION CAPACITANCE (pF)
A
50V-400V
100
600V-1000V
10
0.1
1
10
100
REVERSE VOLTAGE (V)

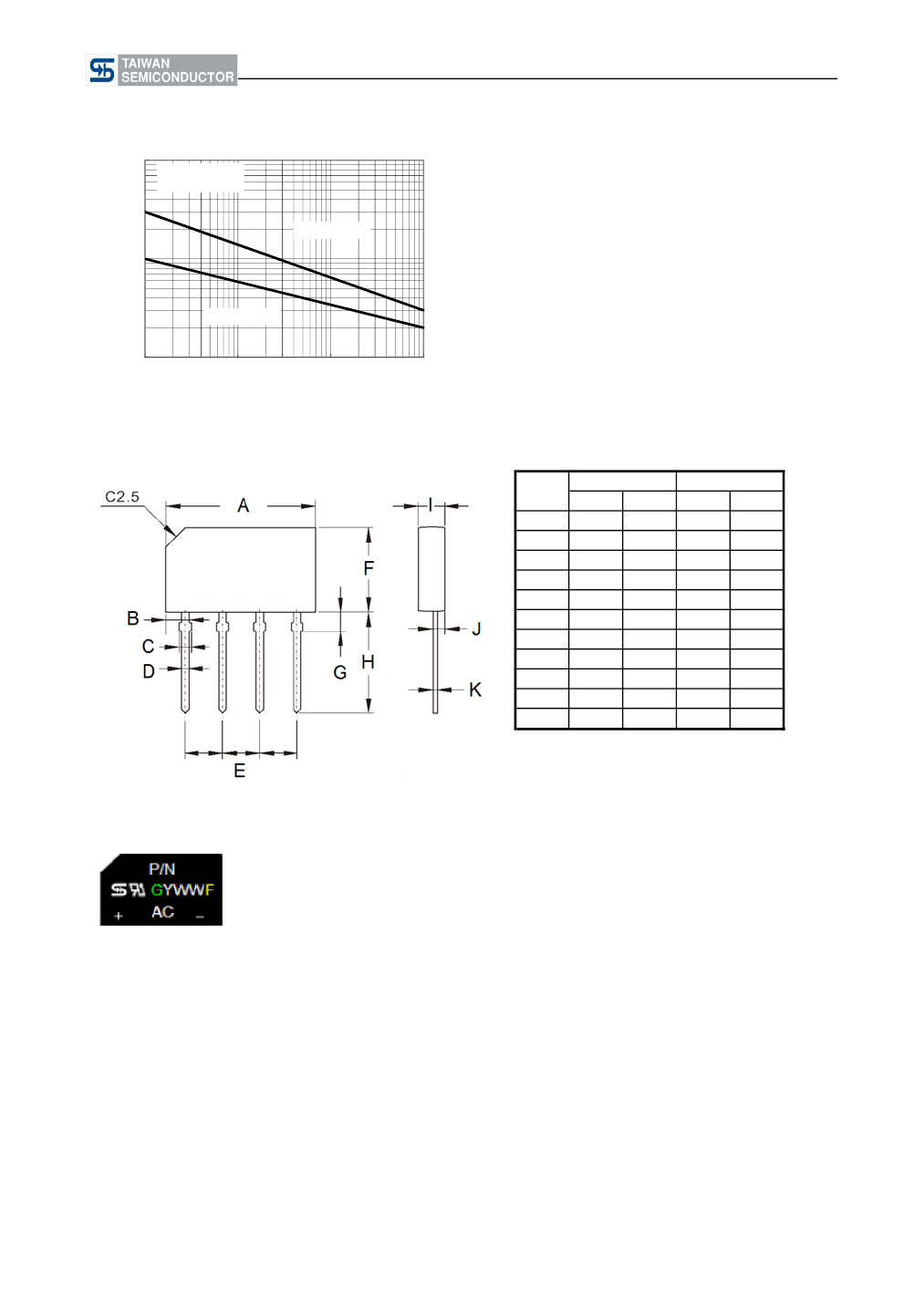

PACKAGE OUTLINE DIMENSIONS
GBL
DIM.
A
B
C
D
E
F
G
H
I
J
K
Unit (mm)
Min
19.70
2.30
1.30
0.90
4.80
10.70
2.30
13.00
3.30
0.80
0.40
Max
20.30
2.70
2.00
1.10
5.20
11.30
2.70
14.00
3.70
1.20
0.60
Unit (inch)
Min
0.776
0.091
0.051
0.035
0.189
0.421
0.091
0.512
0.130
0.031
0.016
Max
0.799
0.106
0.079
0.043
0.205
0.445
0.106
0.551
0.146
0.047
0.024
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1408053
Version: J15
