SFF501G - SFF508G
Taiwan Semiconductor
CREAT BY ART

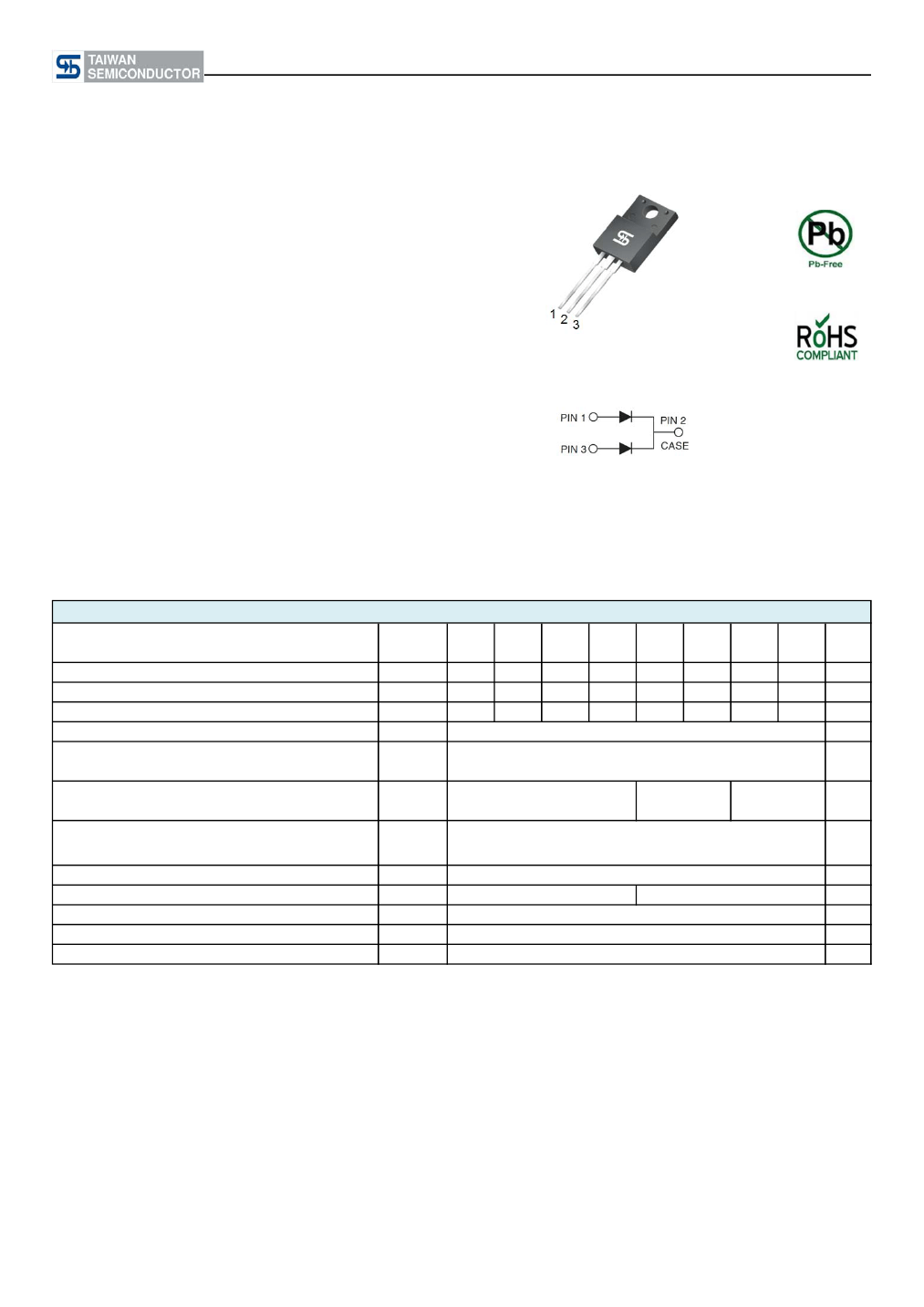

5A, 50V - 600V Isolated Glass Passivated Super Fast Rectifiers
FEATURES
- High efficiency, low VF
- High current capability
- High surge current capability
- Low power loss
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
ITO-220AB
MECHANICAL DATA
Case:
ITO-220AB
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max.
Weight:
1.82 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage
@ 2.5 A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Test conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A.
Note 3: Measured at 1 MHz and applied reverse voltage of 4.0 V DC.
(Note 1)
T
J
=25°C
T
J
=100°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJC
T
J
T
STG
70
5.5
- 55 to +150
- 55 to +150
0.98
10
400
35
50
SFF
50
35
50
SFF
100
70
100
SFF
150
105
150
SFF
200
140
200
5
70
1.3
1.7
SFF
300
210
300
SFF
400
280
400
SFF
500
350
500
SFF
600
420
600
501G 502G 503G 504G 505G 506G 507G 508G
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
Version: H1511
SFF501G - SFF508G
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SFF50xG
(Note 1)
*: Optional available
PART NO.
SUFFIX
H
PACKING
CODE
C0
PACKING CODE
SUFFIX
G
(*)
PACKAGE
ITO-220AB
PACKING
50 / Tube
Note 1: "x" defines voltage from 50V (SFF501G) to 600V (SFF508G)
EXAMPLE
EXAMPLE P/N
SFF508GHC0G
PART NO.
SFF508G
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

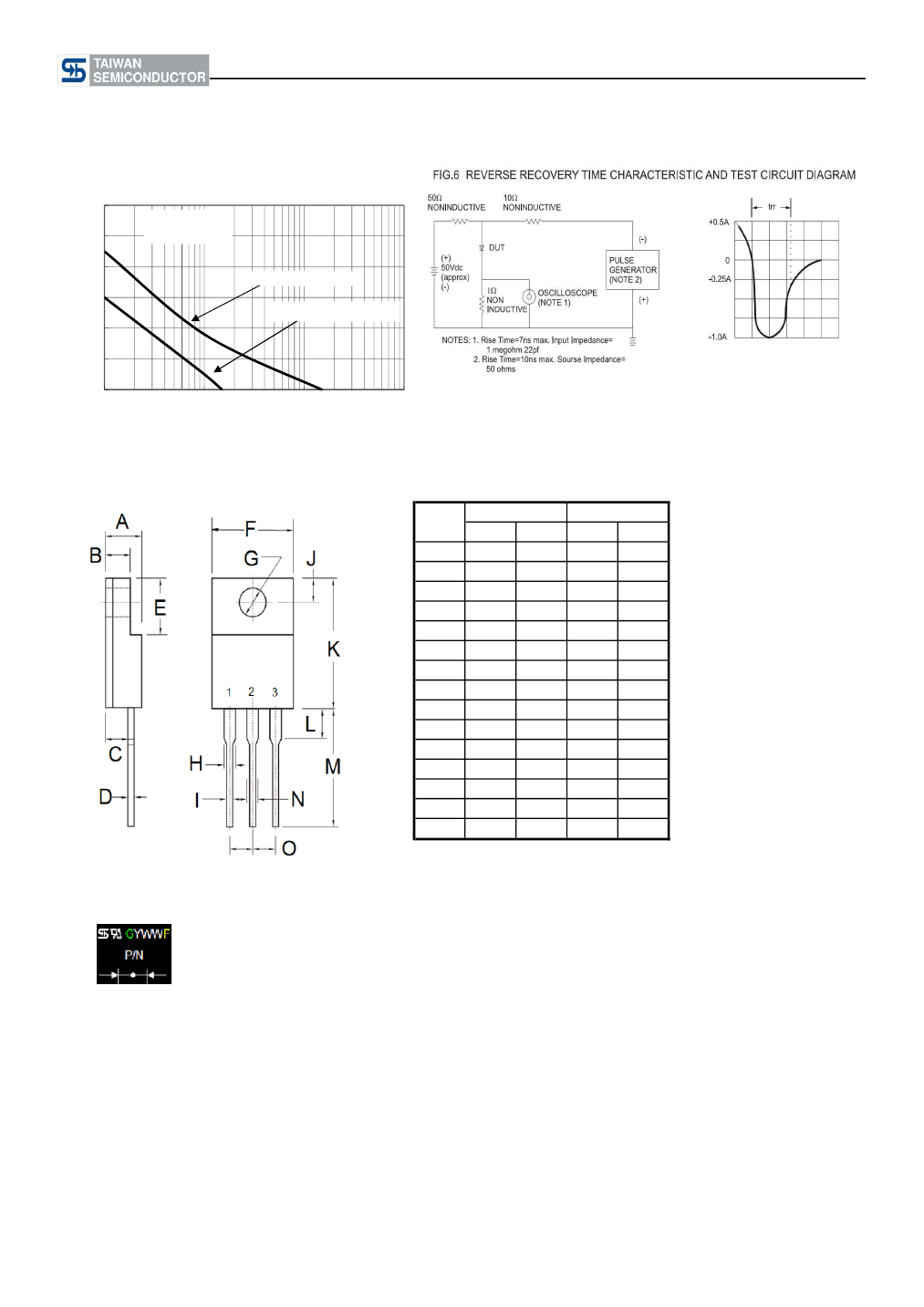

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)

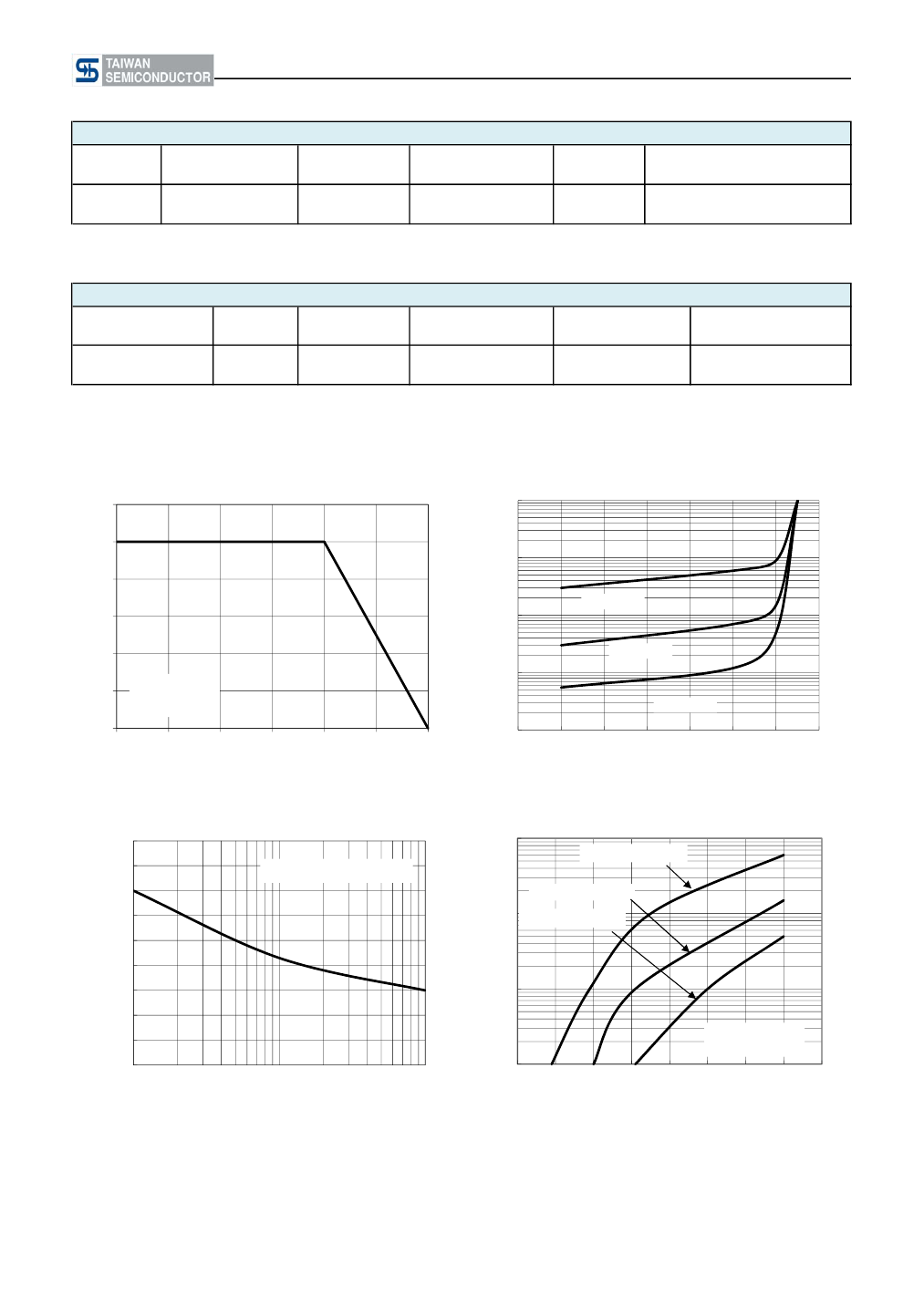

FIG.1 FORWARD CURRENT DERATING CURVE
6
5
4
3
2
1
0
0
25
50
75
100
125
150
Resistive or
inductive load
with heat sink
INSTANTANEOUS REVERSE CURRENT(μA)
1000
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
AVERAGE FORWARD CURRENT (A)
100
10
T
J
=100°C
T
J
=75°C
1
T
J
=25°C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
CASE TEMPERATURE (
°
C)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
90
80
70
60
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS FORWARD CURRENT (A)
SFF501G-SFF504G
PEAK FORWARD SURGE CURRENT (A)
8.3ms single half sine
wave
SFF505G-SFF506G
10
SFF507G-SFF508G
1
Pulse width=300μs
1% duty cycle
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
FORWARD VOLTAGE (V)
Version: H1511
SFF501G - SFF508G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Version: H1511
