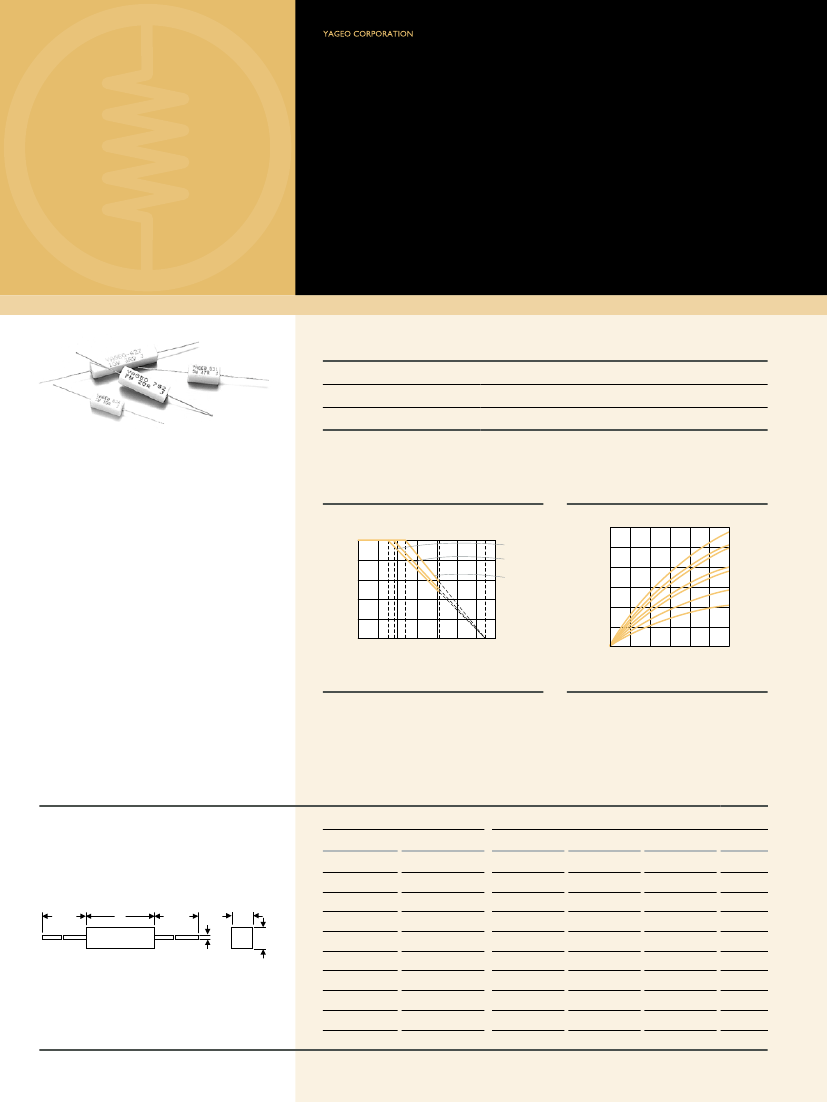

Through-hole resisTors
Cement Resistors
Axial Lead Type
Normal Style [ SQP Series ]
Non-Inductive Style [ NSP Series ]
FeATures
Power Rating
Resistance Tolerance
T.C.R.
2W, 3W, 5W, 7W, 10W, 15W, 20W, 25W, 30W, 40W
±5%
±300ppm/°C
DerATiNg CurVe
iNTroDuCTioN
Rated Load
25 40 70
100
80
60
40
20
0
-50
0
50
100 150 200 250 300
155
275 °C
15W-40W
3W-5W
7W-10W
2W
TeMPerATure rise
300
250
200
150
100
50
20
40
60
80
100 120
Temperature Rise
The materials used and the construction
techniques ensure excellent flame resistance,
arc resistance and moisture resistance as well
as self-extinguishing capabilities. They will
withstand the most rigorous loading test.
As resistors in radio and television receivers,
hazardous conditions such as smoking and
redheat can be completely prevented by the
proper choice of power resistors.
20W-40W
15W
10W
7W
5W
3W
2W
(%)
(°C)
Ambient Temperature (°C)
Rated Load (%)
DiMeNsioNs
sTYle
Normal
SQP200
SQP300
SQP500
32±3
L
32±3
ød
W
H
SQP700
SQP10A
SQP15A
SQP20A
SQP25A
SQP30A
SQP40A
Non-inductive
NSP200
NSP300
NSP500
NSP700
NSP10A
NSP15A
NSP20A
NSP25A
NSP30A
NSP40A
DiMeNsioN
l
18±1.0
22±1.5
22±1.5
35±1.5
48±1.5
48±1.5
60±5.0
60±5.0
77±5.0
90±5.0
W
7.0±1.0
8.0±1.0
9.5±1.0
9.5±1.0
9.5±1.0
12.5±1.0
12.5±1.0
14.0±1.5
18.0±1.5
19.0±1.5
h
7.0±1.0
8.0±1.0
9.0±1.0
9.0±1.0
9.0±1.0
12.5±1.0
12.5±1.0
13.0±1.5
17.0±1.5
18.0±1.5
Unit: mm
ød
0.65±0.05
0.8±0.05
0.8±0.05
0.8±0.05
0.8±0.05
0.8±0.05
0.8±0.05
0.8±0.05
0.8±0.05
0.8±0.05
61
eleCTriCAl ChArACTerisTiCs
NorMAl sTYle
sTYle
Power Rating at 25°C
Power Rating at 40°C
Power Rating at 70°C
Maximum Working Voltage
Maximum Overload Voltage
Voltage Proof on Insulation
Resistance Range (Wirewound)
2W
250V
500V
500V
0.1Ω - 36Ω
350V
700V
700V
0.1Ω - 68Ω
75Ω - 1MΩ
0.1Ω - 130Ω
150Ω - 1MΩ
500V
1,000V
1,000V
0.1Ω - 330Ω
360Ω - 1MΩ
0.1Ω - 510Ω
560Ω - 1MΩ
0.1Ω - 680Ω
750Ω - 1MΩ
0.15Ω - 1KΩ
1.2KΩ - 1MΩ
1,000V
2,000V
2,000V
3W
5W
7W
10W
sQP200
sQP300
sQP500
sQP700
sQP10A
sQP15A
15W
sQP20A
20W
sQP25A sQP30A sQP40A
25W
30W
40W
Resistance Range (Metal Oxide Film)
39Ω - 1MΩ
Operating Temp. Range
Temperature Coefficient
-55°C to +155°C
±300ppm/°C
NoN-iNDuCTiVe sTYle
sTYle
Power Rating at 25°C
Power Rating at 40°C
Power Rating at 70°C
Maximum Working Voltage
Voltage Proof on Insulation
Resistance Range (Wirewound)
Operating Temp. Range
Temperature Coefficient
2W
PxR
500V
700V
0.1Ω - 40Ω
1,000V
0.15Ω - 65Ω
0.25Ω - 100Ω
0.25Ω - 120Ω 0.36Ω - 160Ω
2,000V
3W
5W
7W
10W
NsP200
NsP300
NsP500
NsP700
NsP10A
NsP15A
15W
NsP20A
20W
NsP25A NsP30A NsP40A
25W
30W
40W
0.08Ω - 10Ω 0.1Ω - 30Ω
-55°C to +155°C
±300ppm/°C
Note: Special value is available on request
eNViroNMeNTAl ChArACTerisTiCs
PerForMANCe TesT
Short Time Overload
Voltage Proof on Insulation
Temperature Coefficient
Insulation Resistance
Solderability
Solvent Resistance of Marking
Robustness of Terminations
Periodic-pulse Overload
Damp Heat Steady State
Endurance at 70°C
Temperature Cycling
Resistance to Soldering Heat
TesT MeThoD
IEC 60115-1 4.13
IEC 60115-1 4.7
IEC 60115-1 4.8
IEC 60115-1 4.6
IEC 60115-1 4.17
IEC 60115-1 4.30
IEC 60115-1 4.16
IEC 60115-1 4.39
IEC 60115-1 4.24
IEC 60115-1 4.25
IEC 60115-1 4.19
IEC 60115-1 4.18
2.5 times RCWV for 5 Sec.
in V-block for 60 Sec., test voltage by type
-55°C to +155°C
in V-block for 60 Sec.
235±5°C for 3±0.5 Sec.
IPA for 5±0.5 Min. with ultrasonic
Direct load for 10 Sec. in the direction of the terminal leads
4 times RCWV 10,000 cycles (1 Sec. on, 25 Sec. off)
40±2°C, 90-95% RH for 56 days, loaded with 0.1 times RCWV
70±2°C at RCWV for 1,000 Hr. (1.5 Hr. on, 0.5 Hr. off)
-55°C
Room Temp.
+155°C
Room Temp. (5 cycles)
260±3°C for 10±1 Sec., immersed to a point 3±0.5mm from the body
APPrAise
±2.0%+0.05Ω
By type
By type
>1,000MΩ
95% Min. coverage
No deterioration of
coatings and markings
≥2.5kg (24.5N)
±2.0%+0.05Ω
±5.0%+0.05Ω
±5.0%+0.05Ω
±2.0%+0.05Ω
±1.0%+0.05Ω
Revision: 201304
Note: Rated Continuous Working Voltage (RCWV) =
Power Rating x Resistance Value or Max. working voltage listed above, whichever less.
88
exPlANATioNs oF orDeriNg CoDe
MFr
Code 1 - 3
series Name
See Index
-12
Code 4 - 6
Power rating
-05 = ød0.5mm
-06 = ød0.6mm
-07 = ød0.7mm
-08 = ød0.8mm
-10 = ød1.0mm
-14 = ød1.4mm
-12 = 1/6W
-25 = 1/4W
25S = 1/4WS
-50 = 1/2W
50S = 1/2WS
100 = 1W
1WS = 1WS
200 = 2W
2WS = 2WS
204 = 0.4W
207 = 0.6W
300 = 3W
3WS = 3WS
3WM = 3WM
400 = 4W
500 = 5W
5WS = 5WS
5SS = 5WSS
700 = 7W
7WS = 7WS
10A = 10W
20A = 20W
30A = 30W
40A = 40W
50A = 50W
10S = 10WS
15A = 15W
25A = 25W
10B = 100W
25B = 250W
F
Code 7
Tolerance
P = ±0.02 %
A = ±0.05 %
B = ±0.1 %
C = ±0.25%
D = ±0.5 %
F = ±1 %
G = ±2 %
J = ±5 %
K = ±10 %
- = Base on Spec.
T
Code 8
Packing style
T = Tape/Box
R = Tape/Reel
B = Bulk
F
Code 9
Temperature Coef-
ficient of Resistance
- = Base on Spec.
A = ±5 ppm/°C
B = ±10 ppm/°C
C = ±15 ppm/°C
S = ± 20ppm/°C
D = ±25 ppm/°C
E = ±50 ppm/°C
F = ±100 ppm/°C
G = ±200 ppm/°C
H = ±250 ppm/°C
I = ±300 ppm/°C
J = ±350 ppm/°C
52-
Code 10 - 12
Forming Type
26- = 26mm
52- = 52.4mm
73- = 73mm
81- = 81mm
91- = 91mm
F = F Type
FK = FK Type
FKK = FKK Type
FFK = F-form Kink
M = M-Type Forming
MB = M-form W/flat
MT = MT Type Forming
MR = MR Type
AV = AVIsert
PN = PANAsert
100r
Code 13 - 17
resistance Value
0R1 = 0.1
100R = 100
10K = 10,000
10M = 10,000,000
exCePTioN:
• Cement series:
• JPW series:
<Code 8>: Special packing style code
B: Bulk with wirewound or metal oxide sub-assembly for resistance value
W: Bulk with ceramic based wirewound sub-assembly for resistance value
M: Bulk with metal oxide sub-assembly for resistance value
F: Bulk with Fiberglass based wirewound sub-assembly for resistance value
<Code 10-12>: Without forming code
Example:
<Code 13-17>: without resistance value code
Example:
JPW-06-T-52-
SQP500JB-10R
