KAR05LHGT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> KAR05LHGT

KAR05LHGT: DescriptionSWITCH PIANO DIP SPST 25MA 24V; Categoryaccessories; File Size537KB，3 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

KAR05LHGT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KAR05LHGT	-	-	View	Buy Now

KAR05LHGT Overview

SWITCH PIANO DIP SPST 25MA 24V

KAR05LHGT Parametric

Parameter Name	Attribute value
circuit	SPST
Number of pins	5
Rated current	25mA
Rated voltage	24VDC
Actuator type	Piano
actuator level	Raised
Contact material	copper alloy
Contact plating	gold
board height	0.293"（7.45mm）
Installation type	Through hole, right angle
Terminal type	PC pin
spacing	0.100" (2.54mm), full
washable	yes
characteristic	process seal
Operating temperature	-30°C ~ 85°C
Matrix material	Polyphenylene sulfide (PPS)
length	0.590"（14.99mm）
Mechanical life	2,000 cycles
Electrical life	-

Preview

Download Datasheet

View All

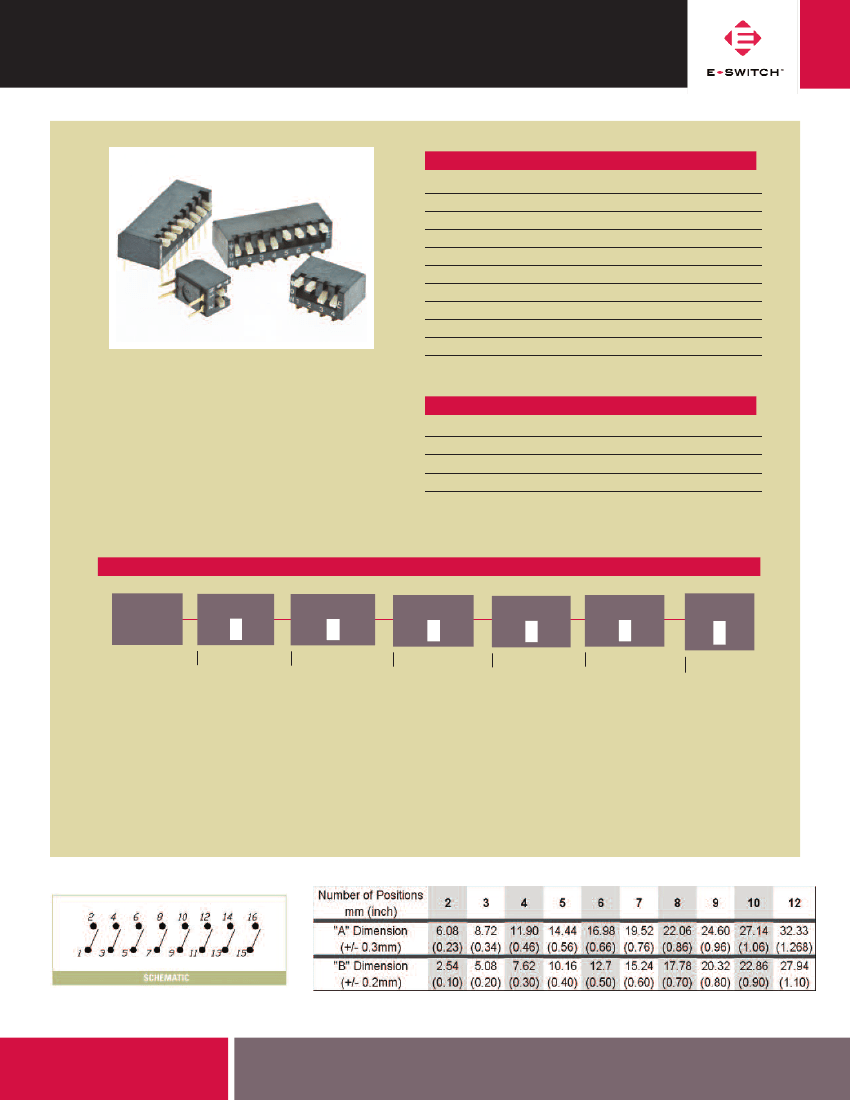

SERIES KAR SWITCHES

PIANO DIP SWITCheS

SPECIFICATIONS

Switch Function:

Contact Rating:

Insulation Resistance:

Contact Resistance:

Mechanical Life:

Operating Force:

Dielectric Strength:

Storage Temperature:

Operating Temperature:

SPST, 1 thru 12 positions (excluding position 11)

Switch: 25mA @24VDC; Carry: 100mA @50VDC

1,000 Megaohms min @ 100VDC

Initial: 50 milliohms max

After Life: 100 milliohms max

2000 make-and-break cycles, each circuit

500gf max

500 VAC for 60 seconds

-40C to +85C

-30C to +85C

FEATURES & BENEFITS

•Process sealed option

•SMT termination option

•Low profile actuator

APPLICATIONS / MARKETS

• Garage door openers

• Controller applications

• Telecommunications

• Testing/instrumentation

MATERIALS

Base & Cover:

Actuator:

Movable Contacts:

Terminal Contacts:

PPS, UL94-V0

Nylon, UL94-V0

Copper alloy with gold over tin plate

Brass with gold over tin plate

PACKAGING

Switches are supplied with all poles in the “OFF” position.

HOW TO ORDER

SERIES

MODEL NO.

NO. of POSITIONS

ACTUATOR

("L" Dimension)

TERMINATION

TERMINAL

FINISH

PACKAGING

R = Low Profile

02 = 2

03 = 3

04 = 4

05 = 5

06 = 6

08 = 8

10 = 10

12 = 12

L = Extended

S = Low Profile

(w/o tape seal)

A = Splayed Pins

H = Straight Pins

J = J-Leads

G = Gull Wing

G = Gold

T = Std. Tube Qty.

(Pin Termination)

R = Tape & Reel

(SMT Termination

only)

Example Ordering Number:

KA R 08 S H G R

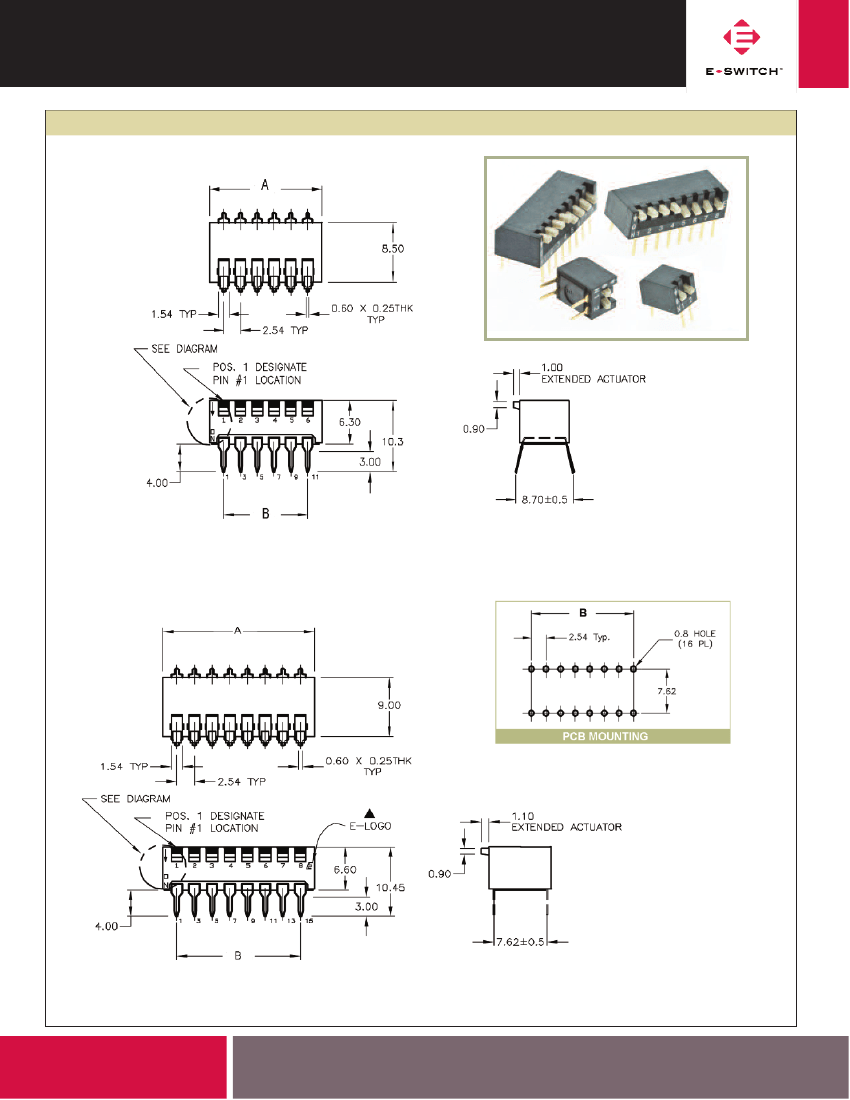

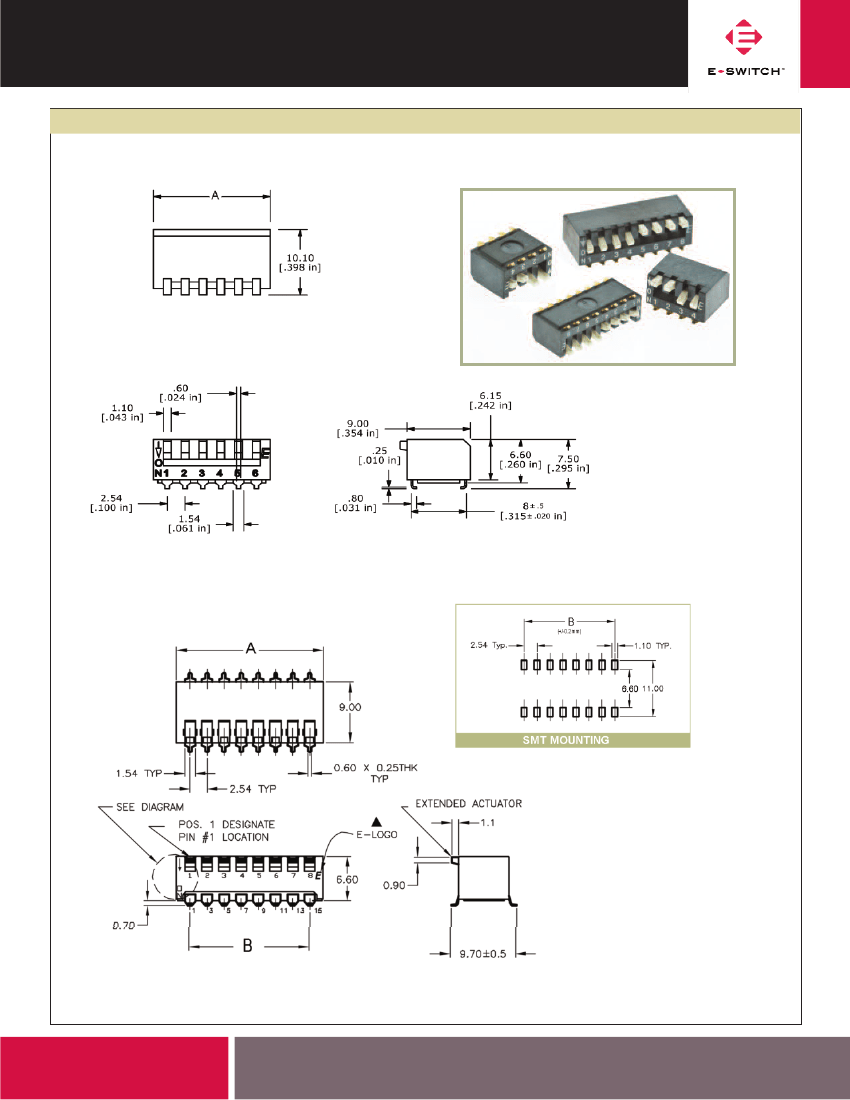

Specifications subject to change without notice.

www.e-switch.com

email: info

e-switch.com

7153 NORTHLAND DRIvE NORTH

BROOKLyN PARK, MN 55428

PhONe: 763.504.3525

FAx: 763.531.8235
