LZS-1500-2

Description
AC/DC CONVERTER 12V 1500W
CategoryPower/power management
File Size582KB,2 Pages
ManufacturerTDK-LAMBDA
Download Datasheet Parametric View All

LZS-1500-2 Online Shopping

Suppliers Part Number Price MOQ In stock
LZS-1500-2 - - View Buy Now

LZS-1500-2 Overview

AC/DC CONVERTER 12V 1500W

LZS-1500-2 Parametric

Parameter NameAttribute value
typeclosed
Number of outputs1
Voltage - input85 ~ 132 VAC,170 ~ 265 VAC
Voltage - Output 112V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (maximum)125A
Power (W)1500W
applicationITE (Business)
Voltage - Isolation3kV
efficiency75%
Operating temperature-40°C ~ 71°C (with derating)
characteristicAdjustable output, load sharing, remote switching, telemetry, universal input
Installation typeBase installation
size/dimensions11.00" long x 4.75" wide x 8.00" high (279.4mm x 120.5mm x 203.2mm)
Minimum load required-
ApprovalCE

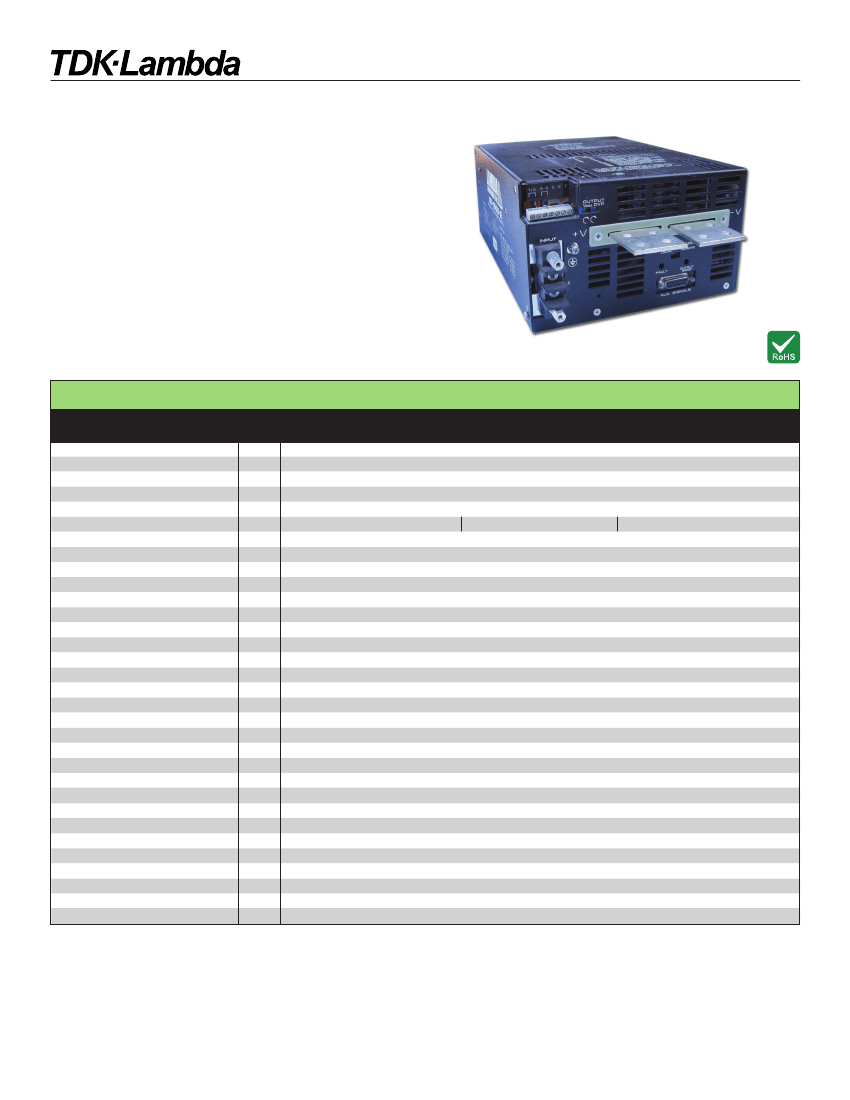

LZS/SE Series
Single Output Industrial Power Supplies
Features
u
-40ºC to +71ºC operation
u
MIL-STD-810E Vibration / Shock
u
Input transient protected
u
Wide range output adjustment
u
Single wire current share
u
Conducted EMI Class B
u
5 Year Warranty
u
Rugged mechanical design
u
Superior thermal design
Key Market Segments & Applications
u
Factory Automation
Specifications
AAC Input Voltage
AC Input Frequency
DC Input Voltage Range
Inrush Current (110 / 220VAC)
Efficiency (typical)
Ripple & Noise
Line Regulation
Load Regulation
Transient Response
Overcurrent Protection
Overvoltage Protection
Thermal Protection
Hold Up Time (Typical)
Remote Sense
Remote Adjust
Remote On / Off
Signals
Indicators
Parallel Connection
Operating Temperature
Storage Temperature
Temperature Coefficient
Humidity (non condensing)
Cooling
Withstand Voltage
Vibration
Shock
Safety Agency Approvals
Conducted & Radiated EMI
Weight (Net / Shipping)
Size (WxHxD)
Warranty
5V Output Models
12V Output Models
24V Output Models
(-1)
(-2)
(-3)
-
LZS: 85-132 / 170-265VAC Auto select, SE: 105-140VAC (170VAC for 1min.)
-
LZS: 47 - 440Hz, SE: 47 - 63Hz
-
LZS: 220 - 380VDC
A
250W & 500W: 20 / 40A. 750W, 1000W & 1500W: 40 / 80A
%
75%, (72% on 250W models)
-
10mV RMS, 35mV Pk-Pk 10mV RMS, 50mV Pk-Pk 10mV RMS, 100mV Pk-Pk
%
0.1% from low AC line to high AC line
%
0.1% from no load to full load
-
Recovers to within 50ms, max deviation 7.5% -1 models, 5% -2 & -3 models
-
~ 110% of rated current, auto recovery
V
User adjustable from front panel
-
Internal thermostat. Recycle AC to reset
ms
26ms (at 115VAC)
-
Compenstates for a total of 1.0V cable drop
-
Using front panel potentiometer, Resistance (1k/V), or Voltage (1V/V)
-
TTL compatible, active high
-
Optocoupled transistor for AC Fail, DC Good, Inverter OK
-
Green LED indicates output good, red LED indicates overvoltage or over temperature
-
Single wire current share
ºC -40~+71ºC, derate as shown in model selector, 20 minute warm up period needed for <-30ºC
ºC
-55 to +85ºC
-
0.025%/ºC
%RH
5 - 95%RH
-
Internal fan
-
Input - Ground 1.5kVAC, Input - Output 3kVAC, Output - Ground 500VAC
-
MIL-STD-810E, Method 516.4 Proc. I, II, IV, VI
-
MIL-STD-810E, Method 514.4, Category 1, 9
-
UL60950, CSA60950, EN60950, & CE Mark (LVD)
-
VDE0871 Curve B, FCC Part 15, subpart J, Class B, MIL-STD-461D, CE102
lbs
250: 7/9; 500: 10/12; 750: 11/14; 1000: 15.5/19.5; 1500: 22/26
-
See outline drawings
-
5 years
Notes: (Consult Installation Manual for detailed specifications, test methods and application notes)
1-800-526-2324 • www.us.tdk-lambda.com/lp/
OBSOLETE
1
Disclaimer: us.tdk-lambda.com/lp/legal.htm
