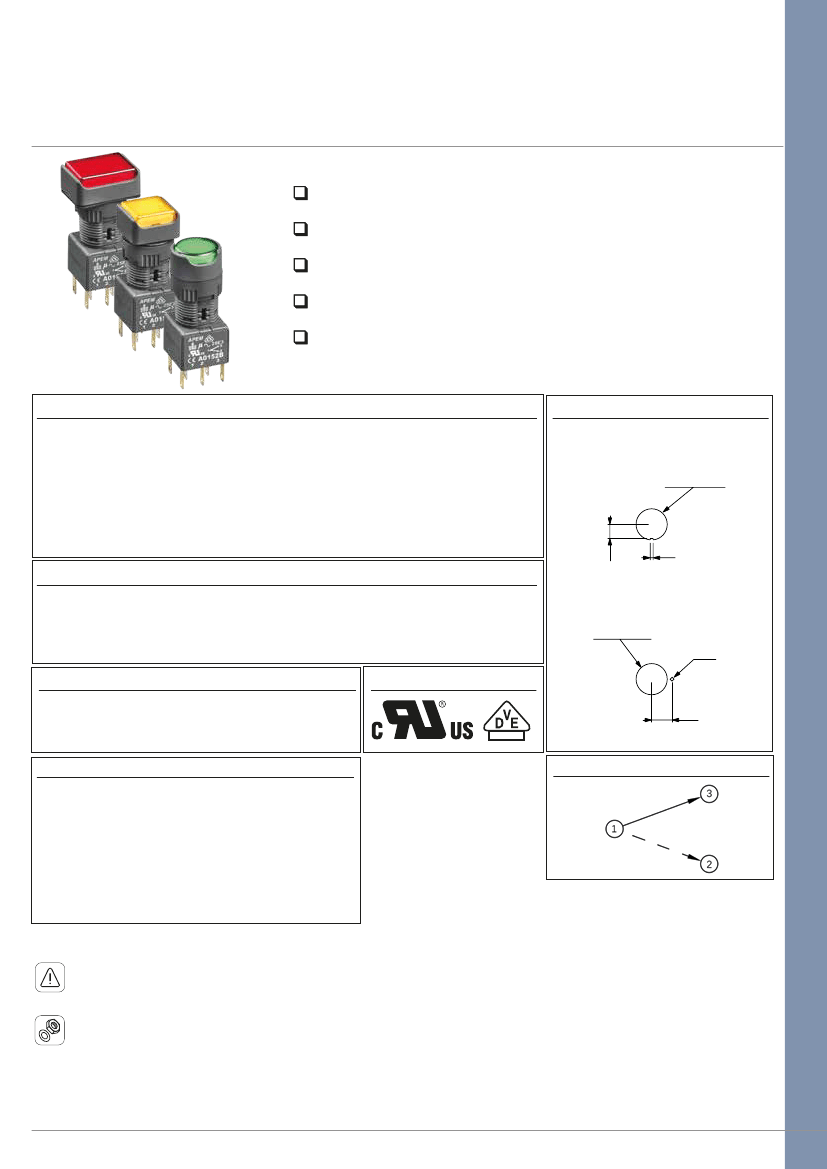

Pushbutton switches & indicators
Distinctive features and specifications
A01_AX1607USR1
A01 series
Panel Sealed to IP65
Single pole to four pole changeover
Custom engraving or film legends options
Push on tab terminals
6A 250VAC
ELECTRICAL SPECIFICATIONS
• Current/Voltage Rating :
10mA 5VAC min, 6A 250VAC, 6Amp 12VDC
• Initial Contact Resistance : 10m
max at 1A 4VDC
• Insulation Resistance :
50M min
• Dielectric Strength :
750V between open contacts, 5KV live to accessible
• Electrical Life :
50,000 cycles min
• Contact Gap :
>1mm (0.039)
• Insulation :
Class 2
• Lamp Life :
LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours
neon, approx. 10,000 hours
MECHANICAL SPECIFICATIONS
• Mechanical Life : (operator)
Momentary, 1 million cycles, maintained 100,000 cycles
• Lamp :
Midget grove T1 ¾ filament, neon or LED
• Terminals :
Solder/quick connect 2.8mm (0.110)
GENERAL SPECIFICATIONS
• Operating Temperature :
-20°C to +55°C
• Solder Heat Resistance :
350°C for 5 seconds
• Sealing :
Panel sealed to IP65, rear of panel IP40
MATERIALS
• Screens :
PC
• Reflector Assembly :
PC
• Operator :
PBT
• Nut :
ABS
• Camtrack Momentary :
PPE
• Camtrack Maintained :
PPSU
• Switch Block 1 & 2 Pole :
PBT
• Switch Block 3 & 4 Pole :
PEI
• Contacts :
Gold plated silver
AGENCY APPROVALS
PANEL CUT OUT
Round & Square bezel
operators only
Ø16.00 0.00/+0.30
(.629 DIA
.000/+.011
)
Rectangular bezel
operators only
Ø16.00 0.00/+0.30
(.629 DIA
.000/+.011
)
Ø2.00
(.078 DIA)
7.25
(.285)
1.50
(.059)
10.50
(.413)
Max panel thickness 8mm (0.314)
CIRCUIT
Dimensions : first dimensions are in mm while inches are shown in brackets.
Refer to the following pages for further information.
Mounting accessories : standard hardware 1 nut and 1 sealing washer.
The company reserves the right to change specifications without notice.
APEM
www.apem.com
1

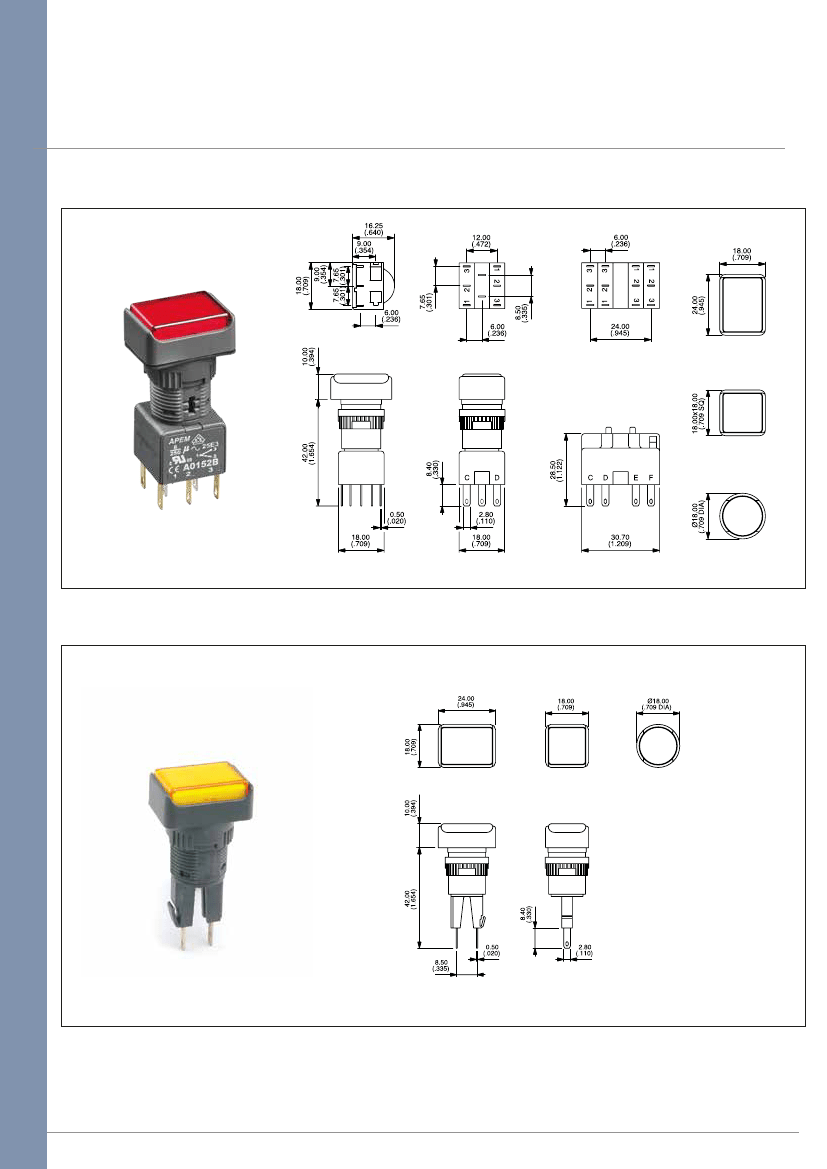

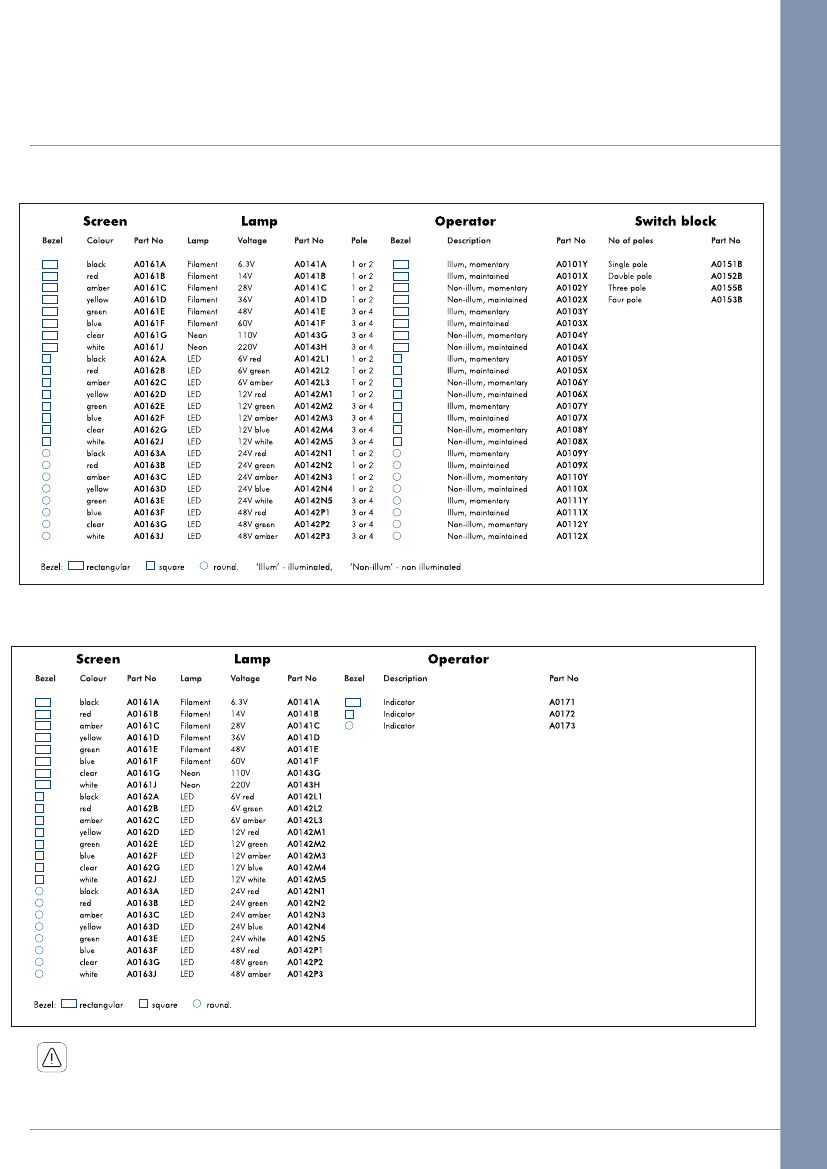

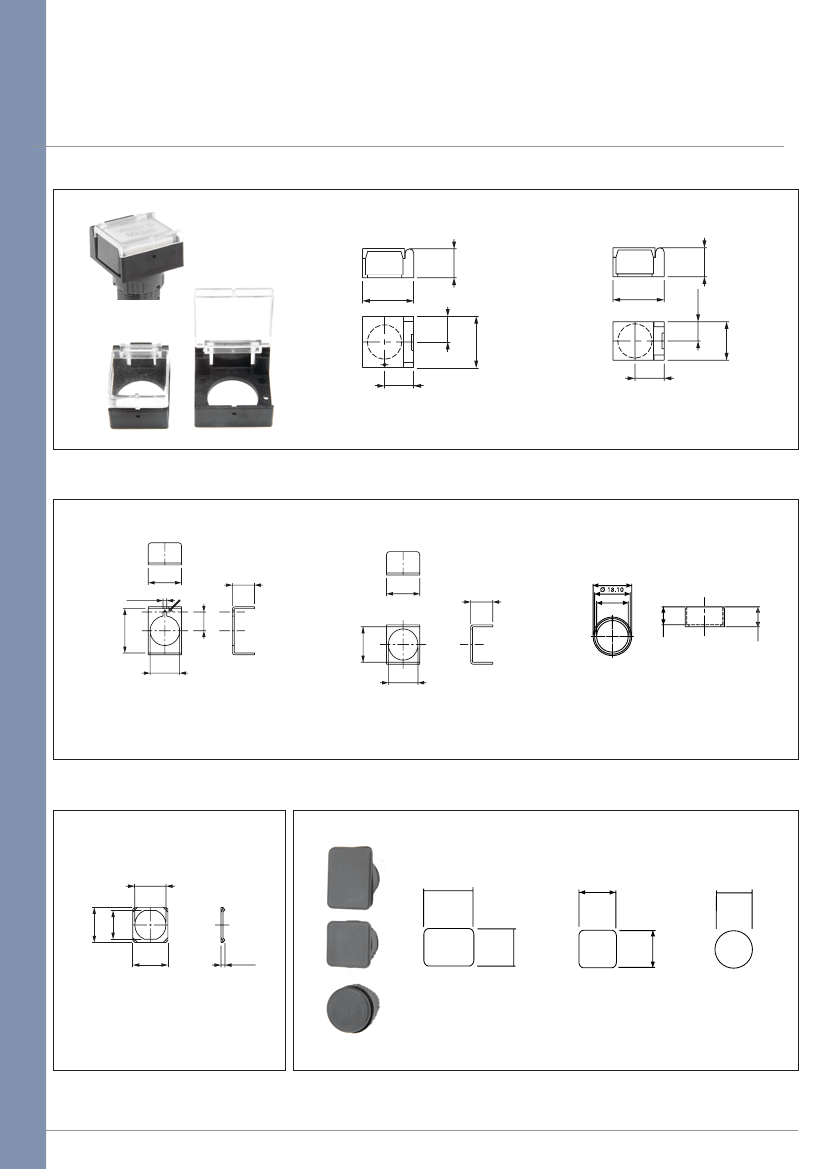

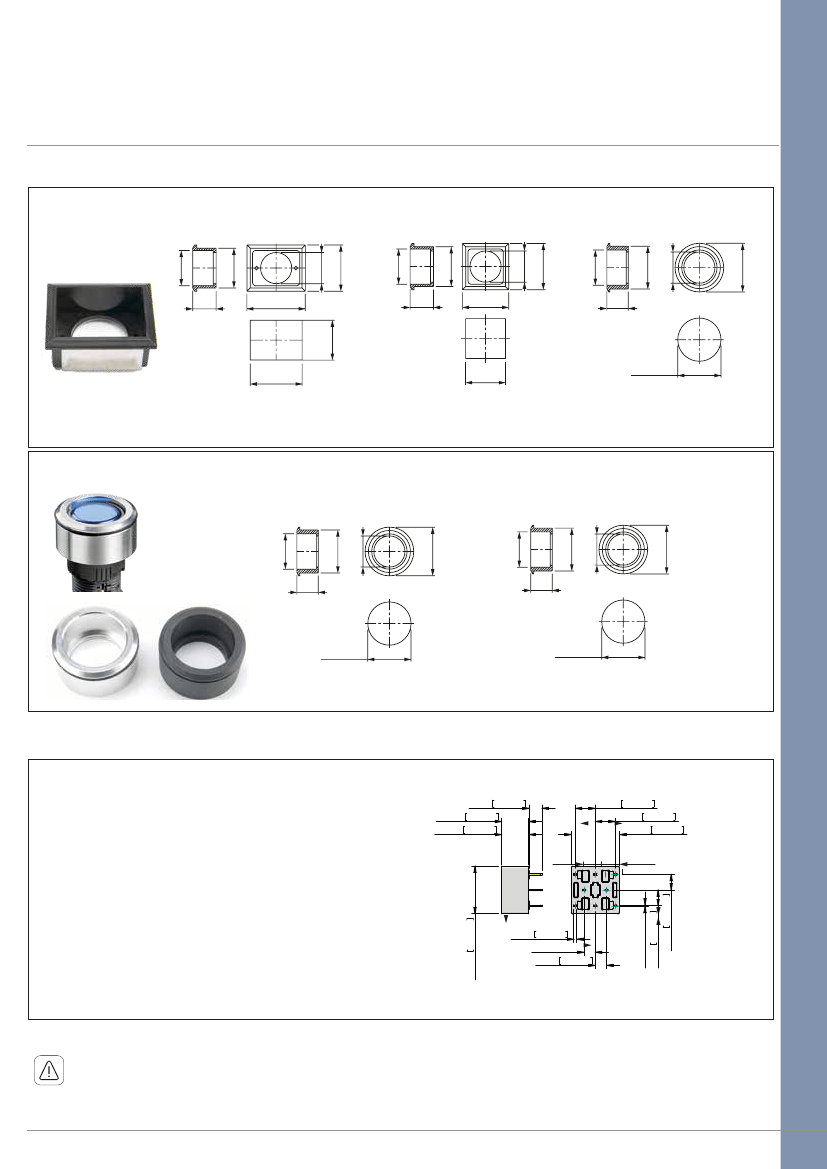

Pushbutton switches & indicators
Accessories
A01 series
Flush mount bezels
Dark grey plastic material – supplied with sealing washer
Ø16.00
(.630DIA)
23.80
(.937)
Ø22.00
(.866 DIA)
Ø16.00
(.630DIA)
12.00
(.472)
29.80
(1.173)
20.60
0.00
+.008
(.811
.000
)
+0.20
12.00
(.472)
23.80
(.937)
11.00
(.433)
26.70
0.00
(1.051
+.008
)
.000
+0.20
20.60
0.00
(.811
+.008
)
.000
+0.20
+0.20
22.20 0.00
+.008
(.874 .000 )
Rectangular : A01FM1
Anodised aluminium/matt black
Square : A01FM
Round : A01FM2
Ø22.00
(.866 DIA)
Ø16.00
(.630DIA)
Ø22.00
(.866 DIA)
Ø25.00
(.984 DIA)
11.00
(.433)
11.00
(.433)
+0.20
22.20 0.00
+.008
(.874 .000 )
+0.20
22.20 0.00
+.008
(.874 .000 )
Round natural anodised : A01FMM
Round matt black : A01FMMG
PCB Sockets
5,00 0,197
10,25 0,404
10,50 0,413
0
7.65
(.301)
0.80
(.031)
Number of Poles
Single pole, non illuminated :
Double pole, non illuminated :
Single pole, illuminated :
Double pole, illuminated :
Indicator :
Part No.
A01PC1
A01PC2
A01PC3
A01PC4
A01PC5
(.167)
7,65 0,301
7,65 0,301
18,40 0,724
7.65
(.301)
18,25 0,719
1,10 0,043
4,25 0,167
4,25 0,167
Dimensions : first dimensions are in mm while inches are shown in brackets.
Refer to the following pages for further information.
The company reserves the right to change specifications without notice.
APEM
www.apem.com
6,00 0,236
6,00 0,236
236
Ø25.00
(.984 DIA)
Ø16.00
(.630DIA)
18.15
(.715)
18.15
(.715)
Ø25.00
(.984 DIA)
Ø16.00
(.630DIA)
18.10
(.712)
20.40
(.803)
18.10
(.712)
20.40
(.803)
23.80
(.937)
18.15
(.715)
4
Pushbutton switches & indicators
Accessories
A01 series
Flap guards
13.50
(.531)
12.00
(.472)
9.00
(.354)
9.00
24.00
(.945)
24.00
(.945)
13.50
(.531)
24.00
(.945)
13.65
(.537)
13.65
(.537)
To fit rectangular bezel : A01FG1
To fit round & Square bezel: A01FG2
Aluminium bezel protection guards
18.00
(.708)
Ø2.00
(.078DIA)
10.15
(.399)
12.00
(.472)
18.00
(.708)
Ø 19.60
12.00
(.472)
Ø 16.05
10.00
24.00
(.944)
Ø16.00
(.630DIA)
18.20
(.717)
Ø16.00
(.630DIA)
Rectangular : A01MG1
Square : A01MG
Round natural anodised: A01MG2
Matt black : A01MG2G
Anti rotation ring
Blanking plugs
Ø16.00
(.629DIA)
24.0
(.946)
18.0
(.709)
18.00
(.708)
14.75
(.580)
18.0
(.709)
18.00
(.708)
2.00
(.078)
A01LW
Rectangular : A0131
Square : A0132
18.0
(.709)
Round : A0133
APEM
www.apem.com
18.00
(.708)
Ø18.0
(.709 DIA)
5
