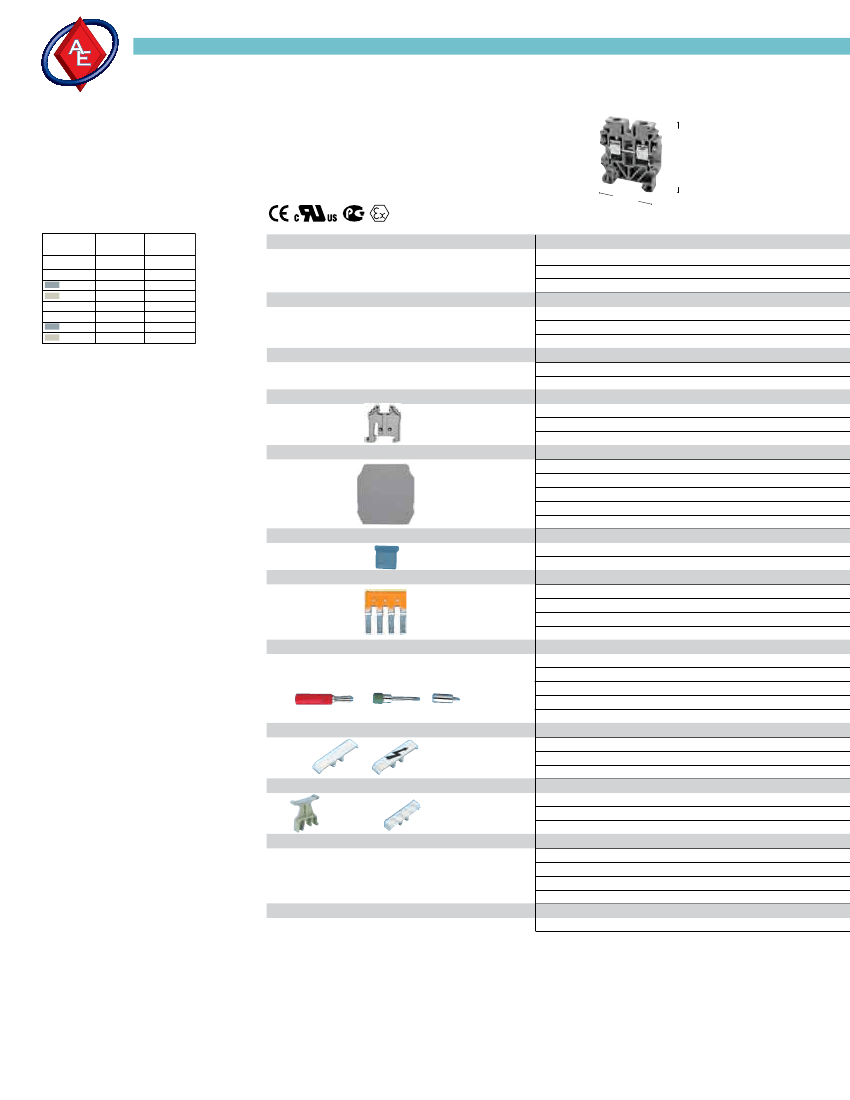

MVK Series
Mini Terminal Blocks
for use with
MVK type terminals are manu-
15mm wide DIN Rail
factured from thermoplastic
raw material. Grey being the
main color.
MVK 2.5
Width 5 mm
304 429
27.0
torque: 1.2 Nm
Colors
Terminals
End Plate
Part Number
Part Number
GREY
BEIGE
MVK 2.5
304 429
304 420
MVK 4
304 439
304 430
NPP
444 429
444 420
NPP
444 429
444 420
GREY
BEIGE
Electrical ratings
TSE / CE (EN 60947-7-1 / EN60947-7-2)
UL
ATEX
Connection Data
Solid Strand, Screw Con. - Fine Strand, Screw Con.
AWG Conductor / Fine Strand with Ferrule
Insulation Stripping Length / Torque
ordering Data
Polyamide 66
grey
yellow-Green
End Bracket
Thickness 8mm
grey
KD 5
End Plate - Disconnect Plate
Width 1.5 mm -
Polyamide 66
Voltage/Current/Cross-section
400 V ~ / 24 A / 2.5 mm²
300 V ~ / 20 A / AWG 26-12
400 V ~ / 23 A
0.5 - 4 mm² / 0.5 - 4 mm²
16 - 8 / 0.5 - 2.5 mm²
12 mm / 1.2 Nm
Type
Part. No.
MVK 2.5
304 429
MR 15 33.75
Qty.
100
KD 5
495 069
100
grey
yellow-Green
NPP MVK
444 429
100
small Partition
grey
Cross Connection
UK 2.5/2
UK 2.5/3
UK 2.5/4
UK 2.5/10
test Plug-soc. / Ins. test soc.
TF (Ø2)
TF
itk
t5k
493 020
5
476 222
476 223
476 224
476 229
25
20
15
5
AD1
467 919
100
Warning Label
IP
with symbol
without symbol
IP 2 S
IP 2
498 130
498 140
25
25
Group marking
grey
ge
ge2
GE
GE 2
496 119
496 250
50
25
technical Data
• Max.clamping range / Max. technical data
• Rated Impulse Voltage / Pollution severity
• Insulation material group / Gauge pin code
according to IEC 60947-1
• Protection class / Protection conductor type
marking tags
See pages 104 & 105 for further detail
0.2 - 4 mm² / 4 mm² / 32 A
6 kV / 3
1 / B3
IP 20 / -
20
