122 SAL-RP
Aluminum electrolytic capacitors
Solid Al, Radial Pearl
Maintenance type - not for new designs
Supersedes data of 10th December 2001
File under BCcomponents, BC01
2003 Apr 16
BCcomponents
Maintenance type - not for new designs
Aluminum electrolytic capacitors
Solid Al, Radial Pearl
FEATURES
122 SAL-RP
·
Polarized aluminum electrolytic
capacitors, solid electrolyte MnO
2
·
Radial leads, max. height 12.5 mm,
resin dipped, orange coloured
·
Extremely long useful life:
20 000 hours at 125
°
C
·
Extended usable temperature range
up to 175
°
C
·
Excellent low temperature,
impedance and ESR behaviour
·
Charge and discharge proof,
application with 0
W
resistance
allowed
·
Reverse DC voltage up to 0.3
´
U
R
allowed
·
AC voltage up to 0.8
´
U
R
allowed
·
Advanced technology to achieve
high reliability and high stability.
123
SAL-A
axial
version
122
SAL-RP
higher
CV/volume
128
SAL-RPM
CCB030
MBC517
Fig.1 Component outlines.
175
°C
solid SMD
175 TMP
APPLICATIONS
·
EDP, telecommunication, general
industrial
QUICK REFERENCE DATA
DESCRIPTION
Case sizes (H
max
´
W
max
´
T
max
in mm)
Rated capacitance range (E6 series), C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range:
U
R
= 6.3 to 40 V
U
C
= 6.3 to 25 V
Endurance test at 125
°
C
Useful life at 125
°
C
Useful life at 175
°
C
Useful life at 40
°
C, I
R
applied
Shelf life at 0 V, 125
°
C
Based on sectional specification
Climatic category IEC 60 068
·
Automotive and audio-video
·
Smoothing, filtering and buffering
·
For small power supplies,
DC/DC converters.
VALUE
12.5
´
8
´
3.5 to 12.5
´
8
´
6
0.33 to 68
m
F
±
20%
6.3 to 40 V
-
55 to +85
°
C
-
55 to +125
°
C
10 000 hours
20 000 hours
2 000 hours
>
300 000 hours
500 hours
IEC 60 384-4/EN130 300
55/125/56
2003 Apr 16
2
BCcomponents
Maintenance type - not for new designs
Aluminum electrolytic capacitors
Solid Al, Radial Pearl
Selection chart for C
R
, U
R
, U
C
and relevant maximum case sizes (H
´
W
´
T in mm)
Preferred types in
bold.
U
R
(V) at T
amb
= 85
°
C
C
R
(
m
F)
6.3
10
16
25
35
122 SAL-RP
40
U
C
(V) at T
amb
= 125
°
C
6.3
10
16
25
25
25
12.5
´
8
´
3.5
12.5
´
8
´
4.5
12.5
´
8
´
4.5
12.5
´
8
´
5
12.5
´
8
´
6
12.5
´
8
´
6
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
Note
-
-
-
-
-
-
-
-
-
12.5
´
8
´
3.5
12.5
´
8
´
4.5
12.5
´
8
´
4.5
12.5
´
8
´
5
12.5
´
8
´
6
12.5
´
8
´
6
-
-
-
-
-
-
-
12.5
´
8
´
3.5
12.5
´
8
´
3.5
12.5
´
8
´
4.5
12.5
´
8
´
4.5
12.5
´
8
´
5
12.5
´
8
´
6
-
-
-
-
-
12.5
´
8
´
3.5
12.5
´
8
´
3.5
12.5
´
8
´
4.5
12.5
´
8
´
4.5
12.5
´
8
´
5
12.5
´
8
´
6
-
-
12.5
´
8
´
3.5
12.5
´
8
´
3.5
12.5
´
8
´
3.5
12.5
´
8
´
4.5
12.5
´
8
´
4.5
12.5
´
8
´
5
12.5
´
8
´
6
12.5
´
8
´
6
-
-
-
12.5
´
8
´
4.5
-
-
12.5
´
8
´
6
12.5
´
8
´
6
(1)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1. 4.7
m
F/35 V in development.
2003 Apr 16
3
BCcomponents
Maintenance type - not for new designs
Aluminum electrolytic capacitors
Solid Al, Radial Pearl

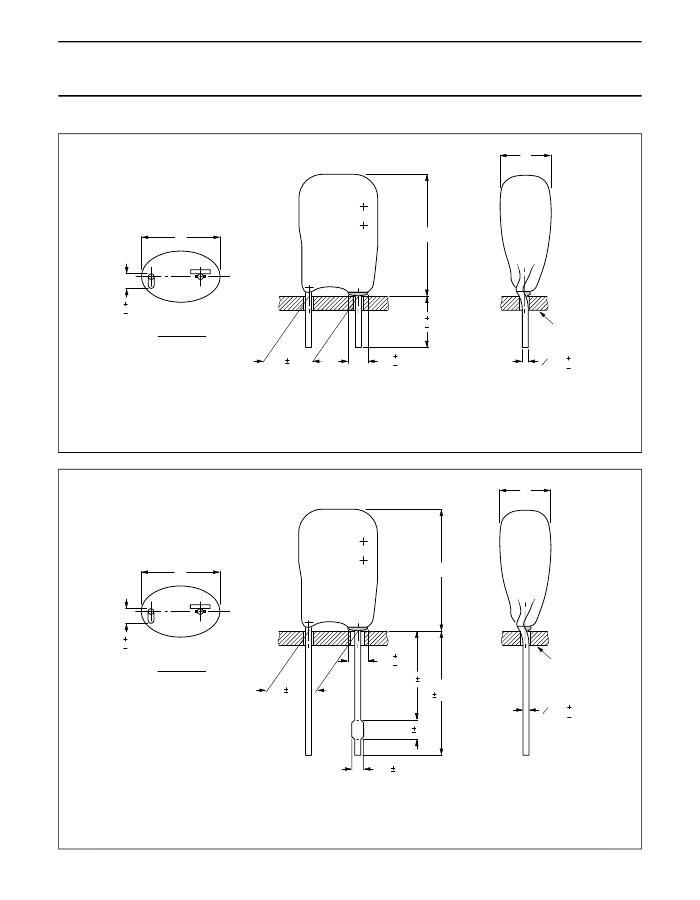

MECHANICAL DATA AVAILABLE FORMS AND PACKAGING QUANTITIES
T
122 SAL-RP
W
12.5 max
1.3
0.05
0.1
4.5
Bottom view
0.4
0
0.3
0.7
printed-wiring
board
O 0.6
0.06
0.05
5.2
0.2
2.1
MBC516 - 1
Dimensions in mm.
For dimensions see Table 1.
The diameter of the mounting holes in the printed-circuit board is 0.8
±0.1
mm.
Fig.2
Form CB:
Short leads, in boxes.
T
W
12.5 max
1.3
0.05
0.1
Bottom view
5.2
0.2
2.1
0.4
0
9
1
12.5
0.5
printed-wiring
board
O 0.6
2
0.5
MBC515 - 2
0.06
0.05
1.0
0.1
Dimensions in mm.
For dimensions see Table 1.
The diameter of the mounting holes in the printed-circuit board is 0.8
±0.1
mm, except for the hole of the anode lead of Form CA capacitors: 1.3
-0.2
mm.
Fig.3
Form CA:
Long leads with keyed polarity, in boxes.
2003 Apr 16
4
BCcomponents
Maintenance type - not for new designs
Aluminum electrolytic capacitors
Solid Al, Radial Pearl
Table 1
Physical dimensions, mass and packaging quantities; see Figs 2 and 3
CASE
MAXIMUM SIZE
H
´
W
´
T
(mm)
12.5
´
8
´
3.5
12.5
´
8
´
4.5
12.5
´
8
´
5
12.5
´
8
´
6
Note
1. In plastic bags of 200 units each.
Taped products
Tape dimensions are specified in this handbook,
section
“Packaging”.
MARKING
CODE
1
2
3
4
MASS
(g)
FORM
CA
(note 1)
1 000
1 000
1 000
800
122 SAL-RP
PACKAGING QUANTITIES
FORM
CB
(note
1)
1 000
1 000
1 000
1 000
FORM
TR+
2 000
2 000
1 000
1 000
FORM
TFA
1 000
1 000
1 000
1 000
»
0.35
»
0.38
»
0.45
»
0.58
The capacitors are marked (where possible) with the
following information:
·
Rated capacitance (in
m
F)
·
Tolerance code on rated capacitance (M =
±
20%)
·
Rated voltage (in V) and category voltage if applicable
·
Date code in accordance with
“IEC 60 062”
·
Name of manufacturer
·
‘+’ signs to identify the anode terminal.
MOUNTING
When bending, cutting or straightening the leads, ensure
that the capacitor body is relieved of stress.
Bending after soldering must be avoided.
MBC518
Form TR+:
Taped on reel, positive leading.
Form TFA:
Taped in ammopack.
Fig.4 Taped versions.
2003 Apr 16
5
