6800-0-15-15-34-14-04-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 6800-0-15-15-34-14-04-0

6800-0-15-15-34-14-04-0: DescriptionCONN PIN RCPT; CategoryThe connector terminals; File Size831KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

6800-0-15-15-34-14-04-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6800-0-15-15-34-14-04-0	-	-	View	Buy Now

6800-0-15-15-34-14-04-0 Overview

CONN PIN RCPT

6800-0-15-15-34-14-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

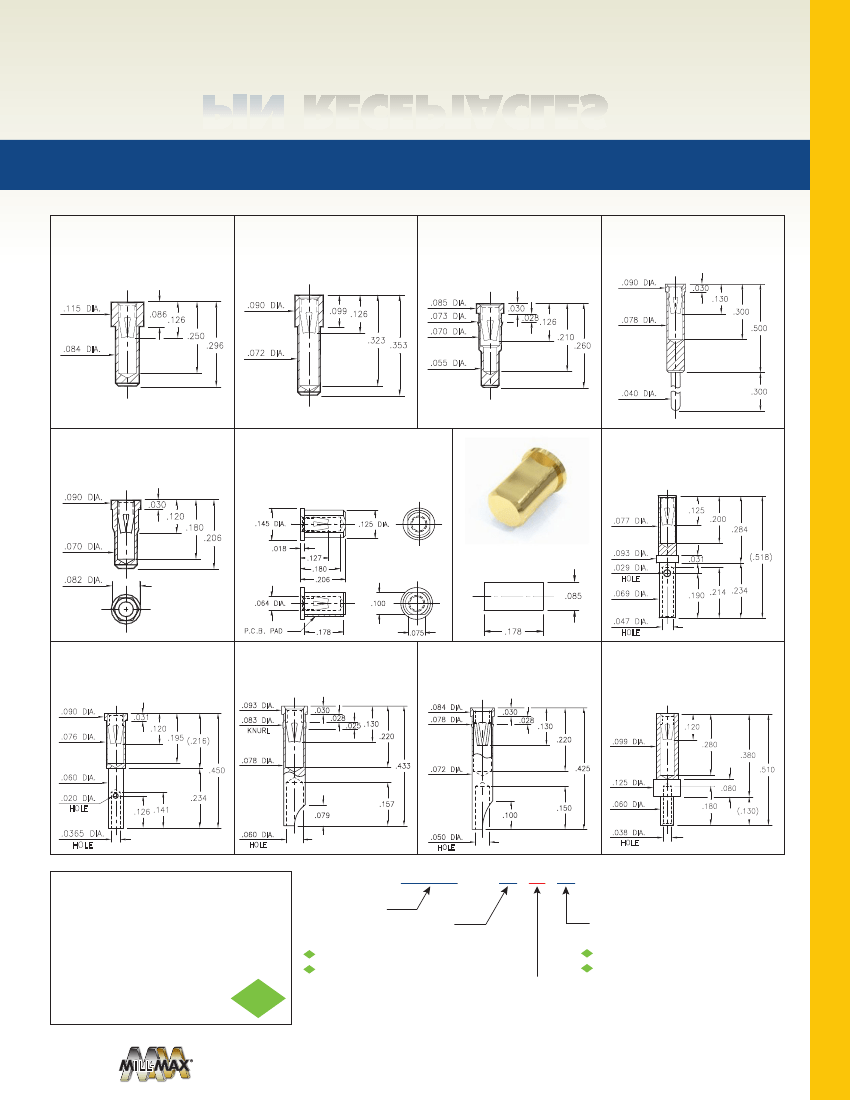

RECEPTACLES

FOR .032” - .046” DIAMETER PINS

8838

8838-0-15-XX-34-XX-10-0

Solder mount in .086 min. mounting hole

3100

3100-0-15-XX-34-XX-10-0

Solder mount in .074 min. mounting hole

8853

8853-0-15-XX-34-XX-10-0

Press-fit in .071 mounting hole

6800

.090 DIA.

6800-0-15-XX-34-XX-04-0

Solder mount in .080 min. mounting hole

.030

.130

.300

.500

.115 DIA.

.086

.090 DIA.

.126

.250

.296

.099 .126

.323

.085 DIA.

.073 DIA.

.070 DIA.

.030

.028

.126

.210

.260

.078 DIA.

.084 DIA.

.072 DIA.

.353

.055 DIA.

.040 DIA.

.300

0739

.090 DIA.

0739-0-15-XX-34-XX-10-0

Hex press-fit in .078 plated through-hole

.030

.120

.180

.206

8206

8206-0-15-XX-34-XX-40-0

0720

Surface mount, board edge

Also available on 16mm wide carrier tape:

Packaged Vertically 1,400 parts per 13” reel

See page 194.11 for Tape & Reel details

.145 DIA.

.125 DIA.

0720-0-33-XX-34-XX-10-0

Wire crimp termination. Accepts wire

sizes 20 AWG Max. / 24 AWG Min.

.125

.077 DIA.

.200

.284

.070 DIA.

.018

.127

.180

P.C.B. Layout

.093 DIA.

.029 DIA.

HOLE

.031

(.518)

.082 DIA.

.064 DIA.

.206

.100

.085

.069 DIA.

.234

.190 .214

P.C.B. PAD

.178

.075

.178

.047 DIA.

HOLE

4130

.090 DIA.

.076 DIA.

4130-0-33-XX-34-XX-10-0

5084

.093 DIA.

.083 DIA.

KNURL

Wire crimp termination. Accepts wire

sizes 22 AWG Max. / 26 AWG Min.

.031

.120

.195 (.216)

5084-0-18-XX-34-XX-10-0

Press-fit in .081 mounting hole

.030

.028

0740

0740-0-18-XX-34-XX-10-0

Press-fit in .075 mounting hole

For wire sizes up to 20 AWG

8731

8731-0-19-XX-34-XX-10-0

Wire crimp termination. Accepts wire

sizes 22 AWG Max. / 26 AWG Min.

.120

.099 DIA.

.280

.380

.510

.125 DIA.

.080

.180

(.130)

.025 .130

.220

.078 DIA.

.060 DIA.

.020 DIA.

HOLE

.234

.126 .141

.450

.433

.157

.079

.060 DIA.

HOLE

.060 DIA.

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - X - XX - XX -

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

SELECT CONTACT:

#34

CONTACT (DATA ON PAGE 258)

(For alternate contact choices, see group E on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 185 | PIN RECEPTACLES

.0365 DIA.

HOLE

.038 DIA.

HOLE

6800-0-15-15-34-14-04-0 Related Products

	6800-0-15-15-34-14-04-0	0740-0-18-01-34-27-10-0	3100-0-15-15-34-14-10-0	0740-0-18-15-34-27-10-0	0720-0-33-21-34-35-10-0	4130-0-33-80-34-27-10-0	8731-0-19-80-34-27-10-0	8838-0-15-15-34-14-10-0	8853-0-15-15-34-14-10-0
Description	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT
Reach Compliance Code	compliant	compliant	compliant	compliant	-	-	-	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	-	-	-	EAR99	EAR99
