35JEV47M6.3X8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 35JEV47M6.3X8

Preview

35JEV47M6.3X8: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size78KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

35JEV47M6.3X8 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP, ROHS COMPLIANT

35JEV47M6.3X8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1872955298
package instruction	, 2626
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	7.5
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e6
leakage current	0.01645 mA
Manufacturer's serial number	JEV
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	105 mA
size code	2626
surface mount	YES
Delta tangent	0.14
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT

Preview

Download Datasheet

View All

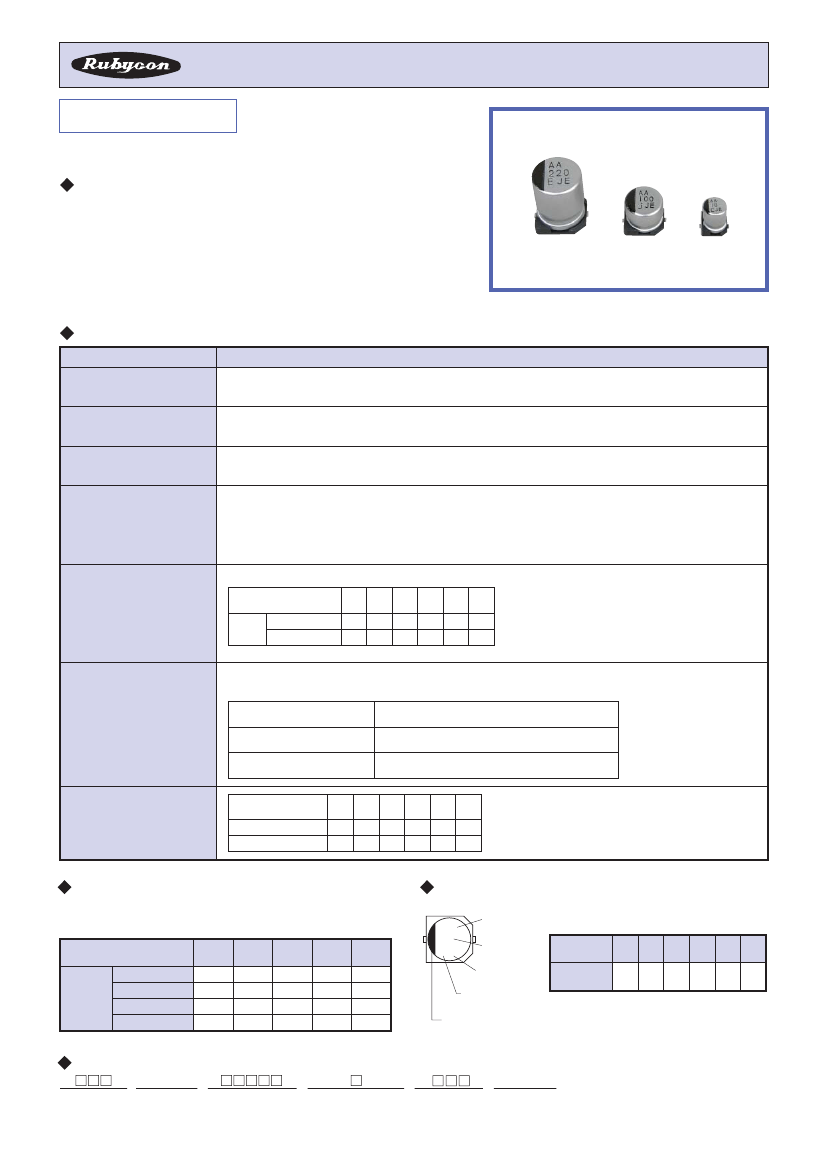

CHIP ALUMINUM ELECTROLYTIC CAPACITORS

JEV

SERIES

85

o

C Standard, High Temperature Reflow Soldering.

FEATURES

•

Case Dia

φ

4

∼

φ10mm

•

RoHS compliance.

•

High Temperature reflow soldering is available.

•

Available for high density mounting.

SPECIFICATIONS

Items

Category Temperature Range

Characteristics

-40

∼

+85

°

C

6.3∼50V.DC

+

-

20％(20

°

C,120Hz)

I=0.01CV

or 3

µA

whichever is greater.

(After 2 minutes application of rated voltage)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I=

Leakage Current

(

µ

A)

C=

Rated Capacitance

(

µ

F)

V=

Rated Voltage

(V)

Dissipation Factor(MAX)

(tanδ)

www.BDTIC.com/Rubycon

Rated Voltage

6.3 10 16 25 35 50

(V)

φ4,φ5,φ6.3

×

5.5 0.26 0.22 0.18 0.16 0.13 0.12

tanδ

φ6.3

×

8,φ8

∼

φ10

0.35 0.26 0.20 0.16 0.14 0.12

(20

°

C,120Hz)

After applying rated voltage with rated ripple current for 2000 hrs at 85

°

C, the capacitors shall meet the following requirements.

Capacitance Change

Dissipation Factor

Leakage Current

Rated Voltage

(V)

Z(

-

25

°

C)/Z(20

°

C)

Z(

-

40

°

C)/Z(20

°

C)

+

Within - 25% of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

Endurance

Low Temperature Stability

Impedance Ratio(MAX)

6.3

4

8

10

3

8

16

2

4

25

2

4

35

2

3

50

2

3

(120Hz)

MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

MARKING

AA

47

CJE

ロトNo.

ッ

Lot No.

Capacitance

Series

Rated voltage code

∗

Polarity of the terminals

∗

Voltage Code

Rated Voltage

6.3

(V)

Rated Voltage code

j

10

A

16

C

25

E

35

V

50

H

Frequency

(Hz)

60(50) 120

0.50

0.65

0.80

1.00

500

1.20

1.10

1k

1.30

1.15

10k <

=

1.50

1.20

0.1∼ 1µF

2.2∼ 4.7µF

Coefficient

10∼ 47µF

100∼ 1000µF

PART NUMBER

JEV

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

D

×

L

Case Size
