177200133304005 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 177200133304005

177200133304005: DescriptionBoard Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size120KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

177200133304005 Overview

Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT

177200133304005 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2114391137
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	38 GROUND SHIELD CONTACTS IN 2 ROWS
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	7200
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	133

Preview

Download Datasheet

View All

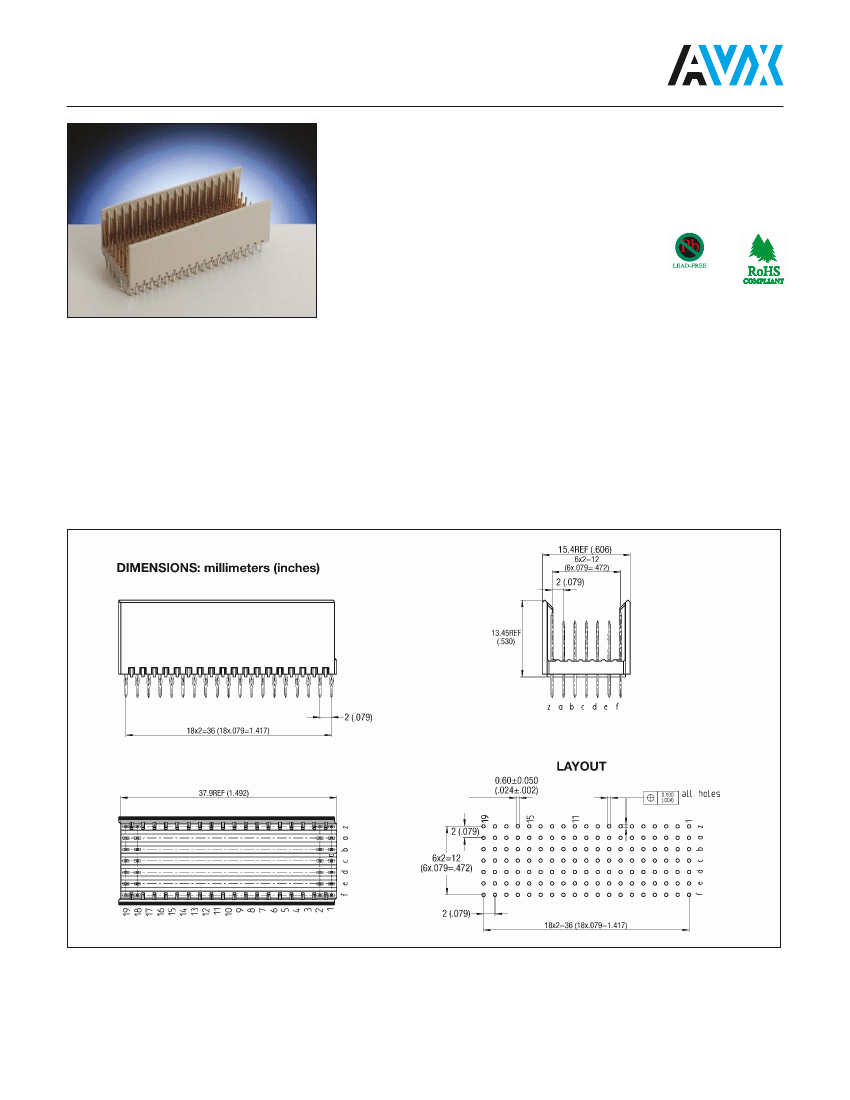

Vertical Male

Series 7200 – Style B 19, 133 Contacts

• Up to 95 signal contacts and 38 ground shield contacts in 5 or 5+2 rows of

19 positions

• Designed for gas tight press-fit installations

• This connector fills position P3 of the CompactPCI

specification and should

be used with a type A or AB connector

• Twelve different contact styles are available for customizing connector to

exact specifications (complete form on page 58)

• This connector also fills position J0 of the

VME64 Extension Specification

LEAD-FREE COMPATIBLE

COMPONENT

177200133304005 Related Products

	177200133304005	17-7200-133-303-005	17-7200-133-300-002	17-7200-133-302-005	17-7200-133-304-005	177200095300012	177200133300002	177200133302005	177200133303005	17-7200-133-301-002
Description	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT	133 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG, ROHS COMPLIANT	133 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG, ROHS COMPLIANT	133 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG, ROHS COMPLIANT	133 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG, ROHS COMPLIANT	Board Connector, 95 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT	133 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compli	compli	compli	compli	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	5	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	133	133	133	133	133	95	133	133	133	133
Other features	38 GROUND SHIELD CONTACTS IN 2 ROWS	38 GROUND SHIELD CONTACTS IN 2 ROWS	38 GROUND SHIELD CONTACTS IN 2 ROWS	38 GROUND SHIELD CONTACTS IN 2 ROWS	38 GROUND SHIELD CONTACTS IN 2 ROWS	-	38 GROUND SHIELD CONTACTS IN 2 ROWS	38 GROUND SHIELD CONTACTS IN 2 ROWS	38 GROUND SHIELD CONTACTS IN 2 ROWS	38 GROUND SHIELD CONTACTS IN 2 ROWS
Manufacturer's serial number	7200	7200	7200	7200	7200	7200	7200	-	7200	7200
Base Number Matches	-	1	1	1	1	-	-	-	1	1
