20021512-00080T8LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 20021512-00080T8LF

20021512-00080T8LF: Description1.27mm (0.05in.) pitch, Shrouded header, 80 contacts; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

20021512-00080T8LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	20021512-00080T8LF	-	-	View	Buy Now

20021512-00080T8LF Overview

1.27mm (0.05in.) pitch, Shrouded header, 80 contacts

20021512-00080T8LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1802355019
package instruction	LEAD FREE
Contacts	80
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.15
Other features	SHROUDED
body width	0.2 inch
subject depth	0.309 inch
body length	2.248 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (40)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	20021512
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	80
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

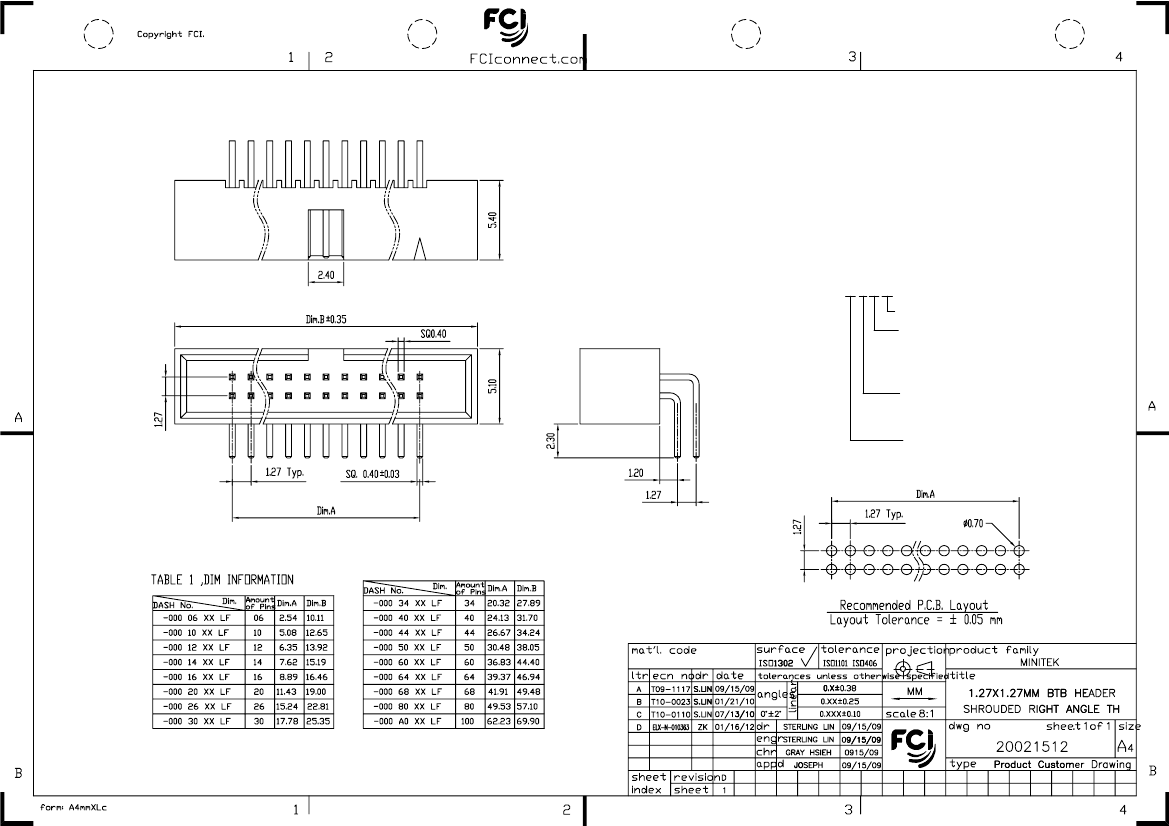

NOTE:

1. MATERIAL,

HOUSING: HIGH TEMP PLASTIC, UL94-V0,BLACK

TERMINAL: COPPER ALLOY , SQ=0.40±0.03MM

2. FINISH:

TERMINAL: GOLD AT CONTACT,

G/F OVER 1um(40u")MIN Ni OVER ALL

3. SPEC.:

PRODUCT SPEC: GS-12-629

PACKING SPEC: GS-14-1420

4. THE HSG. WILL WITHSTAND EXPOSURE TO 260C

PEAK TEMP. FOR 10 SEC. IN A WAVE SOLDER APPLICATION

WITH A PCB.

5. PRODUCT NUMBERING:

20021512 - 0 0 0 XX X X LF

LEAD FREE

PLATING:

1:GOLD FLASH ALL OVER

4:0.25um(10U")GOLD AT CONTACT

8:0.76um(30U")GOLD AT CONTACT

9:1u" GOLD OVER 30u" PdNi AT CONTACT

PACKING

T: TUBE

PIN COUNT

SEE TABLE 1

PDS: Rev :D

STATUS:Released

Printed: Mar 02, 2012
