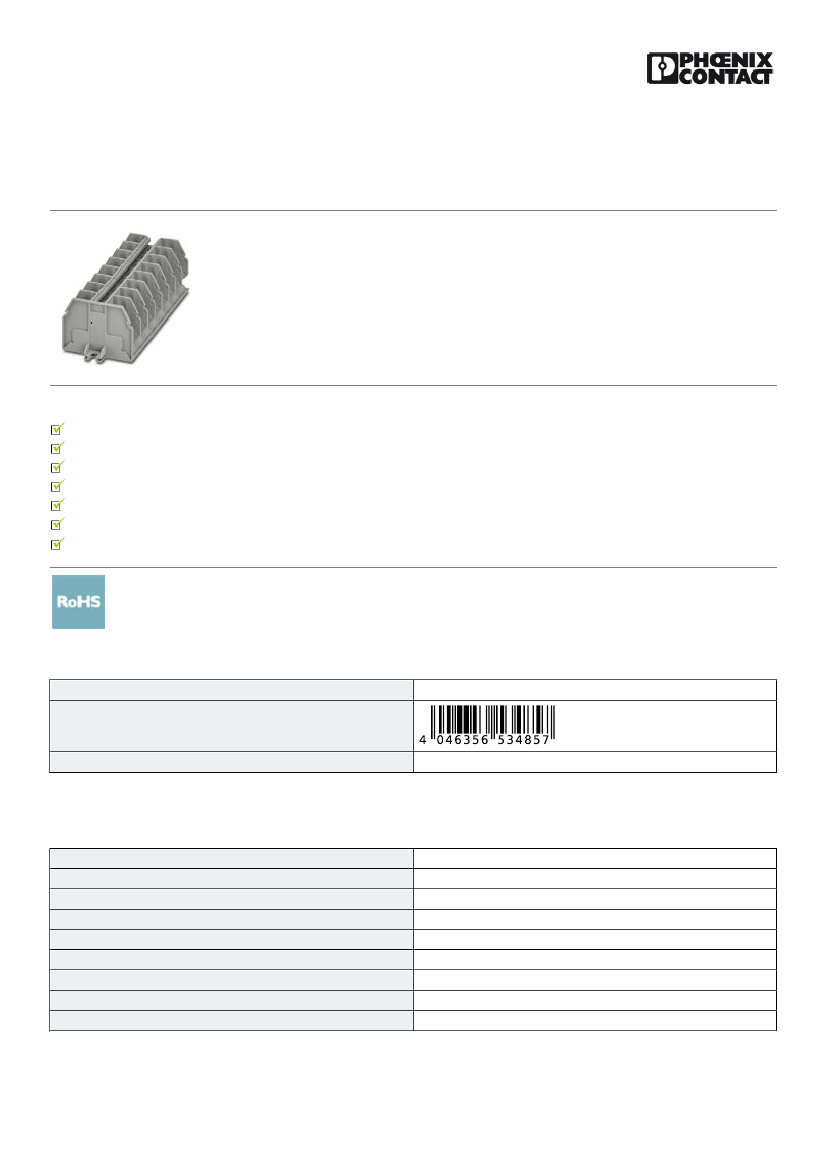

Bolt connection terminal block - RSC 5-F/8 - 3059236
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block with bolt connection method, cross section: 0.1 - 10 mm², AWG: 26 - 8, width 13
mm, color: gray
Why buy this product
Large-surface, consistent external and center labeling
Mounting on standard DIN rails or directly in control boxes
Compact screw connection of ring and fork-type cable lugs
Screw nuts and current bars are latched in the insulating housing and cannot be removed
Cover profile that can be snapped directly onto the terminal blocks provides touch-proof protection
The isolator bridge bar supports switchable cross connections; the bridge screw therefore has the function of a live contact
Bridge shaft for potential distribution using standard screw bridges
Key Commercial Data
Packing unit
GTIN
GTIN
4046356534857
1 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
1
16
8
10 mm²
gray
PA
V0
8 kV
3
10/03/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/3059236
Bolt connection terminal block - RSC 5-F/8 - 3059236
Technical data
General
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
III
I
1.82 W
57 A (with 10 mm² conductor cross section)
57 A
800 V
Yes
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height
Pitch
121.7 mm
53.3 mm
37 mm
13 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Connection bolts
Bolt connection
IEC 60947-7-1
0.1 mm²
10 mm²
26
8
DIN 46234
0.1 mm²
10 mm²
10/03/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/3059236
Bolt connection terminal block - RSC 5-F/8 - 3059236
Technical data
Connection data
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
5.3 mm
10 mm
5 mm
DIN 46237
0.5 mm²
6 mm²
5.3 mm
10 mm
5 mm
M5
2 Nm
2.2 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
IEC 60947-7-1
V0
HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3
HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3
HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3
HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
10/03/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/3059236
Bolt connection terminal block - RSC 5-F/8 - 3059236
Approvals
UL Recognized
Nominal voltage UN
Nominal current IN
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
45 A
FILE E 60425
600 V
45 A
cUL Recognized
Nominal voltage UN
Nominal current IN
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
45 A
FILE E 60425
600 V
45 A
EAC
EAC-Zulassung
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/03/2018 Page 4 / 4
