LTC2053CMS8-SYNC#TR datasheet, PDF

Datasheet> All Categories > Amplifier circuit> Instrumentation amplifier> LTC2053CMS8-SYNC#TR

LTC2053CMS8-SYNC#TR: DescriptionLTC2053CMS8-SYNC#TR amplifier basic information: LTC2053CMS8-SYNC#TR is an INSTRUMENTATION AMPLIFIER from Linear Technology. Commonly used packaging methods are TSSOP, TSSOP8,.19 LTC2053CMS8-SYNC#TR amplifier core information: The minimum operating temperature of the LTC2053CMS8-SYNC#TR is , and the maximum operating temperature is 70 °C. Its peak reflow temperature is 235°C, its maximum average bias current is 0.01 µA, and its maximum input offset current (IIO) is only 0.003 µA. How to simply check the efficiency of an amplifier? Looking at its slew rate, the LTC2053CMS8-SYNC#TR has a nominal slew rate of 0.2 V/us. The maximum slew rate of the LTC2053CMS8-SYNC#TR given by the manufacturer is 1.3 mA. The LTC2053CMS8-SYNC#TR has a nominal supply voltage of 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of LTC2053CMS8-SYNC#TR is 20 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the op amp output terminal 0V (or close to 0V).) Related dimensions of LTC2053CMS8-SYNC#TR: The width of LTC2053CMS8-SYNC#TR is: 3 mm, and the length is 3 mm. LTC2053CMS8-SYNC#TR has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 0.65 mm. Total pins: 8 LTC2053CMS8-SYNC#TR amplifier additional information: Its temperature grade is: COMMERCIAL. And its humidity sensitivity level is: 1. LTC2053CMS8-SYNC#TR is not Rohs certified. The corresponding JESD-30 code is: S-PDSO-G8. The corresponding JESD-609 code is: e0. The packaging code of LTC2053CMS8-SYNC#TR is: TSSOP. LTC2053CMS8-SYNC#TR packaging materials are mostly PLASTIC/EPOXY. The package shape is SQUARE. LTC2053CMS8-SYNC#TR package pin forms are: SMALL OUTLINE, THIN PROFILE, SHRINK PITCH. Its terminal forms are: GULL WING. The maximum seat height is 1.1 mm.; CategoryAmplifier circuit Instrumentation amplifier; File Size2MB，18 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Alternative parts：LTC2053CMS8-SYNC#TR

Download Datasheet Parametric Compare View All

LTC2053CMS8-SYNC#TR Overview

LTC2053CMS8-SYNC#TR amplifier basic information:

LTC2053CMS8-SYNC#TR is an INSTRUMENTATION AMPLIFIER from Linear Technology. Commonly used packaging methods are TSSOP, TSSOP8,.19

LTC2053CMS8-SYNC#TR amplifier core information:

The minimum operating temperature of the LTC2053CMS8-SYNC#TR is , and the maximum operating temperature is 70 °C. Its peak reflow temperature is 235°C, its maximum average bias current is 0.01 µA, and its maximum input offset current (IIO) is only 0.003 µA.

How to simply check the efficiency of an amplifier? Looking at its slew rate, the LTC2053CMS8-SYNC#TR has a nominal slew rate of 0.2 V/us. The maximum slew rate of the LTC2053CMS8-SYNC#TR given by the manufacturer is 1.3 mA.

The LTC2053CMS8-SYNC#TR has a nominal supply voltage of 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of LTC2053CMS8-SYNC#TR is 20 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the op amp output terminal 0V (or close to 0V).)

Related dimensions of LTC2053CMS8-SYNC#TR:

The width of LTC2053CMS8-SYNC#TR is: 3 mm, and the length is 3 mm. LTC2053CMS8-SYNC#TR has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 0.65 mm. Total pins: 8

LTC2053CMS8-SYNC#TR amplifier additional information:

Its temperature grade is: COMMERCIAL. And its humidity sensitivity level is: 1. LTC2053CMS8-SYNC#TR is not Rohs certified. The corresponding JESD-30 code is: S-PDSO-G8. The corresponding JESD-609 code is: e0.

The packaging code of LTC2053CMS8-SYNC#TR is: TSSOP. LTC2053CMS8-SYNC#TR packaging materials are mostly PLASTIC/EPOXY. The package shape is SQUARE. LTC2053CMS8-SYNC#TR package pin forms are: SMALL OUTLINE, THIN PROFILE, SHRINK PITCH. Its terminal forms are: GULL WING.

The maximum seat height is 1.1 mm.

LTC2053CMS8-SYNC#TR Parametric

Parameter Name	Attribute value
Brand Name	Linear Technology
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	MSOP
package instruction	TSSOP, TSSOP8,.19
Contacts	8
Manufacturer packaging code	MS8
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Amplifier type	INSTRUMENTATION AMPLIFIER
Maximum average bias current (IIB)	0.01 µA
Minimum Common Mode Rejection Ratio	100 dB
Maximum input offset current (IIO)	0.003 µA
Maximum input offset voltage	20 µV
JESD-30 code	S-PDSO-G8
JESD-609 code	e0
length	3 mm
Humidity sensitivity level	1
Negative supply voltage upper limit	-5.5 V
Nominal Negative Supply Voltage (Vsup)	-5 V
maximum nonlinearity	0.001%
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP8,.19
Package shape	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	235
power supply	3/5/+-5 V
Certification status	Not Qualified
Maximum seat height	1.1 mm
Nominal slew rate	0.2 V/us
Maximum slew rate	1.3 mA
Supply voltage upper limit	5.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

FeaTures

LTC2053/LTC2053-SYNC

Precision, Rail-to-Rail,

Zero-Drift, Resistor-Programmable

Instrumentation Amplifier

DescripTion

The LTC

2053 is a high precision instrumentation ampli-

fier. The CMRR is typically 116dB with a single or dual

5V supply and is independent of gain. The input offset

voltage is guaranteed below 10µV with a temperature

drift of less than 50nV/°C. The LTC2053 is easy to use;

the gain is adjustable with two external resistors, like a

traditional op amp.

The LTC2053 uses charge balanced sampled data tech-

niques to convert a differential input voltage into a single

ended signal that is in turn amplified by a zero-drift op-

erational amplifier.

The differential inputs operate from rail-to-rail and the

single-ended output swings from rail-to-rail. The LTC2053

can be used in single-supply applications, as low as 2.7V.

It can also be used with dual ±5.5V supplies. The LTC2053

requires no external clock, while the LTC2053-SYNC has

a CLK pin to synchronize to an external clock.

The LTC2053 is available in an MS8 surface mount pack-

age. For space limited applications, the LTC2053 is avail-

able in a 3mm × 3mm × 0.8mm dual fine pitch leadless

package (DFN).

LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear

Technology Corporation. All other trademarks are the property of their respective owners.

116dB CMRR Independent of Gain

Maximum Offset Voltage: 10µV

Maximum Offset Voltage Drift: 50nV/°C

Rail-to-Rail Input

Rail-to-Rail Output

2-Resistor Programmable Gain

Supply Operation: 2.7V to ±5.5V

Typical Noise: 2.5µV

P-P

(0.01Hz to 10Hz)

Typical Supply Current: 750µA

LTC2053-SYNC Allows Synchronization to

External Clock

Available in MS8 and 3mm × 3mm × 0.8mm

DFN Packages

applicaTions

Thermocouple Amplifiers

Electronic Scales

Medical Instrumentation

Strain Gauge Amplifiers

High Resolution Data Acquisition

Typical applicaTion

Differential Bridge Amplifier

0.1µF

R < 10k

INPUT OFFSET VOLTAGE (µV)

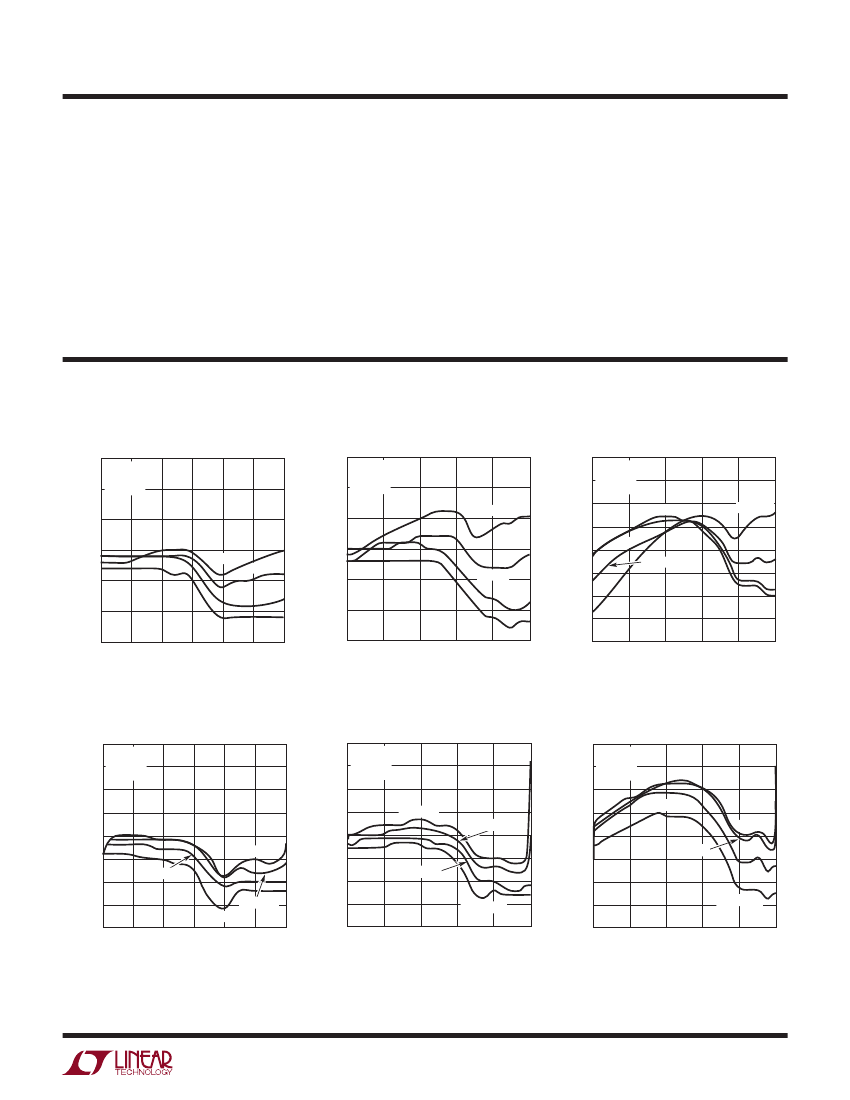

Typical Input Referred Offset vs Input

Common Mode Voltage (V

= 3V)

–5

G = 10

–10

–15

2053 TA01

= 3V

REF

= 0V

= 25°C

–

LTC2053

R2 10k

OUT

1, 4

G = 1000

G = 100

GAIN = 1+

0.1µF

G=1

1.0

1.5

2.0

2.5

0.5

INPUT COMMON MODE VOLTAGE (V)

3.0

2053 TA01b

2053syncfc
