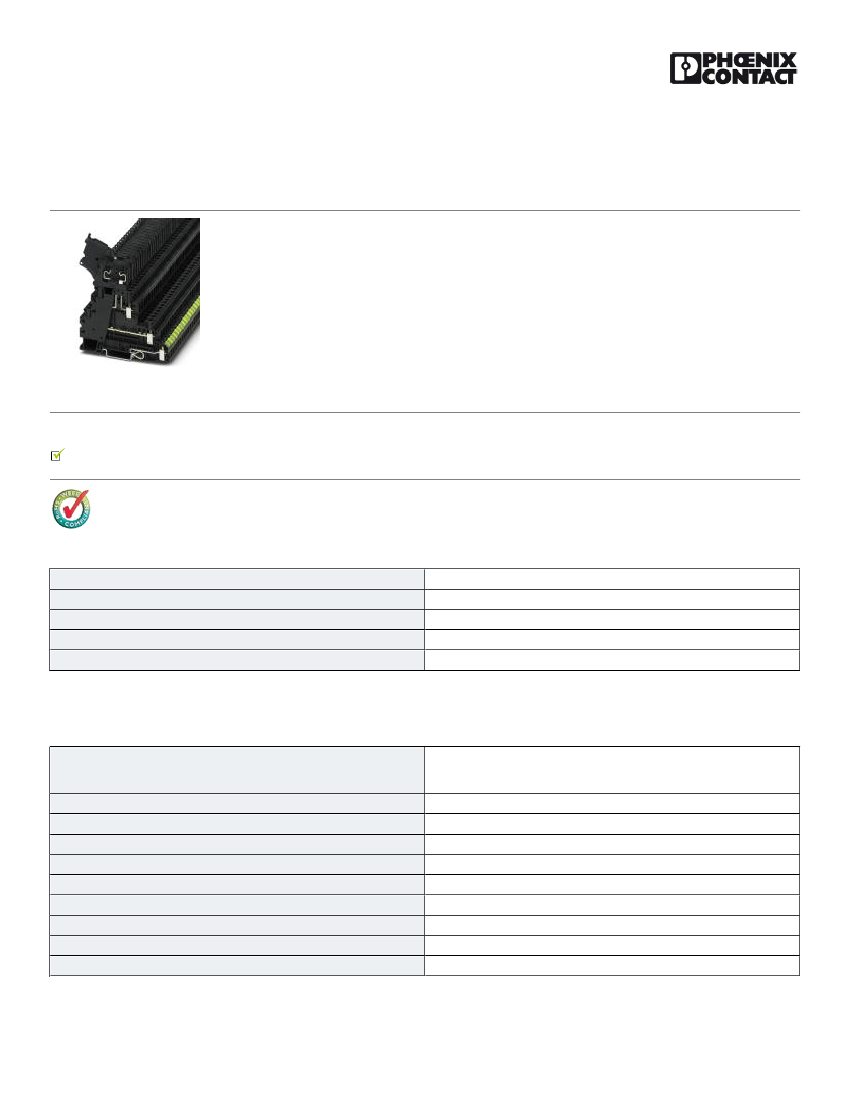

Fuse modular terminal block - UT 4-PE/L/HESILED 60 (5X20) - 3214322
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Fuse modular terminal block, Connection method: Screw connection, Cross section: 0.14 mm²- 6 mm²,
AWG: 26 - 10, Nominal current: 28 A, Nominal voltage: 500 V, Width: 6.2 mm, Fuse type: G / 5 x 20, Fuse
type: Glass, Mounting type: NS 35/7,5, NS 35/15, Color: black
The illustration shows the version
without LED/light indicator
Product Features
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
37.2 GRM
85369085
Poland
Technical data
General
Note
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Fuse
Fuse type
Rated surge voltage
Pollution degree
The current is determined by the fuse used, the voltage by the selected
LED.
If the fuse is faulty, the downstream circuit will not be disconnected.
3
5
black
PA
V0
G / 5 x 20
Glass
6 kV
3
05/06/2015 Page 1 / 6
https://www.phoenixcontact.com/us/products/3214322
Fuse modular terminal block - UT 4-PE/L/HESILED 60 (5X20) - 3214322
Technical data
General
Surge voltage category
Insulating material group
Maximum power dissipation
LED voltage range
LED current range
Connection in acc. with standard
Current
Additional text
Nominal current I
N
Nominal voltage U
N
Maximum load current (upper level)
Additional text
Connection in acc. with standard
Nominal current I
N
(upper level)
Nominal voltage U
N
Open side panel
III
I
max. 1.6 W (With single arrangement of the fuse terminal block in the
event of overload)
30 V AC ... 60 V AC
0.4 mA ... 0.86 mA
IEC 60947-7-2/IEC 60947-7-3
36 A
the current is determined by the fuse used
28 A
500 V
6.3 A
the current is determined by the fuse used
IEC 60947-7-2/IEC 60947-7-3
6.3 A
60 V
nein
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
92.7 mm
88.9 mm
96.4 mm
Connection data
Note
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
Please observe the current carrying capacity of the DIN rails.
0.14 mm²
6 mm²
0.14 mm²
6 mm²
26
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
05/06/2015 Page 2 / 6
https://www.phoenixcontact.com/us/products/3214322
Fuse modular terminal block - UT 4-PE/L/HESILED 60 (5X20) - 3214322
Technical data
Connection data
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1.5 mm²
sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Screw connection
9 mm
A4
M3
0.6 Nm
0.8 Nm
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
27141116
27141116
27141116
ETIM
ETIM 4.0
ETIM 5.0
EC000899
EC000899
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
UL Recognized / cUL Recognized / cULus Recognized
05/06/2015 Page 3 / 6
https://www.phoenixcontact.com/us/products/3214322
Fuse modular terminal block - UT 4-PE/L/HESILED 60 (5X20) - 3214322
Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26-10
16 A
300 V
B
26-10
16 A
300 V
C
26-10
D
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26-10
16 A
300 V
B
26-10
16 A
300 V
C
26-10
D
cULus Recognized
Drawings
05/06/2015 Page 4 / 6
https://www.phoenixcontact.com/us/products/3214322
Fuse modular terminal block - UT 4-PE/L/HESILED 60 (5X20) - 3214322
Circuit
diagram
Application drawing

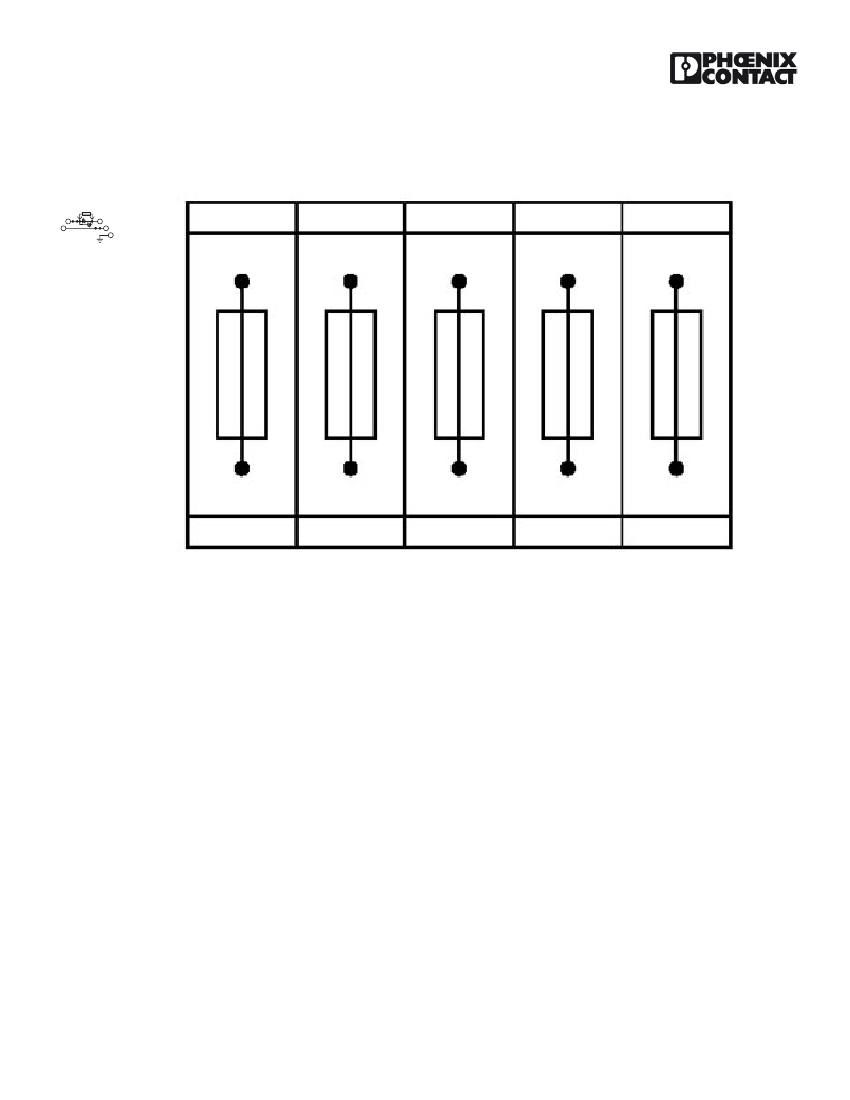

Fuse terminal blocks in interconnected arrangement,
block consisting of 5 fuse terminal blocks
05/06/2015 Page 5 / 6
