SiT6303EB Evaluation Boards User Manual
SiT6303EB Evaluation Boards User Manual for Single-Ended
Oscillators
1
2
3
Introduction ............................................................................................................................................ 1
Board Information .................................................................................................................................. 1
Usage Notes .......................................................................................................................................... 2
1
Introduction
The SiT6303EB series of evaluation board allows a user to evaluate the functionality of SiTime pre-
programmed 4-pins oscillator of SiT8021 series on a customer’s Circuit Board.
SiTime recommends evaluating parts in a soldered down condition, for best signal integrity, and for best
conformance to typical condition in practical applications, where parts are soldered down into a
production system
The SiT6303EB series support 1.55 x 0.85 mm CSP (chip-scaled package) type.
2
Board Information
The schematic of the board is shown on Figure 1. There is one Edge Connector J1 for pre-programming
the part on SiTime factory. Between Pin 3 (VDD) and Pin 4 (GND) the ceramic bypass capacitor 0.1 uF
with package type 0402 (1005 metric) is using.
Figure 1: SiT6303EB r. 1.0 schematic
The layout of the board Top side and Bottom side are shown on Figure 2 and Figure 3 correspondently.
Board dimensions are 15 x 10 mm.
--------------------------------------------------------------------------------------------------------------------------------------------
SiTime SiTime Corporation
1
SiT6303EB Manual Rev. 1.0
SiT6303EB Evaluation Boards User Manual

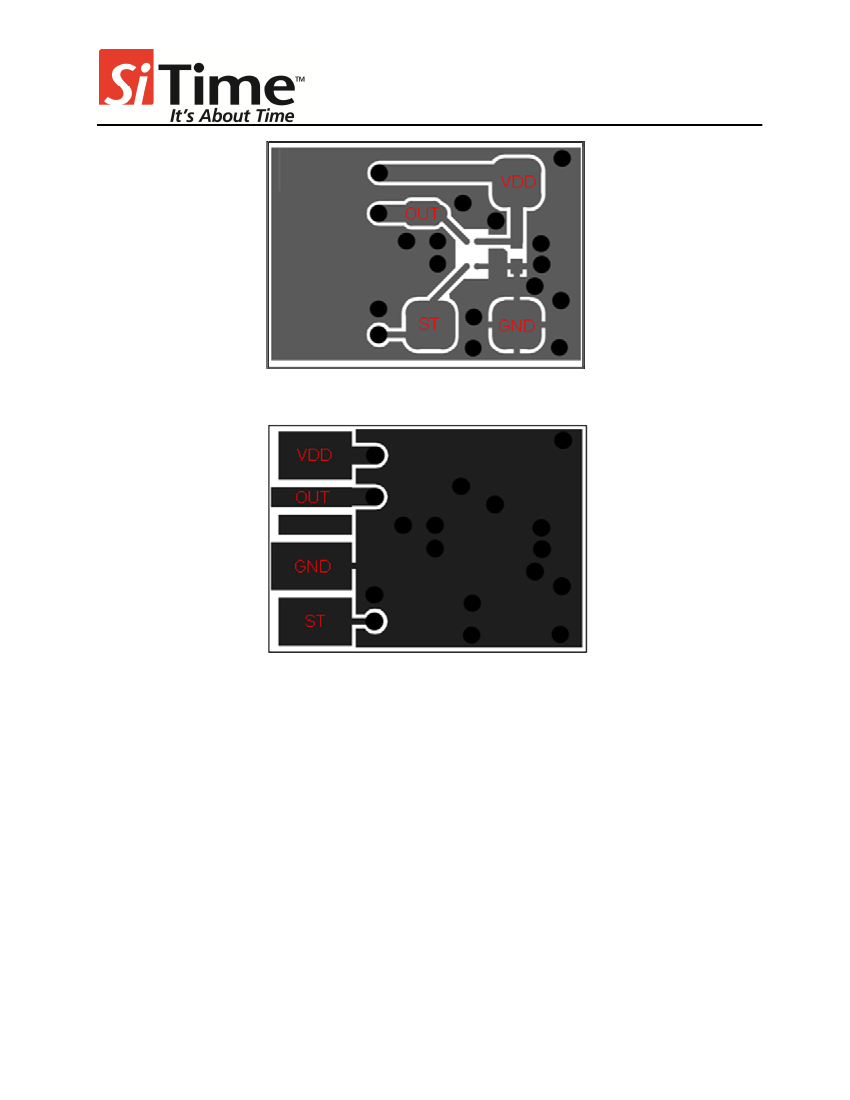

Figure 2: SiT6303EB layout (Top side)
Figure 3: SiT6303EB layout (Bottom side)
3
Usage Notes
Customer can connect the Evaluating Board to his Circuit Board by wires soldering ones at points “ST”,
“GND”, “VDD” and “OUT” (see Figure 2) and correspondent points of customer Circuit Board. Wires
length should be about 0.5”.
--------------------------------------------------------------------------------------------------------------------------------------------
SiTime Corporation
2
SiT6303EB Manual Rev. 1.0
SiT6303EB Evaluation Boards User Manual
SiTime Corporation
990 Almanor Avenue
Sunnyvale, CA 94085
USA
Phone: 408-328-4400
http://www.sitime.com
