Head-mounted transducer - MCR-SL-HT-PT 100-I - 2864516
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

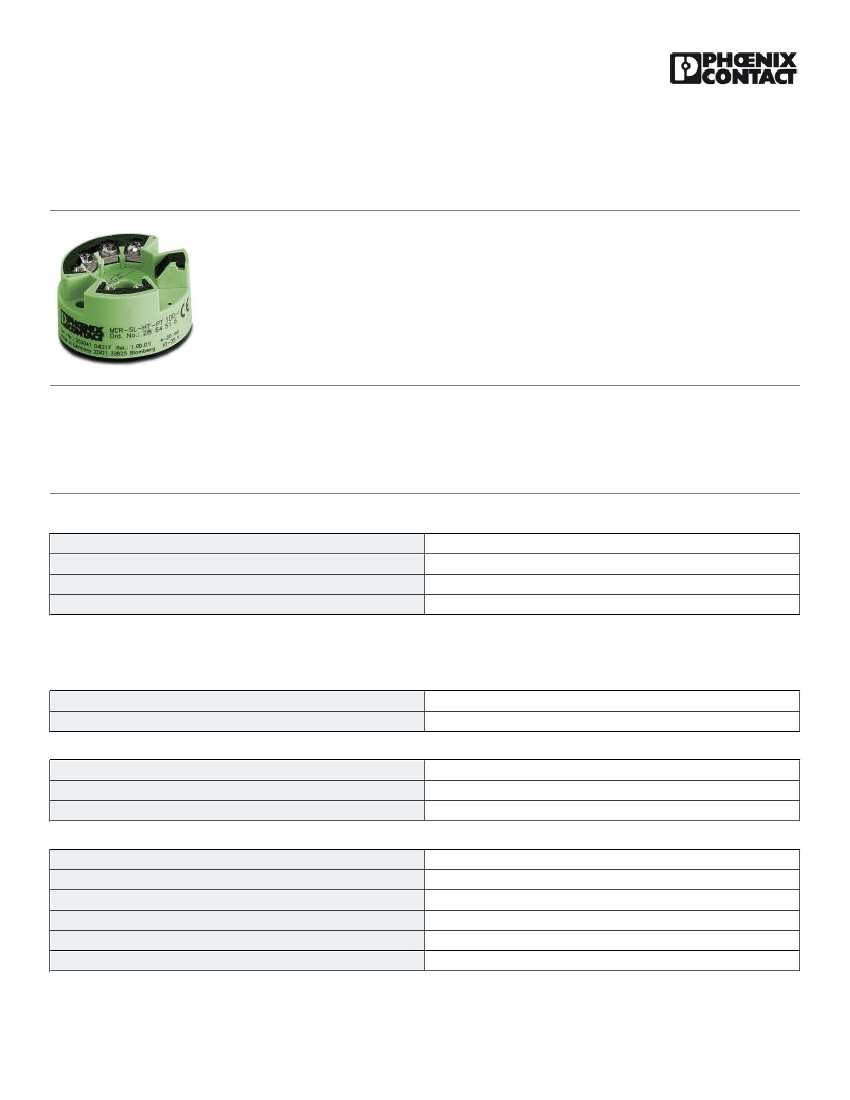

MCR head-mounted temperature transducers for resistance thermometers, thermocouples, resistance-type
sensors and voltage sensors. For Pt 100 resistance thermometers
Product Features
■
■
■
Freely programmable via MCR/PI-CONF-WIN
For installation in connecting head, form B
Two-wire transmitter for Pt 100 resistance thermometers
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
84.95 g
85437090
Germany
Technical data
Ambient conditions
Ambient temperature (operation)
Degree of protection
-40 °C ... 85 °C
IP00, IP54 (integrated in the connecting head)
Input data
Configurable/programmable
Sensor types (RTD) that can be used
Connection method
Yes, programmable
Pt 100 ; minimum measurement range 10 K
2, 3, 4-wire
Output data
Output name
Current output signal
Output current with wire break
Output current with short-circuit
Output current range with overrange/underrange
Current output
4 mA ... 20 mA
20 mA ... 4 mA
≤ 3.6 mA or ≥ 21 mA (adjustable)
≤ 3.6 mA or ≥ 21 mA (adjustable)
≤ 20.5 mA / ≥ 3.8 mA (linear increase/decrease)
04/08/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/2864516
Head-mounted transducer - MCR-SL-HT-PT 100-I - 2864516
Technical data
Output data
Load/output load current output
Max (V
supply
- 10 V) / 0.023 A (current output)
Power supply
Designation
Supply voltage range
Max. current consumption
Loop-powered
10 V DC ... 35 V DC
< 3.5 mA
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Stripping length
Screw thread
Screw connection
0.2 mm²
1.75 mm²
24
15
0.2 mm²
1.75 mm²
8 mm
M3
General
Transmission error resistance thermometer
Step response (10-90%)
Switch-on delay
Noise emission
Noise immunity
Color
Housing material
Mounting position
Assembly instructions
Configuration
Conformance
UL, USA / Canada
0.2 K
<2s
4s
EN 61326-1 (IEC 61326) and NAMUR NE 21
EN 61326-1 (IEC 61326) and NAMUR NE 21
green
Polycarbonate, PC
any
Connection head according to DIN 43729 form B
Using MCR-PI-CONF-WIN configuration software package
CE-compliant
Class I, Div. 2, Groups A, B, C, D
Standards and Regulations
Noise emission
Noise immunity
Connection in acc. with standard
Conformance
UL, USA / Canada
EN 61326-1 (IEC 61326) and NAMUR NE 21
EN 61326-1 (IEC 61326) and NAMUR NE 21
CUL
CE-compliant
Class I, Div. 2, Groups A, B, C, D
04/08/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/2864516
Head-mounted transducer - MCR-SL-HT-PT 100-I - 2864516
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27200206
27200206
27200206
27200206
27200206
27200206
27371503
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001446
EC001446
EC001446
EC002568
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211506
39121008
39121008
39121008
39121008
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / EAC / cULus Recognized
Ex Approvals
UL Listed / cUL Listed / cULus Listed
Approvals submitted
Approval details
04/08/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/2864516
Head-mounted transducer - MCR-SL-HT-PT 100-I - 2864516
Approvals
UL Recognized
cUL Recognized
EAC
EAC
cULus Recognized

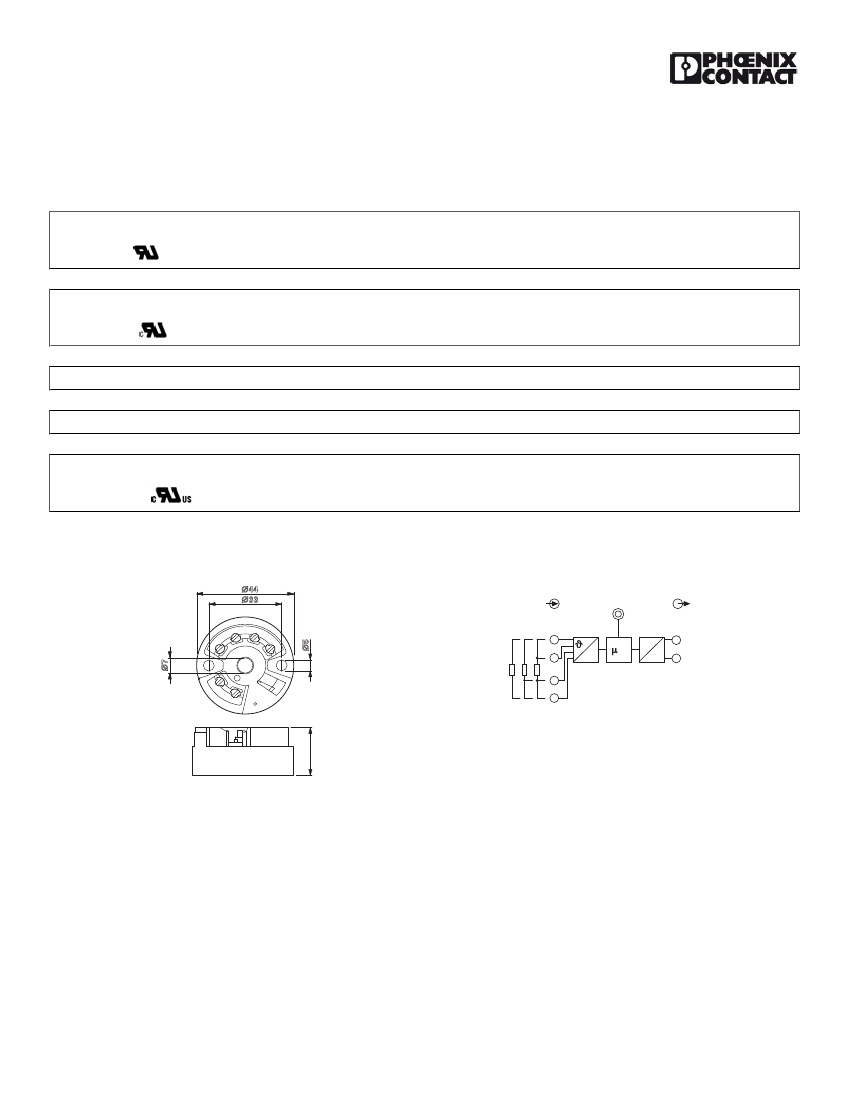

Drawings
Dimensional drawing
∅44
∅33
Circuit diagram
IN
OUT
∅5
6
∅7
2
21
5
1
4
3
4
5
6
D
C
D
A
1
2
OUT I
IN
POWER
3
04/08/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/2864516
Head-mounted transducer - MCR-SL-HT-PT 100-I - 2864516

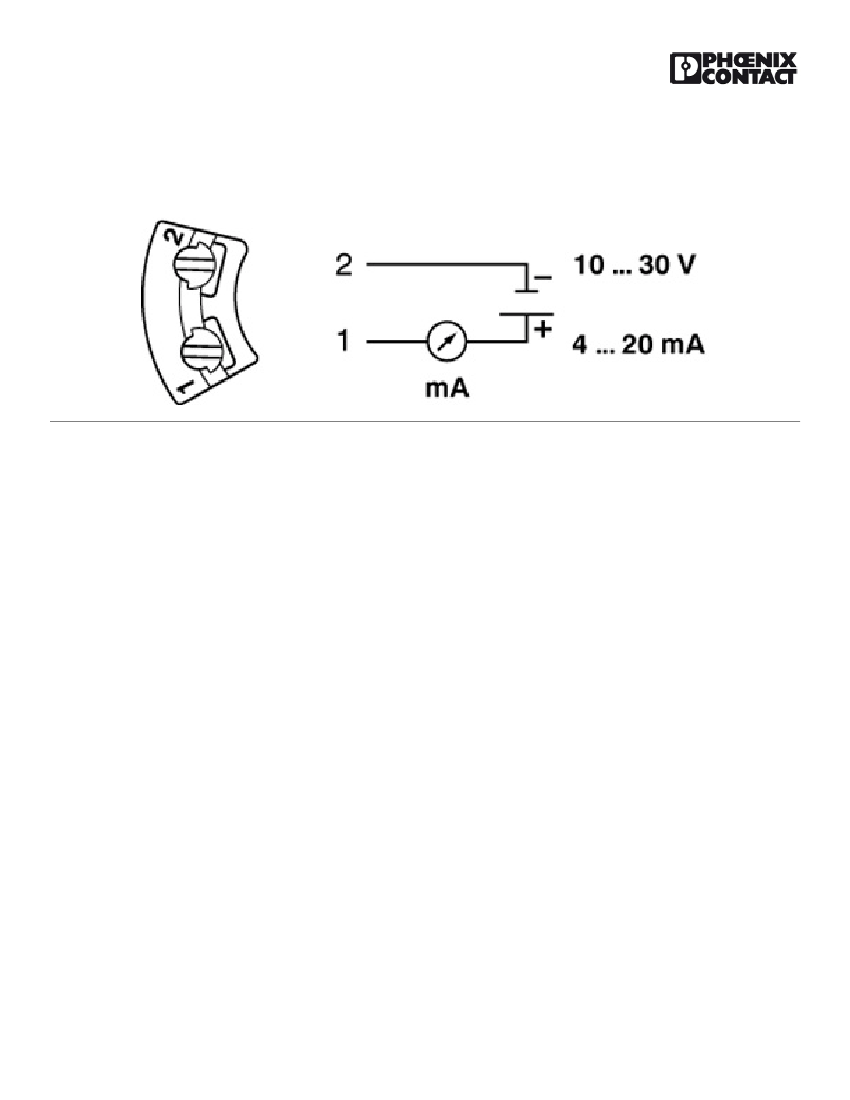

Connection diagram
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
04/08/2016 Page 5 / 5
