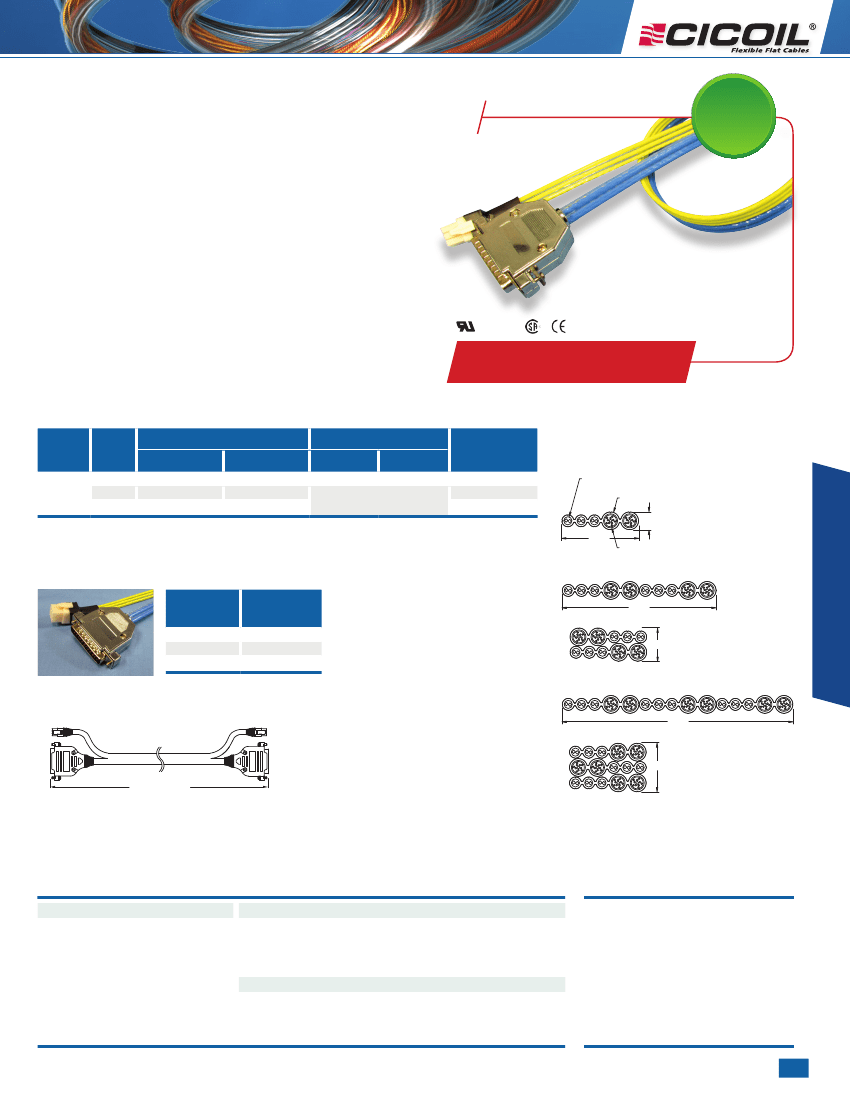

EZ-Flexx Motion Series Plus
™
Ideal for Hi-Flex Motion Applications
Shielded Power and Signal Wires in a Compact Flat Cable
For 1, 2 or 3 Servo Axes
Rated for More Than 10 Million Flexing Cycles
Easy to Separate and Strip
NEED
CUSTOMS?
See Page
25
Cicoil’s EZ-Flexx™ Motion Series Plus cable is available in a single
axis design that may be ganged for 1, 2 or 3 axes servo motion.
Each EZ-Flexx™ Motion Series Plus cable integrates 6 power
conductors and 20 signal wires in a compact flat cable measuring
just 0.84” wide by 0.19” thick. The Flexx-Sil™ encapsulation provides
a solid, one-piece construction that creates a highly durable,
flexible flat cable package.
Cable
MEETS 94V-0
UL
COMPLIANT
RoHS
REACH
COMPLIANT
FLAME TESTED
FAA
Applications
Linear Motors, Servo and Stepper Motors
Dimensions
Amp
Rating
1
8
No. of
Axes
1
2
3
Conductor Gauge
Power
22 AWG/3 pr
22 AWG/6 pr
22 AWG/9 pr
Dimensions [inches]
Width
0.84
Signal
28 AWG/10 pr
28 AWG/20 pr
28 AWG/30 pr
Height
0.19
Part
Number
MCZ-1000-1
MCZ-1000-2
MCZ-1000-3
Cable axes are not bonded, so may be grouped
laterally or in stacked positions as shown below.
1 AXIS
MOTOR POWER & AUX
(22 AWG TWISTED PAIR SHIELDED) X3
700X-70, CLEAR FLEXX-SIL RUBBER
0.19
0.84
MOTOR FEEDBACK & AUX
(28 AWG, TWISTED PAIR SHIELDED X5) X2
2 AXES
See Dimensional Drawings
Cable Assemblies
Cable Length
(feet)
3
6
12
Please contact Cicoil for other
connectors and length options.
Part Number
Addition
-CA003
-CA006
-CA012
Notes
1. Append onto base cable Part Number for
complete assembly.
Example: MCZ-1000-1-CA003
2. Connector ratings may differ from cable
ratings; refer to manufacturer specifications.
3 AXES
1.68
0.36
Assembly Dimensions
P1
J1
CABLE LENGTH
P1
J1
2.52
Connectors
• Power (P1): Tin Contact - TE, P/N 770904-1
9-Pos Housing - TE, P/N 172169-1
• Signal (J1): 25-Pin - Amphenol, P/N L717-DB25P
Metallized Shell - TE, P/N 5748677-3
0.55
Cable Specifications
Mechanical
Conductors:
Ultra flexible, finely stranded,
tinned copper
Shielding:
Ultra flexible, braided shields, with
90% nominal coverage
Minimum Bend Radius:
- 6x cable height for intermediate flex
- 10x cable height for continuous flex
Flex Life:
10,000,000 cycles nominal
Outer Jacket Durometer Rating:
65 (Shore A)
All engineering values are nominal and subject to change.
Environmental
Temperature Rating:
-65°C to +165°C
Moisture Rating:
Submersible, Salt Water Resistant
Clean Room Rating:
Class 1, Zero Particulates
Extreme Environments:
Sunlight, UV Light, Alcohol, Chemical and Oil Resistant
Electrical
Outer Jacket Dielectric Strength:
450 volts/mil (17.7 kv/mm)
See Electrical Rating Chart on Page 47
Options
Additional Conductors
Low Friction Options
StripMount™ Integrated Mounting Strip
Integrated Tubing
SuperTuff™ Jacket
Colored Jacketing
Strip and Tin Cable Ends
FlexRail™ Self-Supporting Cable
Complete Assembly
Page
26
28
28
29
29
29
29
30
31
Flexible Flat Cables & Cable Assemblies
Motion Series Plus / p1of1 / 30-APR-15
661-295-1295
§
Cicoil.com
5
Motion Control
Notes
1. Amp rating is the maximum value for each power conductor at room temperature of 70°F (21°C). Amp rating decreases
as temperature increases.
