0402N471J500CT: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00047uF, Surface Mount, 0402, CHIP; CategoryPassive components capacitor; File Size306KB，1 Pages; ManufacturerWalsin Technology Corporation; Environmental Compliance

Download Datasheet Parametric View All

0402N471J500CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0402N471J500CT	-	-	View	Buy Now

0402N471J500CT Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00047uF, Surface Mount, 0402, CHIP

0402N471J500CT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1714892591
package instruction	, 0402
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
Samacsys Manufacturer	Walsin Technology Corporation
Samacsys Modified On	2019-09-17 07:20:03
YTEOL	8.5
capacitance	0.00047 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
JESD-609 code	e3
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
size code	0402
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.5 mm

Preview

Download Datasheet

View All

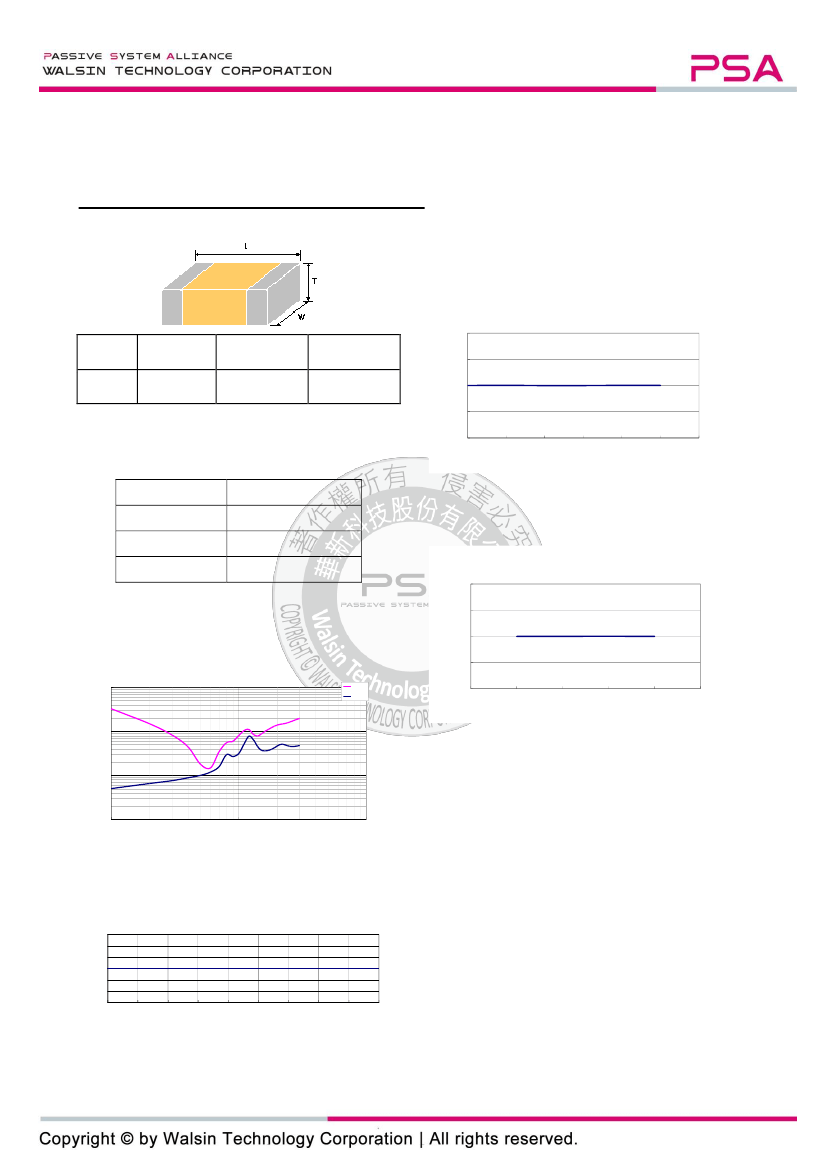

Chip Monolithic Ceramic Capacitor

Electrical Characteristics Data

0402 NPO 470pF 50V (0402N471J500CT)

1. Dimension

5. Capacitance – DC Voltage Characteristics

(Equipment: 4284A; DC charge 60±5sec)

25V :0% ; 50V :0%

△C/C(%)

2.0

Size

Inch (mm)

0402

(1005)

L (mm)

1.00±0.05

W (mm)

0.50±0.05

T (mm)

0.50±0.05

1.0

0.0

-1.0

2. Cap, DF, IR @25℃

(Cap, DF @1MHz, 1Vrms ; IR @50V, 120sec)

Item

Cap [pF]

DF

IR [G-ohm]

Spec

470(±5%)

≦0.1%

-2.0

0

10

20

30

DC Voltage (V)

40

50

60

6. Capacitance – AC Voltage Characteristics

(Equipment: 4284A)

△C/C(%)

≧10

2.0

1.0

3. Impedance/ESR-Frequency

0.0

(Equipment: 4287A)

-1.0

10

Z

ESR

-2.0

0

0.5

1

AC Voltage (V)

1.5

2

2.5

Z, ESR(ohm)

1

0.1

0.01

100

1000

Frequency(MHz)

10000

4. Capacitance – Temperature Characteristics

(Equipment: 4284A)

△C/C(％)

30

20

10

0

-10

-20

-30

-55

-35

-15

5

25

45

65

85

105

125℃

Last updated : 2018/01/19
