RJE72
Product Specification S6051C Rev 1.4
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Related Products
RJE58

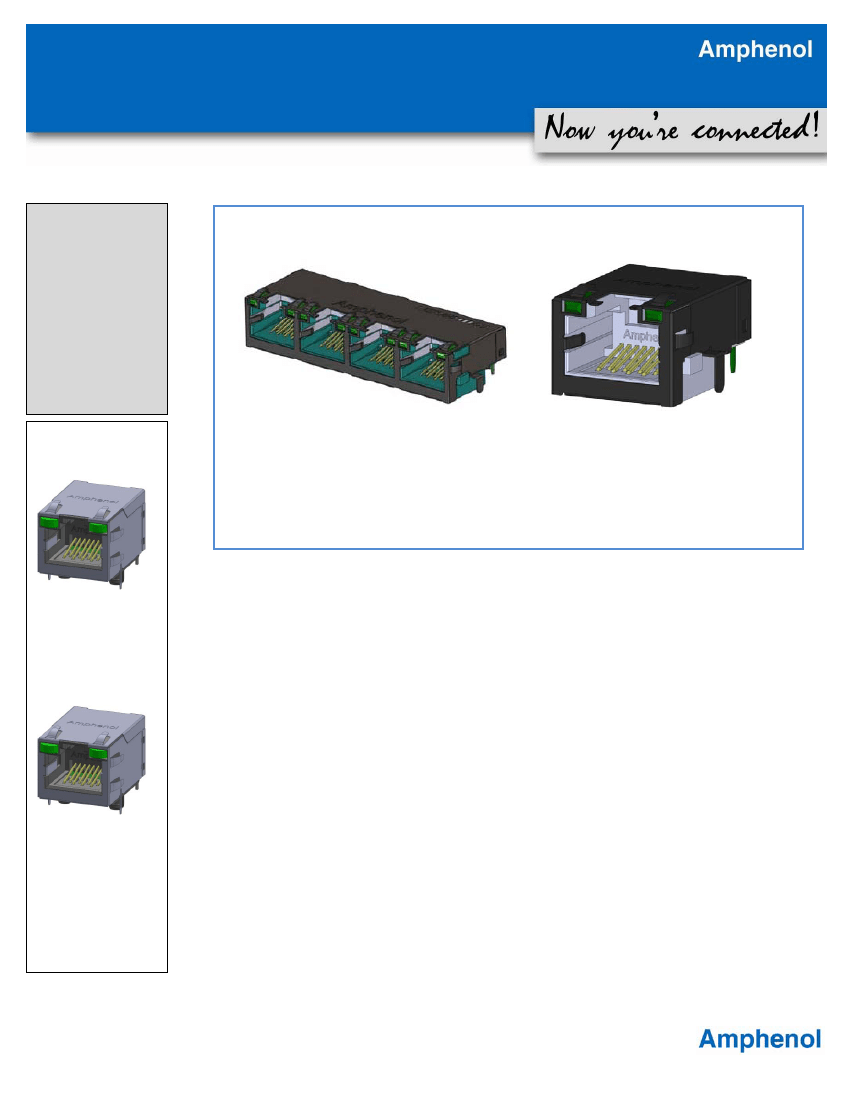

P/N RJE72‐488‐1XXX SHOWN
4 PORT, 8 POSITION,
WITH SHIELD AND LEDs
P/N RJE72‐188‐1XXX SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LEDs
Overview
P/N RJE58‐188‐5XX1 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LEDs
CAT5e
This product specification defines the general use and performance parameters for Amphenol’s
RJE72 series of modular jacks.
Availability: Single and 1x4 port connectors available with a wide variety of LED and shielding
options.
RJE59
Usage
The RJE72 series of modular jacks meet Cat5e performance per EIA-568-C.2. It supports Gigabit
Ethernet Protocols. Shielding available for increased EMI performance and LEDs for Link Activity
and Network Speed verification.
Applications
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches
Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines
Consumer Goods
Security Systems
Set Top Boxes
Video Game Systems
Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals
P/N RJE59‐188‐5XX1 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LEDs
CAT6
Revision date: AUGUST 26, 2016
Page 1 of 2
S6051C Rev 1.4
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Electrical Characteristics
Contact resistance:
Insulation resistance:
Current rating:
Voltage rating:
DWV
LED forward DC current:
LED forward Voltage:
LED reverse voltage:
LED light intensity:
LED wave length:
20 mΩ max.
500 MΩ minimum at 500V DC for 2 minutes max.
1.25 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 min.
20mA typical
1.9 Volts max. @ 2mA (for single colors)
2.6 Volts max. @ 20mA (for Bi-colors)
5 Volts minimum
0.4 to 1.5 mcd @ 2mA (for single colors)
0.5 mcd min. @ 2mA (for Bi-colors)
Yellow: 587± 7 nm measured @ 20mA
Green: 565± 6 nm measured @ 20mA
Red:
625± 5 nm measured @ 20mA
Related Products
RJE1A
Mechanical Characteristics
Mating connector insertion force:
Mating connector pull retention force:
Durability:
Operating temperature:
Recommended soldering temperature:
5.0 lbs. Maximum.
20 lbs Minimum.
750 mating & unmating cycles
-55° C to +85° C
IR reflow peaked at 260° C for 5 to 8 seconds.
Note: IR reflow is not recommended for connectors with LEDs.

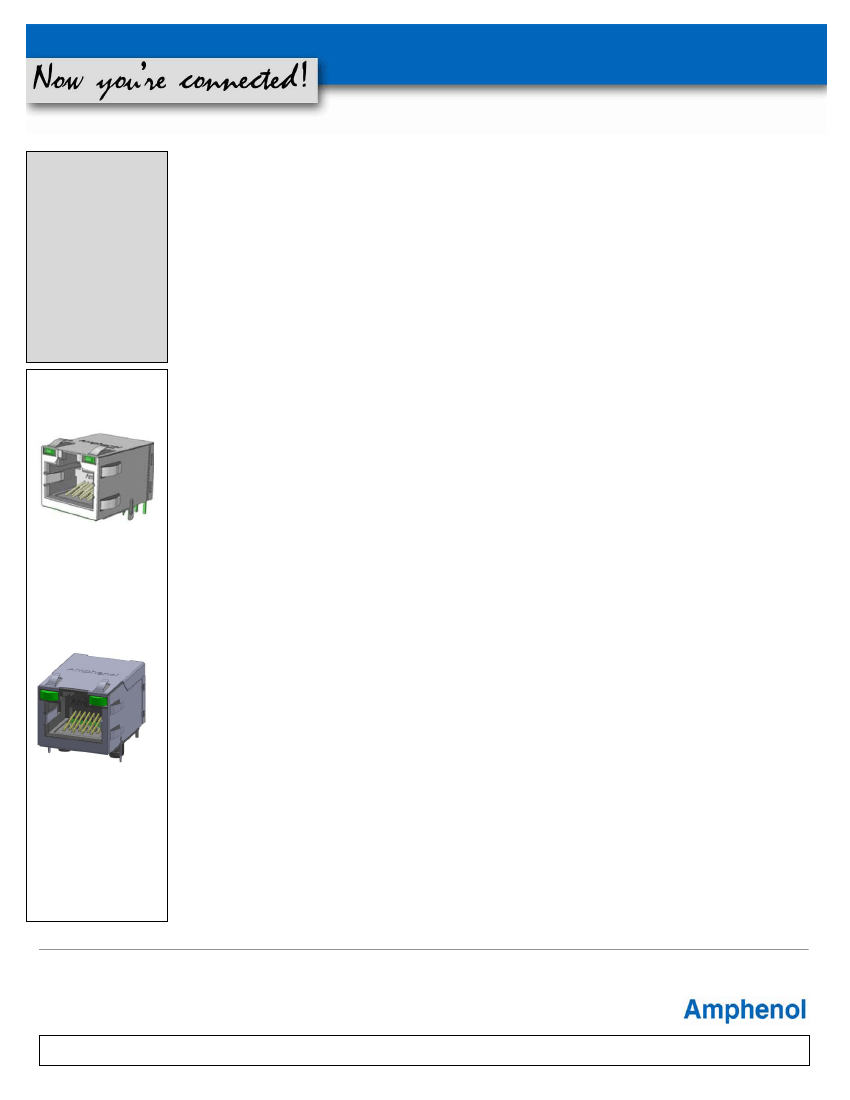

P/N RJE1A‐188‐5XX1 SHOWN
