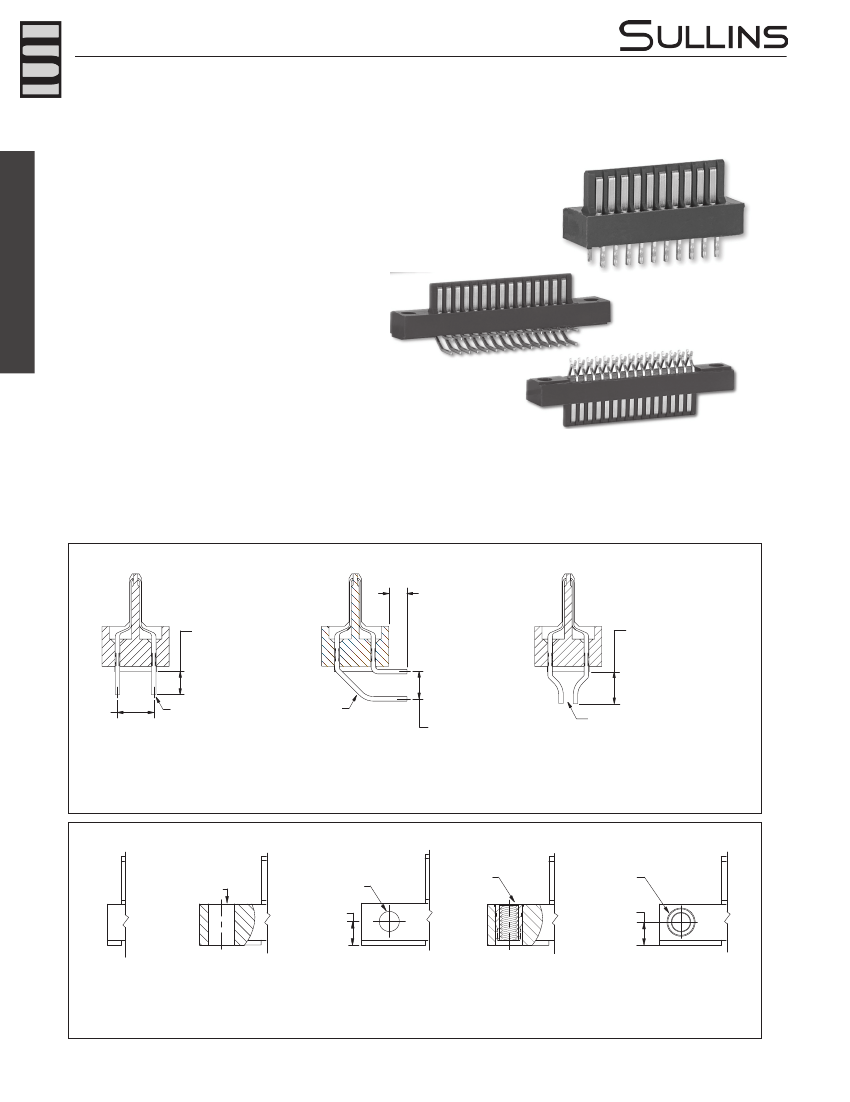

Male Card Edge
.100” [2.54 mm] Contact Centers, .540” [13.72 mm] Insulator Height,
Male Card Edge, Dip Solder/Right Angle/Card Extender
SPECIFICATIONS
•
•
•
•
•
•
•
Compatible with .431” [10.95 mm] or .610” [15.49 mm] Insulator Height Card Edges
Mates in place of .062” [1.57 mm] PC board
PBT, PA9T or PPS insulator
3 Amps current rating for one contact energized
30 milli Ohms maximum at rated current
Consult Factory for other Contact Centers
UL Flammability Rating: 94V-0
Sullins Male Card Edge
Operating/Processing Temperature
E = PBT & Phosphor Bronze
Operating Temperature: -65°C to + 125°C
Processing Temperature: Wave only
R = PPS & Phosphor Bronze
Operating Temperature: -65°C to + 150°C
Processing Temperature: 260°C Max. for 20 sec.
G = PA9T & Phosphor Bronze
Operating Temperature: -65°C to + 150°C
Processing Temperature: 260°C Max. for 20 sec.
A = PPS & Beryllium Copper
Operating Temperature: -65°C to + 200°C
Processing Temperature: 260°C Max. for 20 sec.
Overall Gold Plating Only (Plating code 'S' or 'M')
TERMINATION TYPE
MA
= .100” [2.54]
MV
= .130” [3.30]
MB
= .180” [4.57]
MD
= .250” [6.35]
MJ
= .500” [12.70]
MK
= .560” [14.22]
MW
= .125” [3.18]
MS
= .190” [4.83]
MM
= .560” [14.22]
MR
= .175” [4.45]
MN
= .545” [13.84]
.200”
[5.08]
FITS Ø
.043” [1.09]
FITS Ø
.043” [1.09]
.150” [3.81]
.200” [5.08] (-S189 Modification)
ACCOMMODATES .062” [1.57] PCB
DIP SOLDER (MW, MS)
WIRE WRAP (MM)
RIGHT ANGLE
(MA, MV, MB, MD, MJ, MK)
CARD EXTENDER
(MR, MN)
MOUNTING STYLE
4X Ø.125” [3.18]
.125” [3.18]
2X #4-40
2X #4-40
.125” [3.18]
2X Ø.125” [3.18]
NO
MOUNTING
(N)
FLUSH with
CLEARANCE HOLES
(D)
FLUSH, SIDE MOUNTING
with CLEARANCE HOLES
(Z)
FLUSH with
THREADED INSERT
(T)
FLUSH, with SIDE MOUNTED
THREADED INSERT
(V)
42
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
Male Card Edge
.100” [2.54 mm] Contact Centers, .540” [13.72 mm] Insulator Height,
Male Card Edge, Dip Solder/Right Angle/Card Extender
PART NUMBER OPTIONS
MATERIALS (INSULATOR/CONTACT)
E =
PBT/Phosphor Bronze
G
=
PA9T/Phosphor Bronze
R
=
PPS/ Phosphor Bronze
A =
PPS/Beryllium Copper (Only 'S' or 'M' plating code)
Operating & Processing Temperature: See Opposite Page
CONTACT FINISH - RoHS Compliant
All platings are Lead Free and have .000050” Nickel underplate
E B C 25 M MW D - Sxxx
MODIFICATIONS
(Consult Factory)
OMIT FOR STANDARD
-S189
=
.200” [5.08] Row Spacing (Right Angle Only)
MOUNTING STYLE
N =
No Mounting
D =
.250” Ears, Flush Mounting, .125” [3.18] Diameter
Z =
.250” Ears, Flush, Side Mounting
T
=
.250” Ears, Flush Mounting, #4-40 Threaded Insert
V
=
Flush, Side Mounting, #4-40 Threaded Insert
TERMINATION TYPE
MW, MS
=
Dip Solder
MM =
Wire Wrap
MA, MV, MB
=
Right Angle
MD, MJ, MK
=
Right Angle
MR, MN
=
Card Extender
M = Male Card Edge
NUMBER OF CONTACT POSITIONS
04 thru 60 Positions
(Contact factory for positions not shown.)
Sullins Male Card Edge
Contact Surface
B
=
.000010” Gold
C
=
.000030” Gold
Y
=
.000030” Gold
Contact Surface
S
=
.000010” Gold
M =
.000030” Gold
CONTACT CENTERS
C
=
.100” [2.54 mm]
Termination
.000100” Pure Tin, Matte
.000100” Pure Tin, Matte
.000005” Gold
Overall Plating
.000010” Gold
.000010” Gold
DIMENSIONS
Dimensions in [ ] are in millimeters, all others are in inches.
(Dimension 'E'
for Mounting Style 'N' Only)
E
(Dimensions 'D' & 'C'
for Mounting Style 'D, Z, T, V' Only)
D
C
B
A
.370
[9.40]
REFER TO MOUNTING STYLE
.540 [13.72]
.250 [6.35]
.030[ 0.76]
.100 [2.54]
.025 [0.64] SQ.
REFER TO TERMINATION TYPE
POSITIONS/
CONTACTS
04/08
05/10
06/12
07/14
08/16
10/20
12/24
13/26
15/30
16/32
17/34
18/36
19/38
20/40
22/44
23/46*
24/48
25/50
26/52
28/56
30/60
31/62
32/64
34/68
35/70
36/72
40/80
43/86*
44/88*
49/98*
50/100
52/104*
55/110*
56/112*
57/114*
58/116*
59/118*
60/120
INCHES
A±.008
0.300
0.400
0.500
0.600
0.700
0.900
1.100
1.200
1.400
1.500
1.600
1.700
1.800
1.900
2.100
2.200
2.300
2.400
2.500
2.700
2.900
3.000
3.100
3.300
3.400
3.500
3.900
4.200
4.300
4.800
4.900
5.100
5.400
5.500
5.600
5.700
5.800
5.900
MILLIMETERS
D±.020
1.236
1.336
1.436
1.536
1.636
1.836
2.036
2.136
2.336
2.436
2.536
2.636
2.736
2.836
3.036
3.136
3.236
3.336
3.436
3.636
3.836
3.936
4.036
4.236
4.336
4.436
4.836
5.136
5.236
5.736
5.836
6.036
6.336
B±.008
0.486
0.586
0.686
0.786
0.886
1.086
1.286
1.386
1.586
1.686
1.786
1.886
1.986
2.086
2.286
2.386
2.486
2.586
2.686
2.886
3.086
3.186
3.286
3.486
3.586
3.686
4.086
4.386
4.486
4.986
5.086
5.286
5.586
5.686
5.786
5.886
5.986
6.086
C±.010
0.975
1.075
1.175
1.275
1.375
1.575
1.775
1.875
2.075
2.175
2.275
2.375
2.475
2.575
2.775
2.875
2.975
3.075
3.175
3.375
3.575
3.675
3.775
3.975
4.075
4.175
4.575
4.875
4.975
5.475
5.575
5.775
6.075
E±.020 ‘N’
Mtg. Only
0.656
0.756
0.856
0.956
1.056
1.256
1.456
1.556
1.756
1.856
1.956
2.056
2.156
2.256
2.456
2.556
2.656
2.756
2.856
3.056
3.256
3.356
3.456
3.656
3.756
3.856
4.256
4.556
4.656
5.156
5.256
5.456
5.756
5.856
5.956
6.056
6.156
6.256
A±0.20
7.62
10.16
12.70
15.24
17.78
22.86
27.94
30.48
35.56
38.10
40.64
43.18
45.72
48.26
53.34
55.88
58.42
60.96
63.50
68.58
73.66
76.20
78.74
83.82
86.36
88.90
99.06
106.68
109.22
121.92
124.46
129.54
137.16
139.70
142.24
144.78
147.32
149.86
B±0.20
12.34
14.88
17.42
19.96
22.50
27.58
32.66
35.20
40.28
42.82
45.36
47.90
50.44
52.98
58.06
60.60
63.14
65.68
68.22
73.30
78.38
80.92
83.46
88.54
91.08
93.62
103.78
111.40
113.94
126.64
129.18
134.26
141.88
144.42
146.96
149.50
152.04
154.58
C±0.25
24.77
27.31
29.85
32.39
34.93
40.01
45.09
47.63
52.71
55.25
57.79
60.33
62.87
65.41
70.49
73.03
75.57
78.11
80.65
85.73
90.81
93.35
95.89
100.97
103.51
106.05
116.21
123.83
126.37
139.07
141.61
146.69
154.31
D±0.51
31.39
33.93
36.47
39.01
41.55
46.63
51.71
54.25
59.33
61.87
64.41
66.95
69.49
72.03
77.11
79.65
82.19
84.73
87.27
92.35
97.43
99.97
102.51
107.59
110.13
112.67
122.83
130.45
132.99
145.69
148.23
153.31
160.93
E±0.51 ‘N’
Mtg. Only
16.66
19.20
21.74
24.28
26.82
31.90
36.98
39.52
44.60
47.14
49.68
52.22
54.76
57.30
62.38
64.92
67.46
70.00
72.54
77.62
82.70
85.24
87.78
92.86
95.40
97.94
108.10
115.72
118.26
130.96
133.50
138.58
146.20
148.74
151.28
153.82
156.36
158.90
‘N’ Mounting Only
‘N’ Mounting Only
* Consult factory for availability.
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
43
