Female Card Edge
.100” [2.54 mm] Contact Centers, .610” [15.49 mm] Insulator Height,
[ISA] Dip Solder/Wire Wrap/Right Angle
SPECIFICATIONS
Sullins Female Card Edge
•
•
•
•
•
•
Accommodates .062” ± .008” [1.57 mm ± 0.20 mm] PC board
PBT or PA9T insulator
Molded-in key available
3 Amps current rating for one contact energized
30 milli Ohms maximum at rate current
UL Flammability Rating: 94V-0

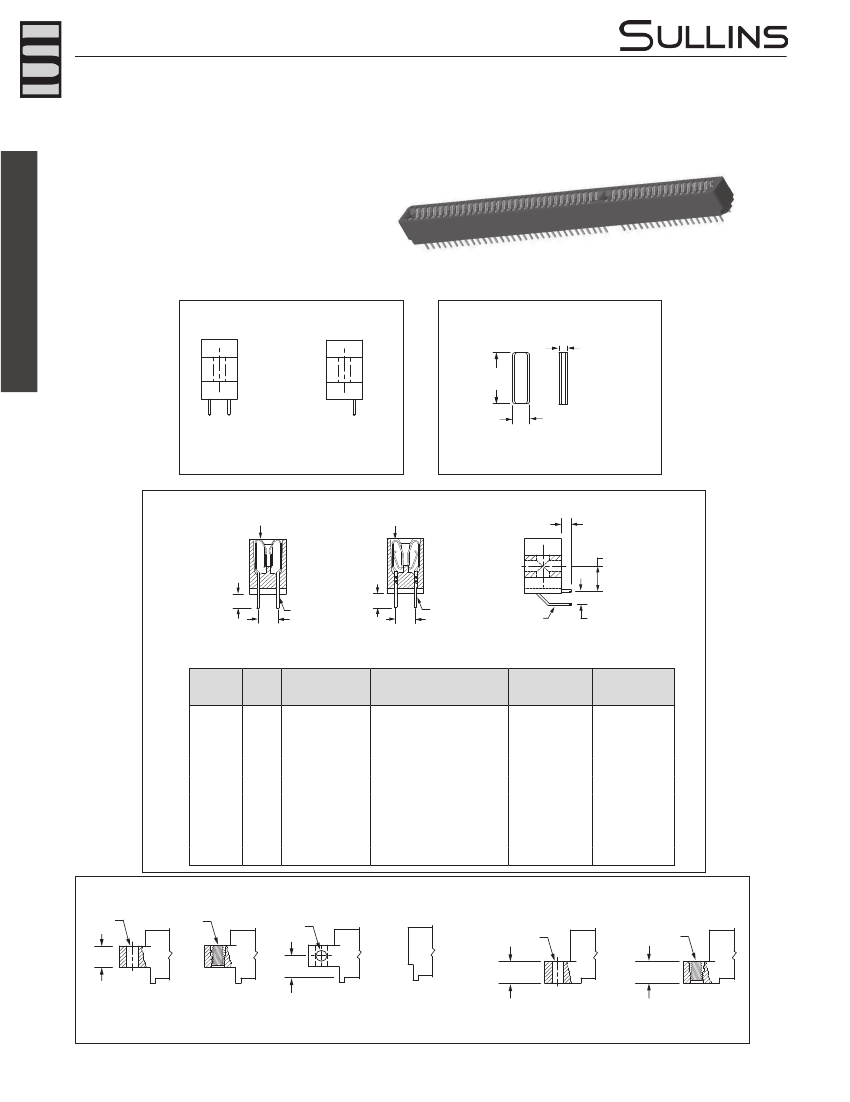

READOUT
POLARIZING KEY
PLC-K1
.038”
[0.97]
.285”
[7.24]
.100” [2.54]
DUAL (D)
HALF LOADED (H)
KEY IN BETWEEN CONTACTS
(ORDER SEPARATELY)
TERMINATION TYPE
HAIRPIN BELLOWS
LOOP BELLOWS
L
.275” [6.98]
L
K
.200” [5.08]
L
K
.200” [5.08]
K
.150” [3.81]
HAIRPIN BELLOWS
(CS,CM,CW,CT)
LOOP BELLOWS
(TK,RS,RM)
RIGHT ANGLE, DIP SOLDER
(CA,CB,CC,TA,TB,TM)
-S605 MODIFICATION
HAIRPIN
BELLOWS
LOOP
TK, CK
RS
TERMINATION
TYPE
DIP SOLDER
DIP SOLDER
WIRE WRAP
RIGHT ANGLE
RIGHT ANGLE
RIGHT ANGLE
DIP SOLDER
DIP SOLDER
DIP SOLDER
POST CROSS SECTION
K
.025ʺ [0.64] ROUND
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.015ʺ X .025ʺ [0.38 X 0.64]
.015ʺ X .025ʺ [0.38 X 0.64]
.025ʺ [0.64] SQUARE
POST LENGTH
L
.025”ʺ [0.64]
.190ʺ [4.83]
.190ʺ [4.83]
.560ʺ [14.20]
.100ʺ [2.54]
.180ʺ [4.57]
.250ʺ [6.35]
.125ʺ [3.18]
.170ʺ [4.32]
.160ʺ [4.06]
FITS MIN.
HOLE SIZE
.033ʺ [0.84]
.040ʺ [1.02]
.040ʺ [1.02]
.043ʺ [1.09]
.043ʺ [1.09]
.043ʺ [1.09]
.035ʺ [0.89]
.035ʺ [0.89]
.040ʺ [1.02]
CM
CA
CB
CC
CW
CT
CS
RM
TA
TB
TM
MOUNTING STYLE
Ø.125"
[3.18]
.250"
[6.35]
#4-40
Ø.125”
[3.18]
.245”
[6.22]
Ø.125” [3.18]
D = .250” [6.35]
W = .430” [10.92]
#4-40
T = .250” [6.35]
X = .430” [10.92]
CLEARANCE
HOLE (H)
THREADED
INSERT(I)
SIDE MOUNTING
(S)
NO MOUNTING
EARS (N)
FLUSH MOUNTING
(D, W)
FLUSH MOUNTING WITH
THREADED INSERT(T, X)
56
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
Female Card Edge
.100” [2.54 mm] Contact Centers, .610” [15.49 mm] Insulator Height,
[ISA] Dip Solder/Wire Wrap/Right Angle
PART NUMBER OPTIONS
MATERIALS (INSULATOR/CONTACT)
E =
PBT/Phosphor Bronze (Standard)
G
=
PA9T/Phosphor Bronze
H =
PBT/Beryllium Copper
J =
PA9T/Beryllium Copper
(Consult factory for other materials.)
Refer to Page 7 for Operating/Processing Temperatures
CONTACT FINISH - RoHS Compliant
All platings are Lead Free and have .000050” Nickel underplate
E B C 49 D CW N - S420
MODIFICATION CODE
(Consult Factory)
ISA WITH RETENTION FEATURE
-S524
=
18 Positions
-S524
=
31 Positions
-S518
=
49 Positions (31/18)
ISA WITHOUT RETENTION FEATURE
-S371
=
18 Positions
-S371
=
31 Positions
-S420
=
49 Positions (31/18) Dip Solder or Wire Wrap
-S605
=
49 Positions (31/18) Right Angle**
MOUNTING STYLE (Opposite Page)
H =
Clearance Holes
I
=
Threaded Inserts
S
=
Side Mounting
N =
No Mounting
D, W
=
Flush Mounting
T, X
=
Flush Mounting With Threaded Inserts
TERMINATION TYPE (Opposite Page)
Hairpin Bellows *
CS
=
.025” [0.64 mm] Square Dip Solder
CM
=
.025” [0.64 mm] Square Wire Wrap
CA, CB, CC
=
.025” [0.64 mm] Square Right Angle
CW, CT
=
.015” X .025” [0.38 mm X 0.64 mm] Dip Solder
Loop Bellows
RS
=
.025” [0.64 mm] Square Dip Solder
TK
=
.025” [0.64 mm] Round Dip Solder
RM
=
.025” [0.64 mm] Square Wire Wrap
TA, TB, TM
=
.025” [0.64 mm] Square Right Angle
* Available in B or C Plating and Phosphor Bronze only
Consult Factory for Cantilever Terminations
Sullins Female Card Edge
Contact Surface
.000010” Gold
.000030” Gold
.000010” Gold
.000030” Gold
Contact Surface
S
=
.000010” Gold
M =
.000030” Gold
E =
.000100” Pure Tin, Matte
B
C
G
Y
=
=
=
=
CONTACT CENTERS
C
=
.100” [2.54 mm]
Termination
.000100” Pure Tin, Matte
.000100” Pure Tin, Matte
.000005” Gold
.000005” Gold
Overall Plating
.000010” Gold
.000010” Gold
.000100” Pure Tin, Matte
NUMBER OF CONTACT POSITIONS
18, 31 or 49 (31/18)
READOUT (Opposite page)
D =
Dual
H =
Half Loaded

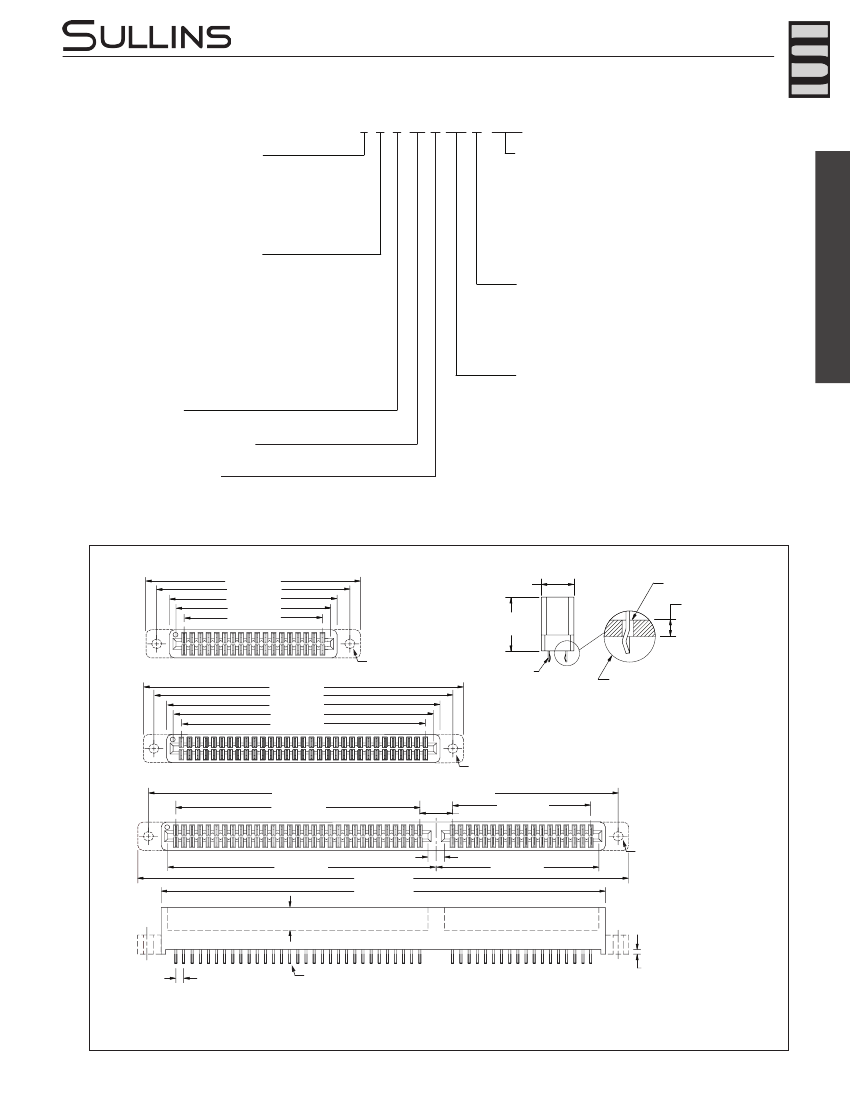

DIMENSIONS
Dimensions in [ ] are in millimeters, all others are in inches.
2.635 [66.93]
2.375 [60.32]
2.060 [52.32]
1.900 [48.26]
1.700 [43.18]
.370 [9.40]
Ø .043 [1.09]
.062[ 1.57] PCB
.610
[15.49]
MOUNTING STYLE,
OPTIONAL
EBC18DCWN-S371
3.935 [99.95]
3.675 [93.34]
3.360 [85.34]
3.200 [81.28]
3.000 [76.20]
REFER TO
TERMINATION TYPE
(Opposite Page)
RETENTION FEATURE ON MIDDLE
TERMINALS FOR PART NUMBERS
EBC18DCWN-S524
EBC31DCWN-S524
EBC49DCWN-S518
EBC31DCWN-S371
MOUNTING STYLE,
OPTIONAL
TOP VIEW: 5.775 [146.68] / SIDE VIEW 5.750 [146.05]**
1.700 [43.18]
3.000 [76.20]
.400 [10.16]
3.300 [83.82]
6.040 [153.42]
5.460 [138.68]
.297 [7.54] INSERTION DEPTH
.200 [5.08]
2.000 [50.80]
MOUNTING STYLE,
OPTIONAL
.100 [2.54] TYP.
REFER TO TERMINATION TYPE
.060 [1.52]
31 POSITIONS
18 POSITIONS
EBC49DCWN-S420 (DIP SOLDER OR WIRE WRAP)
EBC49DCAN-S605 (RIGHT ANGLE)
** 5.750 [146.05] ONLY APPLIES IF P/N ENDS WITH -S605 AND HAS SIDE MOUNTING (MTG CODE 'S')
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
57
