5446891 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5446891

5446891: DescriptionTERM BLOCK HDR 21POS 5.08MM; CategoryThe connector; File Size69KB，4 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

5446891 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5446891	-	-	View	Buy Now

5446891 Overview

TERM BLOCK HDR 21POS 5.08MM

5446891 Parametric

Parameter Name	Attribute value
type	Connector, male pins, shrouded (4 sides)
Number of pins	21
Number of pins per level	21
Number of levels	1
spacing	0.200"（5.08mm）
Needle seat direction	90°, right angle
Plug entrance	-
Terminal type	welding
Installation type	Through hole
Current - IEC	12A
Voltage - IEC	400V
Wire Gauge or Range - AWG	-
Wire gauge or range - mm²	-
color	green
Operating temperature	-
Contact mating surface treatment	-
characteristic	-
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	-
Contact material	-
Shell material	Polyamide (PA), nylon
Contact tail length	0.138"（3.50mm）
Insulation height	0.339"（8.61mm）

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/5446891

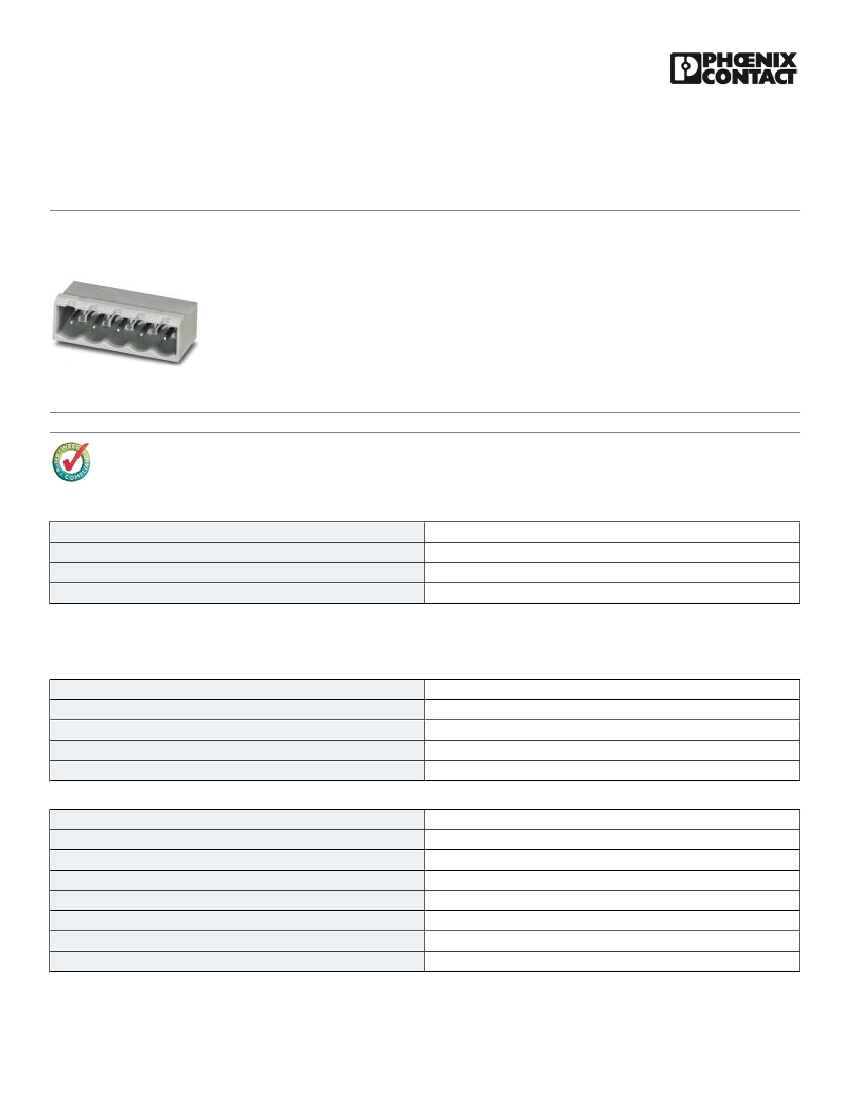

Printed-circuit board connector - BCH-508HS-21 GN - 5446891

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 21, Pitch: 5.08 mm, Color:

pastel green, Contact surface: Tin, Mounting: Soldering

The figure shows a 5-pos. version of

the product in gray

Key commercial data

Packing unit

Minimum order quantity

Custom tariff number

Country of origin

1 pc

100 pc

85366990

China

Technical data

Dimensions

Length

Pitch

Dimension a

Pin dimensions

Hole diameter

12 mm

5.08 mm

101.6 mm

1 x 1 mm

1.4 mm

General

Range of articles

Insulating material group

Rated surge voltage (III/3)

Rated surge voltage (III/2)

Rated surge voltage (II/2)

Rated voltage (III/3)

Rated voltage (III/2)

Rated voltage (II/2)

BCH-HS

4 kV

250 V

320 V

400 V

11/03/2014 Page 1 / 4
