LBK376-L1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > photoelectric> LBK376-L1

LBK376-L1: DescriptionVisible LED, Clear; Categoryphotoelectric; File Size83KB，9 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

LBK376-L1 Overview

Visible LED, Clear

LBK376-L1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
Reach Compliance Code	unknown
Is Samacsys	N
color@wavelength	Blue
Maximum forward current	0.02 A
Maximum forward voltage	4.2 V
JESD-609 code	e0
Lens type	CLEAR
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
total height	3.5 mm
peak wavelength	428 nm
Maximum reverse voltage	5 V
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

BLUE LINE

Hyper ARGUS

LED

Hyper-Bright, 3 mm (T1) LED, Non Diffused

LB K376

Besondere Merkmale

•

Gehäusetyp:

nicht eingefärbtes, klares 3 mm

(T1) Gehäuse mit spezieller Linse

•

Besonderheit des Bauteils:

mit Einsatz eines

äußeren Reflektors zur Hinterleuchtung von

Leuchtfeldern und LCD-Anzeigen; Lötspieße

mit Aufsetzebene

•

Wellenlänge:

465 nm

•

Abstrahlwinkel:

angepaßt an Einsatz mit

äußerem Reflektor, siehe Diagramm

•

Technologie:

GaN

•

Gruppierungsparameter:

Lichtstrom

•

Lötmethode:

Wellenlöten (TTW)

•

Verpackung:

Schüttgut, gegurtet lieferbar

•

ESD-Festigkeit:

ESD-sicher bis 2 kV nach

MIL STD 883 D, Method 3015.7

Anwendungen

• optischer Indikator

• Hinterleuchtung (LCD, Schalter, Tasten,

Displays, Werbebeleuchtung,

Allgemeinbeleuchtung)

• Innenbeleuchtung im Automobilbereich

(z.B. Instrumentenbeleuchtung, u.ä.)

• Einkopplung in Lichtleiter

Features

•

package:

colorless, clear 3 mm (T1) package

with specially shaped lens

•

feature of the device:

for backlighting and

LCDs with use of a reflector; solder leads with

stand-off

•

wavelength:

465 nm

•

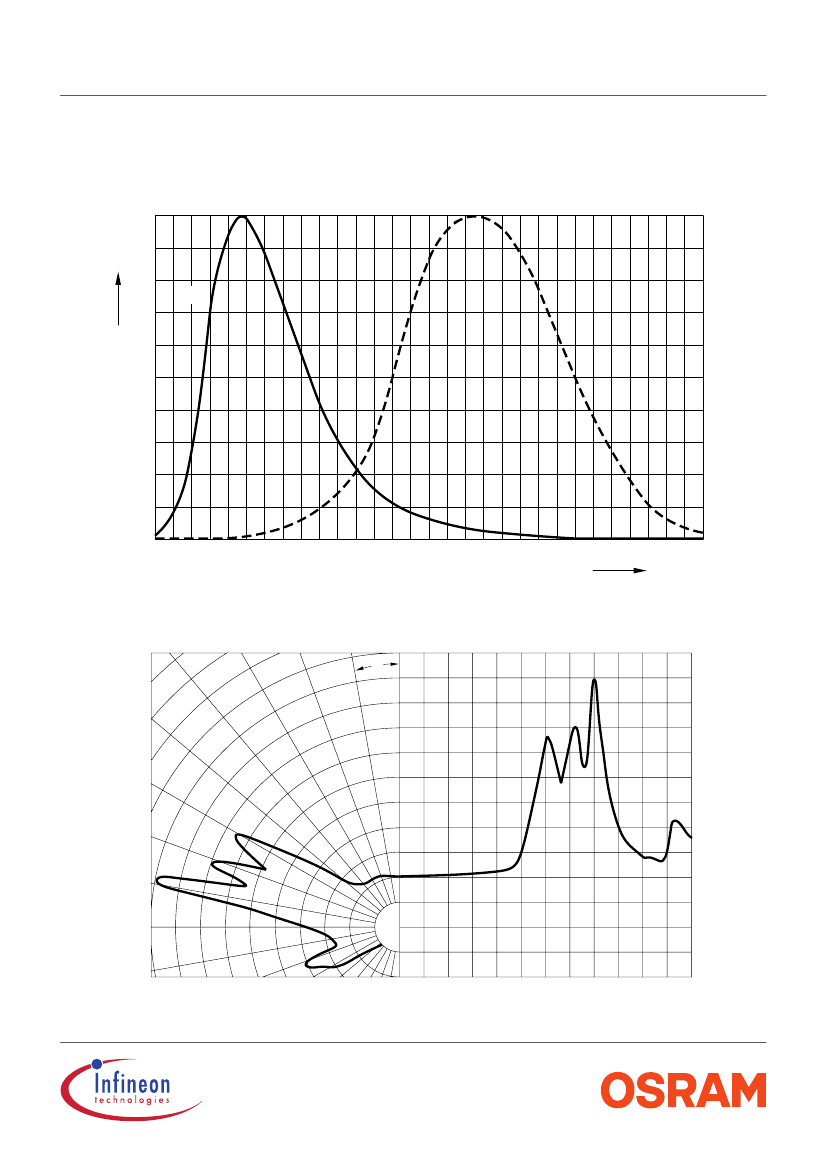

viewing angle:

matched to use with external

reflector, see diagram

•

technology:

GaN

•

grouping parameter:

luminous flux

•

soldering methods:

TTW soldering

•

packing:

bulk, available taped on reel

•

ESD-withstand voltage:

up to 2 kV acc. to

MIL STD 883 D, Method 3015.7

Applications

• optical indicators

• backlighting (LCD, switches, keys, displays,

illuminated advertising, general lighting)

• interior automotive lighting (e.g. dashboard

backlighting, etc.)

• coupling into light guides

2000-03-01

OPTO SEMICONDUCTORS

LBK376-L1 Related Products

	LBK376-L1	LBK376-N1	LBK376-L2	LBK376-M2	LBK376-M1
Description	Visible LED, Clear	Visible LED, Clear	Visible LED, Clear	Visible LED, Clear	Visible LED, Clear
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Infineon	Infineon	Infineon	Infineon	Infineon
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
color@wavelength	Blue	Blue	Blue	Blue	Blue
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Maximum forward voltage	4.2 V	4.2 V	4.2 V	4.2 V	4.2 V
JESD-609 code	e0	e0	e0	e0	e0
Lens type	CLEAR	CLEAR	CLEAR	CLEAR	CLEAR
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
total height	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm
peak wavelength	428 nm	428 nm	428 nm	428 nm	428 nm
Maximum reverse voltage	5 V	5 V	5 V	5 V	5 V
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
