309-13816 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 309-13816

309-13816: DescriptionTF21-38.0/19.0 2-1 HEAT SHRINK; CategoryWire/cable; File Size787KB，3 Pages; ManufacturerHellermannTyton; Environmental Compliance

Download Datasheet Parametric Compare View All

309-13816 Overview

TF21-38.0/19.0 2-1 HEAT SHRINK

309-13816 Parametric

Parameter Name	Attribute value
type	sleeve, elastic
Shrinkage	2 to 1
length	196.8'（60.0m）
Inner diameter (factory)	1.500"（38.10mm）
Inner diameter - after recovery	0.752"（19.10mm）
Wall thickness after restoration	0.040"（1.02mm）
Material	Polyolefin (PO), radiation treated
characteristic	Chemical resistant, flame retardant, oil resistant, solvent resistant
color	blue
Operating temperature	-55°C ~ 135°C
Shrinkage temperature	90°C

Preview

Download Datasheet

View All

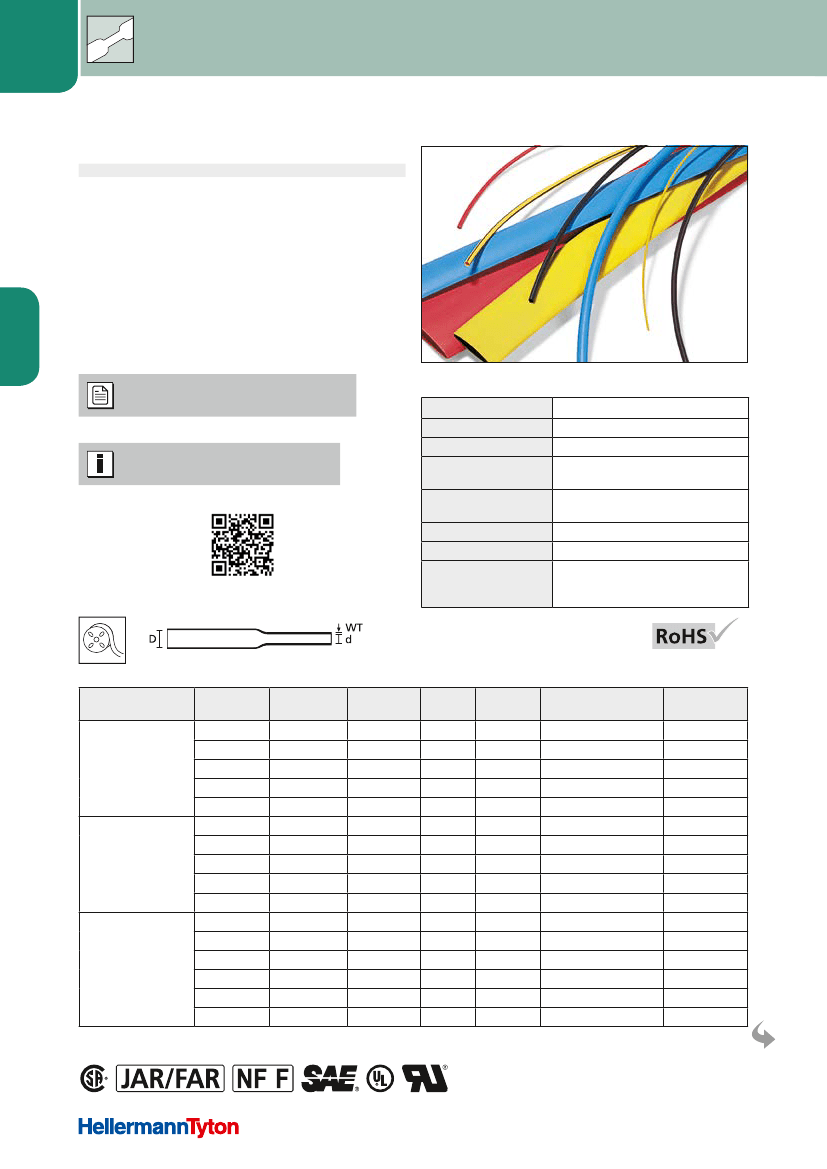

2.1

TF21

Insulation

Heat Shrinkable Tubing

Heat Shrinkable Tubing 2:1 flexible and coloured

Due to it's versatility TF21 is suitable for a wide range of applications like

electrical insulations, mechanical protection and marking.

Features and Benefits

• Thin walled, flexible polyolefin tubing

• Fast shrinking and low shrink temperature

• Meets and exceeds lots of industrial standards

• Big variety of different colours and sizes

• Printable

• Flame retarded and UL224 VW1 listed

TF21 – available in a wide range of colours and sizes.

Detailed Information about

Heatguns please refer to page 529.

MATERIAL

Shrink Ratio

Operating Temperature

Minimum Shrink

Temperature

Longitudinal change

after shrinkage

Dielectric Strength

Flammability

Polyolefin, cross-linked (PO-X)

2:1

-55 °C to +135 °C

+90 °C

+/-5 %

37 kV/mm

ASTM D876

CSA, JAR/FAR 25.853, NF F 00-608,

SAE - AMS - DTL-23053/5 Class 1,

UL224 125 °C 600V VW-1

Cut lengths available on request.

Please contact us!

One Step to the Web!

Specifications

Heat Shrinkable Tubing 2:1

TYPE

Supplied

Ø D min.

1.2

Size

(imperial)

3/64 "

1/16 "

3/32 "

Recov.

Ø d max.

0.6

0.8

1.2

Wall

(WT)

0.41

0.43

0.51

Reel

Length

100 m

300 m

100 m

300 m

100 m

300 m

Colour

Blue (BU)

Red (RD)

White (WH)

Yellow (YE)

Black (BK)

Blue (BU)

Red (RD)

White (WH)

Yellow (YE)

Black (BK)

Blue (BU)

Green-Yellow (GNYE)

Red (RD)

White (WH)

Yellow (YE)

Black (BK)

Article-No.

309-20126

309-20122

309-20129

309-20124

309-10120

309-20166

309-20162

309-20169

309-20164

309-10160

309-20246

309-40247

309-20242

309-20244

309-10240

Date of issue: October 2015

TF21-1.2/0.6

1.2

1.6

TF21-1.6/0.8

1.6

2.4

TF21-2.4/1.2

309-20249

All dimensions in mm. Subject to technical changes.

Minimum Order Quantity (MOQ) may differ from package content.

For product specific approvals and specifications please refer to the Appendix.

214

Further information at

www.HellermannTyton.com/insulation

309-13816 Related Products

	309-13816	309-13812
Description	TF21-38.0/19.0 2-1 HEAT SHRINK	TF21-38.0/19.0 2-1 HEAT SHRINK
type	sleeve, elastic	sleeve, elastic
Shrinkage	2 to 1	2 to 1
length	196.8'（60.0m）	196.8'（60.0m）
Inner diameter (factory)	1.500"（38.10mm）	1.500"（38.10mm）
Inner diameter - after recovery	0.752"（19.10mm）	0.752"（19.10mm）
Wall thickness after restoration	0.040"（1.02mm）	0.040"（1.02mm）
Material	Polyolefin (PO), radiation treated	Polyolefin (PO), radiation treated
characteristic	Chemical resistant, flame retardant, oil resistant, solvent resistant	Chemical resistant, flame retardant, oil resistant, solvent resistant
color	blue	red
Operating temperature	-55°C ~ 135°C	-55°C ~ 135°C
Shrinkage temperature	90°C	90°C
