EVAL BOARD HMC577LC4B

115223-HMC577LC4B Parametric

Parameter Name	Attribute value
type	Multiplier
frequency	27GHz ~ 31GHz
Supporting products/related products	HMC577LC4B
What's included	plate

Preview

Download Datasheet

View All

HMC577LC4B

v03.0514

SMT GaAs MMIC x2 ACTIVE FREQUENCY

MULTIPLIER, 27 - 31 GHz OUTPUT

Typical Applications

The HMC577LC4B is suitable for:

Features

Very High Output Power: +20 dBm

Low Input Power Drive: -2 to +6 dBm

Very High Fo, 3Fo Isolation:

>55 dBc @ Fout= 29 GHz

100 KHz SSB Phase Noise: -128 dBc/Hz

Single Supply: +5V @ 213 mA

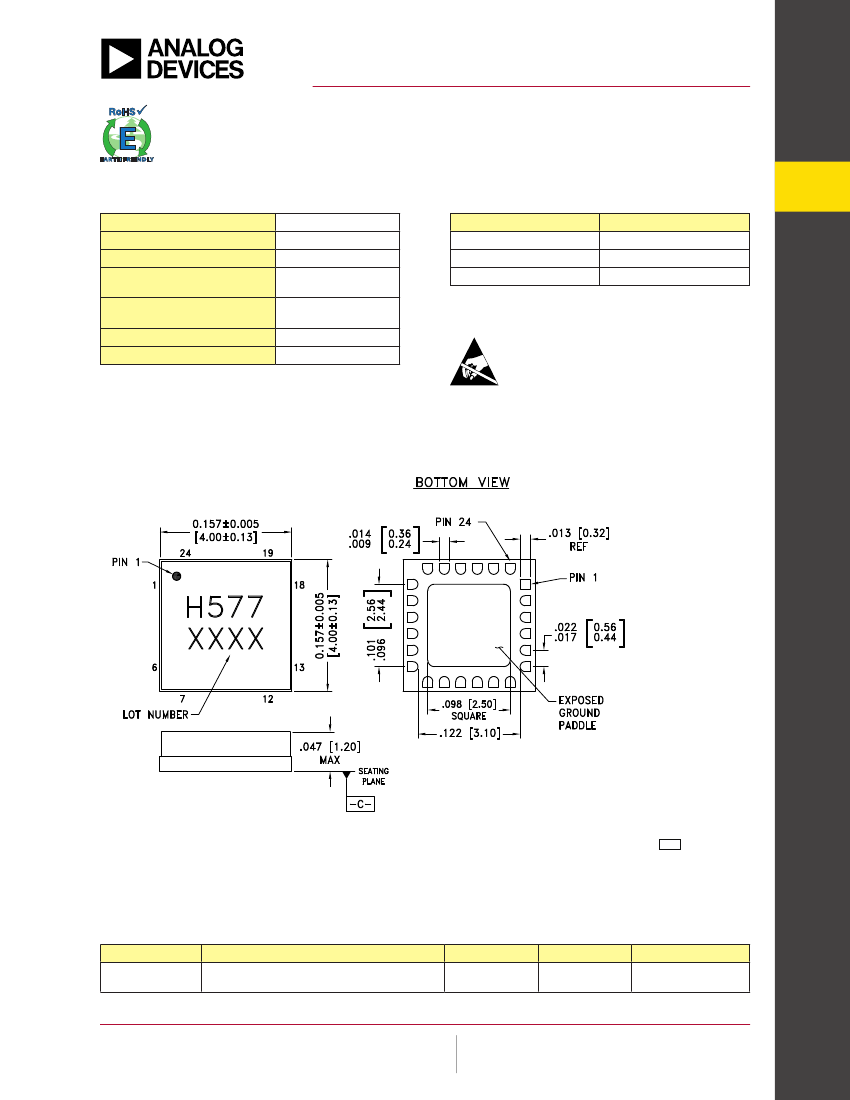

24 Lead 4x4mm QFN Package: 16mm²

FREQ. MULTIPLIERS - ACTIVE - SMT

• Clock Generation Applications:

SONET OC-192 & SDH STM-64

• Point-to-Point & VSAT Radios

• Test Instrumentation

• Military & Space

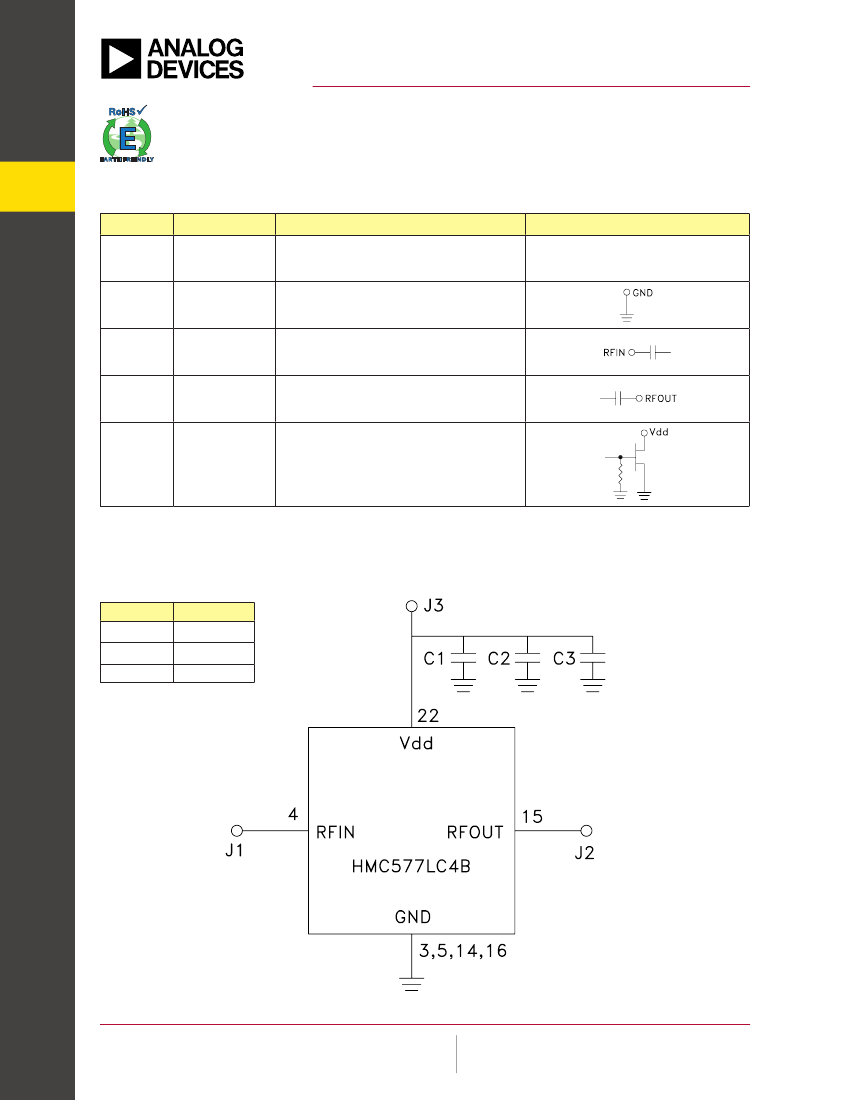

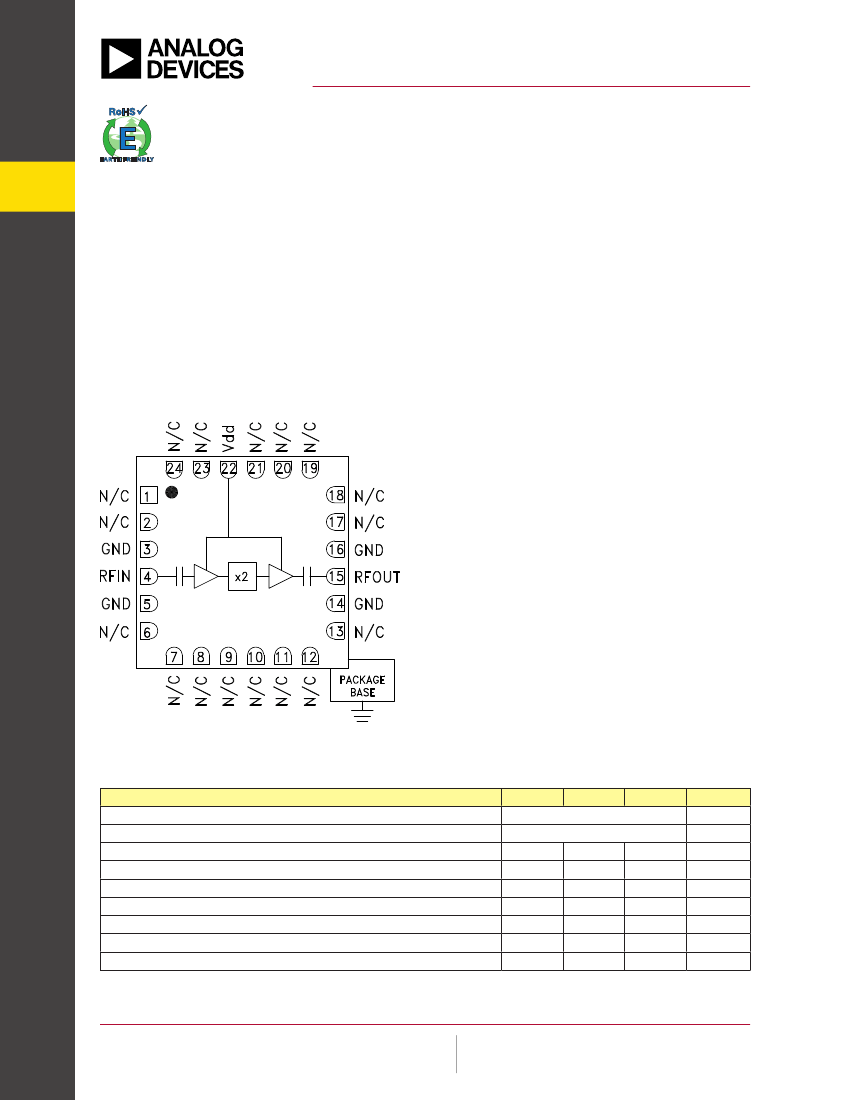

Functional Diagram

General Description

The HMC577LC4B is a x2 active broadband frequ-

ency multiplier utilizing GaAs PHEMT technology in a

leadless RoHS compliant SMT package. When driven

by a +5 dBm signal, the multiplier provides +20 dBm

typical output power from 27 to 31 GHz. The Fo and

3Fo isolations are >55 dBc at 29 GHz. The

HMC577LC4B is ideal for use in LO multiplier chains

for Pt-to-Pt & VSAT Radios yielding reduced parts

count vs. traditional approaches. The low additive

SSB Phase Noise of -128 dBc/Hz at 100 kHz offset

helps maintain good system noise performance. The

RoHS packaged HMC577LC4B eliminates the need

for wire bonding, and allows the use of surface mount

manufacturing techniques.

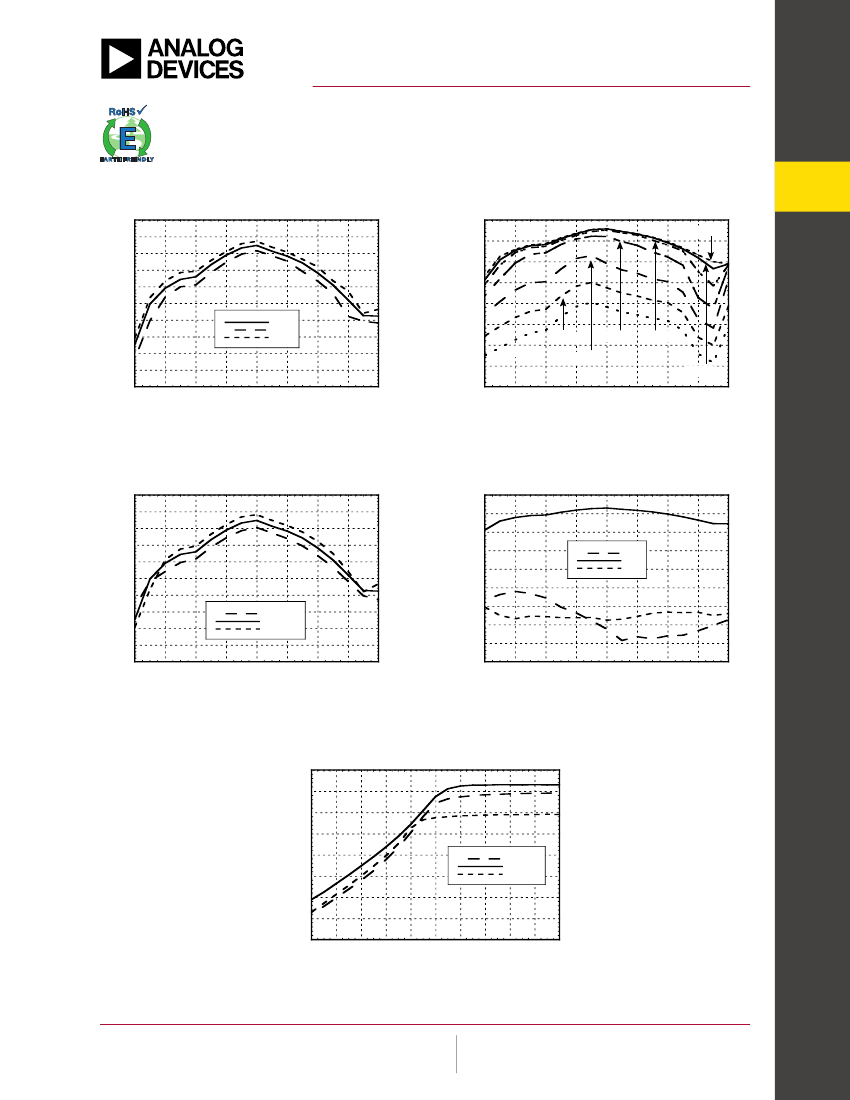

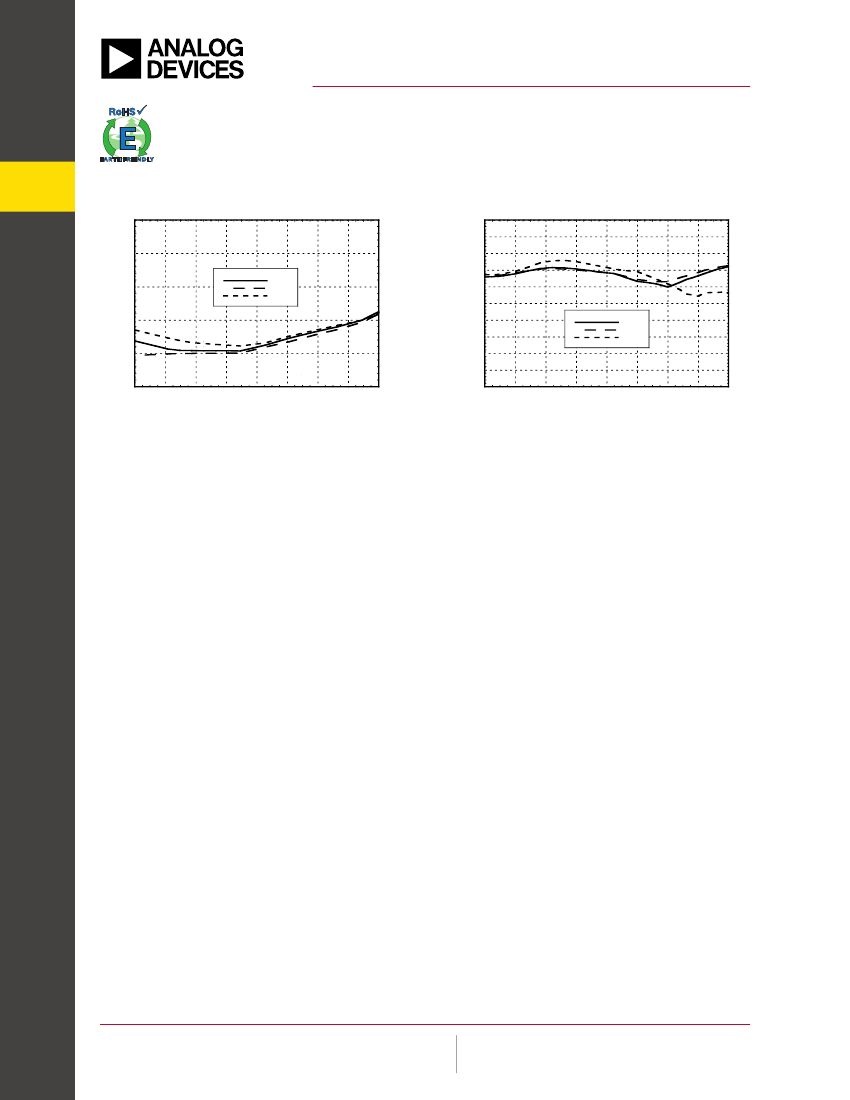

Electrical Specifications,

= +25° C, Vdd = +5V, 5 dBm Drive Level

Parameter

Frequency Range, Input

Frequency Range, Output

Output Power

Fo Isolation (with respect to output level)

3Fo Isolation (with respect to output level)

Input Return Loss

Output Return Loss

SSB Phase Noise (100 kHz Offset)

Supply Current (Idd)

Min.

Typ.

13.5 - 15.5

27 - 31

-128

213

Max.

Units

GHz

dBm

dBc

dBc/Hz

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

For price, delivery, and

Drive,

orders: Analog Devices, Inc.,

For price, delivery and to place orders:

infringements of patents or

Corporation, 2 Elizabeth

to place

Chelmsford, MA 01824

responsibility is assumed by Analog Devices for its use, nor for any

Hittite Microwave

other

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

rights of third parties that may result from its use. Specifications subject to change without notice. No

Phone: 978-250-3343

Fax: 978-250-3373

Phone: 781-329-4700

www.hittite.com

Order On-line at

• Order online at www.analog.com

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Application Support: Phone: 1-800-ANALOG-D

Trademarks and registered trademarks are the property of their respective owners.

Application Support: Phone: 978-250-3343 or apps@hittite.com
