Bus coupler - IL PB BK DI8 DO4/EF-XC-PAC - 2702132
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Inline XC, Bus coupler, PROFIBUS DP, D-SUB-9 female connector, Digital inputs: 8, 24 V DC, Connection
method: 3-conductor, Digital outputs: 4, 24 V DC, 500 mA, Connection method: 3-conductor, Extreme conditions
version, Transmission speed in the local bus 500 kBit/s / 2 MBit/s, Degree of protection IP20, including Inline
connectors and marking fields

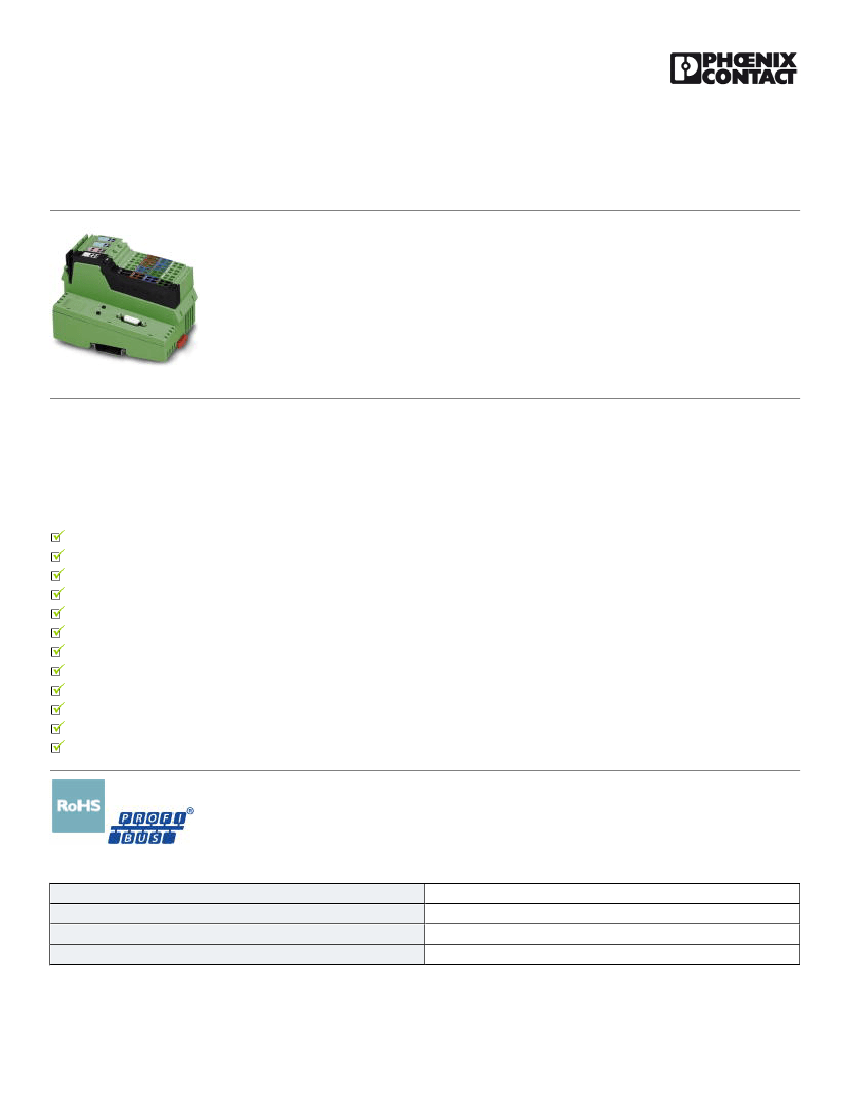

The figure shows the standard item
Product Description
The bus coupler for the PROFIBUS has 4 digital outputs and 8 digital inputs. This package contains all the necessary Inline connectors for connecting
the supply and the I/Os.
For project planning, the relevant GSD (device master data) file can be downloaded in the download area of Phoenixcontact.com.
The Inline terminals can be labeled using pull-out labeling fields. The fields have insert cards that can be labeled individually to suit the application.
Additionally, there is the ZBFM-6... Zack marker strip for labeling the terminal points.
Why buy this product
PROFIBUS connection via 9-pos. D-SUB socket
8 digital inputs, 4 digital outputs onboard
Connection of up to 61 other Inline devices
Connection of a maximum of 16 PCP devices
DP/V1 for class 1 and class 2 masters
PROFIBUS data transmission speed of 9.6 kbps to 12 Mbps
I&M functions
Diagnostic and status indicators
IO-Link call
Can be used under extreme ambient conditions
Extended temperature range of -40°C ... +70°C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Coated PCBs
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
320.000 g
85389091
Germany
09/01/2016 Page 1 / 10
https://www.phoenixcontact.com/us/products/2702132
Bus coupler - IL PB BK DI8 DO4/EF-XC-PAC - 2702132
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
Note on dimensions
80 mm
119.8 mm
71.5 mm
Specfications with connectors
Ambient conditions
Ambient temperature (operation)
-25 °C ... 60 °C
-40 °C ... 70 °C (Extended, see section “Tested successfully: use under
extreme ambient conditions” in the data sheet.)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
-40 °C ... 85 °C
10 % ... 95 % (according to DIN EN 61131-2)
10 % ... 95 % (according to DIN EN 61131-2)
70 kPa ... 106 kPa (up to 3000 m above sea level)
70 kPa ... 106 kPa (up to 3000 m above sea level)
IP20
Connection data
Designation
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
Inline connector
Spring-cage connection
0.08 mm²
1.5 mm²
0.08 mm²
1.5 mm²
28
16
8 mm
General
Mounting type
Net weight
Note on weight specifications
Diagnostics messages
DIN rail
320 g
with connectors
Short-circuit / overload of the digital outputs Yes
Sensor supply failure Yes
Failure of the actuator supply Yes
System limits of the bus coupler
09/01/2016 Page 2 / 10
https://www.phoenixcontact.com/us/products/2702132
Bus coupler - IL PB BK DI8 DO4/EF-XC-PAC - 2702132
Technical data
System limits of the bus coupler
Designation
Amount of process data
System limits of the bus coupler
max. 488 Byte (per station)
max. 244 Byte (Input)
max. 244 Byte (Output)
Number of parameter data
Number of configuration data
Number of supported devices
Number of local bus devices that can be connected
Number of devices with parameter channel
Number of supported branch terminals with remote bus branch
Response time of I/Os
max. 244 Byte (including 14 bytes for the bus coupler, DP/V1, and the local
inputs and outputs)
max. 244 Byte (including 5 bytes for the local inputs and outputs)
max. 63 (per station)
max. 61 (on board I/Os are two devices)
max. 16
0
typ. 4 ms (aligned I/Os; transmission speed: PROFIBUS 1.5 Mbps, local
bus 500 kbps)
Power supply for module electronics
Connection method
Designation
Supply voltage
Supply voltage range
Current consumption
Power dissipation
Communications power U
L
Current consumption
Power consumption
Inline connector
Bus coupler supply U
BC
; Communications power U
L
(7.5 V) and the analog
supply U
ANA
(24 V) are generated from the bus coupler supply.
24 V DC (via Inline connector)
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
max. 0.98 A (from U
BK
)
typ. 1.7 W (entire device)
7.5 V DC
0.8 A
typ. 1.7 W
Inline potentials
Communications power U
L
Power supply at U
L
Main circuit supply U
M
Supply voltage range U
M
Power supply at U
M
Current consumption from U
M
Segment circuit supply U
S
Supply voltage range U
S
Power supply at U
S
Current consumption from U
S
I/O supply voltage U
ANA
Supply voltage range U
ANA
7.5 V DC ±5 %
max. 0.8 A DC
24 V DC
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
max. 8 A DC (Sum of U
M
+ U
S
)
max. 8 A DC
24 V DC
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
max. 8 A DC (Sum of U
M
+ U
S
)
max. 8 A DC
24 V DC
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
09/01/2016 Page 3 / 10
https://www.phoenixcontact.com/us/products/2702132
Bus coupler - IL PB BK DI8 DO4/EF-XC-PAC - 2702132
Technical data
Inline potentials
Power supply at U
ANA
max. 0.5 A DC
Digital inputs
Input name
Description of the input
Connection method
Number of inputs
Typical response time
Protective circuit
Input characteristic curve
Input voltage
Input voltage range "0" signal
Input voltage range "1" signal
Nominal input current at U
IN
Typical input current per channel
Delay at signal change from 0 to 1
Delay at signal change from 1 to 0
Digital inputs
EN 61131-2 type 1
Inline connector
3-conductor
8
approx. 500 µs
Reverse polarity protection Suppressor diode
IEC 61131-2 type 1
24 V DC
-30 V DC ... 5 V DC
15 V DC ... 30 V DC
typ. 3 mA
typ. 3 mA
2.9 ms
2.9 ms
Digital outputs
Output name
Connection method
Number of outputs
Protective circuit
Output voltage
Nominal output voltage
Maximum output current per channel
Maximum output current per module / terminal block
Maximum output current per module
Nominal load, inductive
Nominal load, lamp
Nominal load, ohmic
Digital outputs
Inline connector
3-conductor
4
Short-circuit and overload protection Free running circuit
24 V DC -1 V (At nominal current)
24 V DC
500 mA
2A
2A
12 VA (1.2 H, 48 Ω)
12 W
12 W
Standards and Regulations
Mechanical tests
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Operation: 25g, 11 ms
duration, semi-sinusoidal shock impulse
Connection in acc. with standard
CUL
09/01/2016 Page 4 / 10
https://www.phoenixcontact.com/us/products/2702132
Bus coupler - IL PB BK DI8 DO4/EF-XC-PAC - 2702132
Technical data
Standards and Regulations
Protection class
III, IEC 61140, EN 61140, VDE 0140-1
Drawings
Connection diagram
PWR DO4 DI4 DI4
1 2 3 4
Dimensional drawing
119,8
24 V DC
+
(U
S
)
24 V DC
+
(U
BK
)
IN6
1.1
2.1
1.1
2.1
1.1
2.1
3.1 4.1
+24 V
1.2
2.2
1.2
2.2
1.2
2.2
3.2 4.2
1.3
2.3
1.3
2.3
1.3
2.3
3.3 4.3
OUT3
PROFIBUS - DP
-
24 V DC
(U
M
)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27250203
27250203
27250203
27242604
27242604
27242608
27242604
27242604
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001434
EC001604
EC001604
EC001599
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
43172015
43201404
43172015
43201404
09/01/2016 Page 5 / 10
OUT2
71,5
-
+24 V
IN8
-
1.4
2.4
1.4
2.4
1.4
2.4
3.4 4.4
+
