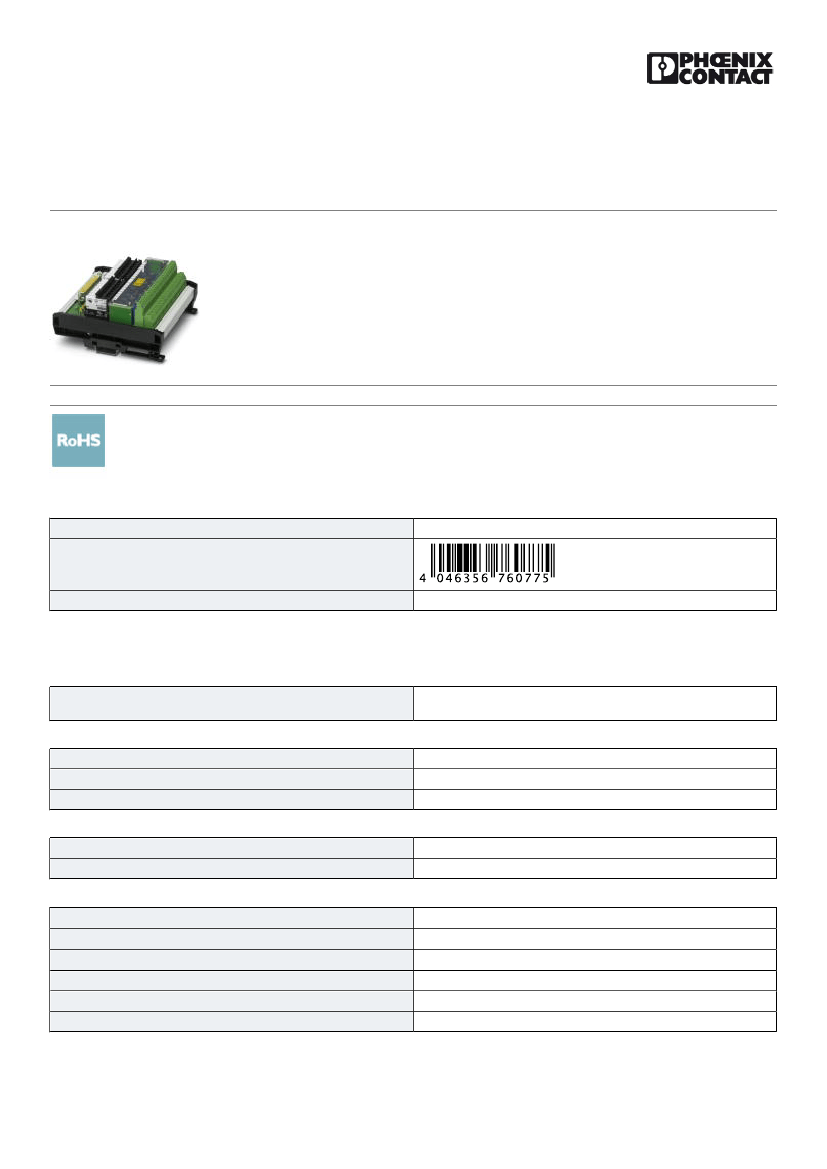

Active module - UM-D37SUB/M/HC3/16DO/MR/1/SI - 2903733
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
16-channel relay module for Honeywell C300 output modules TDOB01 and TBOB11. On the controller side,
the module is controlled on a 37-pos. basis via D-SUB. A screw connection is available (marking: 1...48) on
the field side. Module width: 142 mm
Key Commercial Data
Packing unit
GTIN
GTIN
4046356760775
1 pc
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
142.3 mm
142.3 mm
65 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
Input data
Nominal input voltage U
N
Input voltage range in reference to U
N
Typical input current at U
N
Typical response time
Typical release time
Status display/channel
24 V DC
0.9 ... 1.1
9 mA
5 ms
7 ms
Yellow LED
10/03/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/2903733
Active module - UM-D37SUB/M/HC3/16DO/MR/1/SI - 2903733
Technical data
Output data
Contact type
Contact material
Maximum switching voltage
Minimum switching voltage
Limiting continuous current
Min. switching current
Interrupting rating (ohmic load) max.
1 PDT
AgSnO
250 V AC/DC
12 V AC/DC
2 A (Ambient temperature of up to 30°C per path)
10 mA
48 W (24 V DC)
20 W (48 V DC)
18 W (60 V DC)
23 W (110 V DC)
40 W (220 V DC)
500 VA (250 V AC)
General
No. of channels
Mechanical service life
Operating mode
Mounting position
Assembly instructions
16
approx. 2x 10 cycles
100% operating factor
any
In rows with zero spacing
7
Connection data for connection 1
Connection name
Connection method
Number of connections
Number of positions
Controller level
D-SUB pin strip
1
37
Connection data for connection 2
Connection name
Connection method
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Number of connections
Number of positions
Field level
Screw connection
M3
0.2 mm² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
1
50
Supported controller
Corresponding control
Corresponding I/O card
HONEYWELL Experion PKS C300/C-Series
TDOB01 (non-redundant)
TDOB11 (redundant)
Standards and Regulations
Standards/regulations
DIN EN 50178
10/03/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/2903733
Active module - UM-D37SUB/M/HC3/16DO/MR/1/SI - 2903733
Technical data
Standards and Regulations
Rated insulation voltage
Rated surge voltage
Degree of pollution
Overvoltage category
260 V AC
4 kV (basic insulation)
2
III
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Diagram
2,5
2
Current [A]
Diagram
9
8
7
6
5
4
3
2
1
0
10
20
30
60
40
50
Ambient temperature [°C]
70
1,5
1
0,5
0
10
20
30
60
40
50
Ambient temperature [°C]
70
Current [A]
Max. continuous current [A]
Max. continuous current [A]
Derating curve: max. continuous current (per path)
Derating curve: max. continuous current (terminal block supply)
10/03/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/2903733
Active module - UM-D37SUB/M/HC3/16DO/MR/1/SI - 2903733

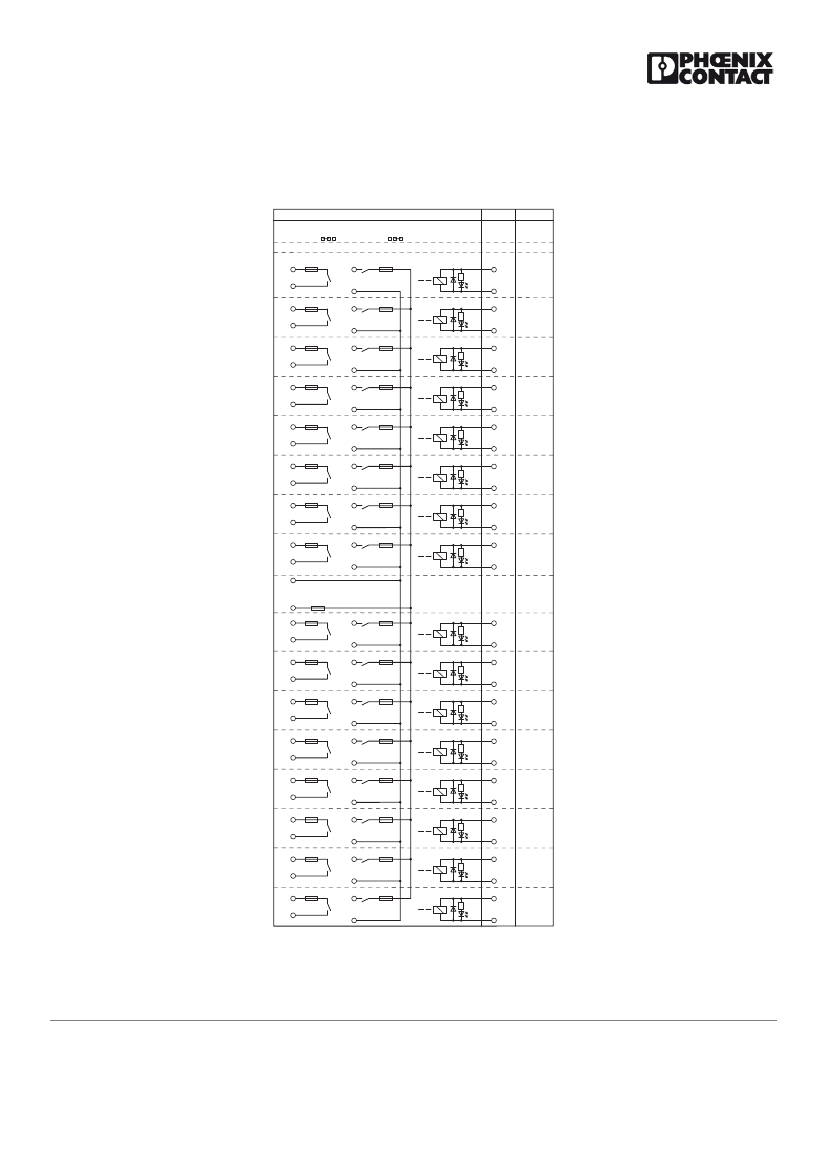

Circuit diagram
Channels 1 ... 16
Jumper position
per channel
1N/O
A/B
Jumper position
per channel
1N/O
B/-
X1
Channel
X10
1
2
4
5
7
X10
2
1
2A
3
5
2A
20
2
1
2A
6
8
2A
21
3
2
2A
8
9
11
2A
22
4
3
10
2A
11
12
14
2A
23
5
4
13
2A
14
15
17
2A
24
6
5
16
2A
17
18
20
2A
25
7
6
19
2A
20
21
23
2A
26
8
7
22
2A
23
V1-
24
2A
27
8
V1+
25
8A F17
26
9
2A
26
27
29
2A
28
10
9
28
2A
29
30
32
2A
29
11
10
31
2A
32
33
35
2A
30
12
11
34
2A
35
36
38
2A
31
13
12
37
2A
38
39
41
2A
32
14
13
40
2A
41
42
44
2A
33
15
14
43
2A
44
45
47
2A
34
16
15
46
2A
47
48
2A
35
16
Approvals
Approvals
10/03/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/2903733
Active module - UM-D37SUB/M/HC3/16DO/MR/1/SI - 2903733
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
RU C-
DE.A*30.B.01742
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/03/2018 Page 5 / 5
