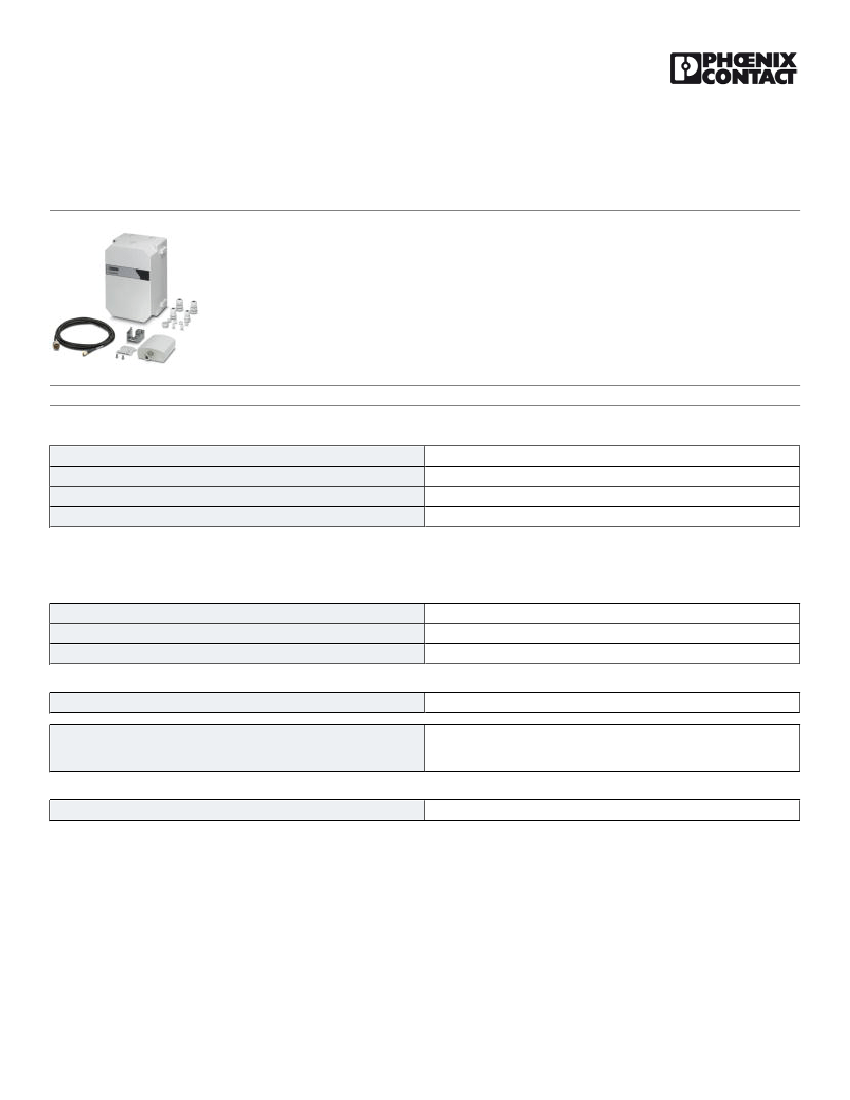

Control box - FL RUGGED BOX DIR-1 - 2701440
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Control box set for constructing wireless systems for industrial applications, incl. panel antenna and 3 m antenna
cable for 2.4/5 GHz, IP66, with DIN rail, plugs, and screw connections, with 100 ... 240 V power supply unit,
without devices
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
1960.0 g
85177011
Germany
Technical data
Dimensions
Width
Height
Depth
174 mm
254 mm
137 mm
Ambient conditions
Degree of protection
IP66
Control box (with bore holes incl. sealing plugs, screw connections, and
DIN rail), panel antenna incl. antenna cable and 100 ... 240 V AC power
supply unit incl. terminal block base
Wireless set
General
Housing material
Polycarbonate
04/19/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/2701440
Control box - FL RUGGED BOX DIR-1 - 2701440

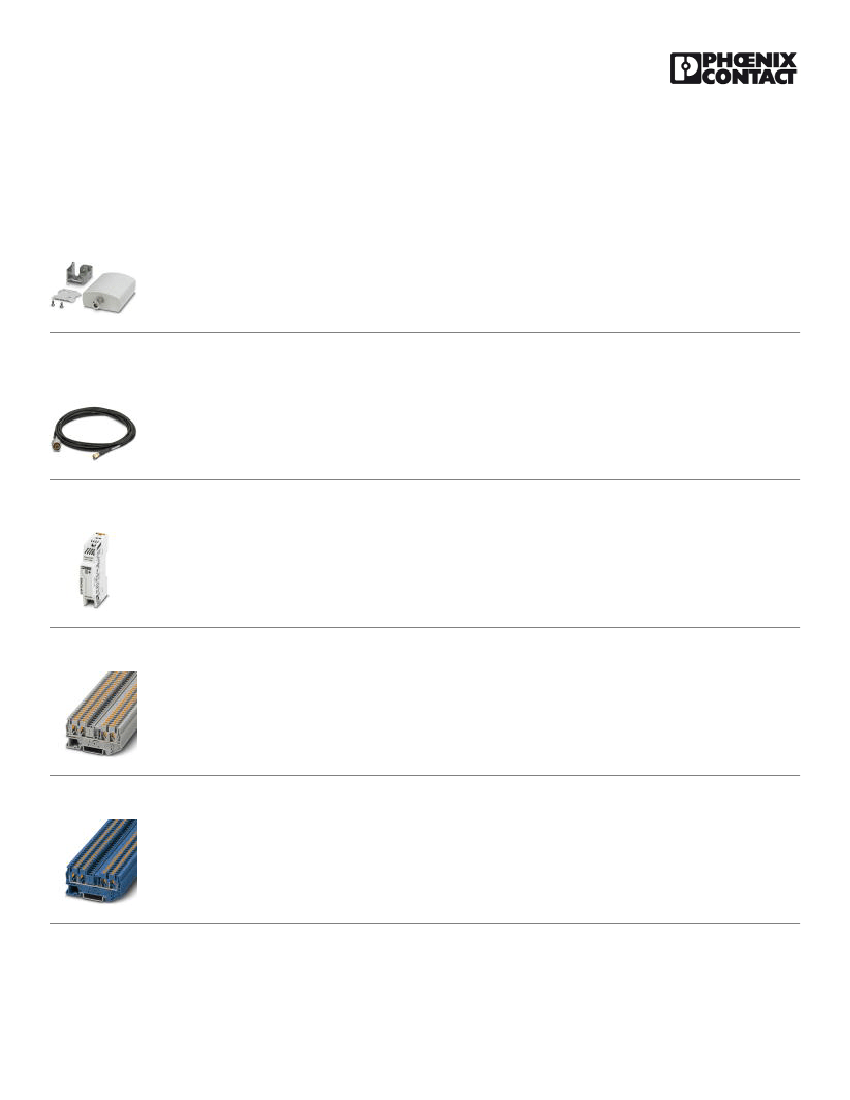

Articles in set
Antenna - ANT-DIR-2459-01 - 2701186
Panel antenna, 2.4/5 GHz, 9 dBi, linear vertical, N (female), IP67, incl. mounting bracket and mast clips for 25 mm -
85 mm diameter, stainless steel, ATEX & IECEx approval
Antenna cable - RAD-PIG-RSMA/N-3 - 2903266
Antenna cable, 3 m in length; N (male) -> RSMA (male), impedance 50 ohms
Power supply unit - STEP-PS/ 1AC/24DC/0.5 - 2868596
Primary-switched STEP POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/0.5 A
Feed-through terminal block - PT 2,5-QUATTRO - 3209578
Feed-through terminal block, Connection method: Push-in connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12,
Width: 5.2 mm, Height: 35.3 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Feed-through terminal block - PT 2,5-QUATTRO BU - 3209581
Feed-through terminal block, Connection method: Push-in connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12,
Width: 5.2 mm, Height: 35.3 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
04/19/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/2701440
Control box - FL RUGGED BOX DIR-1 - 2701440

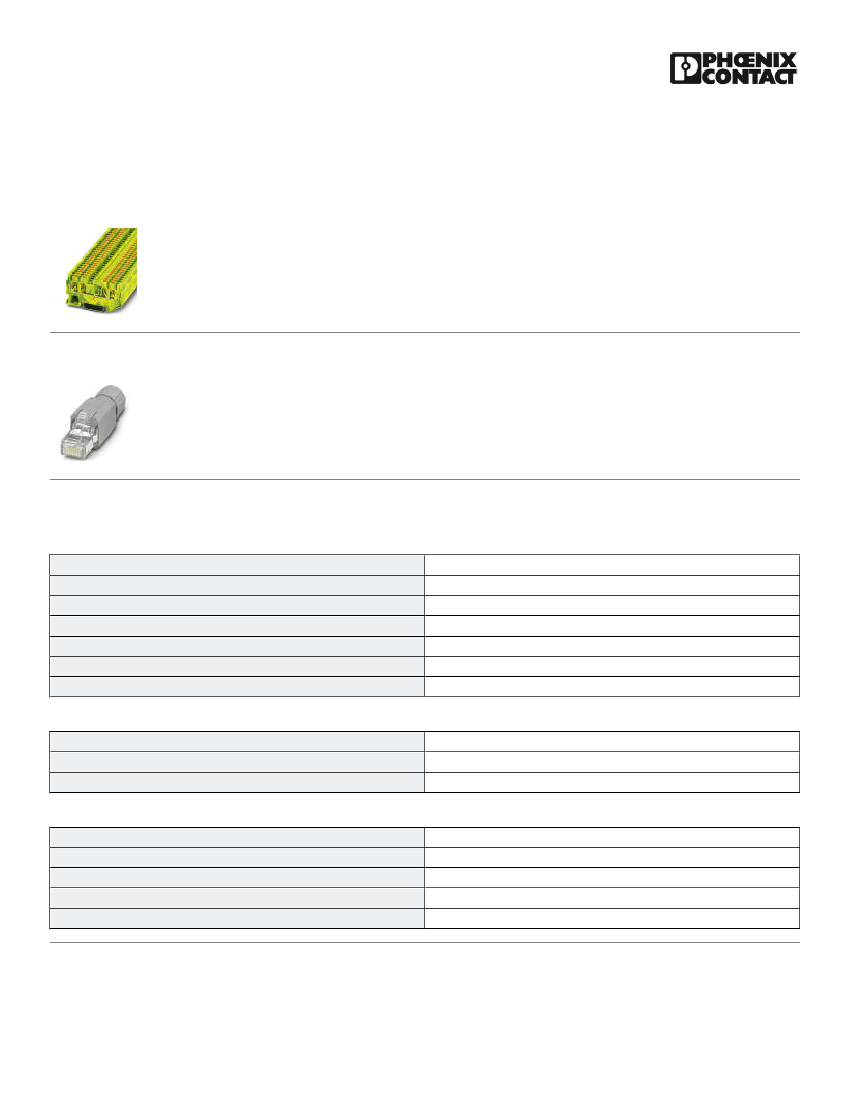

Articles in set
Ground modular terminal block - PT 2,5-QUATTRO-PE - 3209594
Ground modular terminal block, Connection method: Push-in connection, Cross section: 0.14 mm² - 4 mm²,
AWG: 26 - 12, Width: 5.2 mm, Height: 35.3 mm, Color: green-yellow, Mounting type: NS 35/7,5, NS 35/15
RJ45 connector - VS-08-RJ45-5-Q/IP20 - 1656725
RJ45 connector, Degree of protection: IP20, Number of positions: 8, 1 Gbps, CAT5 (IEC
11801:2002), Material: PA, Connection method: IDC fast connection, Connection cross section: AWG 26-23, Cable
exit: straight
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27240409
24010504
19030112
27242208
27242208
27242208
27144201
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001423
EC001358
EC001358
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172710
43223108
43172710
43223108
43223108
04/19/2016 Page 3 / 4
