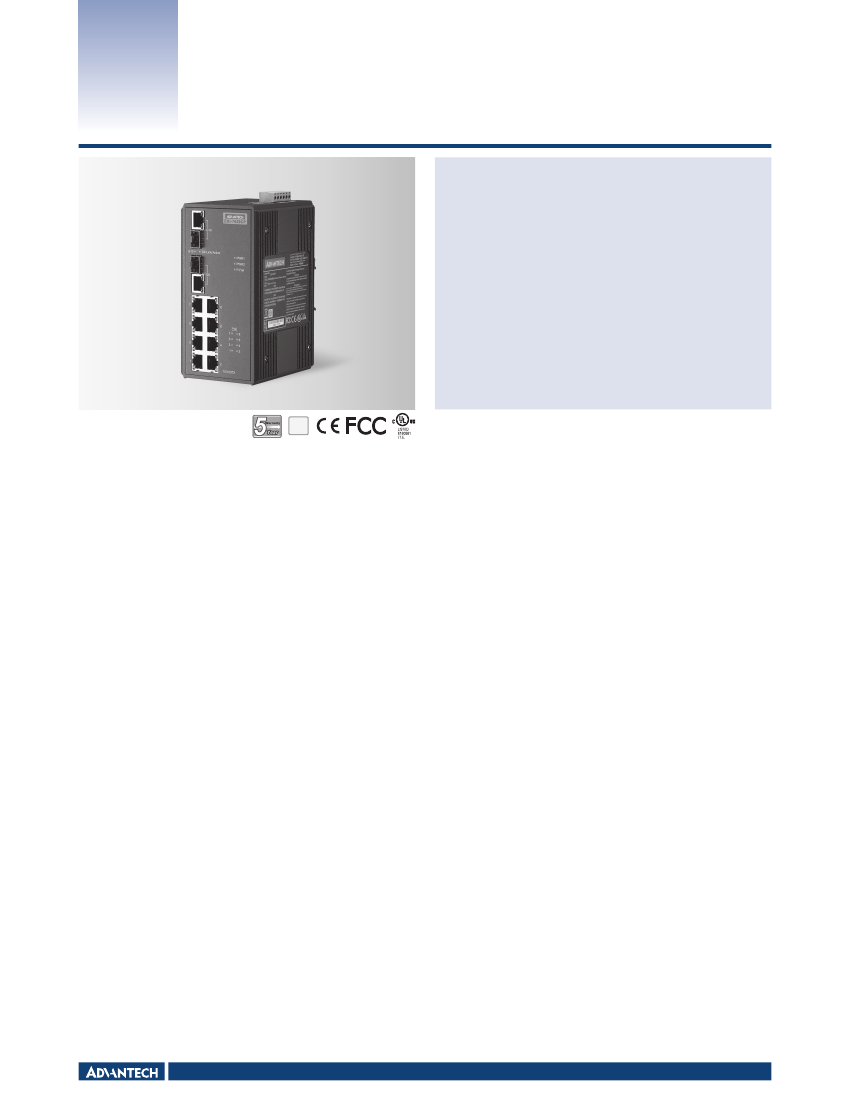

EKI-7629CP/CPI
8+2G Combo Port Gigabit Unmanaged
Industrial Ethernet PoE Switch
Features
Provides 2 Gigabit Copper/SFP combo port plus 8 PoE injector ports
SFP socket for Easy and Flexible Fiber Expansion
Supports Auto Negotiation and Auto MDI/MDI-X
Provides flexible mounting: DIN-rail and Wall mount
Supports Dual 48 V
DC
power input and 1 relay output
Supports wide operating temperatures from -40 to 75°C (EKI-7629CPI)
RoHS
2002/95/EC
COMPLIANT
Introduction
Aside from 2 Gigabit fiber optic/copper combo ports, the EKI-7629CP/CPI comes equipped with 8 x 10/100Base-TX fast Ethernet PoE injector ports. Traditional RJ45 ports can be
used for up-linking wide-band paths in short distances (< 100 m), or the appropriate replaceable SFP module can be used for the application of wideband uploading and long distance
transmissions to flexibly fit field requests. The long MTBF (Mean Time Between Failures) ensures low operation and maintenance cost. EKI-7629CP/CPI includes a switch controller
that can automatically sense transmission speeds (10/100 Mbps) The RJ45 interface can also be auto-detected, so MDI or MDI-X is automatically selected and a cross-over cable is
not required. All Ethernet ports have memory buffers that support the store-and-forward mechanism, which assures that data can be transmitted properly
Specifications
Communications
IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.3z, 802.3af
100Base-TX, 10/1000Base-T, Optional 100Base-FX,
1000Base-SX/LX/LHX/XD/ZX/EZX
Transmission Distance
Ethernet: Up to 100 m (4- wire Cat.5e, Cat.6 RJ45
cable suggested for Gigabit port)
Gigabit Fiber: Up to 110 km (depending on SFP)
Transmission Speed
Ethernet: 10/100 Mbps Auto-Negotiation
Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation
SFP: Up to 1000 Mbps
Standard
LAN
Protection
Reverse Polarity
Overload Current
Present
Present
Environment
Operating Temperature
Wide Temp. Model
Storage Temperature
Operating Humidity
Storage Humidity
MTBF
-10 ~ 60°C (14 ~ 140°F) (EKI-7629CP)
-40 ~ 75°C (-40 ~ 167°F) (EKI-7629CPI)
-40 ~ 85°C (-40 ~ 185°F)
5 ~ 95% (non-condensing)
0 ~ 95% (non-condensing)
267,793 hours
Interface
Connectors
8 x RJ45 (Ethernet) with 2 x RJ45/SFP (mini-GBIC)
combo ports
6-pin removable screw terminal (Power & Relay)
System: PWR1, PWR2, P-Fail, PoE
Gigabit Copper: Link/Activity, Speed (1000 Mbps)
Gigabit SFP: Link/Activity
Certification
Safety
EMI
EMS
UL 60950-1, CAN/CSA-C22.2 No.60950
FCC Part 15 Subpart B Class A, EN 55022 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6
http://www.advantech.com/legal/patent
LED Indicators
Power
Power Consumption
Power Input
Fault Output
116W (Full load PoE)
48 V
DC
, redundant dual inputs
1 Relay Output
Shock
Freefall
Vibration
Patent
Mechanism
Dimensions (W x H x D)
79 x 152 x 105 mm (3.11" x 5.98" x 4.13")
Enclosure
IP30, Metal shell with solid mounting kits
Mounting
DIN-rail, Wall
Ordering Information
EKI-7629CP
EKI-7629CPI
8+2G Combo Port Unmanaged Ethernet PoE Switch
8+2G Combo Port Unmanaged Ethernet PoE Switch
w/ Wide Temp
Industrial Ethernet Soultions
All product specifications are subject to change without notice
Last updated : 23-Aug-2016
