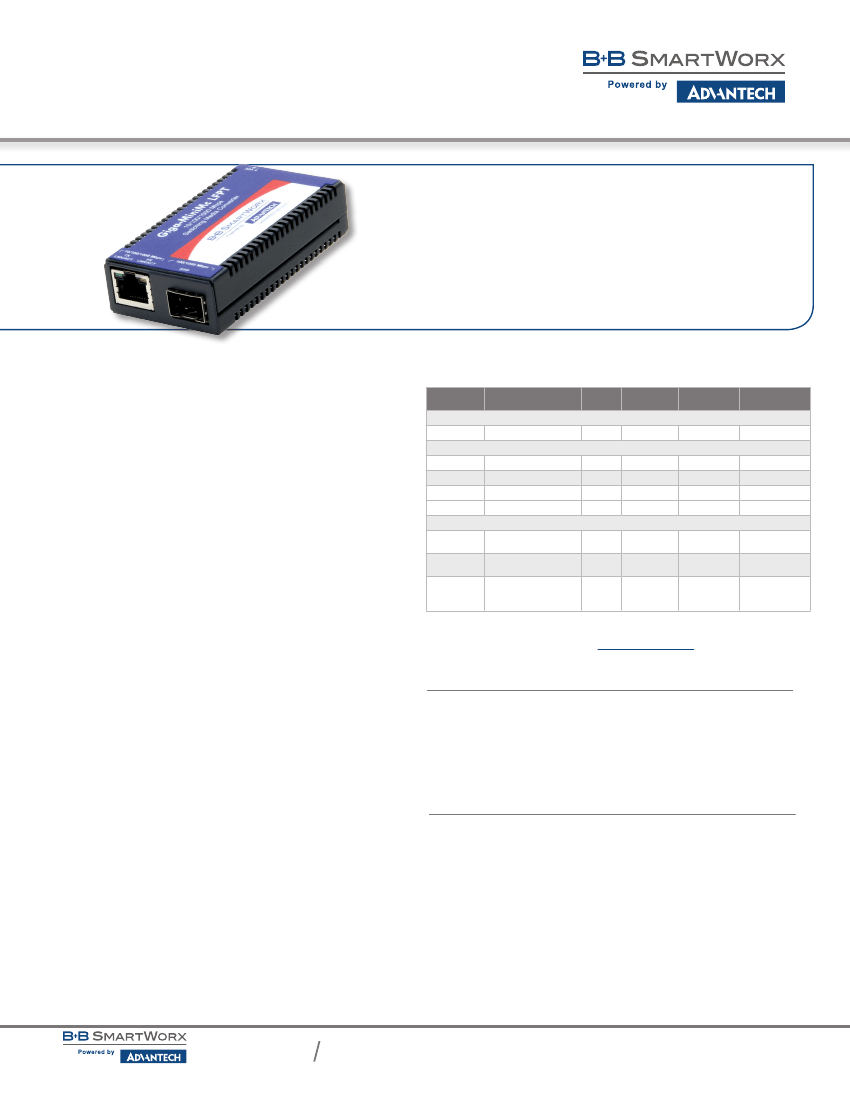

Smallest, Most Reliable Gigabit
Switching Media Converter
Giga-MiniMc LFPT
www.advantech-bb.com
PRODUCT FEATURES
•
•
•
•
•
•
One 1000Base-SX or SFP fiber port
One 10/100/1000 Mbps twisted pair port
AutoCross automatic selection between crossover or
straight-through connection
Status LEDs
LFPT
Power Options: AC adapter, Dual USB cable, IE-PowerTray/18
Media conversion is the most cost-effective solution for extending the
productive life of legacy wiring plants and equipment while allowing
implementation of new technologies. Media conversion’s greatest benefits
are flexibility and cost savings. A 10/100/1000Mbps copper to fiber converter,
the Giga-MiniMc offers flexibility, Plug-and-Play, and can be powered with an
AC adapter, dual USB cable or installed in a PowerTray/18 chassis.
Measuring less than 3.5 inches deep and 2 inches wide, and having both
data connections on the same side of the unit—the Giga- MiniMc-LFPT
is the industry’s smallest media converter at a fraction of the cost of other
alternatives. Link Fault Pass Through (LFPT) is permanently enabled and is
a useful diagnostic feature that assists the network administrator in indicating
a fault condition on a given segment between the interfaces. Plug-and-play
operation with a variety of model types and powering options make the Giga-
MiniMc LFPT easy and convenient to use.
ORDERING INFORMATION
MODEL
FIBER RANGE
FIBER
NUMBER
PORTS
Giga-MiniMc - with SFP/LFPT
856-11700 SFP
1
Various
Giga-MiniMc LFPT - Multi-Mode/Single-Mode
856-11701 SX-MM850-SC
1
220/500 m
856-11702 MM1300-SC
1
5 km
856-11703 SM1310-SC
1
10 km
856-11704 SM1310/PLUS-SC
1
40 km
Giga-MiniMc LFPT - Single-Strand
856-11710 SSLX-SM1310-SC
1
15 km
(1310xmt/1550rcv)
856-11711 SSLX-SM1550-SC
1
15 km
(1550xmt/1310-SC)
SSLX-SM1310/
856-11714 PLUS-SC
1
40 km
(1310xmt/1550rcv)
ETHERNET
PORTS
1
1
1
1
1
1
1
1
ETHERNET
CONNECTOR
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
** SFP fibers sold separately - available at
www.advantech-bb.com
ACCESSORIES
806-39105
- DIN Rail Clip
806-39638
- Double-USB Power Cable, 36 inch / 0.9m
806-39650
- 12 inch / 0.3m Barrel-Connector Power Cable
850-13086
- IE-PowerTray/18-AC (-20 to +70 °C), 18-slot AC powered chassis
895-39229
- Wall Mount Bracket
All product specifications are subject to change without notice.
Giga-MiniMc LFPT_1917ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Smallest, Most Reliable Gigabit
Switching Media Converter
Giga-MiniMc LFPT
SPECIFICATIONS
TECHNICAL
Plug-and-play operation
RJ45 and SC or SFP connectors
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-LX or SX fiber
MTU: Supports up to 1536 (fixed fiber)
Country-specific, high-reliability power adapter
Auto-Cross for MDI/MDIX
Layer 2 packet switching, Store and Forward (Forwarding Rate: 1,488,096 pps for 1000
Mbps)
Status LEDs
MECHANICAL
Dimensions
Shipping Weight
POWER
5 VDC, 600mA
120 VAC, 0.1A
ENVIRONMENTAL
Operating Temperature:
Storage Temperature
Operating Humidity
REGULATORY APPROVALS
FCC Class A
UL/cUL, CSA, CE
MEANTIME BEFORE FAILURE (MTBF)
MTBF
659,439 hours
+32 to +122 °F (0 to +50 °C)
-31 to +167 °F (-35 to +75 °C)
5% to 95% (non-condensing)
0.83H x 1.80W x 3.35D inches
(2.11H x 4.57W x 8.51D cm)
0.7 lbs (0.317 kg)

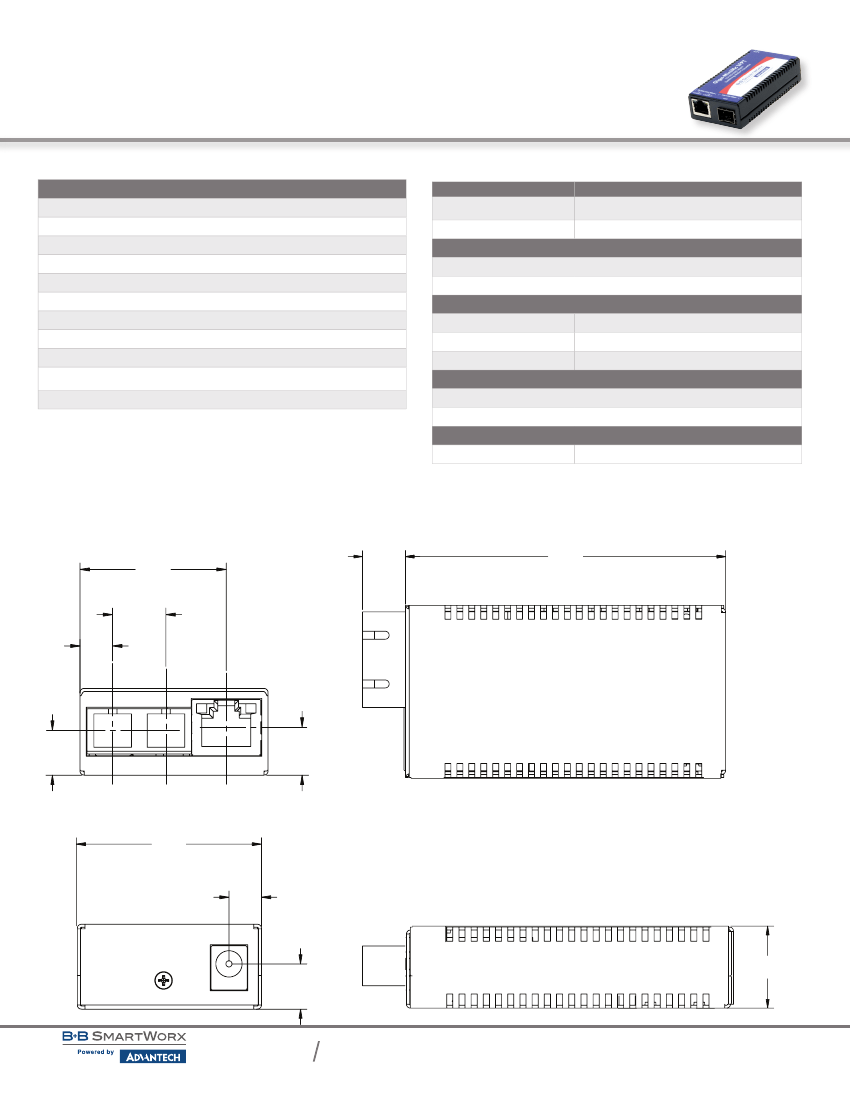

MECHANICAL DIAGRAM
(dimensions in inches & millimeters)
.45
(11.4)
3.35
(85.1)
1.40
(35.6)
.51
(12.9)
REF
.31
(7.9)
.43
(11.0)
.46
(11.7)
1.81
(46,0)
.32
(8,1)
.44
(11,2)
.84
(21,3)
